Elscint Automation    Pune 411026  India

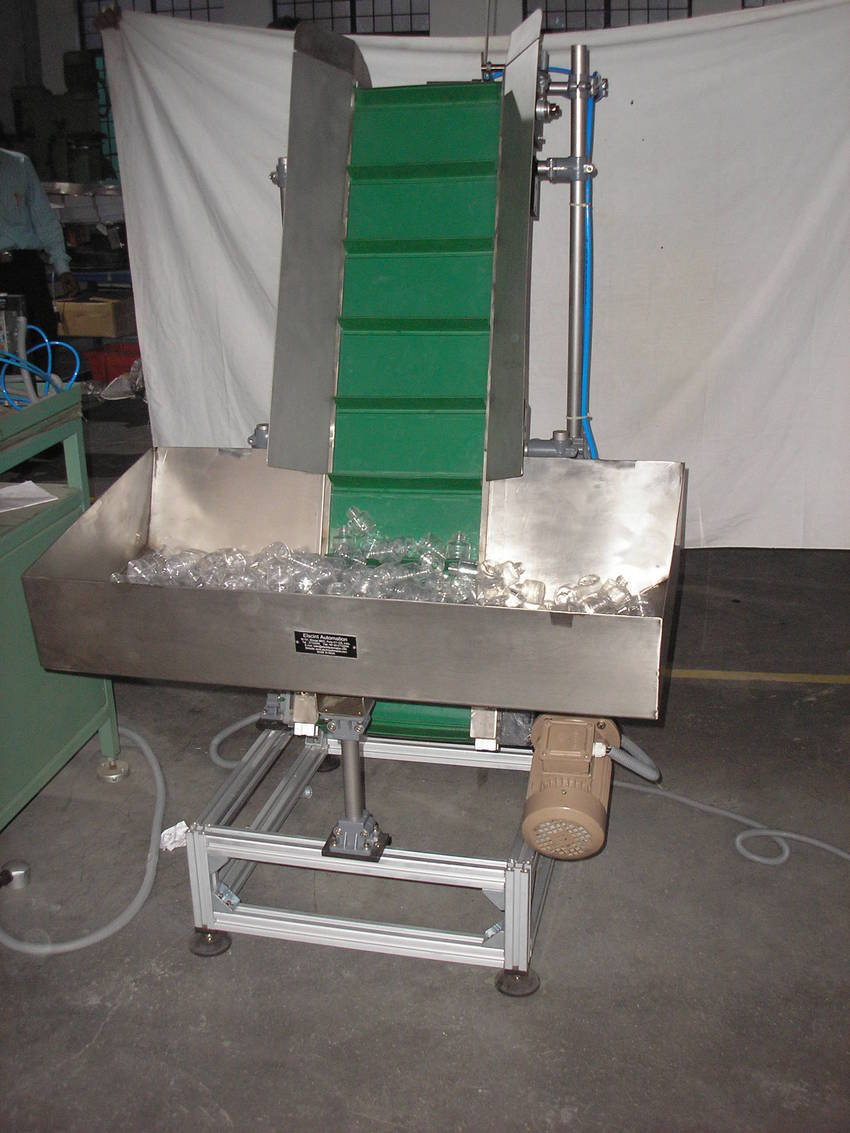

Jun 02, 2010 Available in widths of 150, 200, 300, and 400 mm, Elevator Feeder has hopper capacities ranging from 75-200 L and suits bulk feeding of light metallic parts. Height of elevator is adjustable along with degree of inclination, while integrated level sensor controls feeder and provides start/stop operation. Constructed of extruded aluminum, feeder features modular plastic inclined conveyor belt, geared motor, and can be supplied with optional variable speed controller.

AICSYS, INC (Advanced Industrial Computer Systems)    Taipei Hsien   Taiwan

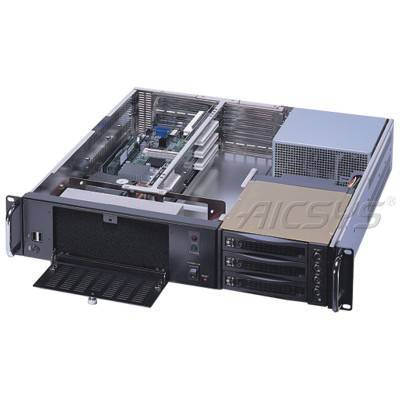

Jun 02, 2010 Designed to support PICMG backplane and full-size SBC, RCK-202B can accommodate up to two 5.25 or three 3.5 in. internal drives and meets EIA RS-310C 19 in. rackmount standard. I/O expansion can be configured via optional 2 or 4-PCI slots on PICMG backplane, while two 8 cm replaceable high-speed ball bearing fans provide ventilation for heat sensitive applications. Made of heavy duty steel with Ni plating, chassis has lockable front door and PS/2 or hot swap redundant power supply.

Ironwood Electronics, Inc.    St. Paul, MN 55121

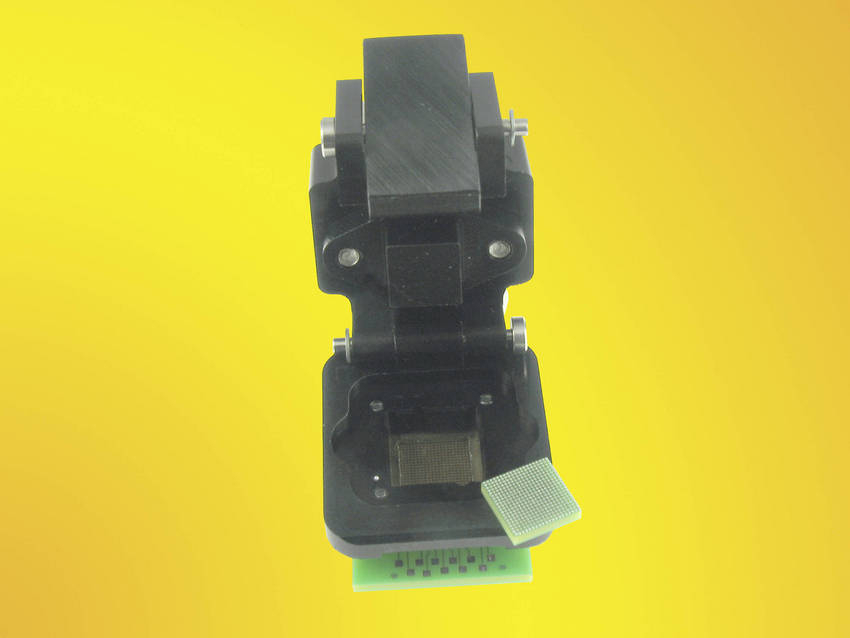

Jun 02, 2010 Designed for 8 x 8 mm package size, CG-BGA-5009 socket for 0.4 mm pitch BGA 400 pin ICs connects all pins with 10 GHz bandwidth on all connections, with less than 1 dB of insertion loss. Socket offers pin self inductance of 0.11 nH and mutual inductance of 0.028 nH, 0.028 pF capacitance to ground, and current capacity of 2 A per pin. Featuring integrated heat sinking mechanism, unit has -35 to +100°C temperature range and mounts on target PCB using supplied hardware with no soldering.

BVM Ltd    Southampton Hampsh SO30 0GH  United Kingdom

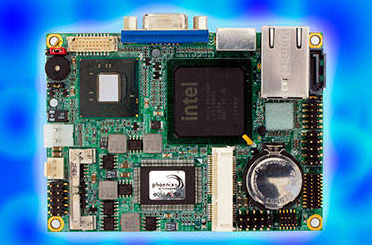

Jun 02, 2010 Measuring only 100 x 72 mm, LP-170 supports Intel Atom N450, D410, or D510 processors, running at 1.66 GHz with either 2 (N450) or 4 GB of SDRAM. Integrated Intel extreme GMA3150 graphics processor shares up to 384 MB of system memory, supporting external 1400 x 1050 display and HD video up to 720 pixels. Running on 12 Vdc external power supply, board operates in fanless mode. Peripherals include, Gigabit LAN socket, 4 x USB2.0 ports, SATAII interface, and CompactFlash Type II socket.

Spinnaker Coating    Troy, OH 45373
Jun 02, 2010 Exhibiting high tack, SureLock(TM) adheres to textured surfaces without being gummy, and works in variety of hard-to-stick-to applications. Adhesive runs with less build-up on press and has flat release profile for clean dispensing. Available trimless in variety of formulations, adhesive can be used on lumber, carpet front and carpet back, plastic woven bags, ABS plastic, plywood, tile, burlap, and cement.

Spartan Scientific Inc.    Boardman, OH 44512
Jun 02, 2010 Available with orifice sizes of 20-25 mm and port sizes of ¾ and 1.0 in. NPT, pilot diaphragm-operated Series 4700 valves suit high flow applications such as condensation removal, carwashes, autoclaves, and irrigation control. Offered with standard manual override, valves operate in pressure range of 4.5-220 psi and have flow factor of 9.1-14 Cv, depending on port size. Normally open or normally closed, 2 way, 2 position valves have ambient temperature range of -15 to +50°C.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jun 02, 2010 Used in development of high-frequency and high-speed electronic devices, EMPro 2010 analyzes 3D EM effects of IC packages, connectors, antennas, and other RF components. It includes FEM simulations that use symmetry planes as well as sheet ports and material property models that maximize FEM accuracy. Bondwire component, ODB++ file support for PCB designs, and more improve design efficiency. Software is compatible with Windows® 7.

Page Technology Marketing, Inc.    San Diego, CA 92130
Jun 02, 2010 PCLTool SDK v9.0 allows developers to implement and integrate PCL applications into range of document imaging, output management, and print stream optimization solutions. Optimization routines scale down large PCL files, which speeds printing and transformation to other formats. Software includes HotDirZ print file capture utility to watch multiple folders and launch applications. Capturing print manager data, port monitor automatically inserts it into PCL print stream as PJL comments.

Advanced Micro Peripherals    New York, NY 10001
Jun 02, 2010 VGASTANAG module converts non-interlaced VGA output of up to 1,280 x 1,024 SXGA resolution from any standard graphics source to STANAG 3350-compliant signals. All three STANAG frequencies - Class A/B/C - are available in standard or extended temperature versions of this PCI-104 form factor module, and no device driver software is required. In addition to timing generator, features include analog signal digitization, video scaling, frame rate conversion capabilities.

Technical Toolboxes    Houston, TX 77098
Jun 02, 2010 Intended for engineers that work with gas and liquid/product pipelines and gas distribution systems, Pipeline Toolbox Gas, Liquid, and Enterprise Edition v12.0 provides suite of tools to solve pipeline design, analysis, maintenance, and related engineering problems. Program includes modules for Concentrated Point Load, Distributed Surface Static, Timoshenko Equation, Installation of PE Pipe by Horizontal Directional Drilling, and DOT/CMA/MMS Standards and Regulations.

SlimWare Utilities    D'Iberville, MS 39540
Jun 02, 2010 As all-in-one cleaning utility, FixCleaner v2.0 repairs, updates, and stabilizes PCs. Updating utilities include patch support for one-stop software update control, junk-file cleaning, and performance gauges for tracking progress of cleaning and scanning. Removing software records no longer installed helps prevent system errors, while removing temporary junk files and bulk data frees up disk space. Also, functionality helps optimize start-up and Internet settings for less delay.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jun 02, 2010 Suited for wireless headphones and speakers, PurePath(TM) CC8520 features 2.4 GHz system-on-chip that transmits uncompressed CD-quality wireless audio over RF link with no unwanted noise or dropouts. Unit coexists with Bluetooth®, WLAN, and other 2.4 GHz devices and features low latency for optimal synchronization between audio and video. Housed in 6 x 6 mm QFN-40 package, 2-channel transceiver supports 16-bit, 44.1 KHz or 48 KHz audio without any compression.

Vectron International    Hudson, NH 03051
Jun 02, 2010 Suited for base station and test and measurement applications, Super Single MX-041 achieves temperature stability of ±0.6 ppb over -40 to +85°C while minimizing power consumption. Unit produces short- and long-term stability with ADEV performance of 3e-12 at 1 sec along with long term aging of 10 ppb per year. Housed in 50 x 50 x 14.55 mm package, oven controlled crystal oscillator operates from supply voltage of +5 or +12 V and is available with HCMOS or Sinewave output.

Dassault Systemes    Suresnes Cedex BP 310, 92156  France
Jun 02, 2010 Abaqus v6.10 supports virtual tests that accurately predict real-world behavior of materials and product designs. Multiphysics capability for CFD enables users to perform coupled physics simulations with Abaqus/Standard and Abaqus/Explicit, such as thermal analysis of electronic systems undergoing convection cooling. Realistic fracture and failure analysis features are offered, and product also offers extended finite element method that simplifies modeling of composite materials fracture.

Genedata AG    Basel CH-4016  Switzerland
Jun 02, 2010 Featuring Refiner MS module capabilities for direct integration with mass spectrometry search engines, Genedata Expressionist v6 provides platform for real-time biomarker discovery. Predefined workflow systems and visualization enhancements promote usability and provide intuitive omics analysis. Scalable solution offers single point of access for experimental, proprietary, and public data: sample information, raw/pre-processed data, and analyses results with reports and documentation.

Arcadis    Aiken, SC 29803
Jun 02, 2010 BalancE3(TM) Tool quantifies green remediation based on EPA's 6 core elements of environmentally preferred remediation, and also includes health and safety and lifecycle cost metrics. Individual measurements are used in creating common currency or single unit of measure for sustainability. Continuously calculating sustainability metrics, scalable program lets users benchmark and track progress over time for metrics including core elements as well as budget, timeline, and safety.

Federal-Mogul Corp.    Southfield, MI 48034
Jun 02, 2010 Compliant with UL 1441 VW-1 flame test, PET yarn meets halogen-free, flame-retardant regulations and no flaming drip requirement. Product supports processing and functional requirements for textiles used in both interior vehicle trim and wiring harness insulation in land, water, and air vehicles. It features 2 melamine-based, flame-retardant materials which, when burned, char so that burning drips don't form. Constituents of material also vaporize, diluting oxygen that can feed fire.

Freewave Technologies, Inc.    Boulder, CO 80301
Jun 02, 2010 Model FGR2-PE spread spectrum radio offers 2 ports each of active serial and Ethernet wireless connectors for long distance communication in Smart Grid applications. It also provides AES encryption and low power consumption, making it suitable for remote use. Industrial-grade, small, rugged enclosure offers mounting and installation options. Radio is suitable for use in alternative energy markets as well as SCADA applications in markets such as water/wastewater and oil and gas.

GarrettCom, Inc.    Fremont, CA 94539
Jun 02, 2010 Suited for transportation applications, hardened Magnum 6KM Switches feature four 10/100 M12 copper ports and M12-type heavy-duty screw-type port connectors. MNS-6K Managed Network Software provides secure web management, 802.1p QoS prioritization, tag-based VLANs, IGMP snooping, and IGMP-L2 multicast management. Packaged in fully enclosed steel case that acts as heat sink, switches operate from -40 to 195°F, are immune to EMI, and include IP52 rating for dust and dirt resistance.

Kaazing Corporation    Mountain View, CA 94041
Jun 02, 2010 Kaazing WebSocket Gateway enables companies to deploy distributed, dynamic, and scalable applications. Enterprise-grade Web infrastructure software, leveraging WebSocket Acceleration(TM) technology, makes it possible to reliably extend any TCP-based messaging protocol to Web without new hardware. Facilitating full-duplex, bi-directional Web communication, software reduces unnecessary network traffic and supports over one million concurrent users per gateway.
