Signal Transformer Co., Inc.    Inwood, NY 11096
Feb 09, 2012 Available in low profile versions, SMD Wire Wound Power Inductors exceed industry standards for thermal shock resistance, moisture, and shock/vibration. Single- and dual-winding units feature inductance from 0.01 µH to 10 mH, current ratings from 4 mA to 70 A, and DC resistance from 2 mW to 140 W. With heights ranging from 1-12.3 mm, shielded and unshielded devices are suited for DC/DC converters, switching power supplies, telecommunications equipment, computers, and printers.

Lap-Tech    Bowmanville, ON L1C2J3
Feb 09, 2012 Inherently non-conducting and insulated from adjacent components, Model HC-26/U is sealed by heat, fusing glass envelope to glass base while under vacuum. Resulting hermetically sealed crystal features 4.90 mm lead pitch, frequency range of 4-220 MHz, and operating temperature of -40 to 200°C. Measuring 13.46 x 10.40 x 4.10 mm, impermeable enclosure is suited for RF systems and manufacture of oven controlled crystal oscillators.

Acuity Brands Lighting, Inc.    New York, NY 10001
Feb 09, 2012 Replacing 100-400 W metal halide luminaires, D-Series Size 1 LED Luminaire features modular design to facilitate maintenance and light engine upgrades. Unit is available with dimming capabilities and ROAM® wireless monitoring and control compatibility. Finished in zinc-infused powder coat paint that resists corrosion and weathering, luminaire produces zero uplight, consistent with LEED® and Green Globes® criteria. Applications include parking lots, plazas, campuses, and streetscapes.

The Reynolds & Reynolds Co.    Dayton, OH 45430
Feb 09, 2012 Intended for automotive retailers, ERA-IGNITE features advanced GUI to help dealerships optimize productivity and profitability. Windows-based program includes Retail Management Intelligence, which puts critical business information at decision-makers' fingertips. As complement to standard application reports and user-defined reports available in Retail Management Intelligence, Dashboard Reporting feature offers up-to-the-minute snapshots of dealership departments and critical business processes.

3M Co.    Springfield, MO 65802
Feb 09, 2012 With adhesive technology that delivers reliable surface adhesion and thermal stability, 3M(TM) Protective Laser Tape provides temporary protection for various finishes of stainless steel, carbon steel, and aluminum sheets during laser cutting and storage. White polyolefin film is coated with high-performance adhesive, and this combination helps prevent ballooning, edge shredding, and other problems. Tape produces no volatile organic compounds during manufacturing process.

Endress + Hauser Inc.    Greenwood, IN 46143
Feb 09, 2012 Through Installed Base Audit Program, experts will survey plant, document all installed instruments and analyzers, recommend maintenance and calibration procedures, and provide plant with complete instrumentation support package. Plant gets organized W@M database with collected data, optimizing traceability and continued management of installed devices. Service simplifies measurement device maintenance, helps plant conform to various regulations and safety requirements, and helps minimize TCO.

Maxim Integrated Products    Sunnyvale, CA 94086
Feb 08, 2012 Available in 16-pin QSOP, Models MAX16919/MAX16969 feature iPod®/iPhone® fast-charge detection, which supports Hi-Speed USB at 480 Mbps and full-speed USB at 12 Mbps, enabling users to recharge USB devices while driving. Units also provide integrated host-charger detection circuitry and adjustable current capability of 3 A. With short-to-battery and short-to-ground protections, ICs are suited for automotive radio, navigation, connectivity, and USB hub applications.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Feb 08, 2012 Combining resistance values from 100-750 µW with 3 W power capability in 3124 size package, Power Metal Strip® WSMS3124 is designed for industrial and consumer single- or multiphase energy meters. It features 5-terminal connection design, all-welded construction, and offers very low inductance values of less than 0.5 nH and low thermal EMF of less than 3 µV/°C. Device is lead-free and RoHS-compliant. Physical shape results in very low TC down to 75 ppm/°C.

Banner Engineering Corp.    Minneapolis, MN 55441
Feb 08, 2012 Rotating and strobing models of EZ-LIGHT® K50 Beacon are viewable from all directions and designed for areas with high ambient light, including outdoor environments. While both models offer solid ON function, rotating models offer 2 rotating speeds. Similarly, strobe models offer single/double strobe function in addition to also emitting light from top. Other features include 12-30 Vdc operation as well as cabled or quick disconnect options.

AZCO Corp.    Fairfield, NJ 07004
Feb 08, 2012 Driven by servo motor, Modular Punch Station uses through hardened punch and die tooling for precision cuts. Roll of base material is placed on motorized unwind, and as dancer moves, unwind feeds out material to set of idler rollers. Servo driven nip rollers pull material through punch station, and motorized rewind winds material onto cardboard core. Operating from 110 Vac, station is mounted onto base plate and all functions are controlled via color touchscreen.

TDK-Lambda Americas Inc.    San Diego, CA 92154

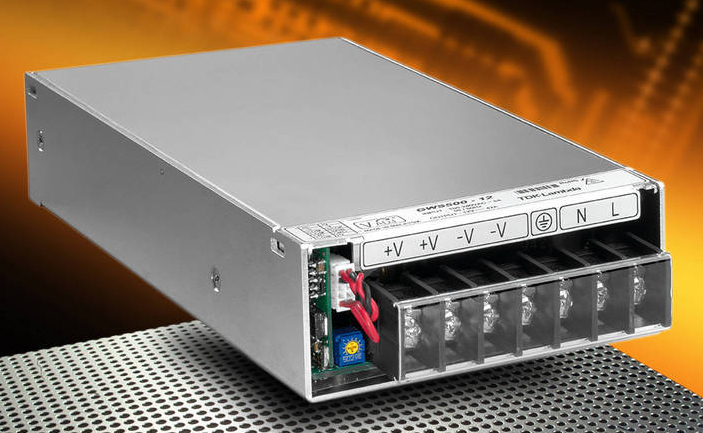

Feb 08, 2012 Supplied in 4.1 x 8.6 x 1.6 in. package, GWS500 series includes AC/DC, forced air-cooled power supplies with nominal outputs of 5, 7.5, 12, 24, 36, and 48 V that achieve up to 90% efficiency. Output is user-adjustable, via built-in adjustment potentiometer or by injecting external programming voltage, to accommodate non-standard system voltages. Where peak power is needed, 24 and 36 V models can deliver up to 600 W for 10 sec. No-load standby power consumption is less than 0.5 W.

The Hudson-Sharp Machine Company    Green Bay, WI 54304
Feb 08, 2012 Able to cycle 400+ cpm, 5750 HS (High Speed) Servo Wicketer produces high-quality stacks of bags. In addition to wicket punch capabilities and threading system, features include seal bar cleaning system that can be programmed to automatically remove debris from stainless steel seal bar to reduce downtime. System offers fast changeovers, low scrap, and is suited for high speed automatic packaging lines.

M/A-COM Technology Solutions, Inc.    Lowell, MA 01851

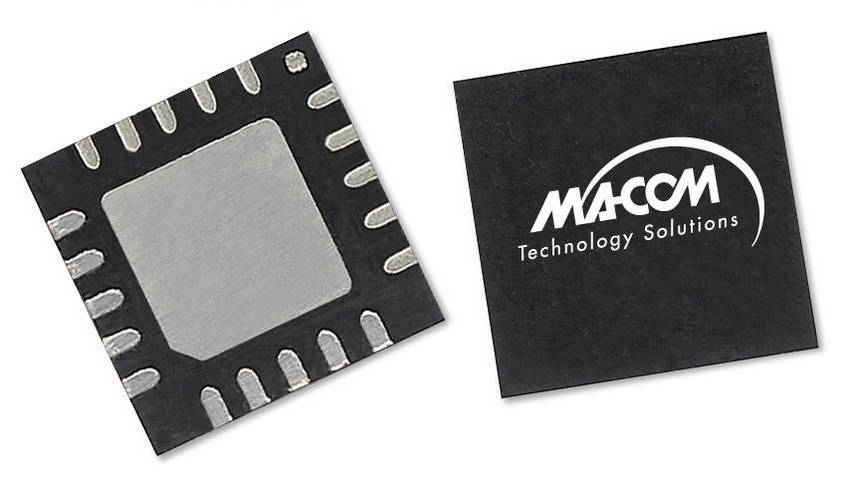

Feb 08, 2012 Supplied in 5 mm, 20-Lead PQFN package, MAAP-008924 three-stage, 1.2 W GaAs power amplifier (PA) is fully matched to 50 ohms on input and output and provides high output IP3 (44 dBm) while maintaining low DC power consumption. Product, fabricated with MESFET Process, operates in 10-13.3 GHz frequency range and can be used as PA stage or driver stage. Quiescent current rating is 1,000 mA, and other specifications include 12 dB input return loss, 10 dB output return loss, and 20 dB gain.

Applimotion, Inc.    Loomis, CA 95650
Feb 08, 2012 With resistances down in milliohm range, ULT, UTH, UTS, and UTO Frameless Motor Kits are suitable for battery-operated systems ranging from propulsion to accessories in light EV systems. Frameless kits cover sizes from 7.5-533 mm diameter and torque outputs that exceed 1,000 nm. By modifying wire gage, motors can be optimized for 12-600 V applications.

Larson Electronics, LLC    Kemp, TX 75143
Feb 08, 2012 LEDP5W-12LT is portable, rechargeable LED light tower producing 5,556 lumens from single IP 67 rated 60 W LED light head, which contains twelve 5 W LEDs and is adjustable through 270° of vertical movement. Light can be recharged from 115 Vac or 12 Vdc power sources and features onboard 33 Ah AGM sealed-lead acid battery. Constructed of extruded aluminum, it is designed for operators in construction, utility and first responder applications.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Feb 08, 2012 Using 89600 VSA (vector signal analysis) software release 15, N7109A covers emerging multichannel LTE, LTE-Advanced, and MIMO RF measurement requirements by delivering phase synchronous measurements with up to 8 RF channels in one mainframe and independent center frequency tuning for each tuner module. Software provides general-purpose and standards-based tools for evaluating signal spectrum, modulation, and time characteristics, enabling physical-layer signal problem troubleshooting.

Superior Glove Works Ltd.    Orchard Park, NY 14127
Feb 08, 2012 Clutch Gear® glove, designed for Oil and Gas industry, has thermoplastic foam rubber patches at back of hand to specifically protect areas where impacts occur, fostering full flexibility for wearer. While PVC SureGrip® palm patches offer cushioned grip, entire length of thumb crotch features Kevlar® patch that extends life of high-wear area. Features also include 2 in. Neoprene cuffs, waterproof Enprotex® liner at center, and Kevlar® interlock knit lining with ASTM level-2 cut resistance.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Feb 08, 2012 Available in either ¼ or ½ in. NPT connections with ranges up to 100 scfm, Series DTFA offers ±5% FS measurement accuracy and ±1% FS repeatability. Flowmeter features 2.5 in. dia dial face and is constructed with aluminum body to withstand system pressures up to 3,000 psig. Reliability is further promoted via PTFE-coated spring and magnet, 302 SS range spring, acetal metering cone, and Buna seals. Pre-calibrated for horizontal in-line mounting, product has -40 to +200°F temperature limit.

OKW Enclosures, Inc    Bridgeville, PA 15017

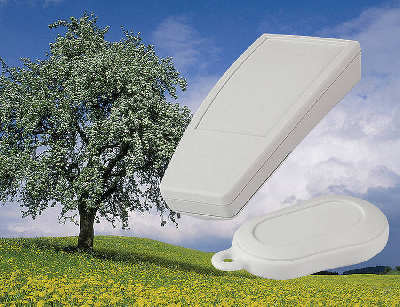

Feb 08, 2012 Using BIOGRADE® C7500 plastic produced by FKuR Kunststoff GmbH, Plastic Enclosures experience no life cycle restrictions in indoor applications. Biodegradable biomaterial is entirely manufactured from renewable raw materials and is formulated to replace fossil plastics. Heat distortion temperature is as high as 123°C, and customer-specific coloring is possible through use of 15 natural dyes.

Larson Electronics, LLC    Kemp, TX 75143
Feb 08, 2012 Constructed with corrosion-resistant aluminum pedestal base, Model HAL-PM-1X150LED-100 features 150 W LED lamp assembly that produces 14,790 lumens and will illuminate 18,000 ft² of workspace. Lamp is housed within aluminum fixture with hinged and heat-/impact-resistant tempered glass door. Supplied with 100 ft of SOOW cord featuring explosion proof plug, portable light is rated Class 1, Div 2, Groups C and D, and approved for wet areas and marine environments.
