LabTech Software LLC    Toledo, OH 43604
Jun 28, 2010 With tree-style menus and templates that streamline common functions and processes, LabTech 2010 Remote Monitoring, Management (RMM) and Automation software delivers functionality for scheduling, reporting, inventory management, and service ticketing. It supports detailed searches, exports/saves, and customization as well as access to LabTech server over HTTP connection. Features also include privacy options for end-user PCs and end-user interaction-optimized messaging system.

RSI Content Solutions    Norristown, PA 19403
Jun 28, 2010 Browser-based RSuite v3.5 facilitates creation, management, re-use, and distribution of XML, media files, and other document formats. Using search features, editors and publishers can drill down and locate content based on full-text, metadata, and XML fielded searching. Customers can also configure multiple search forms mapped to publishers' content. With personal clipboard feature, users can organize and work with select content in their own personal whiteboard space.

Tel-Tru Mfg. Co., Inc.    Rochester, NY 14605
Jun 28, 2010 Featuring 316L SS sensing element with silicon glass fused strain gauge, Models P612 and P622 are cCSAus Intrinsically Safe certified to Class I, Div 1, Groups A, B, C, and D. Model P612 can be ordered with pressure ranges to 10,000 psi and comes in accuracy classes of ±0.50, ±0.25, or ±0.15% of calibrated span. Available with pressure ranges to 1,000 psi, Model P622 has same features but is manufactured in accordance with 3A standards for sanitary applications.

SICK, Inc.    Minneapolis, MN 55438
Jun 28, 2010 Featuring plastic housing, suited for standard automation applications, MHTB15 sensor has housing length of 36.8 mm for M12 connector version and 35.8 mm for cable version. Model MHTB15V with stainless steel housing is designed for heavy wash down applications, and features 52.9 mm long housing with M12 connector. Sensors use custom ASIC that incorporates OES3 technology to provide background suppression at extended range of 300 mm, and high immunity to ambient light.

Atlas Copco CMT USA, Inc.    Commerce City, CO 80022

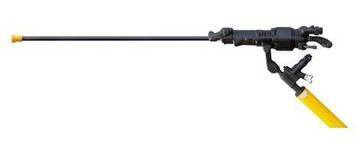

Jun 25, 2010 Model BBC 16 WS, BBD 34 WS, and BBD 94 WE are silenced light rock drills, intended for underground applications, that full comply with ATEX directive. Together with BMK 91RS pusher leg, BBD 94 WS model passes entire process according to directive 94/9/EC, while heavy duty stopers BBC 34 WS6 and BBC 34 WS8 are designed for tough working conditions in drilling, raise driving, and bolting applications and are suitable for medium to hard rock.

Avago Technologies    San Jose, CA 95131
Jun 25, 2010 Covering 38 and 42 GHz bands, SMT/WSD chipset integrates into point-to-point backbone radios. It includes high-directivity power detector in 0402 wafer scale package, up-converter with variable gain amplifier for 24 dB gain control, and 20 dB power amplifier with 1 W output. Buffer and multiplier, as well as low-noise receiver/down-converter (with noise figure under 4.5 dB), are also included. Chip packages measure 5 x 5 mm and are shipped in tape and reel.

Pericom Technology Inc    San Jose, CA 95134
Jun 25, 2010 Model PT7C4337 clock/calendar features 2 programmable time-of-day alarms and programmable square-wave output. Date at end of month is automatically adjusted for months with fewer than 31 days, including corrections for leap year, and clock operates in either 24 or 12 hr format with AM/PM indicator. Operating from 1.8-5.5 V, unit has oscillator stop flay function and external quartz crystal frequency of 32.768 kHz. Package options include SOIC-8, DIP-8, and MSOP-8.

Maxim Integrated Products    Sunnyvale, CA 94086
Jun 25, 2010 Providing high-speed LVDS signal routing for switchable graphics, MAX14979E features 8 pF on-capacitance and 4 W on-resistance to minimize return and insertion loss to preserve signal quality at high data rates. It also includes ±15 kV ESD protection on all pins, operating from 3.3 V supply over -40 to +85°C temperature range. Unit switches 4 lanes of high-speed LVDS and 3 sets of AUX signals, suiting it for routing signals from notebook PCs to external monitors.

Maxim Integrated Products    Sunnyvale, CA 94086
Jun 25, 2010 Model DS1876, with dual laser diode driver (LDD) interface, controls and monitors all transmitter functions for SFP+ optical modules and supports SFF-8472 specification. Automatic power control and laser modulation is controlled through 4 temperature-driven look-up tables with 10-bit DAC outputs. For each driver, unit monitors temperature, VCC, and transmit power and bias current, and also provides I²C-compliant interface to host system. It is specified over -40 to +95°C temperature range.

Littelfuse, Inc.    Des Plaines, IL 60016
Jun 25, 2010 Supplied in SOT23-3 and SOIC-8 packaging, respectively, single-channel SPLV2.8 and 4-channel SPLV2.8-4 Series protect sensitive Ethernet PHYs from lightning-induced transients and ESD. Both diode-compensated TVS arrays present loading capacitance of 3.8 pF to minimize signal degradation while providing up to 24 A (tP=8/20 µs) of lightning or surge protection. Additionally, both devices protect up to ±30 kV and have max reverse standoff voltage of 2.8 V with leakage of 1 µA max.

Lincoln Electric Co. Inc., The    Cleveland, OH 44117
Jun 25, 2010 Flextec(TM) 450 features Flexible Technology(TM) that delivers up to 500 A welding power. Portable system is capable of stick, Touch Start DC TIG®, MIG, and flux-cored welding, as well as arc gouging with up to 3/8 in. carbon. Featuring compact, IP23-rated case, it has sunlight-readable digital ampere and volt meters and selectable hot start allowing operator to turn it off for thin materials or on for when extra starting amperage is needed. Unit operates in temperatures up to 131°F.

Leviton Manufacturing Co., Inc.    Little Neck, NY 11362
Jun 25, 2010 Suited for environments requiring centralized lighting control, GreenMAX(TM) panels are fully integrated systems with relay cabinets and inserts, command modules, handheld display unit, power supplies, relays, and digital switches. Each panel controls up to 32,000 smart relays, options for which include integrated dimming, daylight harvesting, and smart metering. Integrated dimming and switching capabilities, along with daylighting and smart metering features, promote energy efficiency.

Kabelschlepp America    Milwaukee, WI 53223
Jun 25, 2010 Made of abrasion-resistant plastic, OFF-ROAD Glide Shoes for M-Series 0950 are suited for extremely harsh conditions involving sand, dust, corundum, and metallic abrasive materials. Positive locking snap connection enables shoes to sit firmly locked-in on chain link. In case of wear, only glide shoes are exchanged and not complete cable carrier.

Dorner Mfg. Corp.    Hartland, WI 53029 0020

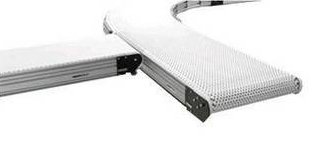

Jun 25, 2010 Featuring straights, curves, and Z-frames with flat and cleats belts, 5200 Series Modular Plastic Belt Conveyor Platform lets users change 15° curves to go left or right. To shorten or lengthen conveyor, it can be cut with saw to desired length and reassembled with cordless screwdriver. System includes contained belt that eliminates sag and reduces pinch points and sprocket alignment key for sprocket and belt alignment. Load capacity is up to 1,000 lb on straights and 500 lb on curves.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Jun 25, 2010 Featuring total area of 2.2 x 3.9 mm, 5 V 300 mA TinyBoost(TM) Model FAN4860 enables USB On-the-Go and HDMI functionality in Lithium-Ion portables. Device switches at 3 MHz frequency, enabling use of small capacitors and inductors to save board space. With VIN of 3.6 V at 1 mA, efficiency is 84% and at 200 mA, load efficiency is 91%. True load-disconnect between battery and load eliminates leakage from battery during OFF state, extending shutdown life.

Fairchild Semiconductor Corp.    South Portland, ME 04106
Jun 25, 2010 Model FAN5701 uses two PWM inputs to control brightness of grouping of 4 and 2 LED outputs, while FAN5702 has PWM signal input to support dynamic backlight control. Featuring 92% peak efficiency, units are 1-1.5x charge pump-based 180 mA, 6-channel LED drivers that backlight TFT LCD displays in mobile electronics. They are housed in compact 16-bump WL-CSP, occupying 2.56 mm², and 16-lead UMLP packages, and can be configured to support clamshell-type mobile handsets with 2 displays.

ETS - Lindgren An ESCO Technologies Co.    Glendale Heights, IL 60139 4019
Jun 25, 2010 With gain of 16-25 dBi, Series 3163 Antennas are designed for use as feeds in tapered anechoic chambers, as well as in applications requiring high gain and linear polarization. Design allows for rotation inside conical feed sections when back-mounted and attached to rotator at feed of tapered chamber. Individually calibrated at 3 m per ANSI C63.5, Series includes C-band Model 3163-03, X-band Model 3163-04, Ku-band Model 3163-05, and K-band Model 3163-06.

RAIO Technology Inc. Limited    Hsinchu   Taiwan

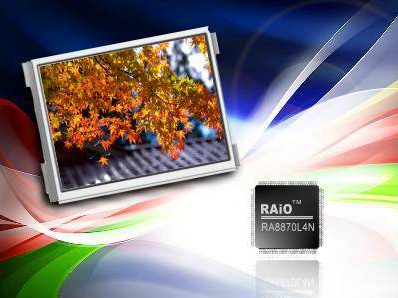

Jun 25, 2010 Model RA8870 supports 65K color for 320 x 240 dots TFT panel, 4K color for 640 x 240/320 x 480 display, or 4K color for 320 x 240 dots with 2 layers using internal RAM and, with external RAM, up to 65K color for 640 x 480 panel. Embedded CGROM can display alphaset of ISO 8859-1/2/3/4 and product integrates 4/5-wire touch panel controller and PWM for adjusting panel backlight. Unit enables screen rotation, scrolling, and font enlargement functions and more.

Carr Lane Roemheld Mfg. Co.    Ellisville, MO 63021
Jun 25, 2010 Available in 2 sizes, heavy-duty swing clamps have max operating pressure of 5,000 psi and are designed specifically for space-saving manifold mounting. Double acting, top-flange, cartridge-type clamps, featuring swing mechanism for accelerated clamping cycles, are also suitable when using longer, heavier custom arms. Position monitoring is available as option.

Lenox Instrument Co.    Trevose, PA 19053 3427
Jun 25, 2010 Portable Videoscope System offers miniature, 1 in. dia, 120° FOV, color CCD camera head or 1.5 in. dia, 360° pan and 180° tiltable, color CCD camera head. Mounted to end of flexible, retractable push rod, waterproof camera includes LED lighting and is able to negotiate 90° bends. Features include high-resolution, 7 in. wide TFT monitor; 4 GB memory card with mini USB port for video transfer; and RCA video output. Two NIMH rechargeable batteries and power supply/charger are included.
