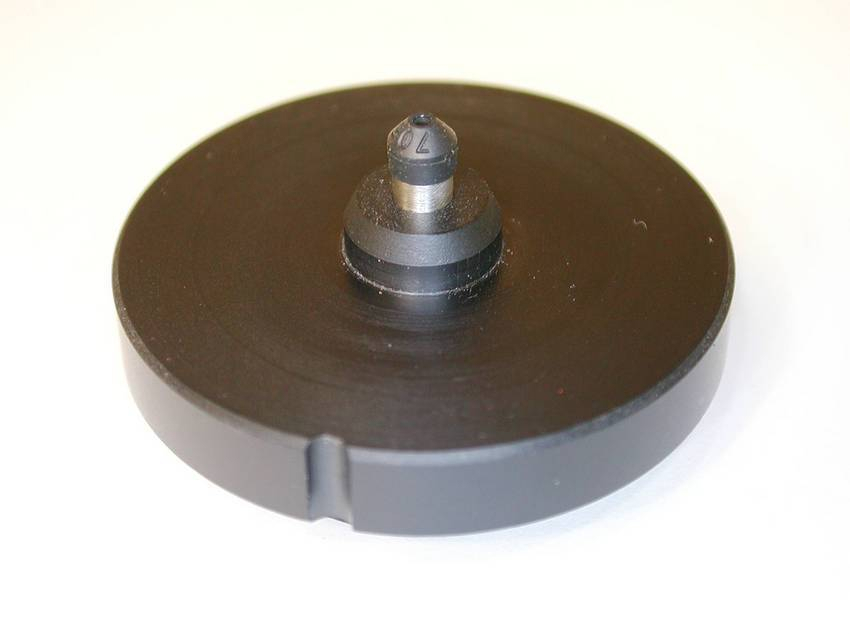

Count On Tools    Gainesville, GA 30501
Jun 02, 2010 Custom SMT pick-and-place nozzles are designed for placing CREE XLamp® MP-L Easy White, MX-6, XP-G, XP-E, XP-C, XR-E, XR-C, MC-E, 4550, and XR LEDs onto circuit boards. To avoid mechanical stress on LED lens, nozzle design does not touch optical surface during component picking or placement processes, eliminating risk of degraded performance after board assembly. Custom designs can be applied to any style of pick-and-place nozzle for any OEM or machine type.

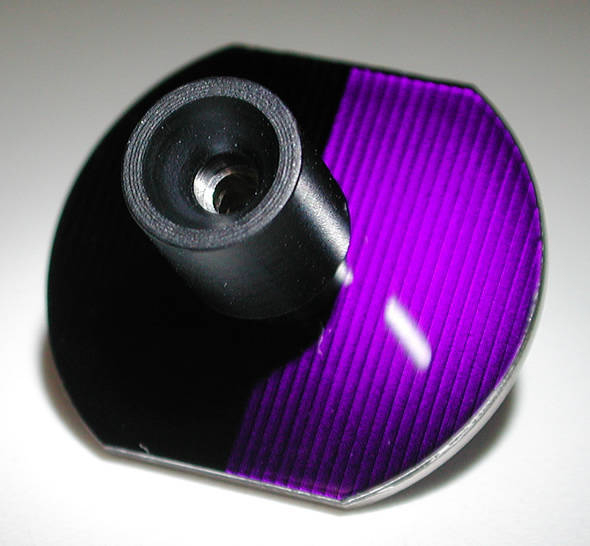

Count On Tools    Gainesville, GA 30501
Jun 02, 2010 Designed for Universal GSM platform, GSM special low-force nozzle with replaceable tips is suited for placement of GaAs die, gallium arsenide, thin silicone (less than 0.10 in. thick) die with air bridges and flip chips. Spring-suspended nozzle is suited for applications that require placement forces from 20-150 g. Unit is compatible with any Universal GSM 4-spindle high-force or pressure-enhanced placement head.

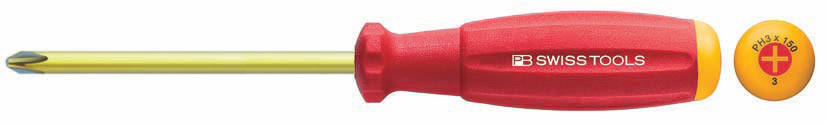

Count On Tools    Gainesville, GA 30501
Jun 02, 2010 Titanium SwissGrip® Screwdrivers feature slip-proof handles that are autoclaveable up to 120°C and are resistant to harsh chemicals. Soft Santoprene® handle coating transfers high hand torque onto screws. Anodized for identification, screwdrivers are non-magnetic for use around sensitive equipment; corrosion-resistant; nonsparking for use where hazardous, flammable, or combustible vapors, liquids, dusts, or residues are present; and hypoallergenic.

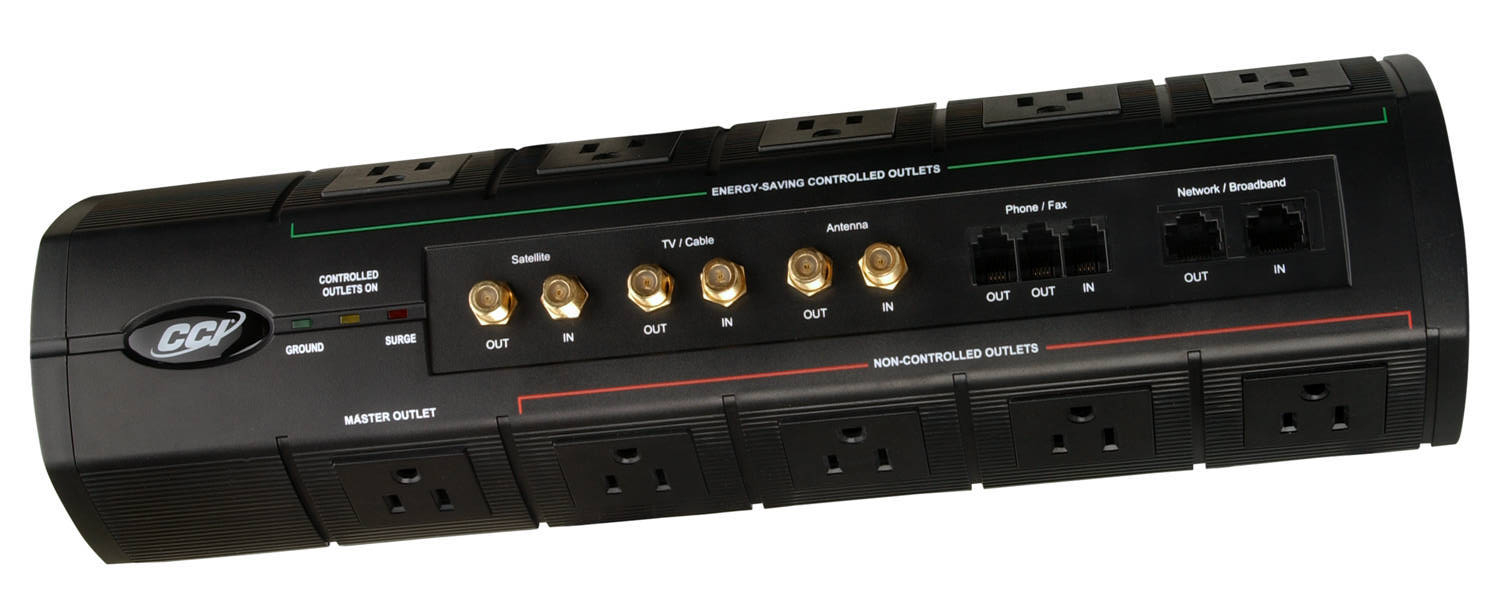

Coleman Cable, Inc.    Waukegan, IL 60085
Jun 02, 2010 Featuring phone, coax, and data connectivity, Smart Strip® products range from basic 6-outlet Smart Strip to 10-outlet small office/home theater product with satellite/cable, network, and phone protection. Joule ratings are optimized for surge protection, and other features eliminate standby power that wastes electric consumption when household or office electronic equipment are operating in off, sleep, or standby mode.

Ideal Industries, Inc.    Sycamore, IL 60178
Jun 02, 2010 IDEAL PowerBlade(TM) installs like drill bit on any corded/uncorded drill with 3/8 in. drive shaft. Drill's turning action provides force needed to slice through up to 750 MCM hard-drawn copper cable or up to 1,000 MCM aluminum cable with minimal distortion. Adjustable torque arm securely holds drill in place, while ergonomic and textured Santoprene® grip promotes control and reduces vibration. Grip also has protective shield to prevent accidental contact with user's hand.

ABB Instrumentation    Warminster, PA 18974
Jun 02, 2010 Designed to unlock stranded information in existing HART devices, loop-powered FieldKey Wireless Adapter allows users to remotely monitor and configure instrumentation assets. Users can establish communications via WirelessHART protocol that supports frequency channel hopping. Protocol automatically builds mesh network that can re-route communication paths to overcome blocked signals. Encrypted messaging based on AES 128-bit banking standards provides secure communication.

Walls & Forms Inc.    Dallas, TX 75374
Jun 02, 2010 Designed to help drive revenue and profits by improving aesthetics, 12 in. deep modular millwork counter facades attach to face of existing counter systems or against open wall areas to re-image, re-brand, and extend merchandising areas. Standard and custom colors are available for these 12 in. deep x 46 in. tall facades that are offered in 4, 5, and 6 ft lengths as well as 12 ft corner unit style. Construction includes high- and low-pressure laminates.

TE Connectivity Ltd.    Berwyn, PA 19312
Jun 02, 2010 Madison Cable brand InfiniTwist cables simplify cable management in high-density systems via bend radius of less than 2.5X cable diameter. Cables exhibit virtually no pistoning of conductors or pairs, and twisted-pair design promotes flexibility as well as mechanical reliability while decreasing time delay skew. Offered in constructions of 1-36 pairs and above, cables utilize conductor sizes 32-24 AWG and support transmission speeds up to 16 GHz and beyond.

Rice Lake Weighing Systems    Rice Lake, WI 54868
Jun 02, 2010 Housed in NEMA 4X polyester or stainless steel enclosure, iQUBE2 includes 4 channel boards, with or without power supply. Unit offers 4 digital I/O per card and enables up to 16 load cells to be connected. Onboard diagnostics identify noise, test for linearity and zero reference, and monitor drift. Load cell emulation feature compensates for failing load cell until repair can be made, while Cal-Match algorithm automatically trims and calibrates scale in one pass of test weights.

Rice Lake Weighing Systems    Rice Lake, WI 54868
Jun 02, 2010 CubeLogic(TM) Dimensioning Systems measure weight and dimensional data of any cubic package. In addition to displaying information, unit can also be used with printer and/or PC for calculations and data storage. Featuring collapsible design, CubeLogic 250 and CubeLogic 265 are suitable for bench tops or shipping desks, while CubeLogic 480 may be installed with any conveyor system for stationary measurement.

TE Connectivity Ltd.    Berwyn, PA 19312
Jun 02, 2010 Providing 2 points of contact, Industrial Mini I/O Connector includes latching system that protects plug from pull-out during high-vibration or collision. Polarized, wire-to-board interface offers 2 keying options to prevent mismating and consists of 8 individual circuits to accommodate I/O signals. Operating from -40 to +70°C, connector features current rating of 0.5 A and voltage rating of 30 V on 0.635 mm centerline spacing. SMT and through-hole configurations are available.

Siemens Water Technologies    Warrendale, PA 15086
Jun 02, 2010 Designed for water used in healthcare industry, Nosogard Filters combine 1.0 micron pre-filter and 0.2 micron microporous membrane to remove water-borne pathogenic organisms. Point-of-use filters are integrity tested, performance-validated, and shipped in radio-sterilized packaging with peelable lids to maintain sterility. Seven-day and 14-day filters remove all organisms, while 30-day filters remove legionella only, for 30 days. Sixty-day filter is also available.

NSK Americas, Inc.    Ann Arbor, MI 48106-1507
Jun 02, 2010 Packed with EA7 grease, Fretting Resistant Servomotor Bearings are utilized where precise motion control is vitally important. Low-noise units offer rust prevention, optimized oxidation and heat stability, NLGI consistency 3, and corrosion protection in humid conditions. By minimizing fretting damage caused by microvibrations, bearings offers extended service life.

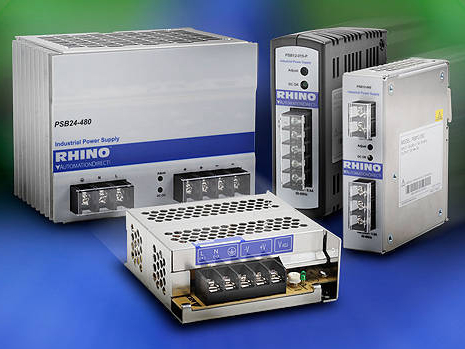

AutomationDirect.com    Cumming, GA 30040-9905
Jun 02, 2010 Supplied in aluminum housing that supports 3 orientations, panel-mount RHINO(TM) PSS series is available with universal single-phase input and output voltages of 12 and 24 Vdc from 35-100 W. DIN rail-mount RHINO PSB series, offered in plastic and aluminum housings, are available with universal single and 3-phase input and output voltages of 12-24 Vdc from 15-480 W. Both UL-recognized, CE-marked, and RoHS-compliant series integrate overload, overvoltage, and thermal protection.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Jun 02, 2010 Manufactured of 303 stainless steel, Kerk® Micro Series Lead Screw Assemblies enable miniaturization of products while also reducing power consumption and weight without sacrificing performance or reliability. Standard configurations include 2 mm dia screws with leads from 0.3-2 mm per revolution and various nut configurations of self-lubricating acetal and Kerkite® High Performance Composite Polymers. Thread uniformity lends to precise motion as well as minimal noise and vibration.

Kinetic Systems, Inc.    Boston, MA 02131
Jun 02, 2010 Suitable for production, testing, or research in optics field, Mobile Darkbox Enclosures block all ambient light and can be produced to customer-specific requirements. Units feature sliding or fixed panels on all 4 sides, and can be large enough to incorporate optical tables, breadboards, or workstations. Offered with multiple tiers of shelving, boxes are available with heating and air conditioning, electrical connections, laser ports, and/or computer network connections.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jun 02, 2010 Combining aeration and vibration, Model MFD Micro Fluidizer Disk solves difficult bulk solid flow applications. Design creates vibrations as air flows between pads boot and bin wall, providing effective flow aid for all types of dry products. Operating from -40 to 340°F, self-cleaning disk requires air supply of 29-87 psi. Unit includes ¼ in. male BSP connection and ¼ in. ID compression fitting.

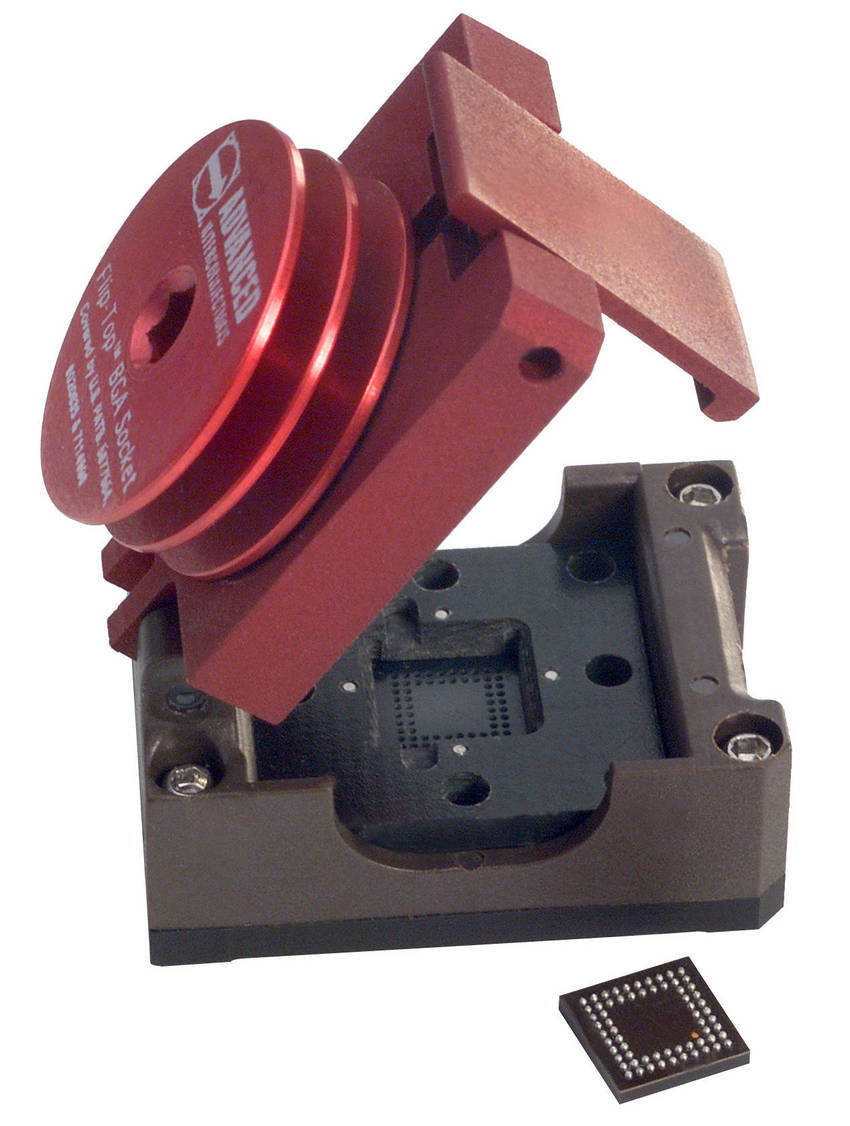

Advanced Interconnections Corp.    West Warwick, RI 02893
Jun 02, 2010 Designed for test, debug, and validation of 0.50 mm pitch BGA devices, Mod5 Series Flip-Top(TM) BGA Socket features compact, surface mount design and installs without tooling or mounting holes in target PCB. Precision machined metallic spring probes offer contact life of 200,000 cycles min, and provide high bandwidth with low insertion loss. Measuring 20 x 27 mm, modular socket accommodates BGA packages up to 12 sq mm (22 x 22 rows) and enables simple reflow process.

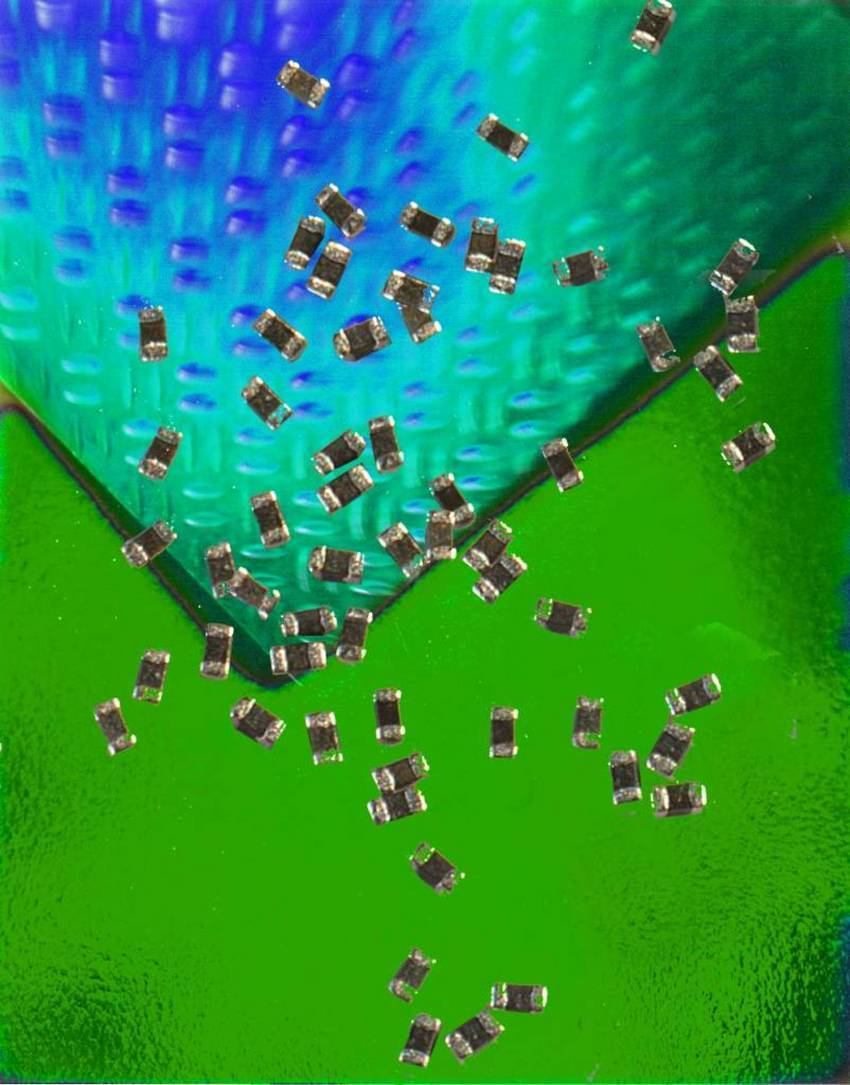

AVX Corp.    Myrtle Beach, SC 29578
Jun 02, 2010 Including 125 and 150 pF versions, miniature TransGuard® 0201 Series MLVs provide multiple strike capability and are able to withstand 1,000 strikes at 8 kV of contact. They feature sub 1 nsec response time to ESD strike, 5.6 V rating, and have leakage current of less than 5 µA at rated voltage. Offering bi-directional transient voltage suppression with low insertion loss, devices are suited for handheld devices, as well as embedded components such as hearing aids and camera modules.

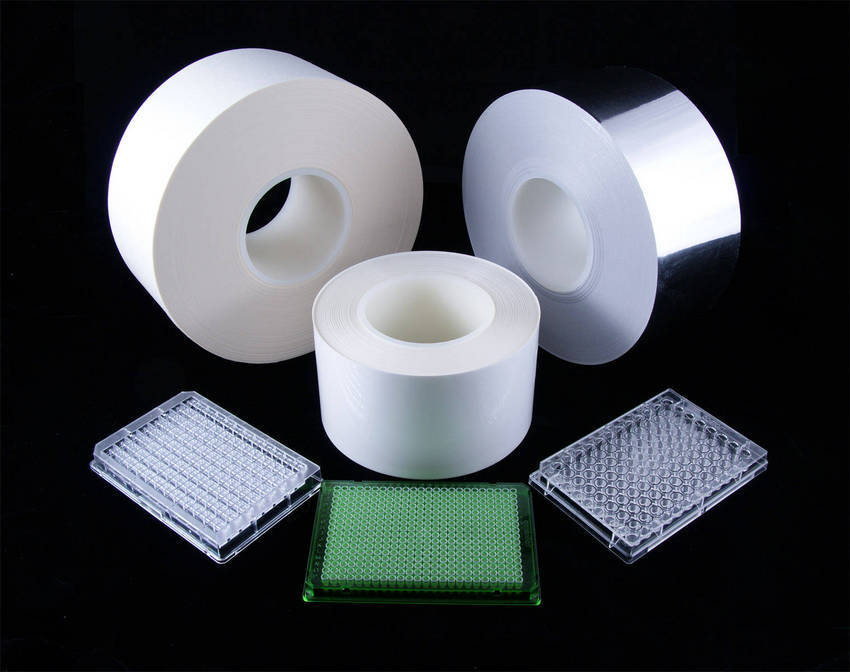

Excel Scientific Inc    Wrightwood, CA 92397
Jun 02, 2010 Designed for automated microplate sealing, Roll-Seal rolls are constructed on 3 in. plastic cores and are compatible with most common adhesive sealers. With ultra-strong silicone adhesive, ThermalSeal RTS(TM) clear films are suited for qPCR and sitting-drop protein crystallization. AlumaSeal® pierceable aluminum foils suit PCR, HTS, and cold storage applications, while breathable AeraSeal(TM) films are suited for cell and tissue culture.
