Edmund Optics    Barrington, NJ 08007
Feb 10, 2012 TECHSPEC® OD 6 Laser-Line Bandpass Filters, available with 532, 785, and 1,064 nm center wavelengths and in 12.5 and 25 mm dia, provide transmission rate and rejection necessary to isolate spectral regions as narrow as 2 nm. Fabricated using hard ion-beam sputtering technology to ensure optimal performance and durability, products achieve greater than 90% transmission at specified design laser wavelength and offer blocking of greater than 6.0 optical density at +1.5% of laser wavelength.

Amphenol Corp., Amphenol Aerospace    Sidney, NY 13838
Feb 10, 2012 Available in shell sizes from 5-23, rugged connectors of 2M Series are intermateable and intermountable with existing micro-miniature, high-density connectors typically used in aerospace and defense applications. Each of 4 coupling styles offers consistent coupling torque on every connector, and devices withstand up to 37 g random vibration and 300 g shock. Offered in various platings, connectors can be internally filtered for radiated and conducted EMI.

iwis drive systems, LLC    Indianapolis, IN 46268
Feb 09, 2012 Fulfilling requirements of ISO 606, DIN 8187, and DIN 8188, Everlast Plus series is manufactured with sintered metals that provide extended service life by reducing friction/wear without need for relubrication. Oil-soaked sintered bushes and modified bolt specification improve wear lifespan, and pretension promotes chain's run-in behavior. Available in sizes 06B-16B and ANSI 40-160, chains have protruding track bushing that reduces friction between inner and outer guide plates.

Zytronic PLC    Tyne & Wear NE21 5SG  United Kingdom
Feb 09, 2012 Available in 32, 64, and 128 channel versions, Model ZXY100 covers full range of screen sizes from 5-82 in. Device consists of 32-bit microprocessor with ARM® core, preloaded with Projected Capacitive Technology firmware, and ASIC-based analog front end. With firmware's boot loader function, users can upload software updates as they become available. Chipset offers native Windows 7 support, including dual touch, to cover core gesture recognition functions.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810
Feb 09, 2012 Designed to operate intermittently or continuously against pressure up to 87 psig, Type NF1.25 offers solution for dosing or transferring liquids or liquid-gas mixtures at flow rates up to 300 ml/min. OEMs can choose from variety of motors, including iron core DC, ironless core DC, or brushless DC versions. Using PP, PTFE, EPDM, and FFMP materials for components that come into contact with pumped medium, pumps offer chemical resistance and require virtually no maintenance.

DeWAL Industries, Inc.    Saunderstown, RI 02874
Feb 09, 2012 Put through densification process, abrasion-resistant DW 400 Film provides tensile strength of 21,000 psi, particularly important for hoses, rubber belting, and chute linings. Pressure-sensitive DW 423-5EZ Tape has aggressive permanent acrylic adhesive and no release liner, while optically clear DW 424-4 Tape features permanent acrylic adhesive, and comes in rolls on release liner. DW 424-4 is suited for labeling over laminate where abrasion and chemical resistance are required.

WinSystems, Inc.    Arlington, TX 76011
Feb 09, 2012 With input voltage range of 10-50 Vdc, PCM-DC-AT Power Supplies work with 12, 24, or 48 V battery-operated or distributed DC power systems. Model PCM-DC-AT500 delivers +5 V output at 20 A, while Model PCM-DC-AT512 provides +5 V at 20 A, +12 V at 3 A, and -12 V at 0.5 A. Both operate from -40 to +85°C with no fans or heat sinks. Measuring 3.6 x 3.8 in., RoHS-compliant power supplies have no minimum load requirement to bring units into regulation.

Torrey Pines Scientific, Inc.    Carlsbad, CA 92010
Feb 09, 2012 Peltier-based for heating and cooling, EchoTherm(TM) benchtop chilling incubators have 4-70°C temperature range and come in 2 fully programmable models and 2 models that offer simplified digital controls. All models, which are accurate to 0.1°C, do not have compressors or CFCs and are suited for life science laboratory applications. The 27.5 L units have 10 x 14 x 12 in. chamber can accommodate 4 racks, while 55.0 L units have 10 x 14 x 24 in. chamber and fit up to 6 racks.

Walter USA, Inc.    Waukesha, WI 53188
Feb 09, 2012 Promoting safety while speeding changeover in grooving, parting, turning applications, models G1511, G1521, and G1551 have respective approach angles of 0° (straight), 90°, and 45° and are optimized for shallow depth grooving to 0.236 in. Straight and 90° versions suit radial/axial face grooving and turning, while G1551 is intended for recesses, undercutting, and copy turning. Formed from Tigerotec® materials, all double-edged inserts offer clamping screw accessible from both sides.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Feb 09, 2012 Featuring compact 32 x 37 mm profile, selectable EDM, and manual/automatic restart, SG4-Hand series is comprised of Type 4 hand safety light curtains that offer max operating distance of 19 m, controlled heights from 150-1,800 mm, and 30 mm resolution. Design facilitates installation with rotating fixing brackets, and configuration accomplished without external control units or supplementary cables.

Bosch Security Systems    Fairport, NY 14450 9199
Feb 09, 2012 Equipped with central control unit capable of controlling up to 245 wired and 245 wireless delegate units, DCN Wireless System provides 128-bit AES Rijndael encryption for protection against eavesdropping. Voice activation mode allows microphones to be switched on automatically once delegates begin to speak, enabling spontaneous and open discussions. It is also possible to program list of VIP participants, so they have special privileges and their comments have priority over other delegates.

Ideal Industries, Inc.    Sycamore, IL 60178

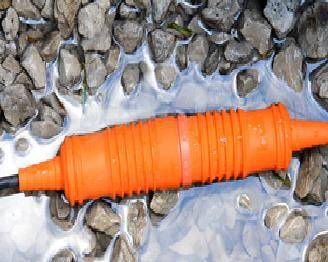

Feb 09, 2012 SLK(TM) Disconnect Fuse Kit de-energizes streetlights, parking lot lights, and electrical vehicle charging stations in event of knockdown to prevent potentially life-threatening shock hazards. Listed to UL ECIS category for special purpose connectors, submersible breakaway safety device withstands wet conditions around pole bases, junction boxes, and hand holes. Bright orange material - UL 94V-2 flame rated - features ribs on boots to provide grip and also facilitates identification.

FMC Technologies Inc. Measurement Solutions    Erie, PA 16514
Feb 09, 2012 Immune to external piping forces, Proline® Promass E Coriolis flowmeter is available in 3/8-3 in. sizes for use in liquid or gas measurement and operates from -40 to +284°F. Fit-and-Forget installation eliminates need for long lengths of straight pipe runs or supports/braces for meter. Meter is supplied with model 83 transmitter, which offers 4-line LCD with touch control operation, application-specific quick setup, and measurement display.

Kistler Instrument Corp.    Amherst, NY 14228 2119
Feb 09, 2012 To meet high-pressure measurement demands, Type 6215 incorporates quartz crystal sensing element and front sealed diaphragm in stainless steel housing. Technology allows for low mechanical and thermal stresses on sensor, with no mounting gap and minimized surface pressure within sealing part. Aforementioned traits lend to extended service life and measurement stability as well as precision measurement repeatability. Sensitivity is -0.1 pC/psi with natural frequency of greater than 240 kHz.

Selco Products Co.    Reno, NV 89521-5908
Feb 09, 2012 With 20 A rating at 120/250 Vac, SWTC3 Series accommodates applications requiring thermal cut-outs with high current capabilities. Thermal cutoffs provide reliable upper limit temperature protection, functioning as safety devices to disconnect current to heating element in case of malfunction. Interrupting current rating is 31.5 A at 125/250 Vac, and functioning temperature range is from 162ºF to 464ºF, with holding temperatures from 117 to 392ºF.

Cognex Corp.    Natick, MA 01760 2059
Feb 09, 2012 Packaged in IP65-rated housing for production line use, In-Sight® 500 is powered by Cognex VSoC(TM), which enables image processing at 500 fps with windowed acquisition. Fixed-mount system achieves speeds of 100 fps at 1024 x 768 pixel resolution and 200 fps at 640 x 480. Full suite of In-Sight tools and communication methods is available, including Cognex Connect(TM), which supports EtherNet/IP and PROFINET. In-Sight 500 is suited for part inspection using blob, edge, and histogram functions.

Larson Electronics, LLC    Kemp, TX 75143
Feb 09, 2012 Model EPL-EMG-48-2L-LED fixture provides Class 1 Division 1 protection and instant on operation. Explosion proof light features housing constructed of non-sparking aluminum for durability and resistance to corrosion. Pyrex tubes protect LED bulbs against contamination and impact, while integrally mounted and automatically recharged battery backup system provides 90 min of light operation in case of power failures.

Bosch Corp.    Charleston, SC 29418
Feb 09, 2012 Central control unit (CCU) allows wired and wireless delegate units to be integrated in one system, facilitating extension of DCN Next Generation systems to meet changing needs by adding DCN wireless discussion units. Up to 245 wired and 245 wireless delegate units can be controlled by one CCU, which also offers Ethernet connection to control PC for bridging extended distances without converters. Along with 3 system trunk outputs, CCU offers option to be configured as network controller.

MTC Industries and Research ltd    Karmiel 21611  Israel
Feb 09, 2012 ERSA Redundant Electro-Mechanical Rotary Servo Actuator is designed with built-in fail-safe based on duplicate flight controls located on 2 separate control boards. Back-up control allows UAV to continue flying in case of component failure. Additional features include dual DC brushless motors that minimize maintenance, 3 gang potentiometer, and optional digital or analog output.

ACCES I/O Products, Inc.    San Diego, CA 92121 1506
Feb 09, 2012 Housed in 4 x 4 x 1 in. industrial steel enclosure for shock and vibration mitigation, 4-port Model USB-104-HUB features data transfer rates up to 480 Mbps and temperature range of -40 to 85°C. Device lets users add USB-based I/O to embedded systems or connect peripherals such as external hard drives, keyboards, GPS, and wireless. Offered in bus-powered and self-powered models, hub offers choice of DC power input jack, screw terminals, or 3.5 in. drive power connector.
