Paraben Corporation    Orem, UT 84097-0483
Jun 04, 2010 DS Box consists of self-contained cellular phone and PDA DAQ unit built into 1½ ft wide x 4 ft tall stationary kiosk system that lets anyone of any skill level process mobile phone for data intelligence. Suited for prisons, military bases, and regional labs, unit facilitates complete cell phone triage with full media card acquisition and recovery of deleted data. System is compatible with over 2,200 mobile phones and PDA devices.

STMicroelectronics    Lexington, MA 02421
Jun 04, 2010 With operating current consumption as low as 2 µA and dimensions of 3 x 3 x 1 mm, LIS3DH digital output accelerometer suits space- and power-constrained consumer devices. It provides accurate output across full-scale ranges of ±2, ±4, ±8, or ±16 g and exhibits stability over time and temperature. In addition to temperature sensor and 3 ADC channels, product offers embedded features such as click and double-click recognition and 4D/6D orientation detection.

Vasco Data Security Inc.    Oakbrook Terrace, IL 60181
Jun 04, 2010 DIGIPASS® for Windows accommodates companies that need to add strong authentication in order to secure their networks and applications, without using hardware-based devices or mobile phones as client authentication platforms. Optimized for securing remote access or online applications, solution resides on end-user desktop and supports one-time password (OTP), PIN code, and digital signature (e-signature) authentication. Users can also directly open protected web application.

Vectron International    Hudson, NH 03051
Jun 04, 2010 Housed in small form factor 20 x 13 mm hermetic package, 100 MHz Model OX-405 features phase noise performance of -125 dBc/Hz at 100 Hz offset and -165 dBc/Hz noise floor. Ruggedized 4-point mount SC-cut crystal makes oscillator suitable for applications where shock, acceleration, and harsh environments are of concern. Both airborne and ground based radars benefit from device's small size and phase noise performance.

Diodes, Inc.    Westlake Village, CA 91362
Jun 04, 2010 Lithium ion/polymer battery charger IC, API9221, enables USB host and DC adaptor connections, respectively delivering charge currents in accordance with USB standard or up to 1.2 A. To ensure equipment can support range of OEM and aftermarket chargers, inputs can withstand max voltage of 28 V. IC follows industry-standard CC/CV charging algorithm and features bypass LDO regulator. With 1% error across operating temperature range, IC ensures battery charging up to 4.2 V.

Balluff, Inc.    Florence, KY 41042-0937
Jun 04, 2010 Model BMF 235 enables cylinder positions to be detected on any aluminum-walled pneumatic cylinder with integral T-slots, including short stroke cylinders and grippers. GMR (Giant Magnetoresistive) electronic sensor features 23 mm housing and LED indicator for diagnostics. Dropped into T-slot from above and secured via screwdriver or Allen wrench, sensor is available in PNP NO and NC versions in IP67 housing with cable or pigtail M8 or M12 connectors.

Diodes, Inc.    Westlake Village, CA 91362
Jun 04, 2010 Designed to drive high-brightness LEDs from single solar or rechargeable battery cell, ZXLD381 and ZXLD383 PFM DC-DC converters feature onboard low-saturation voltage switching transistor. They operate from input as low as 0.9 V and deliver up to 80 mA. Generating constant current for driving single or multiple LEDs, products only require inductor for high-efficiency (93%) operation. Model ZXLD383 combines features of ZXLD381 with dual function enable input.

Diodes, Inc.    Westlake Village, CA 91362
Jun 04, 2010 Comprised of 6 high-side power switches, AP21x2A series offer complete port protection for self-powered and bus-powered USB as well as other hot swap applications. Dual-channel switches, available with 0.5, 1.0, and 1.5 A max load ratings, tolerate heavy capacitive loads and short circuits. Also available with both polarities of enable input, products provide tight tolerance current limiting at ratings of 0.8, 1.4, or 2.0 A. Transient response of 2 µs prevents spurious shutdown or restart.

RSF Electronics, Inc.    Rancho Cordova, CA 95670
Jun 04, 2010 Supporting up to 4 axes, QUADRA-CHEK ND 1200 functions as measuring computer for 2-D geometries. Unit features monochrome flat-panel LCD screen for displayed values, dialogs, and inputs, and RS-232-CN.24 serial interface for communication with PC. Printers or memory media can be connected via USB port. Housed in diecast aluminum enclosure, readout is suitable for optical comparators, measuring microscopes, and 2-D measuring machines.

CAPS    Livonia, MI 48152
Jun 04, 2010 With its filtering and navigation capabilities, CAPS-TRAC(TM) v3.0 helps companies keep track of their reusable shipping containers throughout supply chain. Users have option to track containers and additional assets using CAPS-iTRAC (individual tracking model) or CAPS-aTRAC (aggregate tracking model). With data backed up in secure offsite location to ensure stability, online solution integrates with existing B2B systems and is accessible from any Internet-connected PC.

Tol-O-Matic, Inc.    Hamel, MN 55340 9499
Jun 04, 2010 Combining programmable digital drive, servomotor, and actuator, ICR Linear SmartActuator delivers up to 720 lb of force at 5 ips or 150 lb at 23 ips. Basic model provides extend-and-retract functionality with ability to independently adjust extend/retract velocity, while Plus model provides programmability and communication options to meet complex industrial applications. Operating on 24 or 48 Vdc, SmartActuator is stroke-configurable up to 24 in.

HP Co.    Huntington Beach, CA 92648
Jun 04, 2010 Intended for SMBs, HP ZR30w S-IPS features 30-bits per pixel color resolution and 1.07 billion displayable colors. Resolution of 2,560 x 1,600 in 16:10 aspect ratio and 3,000:1 dynamic contrast ratio optimize visual performance, while 6-way adjustable stand promotes optimal visual positioning. With wide gamut panel that covers 100% of sRGB and 99% of Adobe RGB, monitor features 4.1 million pixels, DisplayPort and DVI-D inputs, as well as 4-port USB hub.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Jun 04, 2010 Available in wideband and narrowband versions covering all 2G, 3G, and 4G standards for base station frequency bands, 6-bit RFDA Series integrates high linearity amplifiers with digital step attenuator and optional serial to parallel converter. Digitally controlled variable gain amplifiers offer gain up to 38 dB, OIP3 up to 43 dBM, and max operating frequency up to 4 GHz. Components are suitable for receiver and transmitter designs and come in both parallel and serial interface versions.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Jun 04, 2010 Integrating 3-stage PA and power detector in 4 x 4 mm QFN package, RF5633 works from 5 V supply and is fully DC and RF tested. It delivers EVM of 2.5% with output power of 28 dBm from 3.4-3.6 GHz or 27 dBm from 3.6-3.8 GHz and features InGaP HBT semiconductor technology. External match enables tuning for output power over multiple bands, and bias may be controlled to accommodate 22 dB gain step. Other features include 34 dB gain as well as internal input and inter-stage matching.

Stratedge    San Diego, CA 92123
Jun 04, 2010 Meeting MIL-STD hermetic requirements, SM series leadless SMT packages are suited for LEDs, MEMS, and optical devices used in aerospace, avionics, automotive, and telecom industry applications. Metal plug in base allows direct ground path for enhanced electrical performance, and outlines match industry standards for direct replacement of traditional quad flat package designs. With rated performance from DC to 30+ GHz, packages include 5 x 5 mm version with 28 I/Os.

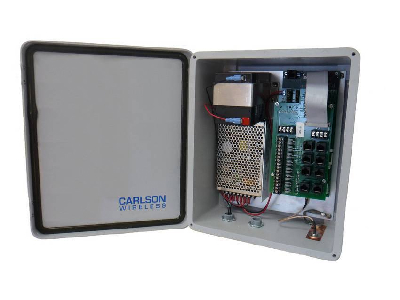

Carlson Wireless Technologies, Inc.    Arcata, CA 95521
Jun 03, 2010 Designed for utility and enterprise markets, Trailblazer(TM) Star incorporates Carrier Class Voice service and SCADA capabilities into one enclosure. Multipoint system offers variety of interface options, including 4-wire, serial ports, PA, intercoms, emergency phones, and Ethernet. Available in 2.3-2.5, 5.x, and 4.9 GHz frequencies, TB-Star is transparent to all existing PBX, TDM, or VoIP systems; provides Carrier Class telecom service beyond 50 miles; and has fixed latency of less than 4 ms.

Dontech, Inc.    Doylestown, PA 18901
Jun 03, 2010 Optical Fine Wire (OFW) conductive optical grids are constructed of woven and conductively plated, fine-wire stainless steel and copper, while MEM100 series Micro EMI-Mesh grids are designed with etched and blackened copper. Both provide EMI/RFI shielding of electronic displays, instrumentation, and enclosures. They are typically embedded in glass or plastic substrates such as acrylic, polycarbonate or polyester, or triacetate. Grid counts typically range from 50-255 openings/in.

Fujitsu Components America, Inc.    Sunnyvale, CA 94089
Jun 03, 2010 Able to process single-tap and multi-touch input from nearly any object using varying pressure, Resistive Multi-Input Touch Panels offer accurate, stylus-handwriting input and 2-finger manipulation, including pinch, push, rotate, and scroll functionality. Both finger and stylus action can be performed simultaneously, with panels supporting up to 32 simultaneous touch points. Available in 5.6-12.1 in. sizes, panels register input even when wet.

Global Lighting Technologies Inc.    Brecksville, OH 44141
Jun 03, 2010 Measuring 23.5 x 23.5 x 0.35 in. and weighing under 6.6 lb, troffer backlight incorporates edge-lit LED light guide technology that produces brightness of 24 lm at output of 400 ±30 lux @ 2 m and has color temperature of 4000K/6000K. Light extraction technologies extract light precisely where needed, providing bright, uniform light without hot spots. Consuming 45 W, products incorporate LEDs with lifetime of about 30,000 hr.

Interroll Automation    Jeffersonville, IN 47130

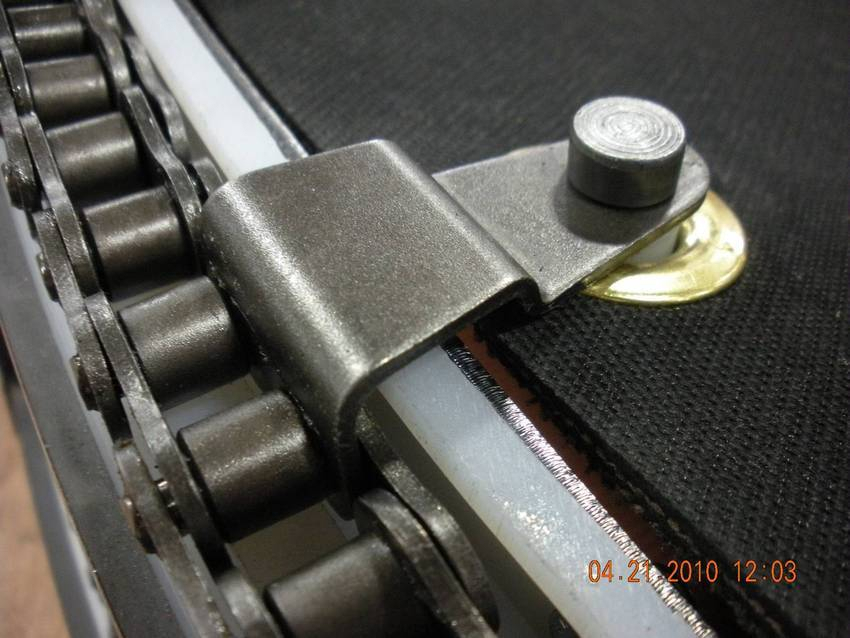

Jun 03, 2010 Employing positive chain drive, American Style Curve complies with mechanical specifications laid out by parcel carriers and airport consultants. Unit operates at speeds up to 350 fpm, has load bearing capacity of 50 lb per linear foot, and emits less than 71 dBA during operation. Removable unitized steel slider bed cassette and Clipper® non-unibar laced belt connection are standard, and belting and power unit may be selected to accommodate unique requirements.
