Alemite Corporation    Charlotte, NC 28226 3515
Jun 07, 2010 Equipped with ¾ in. electronic meter, High Flow Control Valve enables accurate flow measurement for dispensing of engine, hydraulic, and diesel oil. Meter measures and displays fluid delivery in quarts, pints, gallons, or liters and provides total in gallons or liters. System includes ¾ in. flexible or rigid extension hose, automatic On/Manual Off nozzle tip, and rubber guard for protection from damage.

Analog Devices, Inc.    Norwood, MA 02062-9106
Jun 07, 2010 Designed for K- and J-type thermocouples, Series AD849x includes 4 models that convert small voltages generated by thermocouple junction into 5 mV/°C analog signal that can be read by ADC or microcontroller. Common-mode rejection of 0.1°C/V allows devices to reject common-mode noise that may be associated with long lead thermocouples. Operating off variety of voltages from single 2.7 V to dual ±18 V supplies, amplifiers consume 180 µA quiescent supply current.

Igus, Inc.    East Providence, RI 02914 0349
Jun 07, 2010 Designed for industrial serial field bus CC-Link system, 3-wire Chainflex CFBUS.035 features abrasion-proof TPE outer jacket, gusset-filling extruded inner jacket, and short pitch length, enabling millions of bending cycles in cable-carrier systems. Available pre-assembled with any standard industrial connector, shielded cable has 0.33 in. outer diameter and DESIGNA-conforming sheath color.

TCP Reliable, Inc    Edison, NJ 08837
Jun 07, 2010 Manufactured using 4 mil polyethylene film, IcePak Brick phases at 0°C and maintains shape even after frozen. Each brick is vacuum-sealed to ensure consistent dimensional tolerance. Commonly used in conjunction with Cryo-Gel(TM) gel packs, products are available in custom sizes designed to match the specific dimensional requirements for application. They may also be used with Tempak(TM) EPS and polyurethane insulated shipping containers.

Wilson Tool International Inc.    White Bear Lake, MN 55110
Jun 07, 2010 Available for Wilson American Precision and WT Style Precision(TM) press brake tooling, ExpressRail(TM) accelerates setups and changeovers for press brake fabricators. System automatically clamps and seats tooling along full length of beam in one operation via one touch of wireless pendant control. Featuring low-profile design that will not interfere with open height required for larger parts, clamping system is treated with Nitrex(TM) for corrosion resistance.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Jun 07, 2010 Designed specifically for miniaturization of DC-DC converters in LCD TVs and set top boxes, LQH6PP_43 Series features 2424 size casing measuring 6.0 x 6.0 x 4.3 mm. Magnetically shielded units range from 1.0 µH model with DC resistance of 0.009 W to 100 µH model with DC resistance of 0.436W. Allowable DC current, based on inductance change within 30% of nominal, is 7.50 A for 1.0 µH part to 0.92 A for 100 µH part.

AXIOMTEK    Taipei   Taiwan

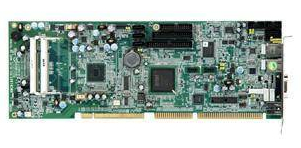

Jun 04, 2010 Model SBC81207 PICMG 1.0 CPU card includes Intel® Atom(TM) processors N450, D410, or D510, which have integrated graphics and memory controllers. Intel® 82801HM I/O controller as well as six USB 2.0 ports and 3 serial ATA ports with transfer rates up to 3 Gbps are also included. Unit offers low power consumption and SMART FAN feature that controls fan speed to keep temperature within specified range. It is compatible with Windows® 7 and with Axiomtek PICMG 1.0 full-size backplanes.

Thunderline-Z    Hampstead, NH 03841
Jun 04, 2010 Rugged 1.2 sq in., 28-pin SMT hi-rel package features 9 mil mini Bell pins that are laser welded into Kovar housing with pin spacing of 0.135 in. Able to withstand extreme temperature fluctuations over long period of time, high-frequency package can be used in space and other hi-rel environments.

IntelLiDrives Inc.    Philadelphia, PA 19152
Jun 04, 2010 Fitted with 4-point contact preloaded ball bearings, SRT-03 Rotary Table offers low and high speed windings up to 1,000 rpm, 0.2 arc-sec resolution, and 5 arc-sec accuracy. Encoder is mounted directly to rotor for positioning accuracy and to eliminate backlash, positioning delays, and maintenance requirements. Providing peak torque of 10 Nm, table can be used as flexible indexer or to replace mechanical transmissions such as gearboxes and timing belts.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Jun 04, 2010 Operating in 12.7-13.2 GHz range, Ku-Band Models TIM1213-18L and TIM1213-30L are targeted for use in microwave radios for microwave links and satellite communications. Model TIM1213-18L has output power at 1 dB gain compression point (P1dB) of 42.5 dBm, power gain at 1 dB gain compression point (G1dB) of 6.0 dB, and power efficiency of 28%, while Model TIM1213-30L features P1dB of 45.0 dBm, G1dB of 5.5 dB, and power added efficiency of 23%.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jun 04, 2010 Housed in 28-contact, 5 x 5 mm QFN package, Model A8512 integrates boost controller operating in constant frequency current mode control to drive external MOSFET, and 6 internal current-sinks capable of up to 80 mA each. Multiple drivers can be connected in parallel, allowing up to 36 LED strings to be powered by 1 boost converter. Operating from single 8-24 V supply, driver provides protection against overvoltage, open or shorted LED string, and over-temperature.

CAS Data Loggers    Chesterland, OH 44026
Jun 04, 2010 Equipped with 5 analog channels, dataTaker DT80G GeoLogger can measure up to 5 vibration wire strain gauges with thermistors or 15 without thermistors. Unit also features 12 digital channels, serial sensor channel, ±30 V input measurement range, and built-in display. Users can view data in real time or store up to 5 million data points. Data storage and retrieval can be achieved via USB memory stick, FTP, cell phone, Modbus for SCADA, Ethernet, or Web.

BinMaster    Lincoln, NE 68507

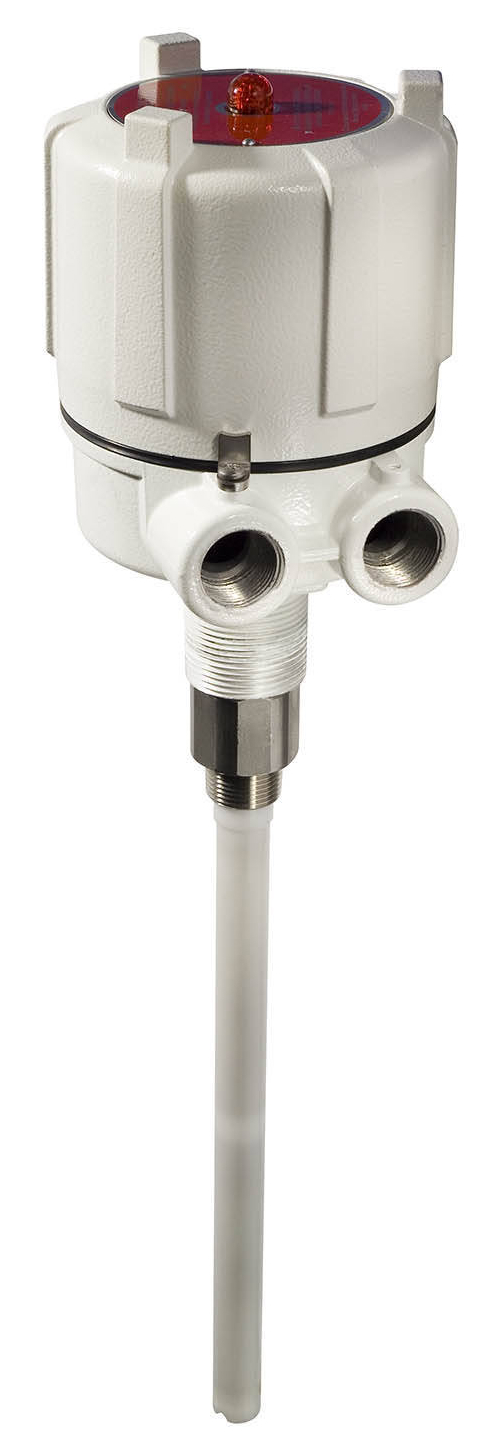

Jun 04, 2010 PROCAP I and II offer flexible time delay that lets user set probe to react immediately or with up to 30 sec delay when it detects covered/uncovered state. Featuring interference-free, fail-safe operation as well as Quick-Set calibration, probes work at 6 KHz and can be used for high and low level detection in vessels used for material storage or process manufacturing. Assortment of probes and extensions allow use with solid, liquid, and slurry materials.

Protek Power North America, Inc.    Hudson, MA 01749
Jun 04, 2010 Housed in 1.96 x 4.64 x 1.26 in. package, PMP31 Series has 90-264 Vac input and includes 6 single-output models ranging from 5-48 Vdc. Withstand voltage is specified at 1,500 Vac from input to output and leakage current is 300 mA max at 264 Vac input. With standby power of less than 0.3 W and min efficiency of 83.5%, power supplies are in compliance with CEC and Energy Star Efficiency Level IV requirements. Units operate from 0-40°C and employ both overvoltage and overcurrent circuitry.

Emuge Corp.    West Boylston, MA 01583-2121
Jun 04, 2010 Intended for short and medium run applications, MultiTAP cuts range of materials - carbon steel, steel alloys, stainless steel, aluminum, cast iron, copper, brass, bronze - and produces threads within 2B and 3B classes of fit. Construction is of proprietary grade of high speed steel (HSS-E), Nitrided with Ne2 surface treatment, and products are available in spiral point as well as spiral flute configurations. Tap sizes cover full range for UNC or UNF threads.

ACE Controls, Inc.    Farmington, MI 48335
Jun 04, 2010 Featuring treated steel piston rod and precision steel body, AGS Series provides controlled motion of lids, hoods, machine guards, and panels. Units have integrated low-friction bearing with grease chamber that provides low breakaway force. Available in fixed force and adjustable models, springs come in variety of body diameters, forces, stroke lengths, and end fittings.

CS Unitec, Inc.    Norwalk, CT 06850
Jun 04, 2010 PowerGrit Air Chain Saw cuts up to 20 in. dia ductile and cast iron pipe, PVC pipe, HDPE pipe, and cured-in-place piping for utility, municipal, construction, and industrial applications. Allowing user to cut from one position, design promotes operator safety while reducing physical effort. Cutting from one side also reduces excavation requirements. Diamond segments grind material for reduced vibration and no kickback, and pneumatic power eliminates exhaust fumes.

Edmund Optics    Barrington, NJ 08007

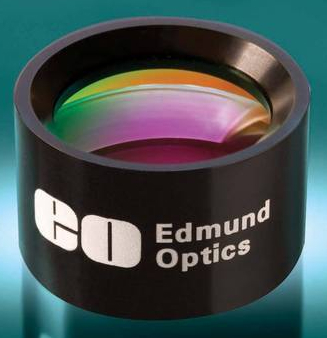

Jun 04, 2010 Suited for use by designers and researchers working in 3-5 µm spectral region, TECHSPEC® Mid Wave IR Achromatic Lenses provide near diffraction-limited performance over their entire spectral range. Doublets feature Germanium and Silicon lenses, which are air-spaced and aligned within anodized aluminum barrel. Available in four 30 mm dia versions with 40, 50, 60, and 75 mm focal lengths, lenses are color-corrected and coated for maximum energy throughput over full spectral range.

Halogen Lighting Product Corporation    Kaneville, IL 60144

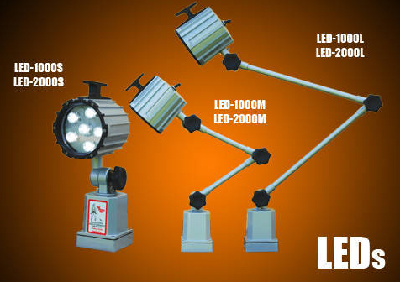

Jun 04, 2010 Encased in watertight and dustproof cast aluminum housing, Tool Helper(TM) Series delivers mercury-free, bright natural white illumination. Fixtures include electronic driver that senses dim LED and auto-compensates for brightness. With IP67 rating, units withstand vibration, harmonics, coolants, fluids, mist, lubricants, metal chips, and other forms of debris. Fixtures are available in arm lengths of 20 in. and 34 in. as well as model with base and head only.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Jun 04, 2010 Suited for thin metal panels, PEM® Spinning Clinch Bolts provide controlled clinching action during installation that permanently captivates screw while allowing it to spin freely in sheet. Line includes Type SCB(TM) fasteners with unthreaded neck for axial float and Type SCBJ(TM) hardware with jacking features. Available in thread sizes from No. 4-40 through 6-32 and M3 through M4, both types can permanently captivate into aluminum or steel sheets as thin as .040 in.
