Deublin Company    Waukegan, IL 60085-6747
Jul 05, 2010 Designed to allow transmission of signals from stationary to rotating structure, Slip Rings can be configured for power and signal connections. Signal portion is compatible with Ethernet, Profinet, RS-232, RS-485, RS-422, and CAN as well as analog or digital sensing and 24 V control signals. Rings are suited for electromechanical systems that require unrestrained, intermittent or continuous rotation while transmitting power and/or data, such as wind turbines, robotics, and industrial machinery.

Zoneworks    Milwaukee, WI 53223
Jul 05, 2010 Designed and built to match specific application requirements, 3D structures let users control temperature, heat, humidity, sound, odor, dust, fumes, and other elements to protect employees, products, and process integrity anywhere within industrial plant or warehouse. Reconfigurable solutions, shaped to fit entire open area or individual machine, are constructed of modular vinyl panels securely connected with Velcro® and can also be assembled for temporary product storage.

Linear Technology Corp.    Milpitas, CA 95035
Jul 05, 2010 Operating within 3.6-37 V VIN range, H-Grade Model LT3686H features overvoltage lockout, protecting regulator and load from transients up to 55 V, making IC suited for load dump and cold-crank conditions. Internal 1.85 A switch delivers up to 1.2 A of continuous output current at voltages as low as 0.8 V, and switching frequency is user-programmable from 300 kHz to 2.5 MHz. Housed in 3 x 3 mm DFN-10 package, device maintains constant frequency switching, even in very light load conditions.

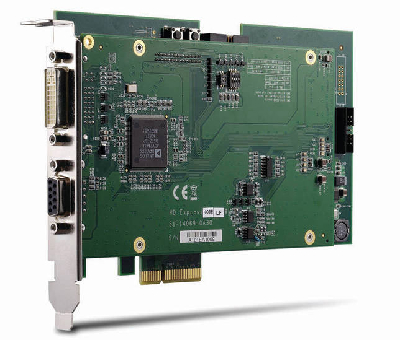

ADLINK Technology Inc.    Irvine, CA 92618
Jul 05, 2010 Equipped with FPGA and 512 MB memory buffer, Model HDV62 delivers uncompressed images and video streaming in PCIe form factor in full 1,080p HD. Unit can stream uncompressed images to host PC and provide color space conversion in real-time via on-board hardware. Based on PCI Express® x4 form factor, board provides lossless pixel information for both spatial and frequency domain analysis, making it suited for medical imaging, scientific imaging, military applications, and video surveillance.

ComNet    Danbury, CT 06810
Jul 05, 2010 Environmentally hardened and suitable for use in unconditioned roadside or out-of-plant installations, ValueLine FVT/FVR812 transmits 8 channels of digitally encoded video, along with 2 channels of bi-directional data, and 1 bi-directional contact closure over single optical fiber. Unit is compatible with NTSC, PAL, and SECAM video transmission protocols and supports bi-directional RS232, 422, and 485 data. Bi-Color LED indicators provide status of system, video, and data.

Linear Technology Corp.    Milpitas, CA 95035
Jul 05, 2010 Supplied in 16-Lead 5 x 3 mm DFN package, LTC4219 Hot Swap(TM) controller allows low-power board with load supply voltages from 2.9-15 V to be safely inserted and removed from live backplane by limiting inrush current to load supply during power up. This 5 A controller comes in dedicated 12 or 5 V versions and offers adjustable current limit. Integrated power MOSFET and sense resistor in power path, as well as internal dV/dt circuit, reduce required number of external components.

Danfoss Inc. Air-Conditioning & Refrigeration Div.    Baltimore, MD 21220-2863
Jul 05, 2010 Available in different variations of pressure and electrical connectors, MBS1300 and MBS1350 (including restrictor) can replace most mechanical switches used in hydraulic processes. Both dual output solutions are available with open collector switch output with direct connection to ground and 150 mA max load. Variable signal and switch function are also available, and transmitters can even drive relays directly to activate hydraulic valves, pumps, or warning lights.

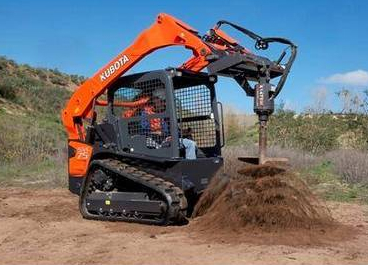

Kubota Tractor Corporation    Torrance, CA 90503
Jul 05, 2010 Powered by 4-cylinder, direct injection, turbo-charged Kubota diesel engine, 75 hp Model SVL75 features 6,204 lb bucket breakout force and 4,881 lb lifting capacity, while 90 hp Model SVL90 has bucket breakout force of 7,961 lb and lifting capacity of 5,869 lb. Both are equipped with rigid-mount undercarriage, fully adjustable suspension seat, hand-and-foot throttle, 2-speed travel, and tilt-up cabin for convenient access.

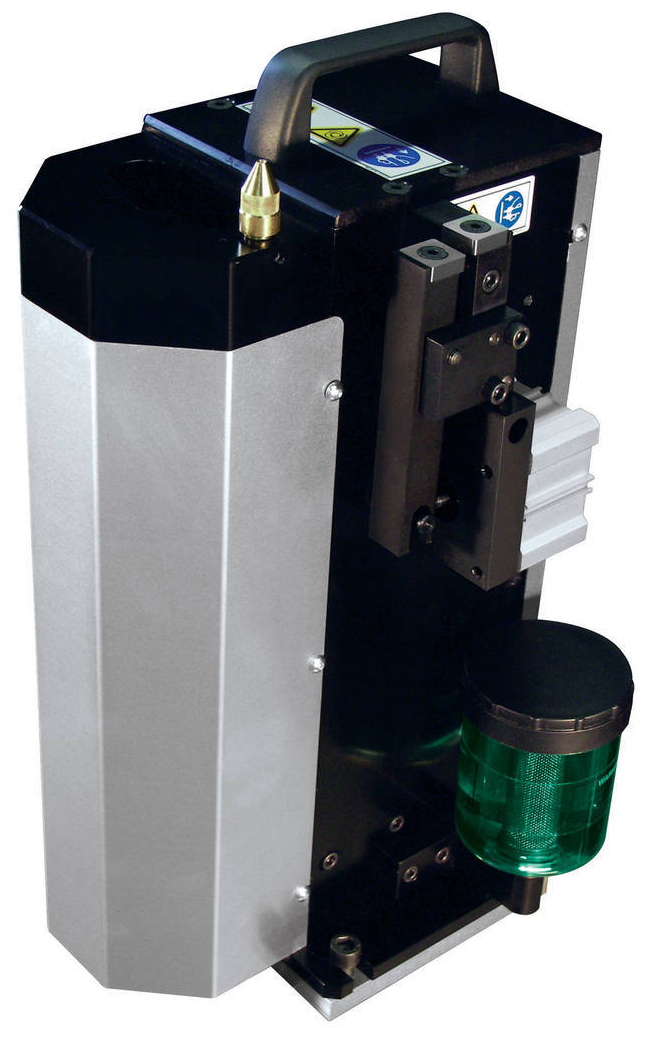

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0  Canada
Jul 05, 2010 Run on 24 Vdc and as little as 60 psi, TOUGH GARD(TM) Spatter Cleaner removes spatter build-up from MIG welding consumables. This minimizes spatter accumulation and extends life of robotic MIG welding consumables. All-in-one solution, featuring factory-installed sprayer and wire cutter, also lessens frequency of MIG consumable changeover, promoting arc-on time. Measuring 9.75 x 9.75 x 17.5 in., station is hard wired to integrate with existing robotic or PLC automation controls.

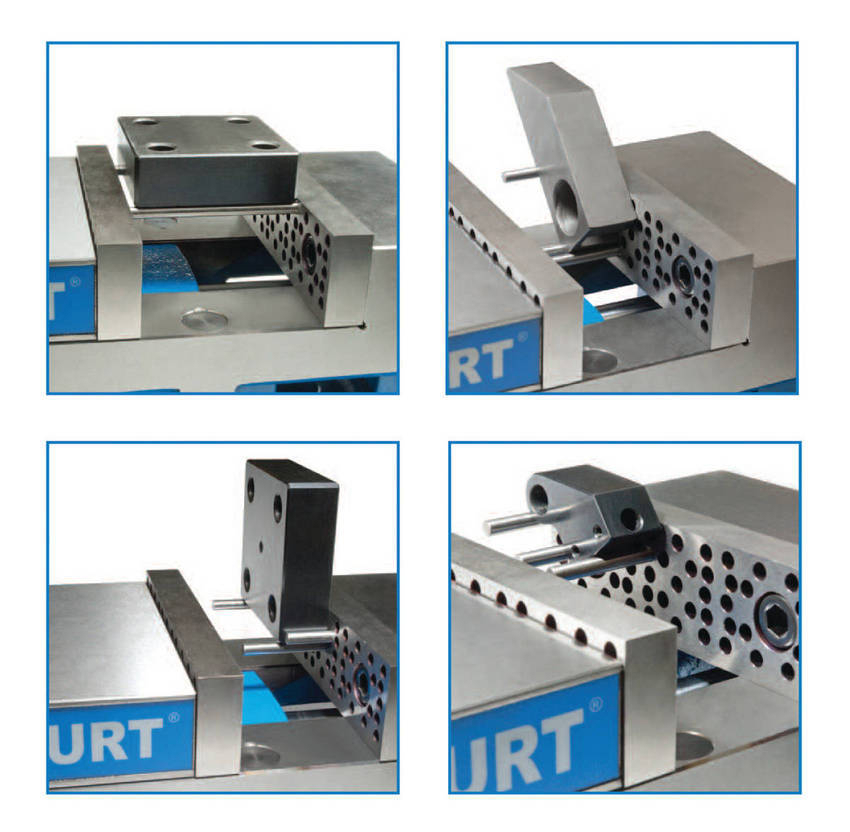

Kurt Manufacturing Co., Industrial Products Div.    Minneapolis, MN 55413 1540
Jul 05, 2010 Allowing parts to be clamped at 5°, 10°, 15°, 20°, 25°, 30°, and 45° angles, 3-in-One Jaw System features preset patterns with aligning pins. Four 6 x 22 mm, three 6 x 40 mm, three 6 x 58 mm, and three 6 x 76 mm pins are included, with pin sets having dimensional tolerance of ±0.018 mm. Overall jaw dimensions are 152.4 x 44 x 18.4 mm ±0.02 mm and system also doubles as workstop with benefit of acting as parallel.

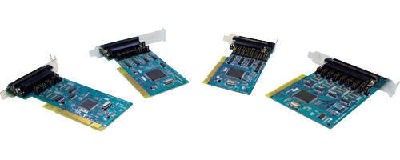

Sena Technologies, Inc.    Seoul 137-130  Korea (south)
Jul 05, 2010 Based on PCI Local Bus Spec 2.3, DirectPort UPCI Serial Cards support serial speeds up to 921.6 Kbps and have internal 256 Byte deep FIFO for communication stability. Users can select 2, 4, or 8 ports; RS232 or RS422/485 communication; and standard or low profile form factor to meet specific hardware requirements. Cards support various operating systems, including Windows 2000/XP/Vista/7 and major Linux distributions.

Zero-Max, Inc.    Minneapolis, MN 55441 5537
Jul 05, 2010 With Micro Dial(TM) feature, users of Zero-Max Adjustable Speed Drives can accurately set and re-set various speeds to meet performance levels for different applications. Units accept input speeds from 0-2,000 rpm and provide speed control for inputs from ¼ to 1½ hp applications with output torque ratings from 12-200 lb-in. When used as prime mover, drive acts as variable speed device, and when used as secondary drive, unit acts as variable ratio device.

Blue Arc Engineering    Greenfield, IN 46140
Jul 05, 2010 Utilizing 24 Vdc brushless drive motor, ZiPline consists of series of belted zones that interact with one another to accomplish zero pressure accumulation. Unit features 4 in. vertical aluminum extruded side channels and quiet 58 db operation. Belt surface eliminates product jams and side by side products, while self-contained wiring and controls intuitively apply regulated brake functions to position product precisely during scanning, diverting, picking, and packing operations.

Kyocera Industrial Ceramics Corp., Industrial Ceramic Products Group    Mountain Home, NC 28758
Jul 05, 2010 Designed for machining gray and ductile cast iron, CA4505 and CA4515 carbide cutting tools utilize Bright Black coating technology for resistance to premature wear and fractures. CVD coating provides anti-peeling performance through combination of ultra-fine TiCN layer, alpha-alumina layer, and special-surface top layer, which minimizes material build-up on insert cutting edge. CA4505 is suited for continuous machining, while CA4515 is suited for continuous or interrupted machining.

Microsoft Corp.    Redmond, WA 98052-6399
Jul 05, 2010 InstaLoad battery installation technology allows users to install battery without regard to positive and negative polarity. Device works regardless if battery is installed positive-side-up or positive-side-down and can be incorporated into devices that require frequent battery swap-outs. It is compatible with CR123, AA, AAA, C, or D size batteries or similar barrel-type form factors and can be designed into most battery compartments.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421
Jul 05, 2010 Supplied in 3.0 x 3.0 mm QFN package, RF3482 front end module (FEM) integrates WiFi power amplifier with SP3T switch for 2.4-2.5 GHz ISM band applications. Integration of complete switch functionality enables routing of WiFi and Bluetooth® receive/transmit signals to 2 SoC transceivers. Additionally, SP3T switch can act as splitter to transmit or receive Bluetooth and WLAN signals simultaneously. Other features include Rx balun and 2,170 MHz filtering and harmonic attenuation.

Straton Industries, Inc.    Stratford, CT 06615
Jul 05, 2010 Helping gas cylinder manufacturers meet production requirements, Straton machines EDM notches to customer specific length, width, and depth in wide range of conductive materials including titanium, tantalum, carbide, molybdenum, brass, copper, and aluminum. Size and location verification are provided for identifying position of these calibration flaws.

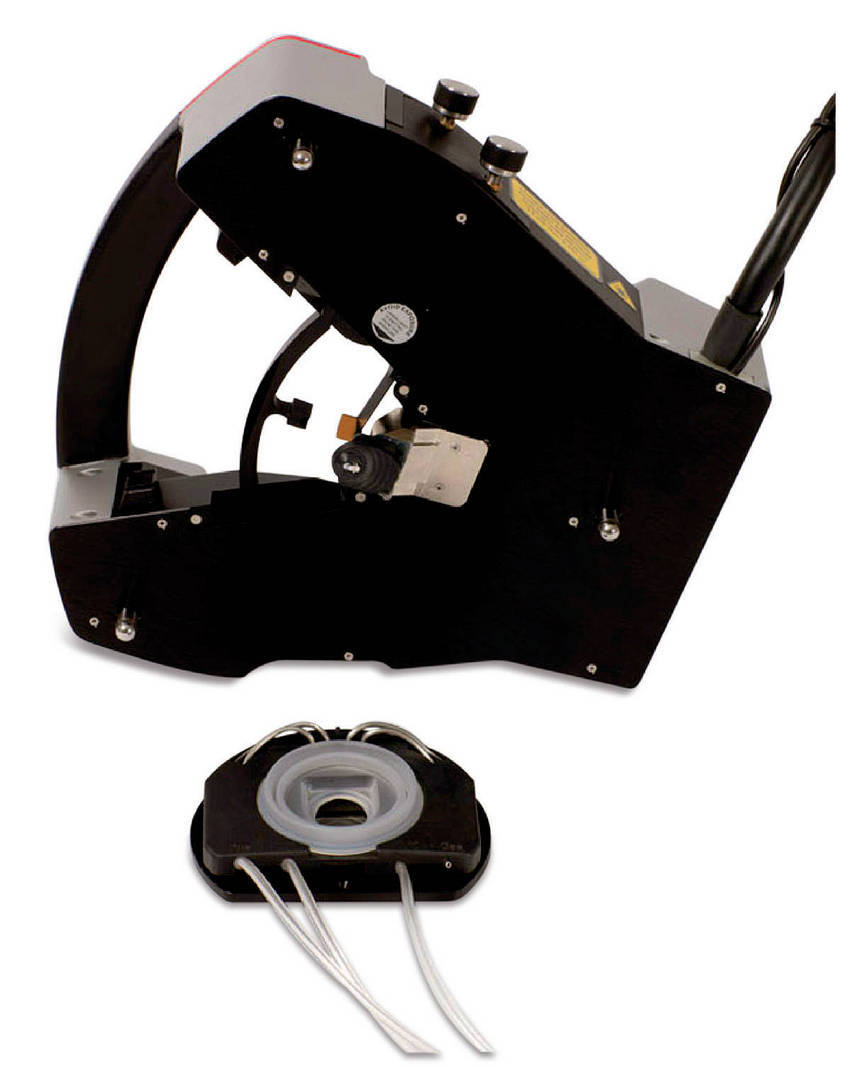

Veeco Instruments Inc. Corporate Headquarters    Woodbury, NY 11797
Jul 02, 2010 BioScope(TM) Catalyst(TM) Perfusing Stage Incubator for BioScope Catalyst AFM features incubation and perfusion options including continuous or intermittent liquid perfusion, heating, and maintenance of CO₂ buffered media. Included Microscope Image Registration and Overlay (MIRO) automatically imports and rescales light microscope images. System's top-down laser path permits uncompromised use of phase contrast, differential interference contrast, and brightfield optical microscopy.

Sunnen Products Co.    St. Louis, MO 63143
Jul 02, 2010 Using standard collet connection, KRQ tool requires no indicating for parallel or conical runout - accelerating setup and job changeover. This enables shops to inventory range of tool sizes for efficient processing of short production runs. Available in diameters of 5.0-19 mm in increments of 0.10 mm, tool can work with controlled-force honing technology to enable shops to obtain precise bore size control. Mandrel works with diamond and CBN superabrasives and utilizes carbide shoes.

Phidgets, Inc.    Calgary, AB T2M3R7  Canada
Jul 02, 2010 Able to be used with mechanical and optical encoders, 1047 - PhidgetEncoder HighSpeed 4-Input has max count rate of 250,000/sec and can read up to 4 encoders simultaneously with 1 µs time resolution. It is possible to enable some or all encoders, and device provides ability to time duration between group of quadrature changes. Min and Max current consumption rates for this plug-and-play device, with all channels respectively disabled and enabled, are 30 and 500 mA.
