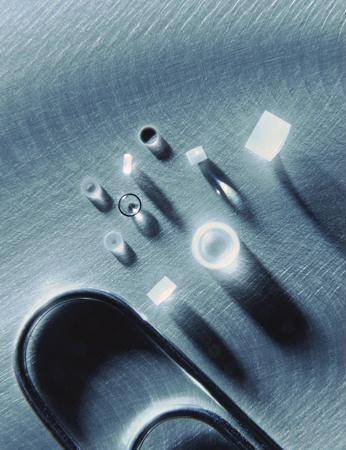

Bern Optics, Inc.    Westfield, MA 01085
Jun 11, 2010 Suited for use in analytical and medical instrumentation, precision lenses can be ground and polished in variety of difficult configurations, including plano convex, plano concave, bi-concave, bi-convex, as well as positive and negative meniscus. They are made from optical and filter glasses, and produced with spherical and cylindrical radii with submillimeter curvatures and diameters. Custom designed anti-reflection coatings can also be provided on all lenses.

Sodick    Schaumburg, IL 60173
Jun 11, 2010 VZ series EDMs feature linear motor system that employs direct-drive, frictionless, and vibration-free mechanism to provide positioning accuracy with no backlash. High speed electrolysis-free circuit recycles unused discharge pulses, eliminates oxidation, and improves part straightness. Model VZ300L has 13.8 x 9.8 x 8.7 in. X, Y, and Z stoke and max workpiece weight of 1,100 lb, while model VZ500L features 19.7 x 13.8 x 9.8 in. X, Y, and Z stroke and max workpiece weight of 1,870 lb.

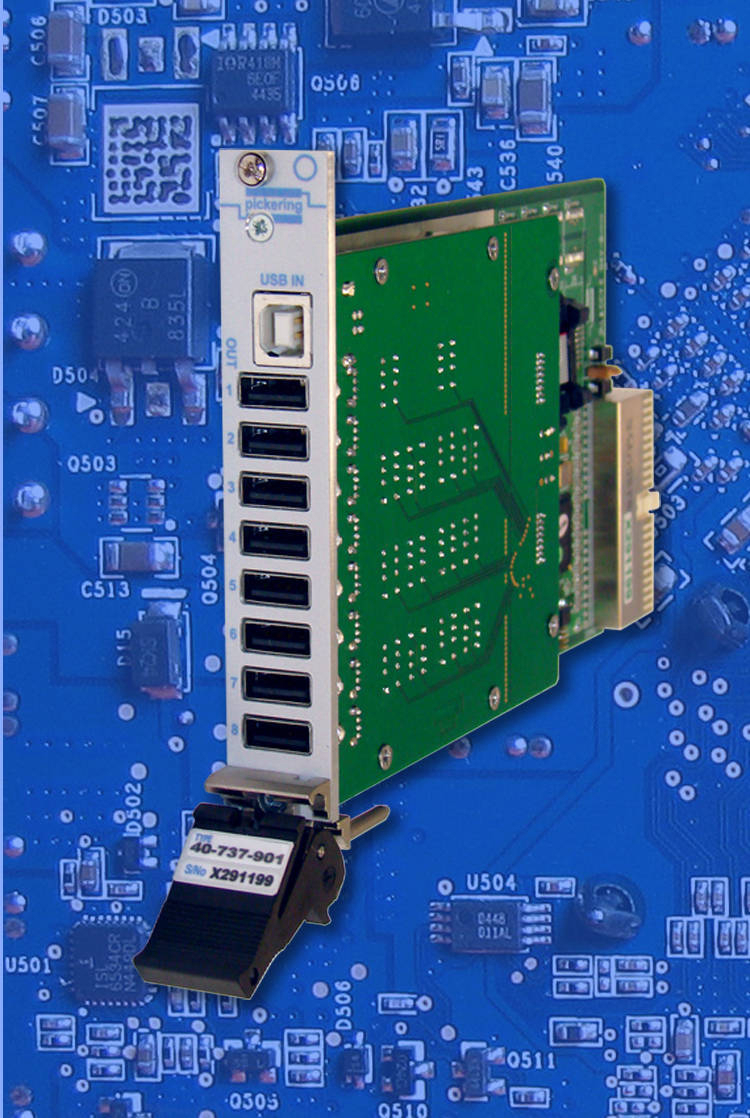

Pickering Interfaces Inc    GRANTS PASS, OR 97526
Jun 11, 2010 Suited for bulk testing of USB devices, model 40-737 uses USB Type B connector on common and USB Type A connector on 8 channels, allowing users to directly connect using industry standard USB leads. Each path is capable of supporting USB1.1 or USB2.0 with negligible impact on cabling distance supported by USB devices due to wide differential bandwidth. USB powered devices requiring highest permitted current are supported through use of low impedance power connections.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jun 11, 2010 Suited for use in ring magnet-based speed and direction systems, A1230 monolithic IC contains 2 independent Hall-effect bipolar switches located 1 mm apart. Digital outputs are out of phase so that they are in quadrature when interfaced with proper ring magnet design. On-chip low dropout regulator facilitates use over wide operating voltage range. Device is available in lead free, plastic 8-pin SOIC surface mount and 4-pin SIP packages, with temperature range of -40 to 150°C.

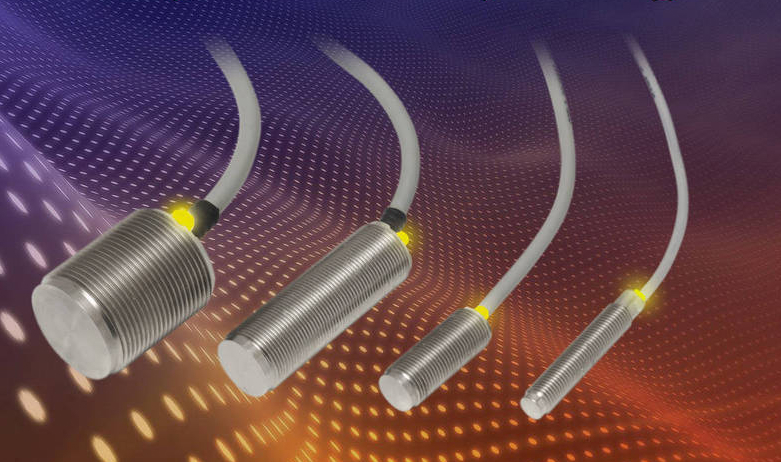

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Jun 11, 2010 Offered in M8, M12, M18, and M30 diameter sizes, rugged IAxxF series inductive proximity sensors are made of 304 stainless steel, along with stainless steel mounting nuts. They operate on 10-30 Vdc and are available in NPN or PNP configurations, with choice of normally open and normally closed outputs and flush/non-flush mounting options. Sensors carry cCSAus and CE approvals and come with 2 m PVC cable or quick-disconnect plug.

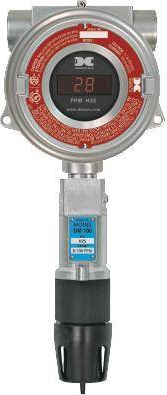

Detcon, Inc.    The Woodlands, TX 77387 8067
Jun 11, 2010 Suited for continuous monitoring for wide range of toxic gases, SmartWireless(TM) DM-100 provides 2-wire loop powered 4-20 mA current signal equivalent to range of detected concentration of gas. It comes in XP and intrinsically safe electro-polished 316 stainless steel housing fitted with ¾ in. NPT thread, and has non-intrusive operator interface with automated calibration. Accessories include field replaceable transient protection circuit, alarm relay board, and current to Modbus(TM) converter.

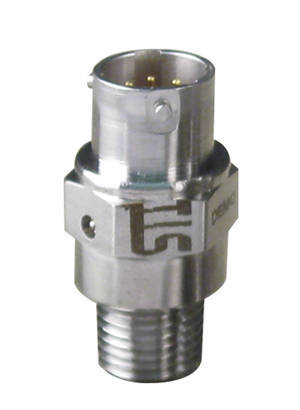

Stellar Technology, Inc.    Amherst, NY 14228
Jun 11, 2010 Featuring all welded stainless steel construction and weighing only 3.5 oz, miniature series FT290 covers ranges from 2,000-10,000 psia/psig and provides 3 mV/V full scale output with 10 Vdc excitation. It features operating temperature of -100 to +300°F and compensated temperature range of -65 to +250°F, infinite resolution, and low sensitivity to vibration/shock. Available with ¼ in. NPTM pressure fittings, each unit comes with 19 point calibration record traceable to NIST.

JetBrains, Inc.    14700 Prague   Czech Republic
Jun 11, 2010 Intended for PHP and Web development, respectively, PhpStorm v1.0 and WebStorm v1.0 are full-featured IDEs with features such as project deployment and synchronization over FTP. Both analyze and offer deep understanding of code, regardless of whether it is JavaScript, PHP, HTML, or CSS, providing developers with code insight, code completion suggestions, and project navigation facilities. PhpStorm also integrates graphical PHP debugger and PhpUnit testing frameworks support.

Tensilica, Inc.    Santa Clara, CA 95054
Jun 11, 2010 Intended for SoC designs, ConnX 545CK dataplane processor core combines base CPU controller with DSP that can sustain 8 simultaneous MAC (multiply-accumulate) operations on independent data pairs per cycle utilizing 160-bit vector registers. It features 3-issue VLIW (very long instruction word) architecture with eight 16-bit multipliers that operate in SIMD mode. Capable of 600+ MHz operation, core also has two 128-bit load/store units and Viterbi convolutional coder accelerator.

Tensilica, Inc.    Santa Clara, CA 95054
Jun 11, 2010 Designed to facilitate SoC integration, Diamond Standard controllers include 5 upward-compatible processor cores based on common Xtensa architecture. These 32-bit embedded control cores, suited for embedded control functions in compute-intensive dataplane functions, are available as cache-enabled and cache-less controllers with on-chip debug hardware that achieves Dhrystone 2.1 results of 1.22-1.59 DMIPS/MHz, depending on model. Specific features vary by model.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Jun 11, 2010 Powered by 2.1 GHz Intel® Core(TM) 2 Duo CPU T65701, Satellite Pro® L510-EZ1410 integrates 3 GB DDR3 memory, Intel Graphics Media Accelerator 4500MHD, and 14.0 in. widescreen TruBrite® LED-backlit display. Windows® 7 Pro 64-bit with Windows XP Pro downgrade media is also included along with system health monitor. For connectivity, laptop offer Realtek® 802.11b/g/n wireless LAN and Bluetooth® 2.1 + EDR options as well as built-in Webcam with microphone. HDD and DVD drives are standard.

Virage Logic    Fremont, CA 94538
Jun 11, 2010 Targeting analog mixed-signal applications migrating from 180 to 130 nm, AEON® multi-time programmable (MTP) parallel non-volatile memory (NVM) provides reprogrammable NVM solution to trim precision ADC and DAC, store encryption/decryption keys, and configure MEMS devices. Applications include portable devices such as multifunction cell phones that require NVM for precision analog trim values to optimize performance of audio, display, or sensor IC in onboard accelerometer/gyroscope.

Western Digital Corp.    Lake Forest, CA 92630
Jun 11, 2010 My Passport(TM) SE for Mac® portable USB drives are available in 1 TB and 750 GB capacities and are suitable for saving, storing, and backing up data from Mac computers. Products do not need external power supply and are also compatible with Apple Time Machine® software. Equipped with 256-bit hardware encryption with password protection, units holds rich media content collected by videographers, creative professionals, and digital media enthusiasts.

Fresco Logic    Beaverton, OR 97006
Jun 11, 2010 Dual-port FL1009 features PCIe Gen II interface and is based on GoXtream(TM) xHCI Accelerator Engine, which allows each USB port to sustain full bandwidth of USB 3.0 throughput and provides headroom to support Next-Gen true 1080p HD video streaming applications and UASP-enabled storage devices. Chip supports xHCI Rev 1.0 specification and USB 3.0 Rev 1.0 specification and is also backwards-compatible with USB 2.0 and USB 1.1.

Cabinet NG, Inc.    Athens, AL 35611
Jun 11, 2010 With CNG-WEB v6.2, users can search cabinets and folders, view documents, as well as simultaneously upload and route documents via Web browser. Users can also add notes to document workflow history, accessible using trace function for tracking status and progress of workflows. Software remembers user location in system and returns them at next login, and includes numbered paging system with scroll bars and page-up/down keyboard controls to streamline navigation.

Meadow Burke Products, Inc.    Tampa, FL 33619
Jun 11, 2010 MB Barrier Reflector Connector features reusable channel, available in standard and custom lengths to fit various precast form lengths, that eliminates need for on-site drilling. Custom channel lengths also provide on-site adjustability of glare screens, promoting worker safety while minimizing installation efforts. Corrosion-protected solution offers other features, such as hot rolled channel with welded I-anchors, black memory foam, and hot dip galvanized finish.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Jun 11, 2010 Based on DaVinci(TM) DM6467 video processor and pre-loaded with RADVISION video communications software, VCE6467 Video Communications Engine enables 720p HD video at 30 fps using H.264 encoding/decoding. This, in addition to G.711 audio and A/V synchronization, enables realistic, nearly face-to-face communications for end video applications. Other features include optional multi-protocol support (SIP, H.323) and media quality framework - SVC, bandwidth management, packet loss resilience.

Ohio Gratings, Inc.    Canton, OH 44706 1943
Jun 11, 2010 Specifically designed to accommodate wheelchair and high heel traffic, Wheels n' Heels® grating is available in stainless or carbon steel and combine AASHTO H-20 wheel load ratings with ADA pedestrian comfort requirements. Metro style, available with ¼ or ½ in. spacing between bars for optimal ventilation, has no top welds for enhanced aesthetic appeal. InVent style features main support bearing bars running perpendicularly but under top surface bars.

Panasonic Co.    Secaucus, NJ 07094
Jun 11, 2010 LUMIX G Fisheye 8 mm/F3.5 lens, Model H-F008, measures 2.39 in. dia x 2.04 in. long and weighs 5.82 oz. Compatible with LUMIX G Series DSL Micro (DSLM) cameras, lens features 180° diagonal angle view and offers distinctive perspective and unique deformation effect. Construction offers 10 lenses in 9 groups, and use of extra-low dispersion glass lens achieves stable, descriptive performance at all distances. Inner focus system also enhances operation.

Panasonic Co.    Secaucus, NJ 07094
Jun 11, 2010 Employing Venus Engine HD II image processor, LUMIX DMC-FX75 captures images via 24 mm ultra-wide-angle F2.2 bright LEICA DC VARIO-SUMMICRON lens with 5x optical zoom and uses Dolby Digital Creator to record audio. Users can record HD video in AVCHD Lite format or SD video in Motion JPEG, WVGA, and VGA, and operation is accomplished via 3.0 in., 230,000-dot LCD touchscreen. Standard features include Auto Focus, POWER Optical Image Stabilizer, and Motion Deblur mode.
