American Industrial Systems, Inc.    Irvine, CA 92614
Jun 09, 2010 Based on 1.6 GHz Intel® Atom N270 processor, 10.4 in. Rugged Mobile Data Terminal PC features aluminum-magnesium alloy construction with individually sealed ports for IP54 waterproof and dustproof protection. Unit is engineered to MIL-STD 810F standards and offers ISO 7637 compliance. Powered by Li-Ion battery, terminal has built-in touchscreen with transflective backlight available for sunlight readability, and 802.11b/g WiFi and Bluetooth modules for connection to wireless networks.

Schweitzer Engineering Laboratories Inc.    Pullman, WA 99163
Jun 09, 2010 Able to operate as OC-48 SONET multiplexer and/or GbE switch, SEL ICON (Integrated Communications Optical Network) features precise time distribution accurate to 1 µs over WAN. It also offers real-time latency monitor for each channel and support for SONET, Ethernet, and DS0 interfaces such as C37.94 and EIA 232. Product can be managed from one or several locations and is available in 19 in., shelf-mount package and 8 in. DIN-rail or panel-mount package.

Veeco Instruments Inc. Corporate Headquarters    Woodbury, NY 11797
Jun 09, 2010 ContourGT(TM)-K0 non-contact, 3D optical surface profiler combines streamlined architecture and functionality with measurement and computing hardware and software. Dual-LED illumination, combined with optimal vertical resolution, accommodates difficult applications and environments. In addition to Vision64(TM) Operation and Analysis Software, system features intuitive, modular nterface that offers user-level customization capabilities.

Siemon Co., The    Watertown, CT 06795
Jun 09, 2010 Four-port DIN Rail Mounted Patch Panels provide flexible patching solution for RJ-45 based copper and optical fiber. Featuring angled mounting design for low-profile cable routing, products are 4 in. wide and constructed of lightweight, high strength steel with industrial black powder-coat finish and integrated cable management features. Panels are side stackable, enabling high density expansion, and support wide array of cabling connectivity options.

Pres-On Products, Inc.    Addison, IL 60101
Jun 09, 2010 Consisting of removable acrylic PSA coated on 1.5 mil polyester film, optically clear PBCMF-1.5 adheres to fragile plastics, glass, and polished metals that require temporary surface protection through assembly or shipping. Light-tack, static-cling properties allows film to removed, leaving behind no adhesive residue. Available on standard rolls measuring 1, 6, and 12 in. wide with lengths of 216 ft, product is also suitable as support film for thin film substrates or as carrier film.

DELUMPER ® Div., Franklin Miller Inc.    Livingston, NJ 07039
Jun 09, 2010 Suited for recycling, disposal, or reprocessing operations, TASKMASTER® PRS (Product Recovery System) separates dry or liquid bulk product from packaging. Product is separated and discharged from one port, while containers and packages are transported to second discharge port. Suited for expired or returned products packaged in cardboard, plastic, metal cans, and corrugated cartons, system is offered in carbon- or stainless-steel construction options.

IKey Ltd.    Austin, TX 78754
Jun 09, 2010 Suited for harsh environments, 15 in. Model IK-PDS-1502, 17 in. Model IK-PDS-1703, and 19 in. Model IK-PDS-1902 have IP65-rated front panel and are resistant to dirt, dust, liquids, and corrosives. Units, respectively, feature brightness of 350, 300, and 300 cd/m²; contrast ratio of 700:1, 800:1, and 1,300:1; and resolution of 1,024 x 768, 1,280 x 1,024, and 1,280 x 1,024. Operating from 0-50°C, each LCD offers VESA, panel, and wall mounting as well as wall-embedded installation.

Protex Fasteners Ltd    Redditch Herefordsh B98 8PA  United Kingdom
Jun 09, 2010 With all-riveted mounting baseplates that distribute assembly loads over large bearing area, Protex 43-3292, 43-4292, and 44-4292 suit applications in agricultural, industrial, earth moving, and process equipment sectors. Heavy-duty, over-centre latches, offered in stainless or zinc-plated mild steel, respectively achieve tensile strengths of 2,000 and 2,500 kgf with type 04-4292 catchplates. While 43 series products can be padlocked, 44-4292 has automatically locking side-action catch.

RADIALL Inc    Chandler, AZ 85226
Jun 09, 2010 Designed for optical systems using SFP transceivers and duplex LC-terminated fiber-optic cable, R2CT connection kit provides waterproof, sealed connection for fiber-to-the-antenna, remote radio head equipment, and similar outdoor applications. Field-installable and reusable kit, sealing at transceiver-to-cable interface, ensures robust mechanical and environmental performance. Sealing levels are IP65, with IP67 optionally available. Mated connection has 45 lb retention force rating.

Dataforth Corp.    Tucson, AZ 85706

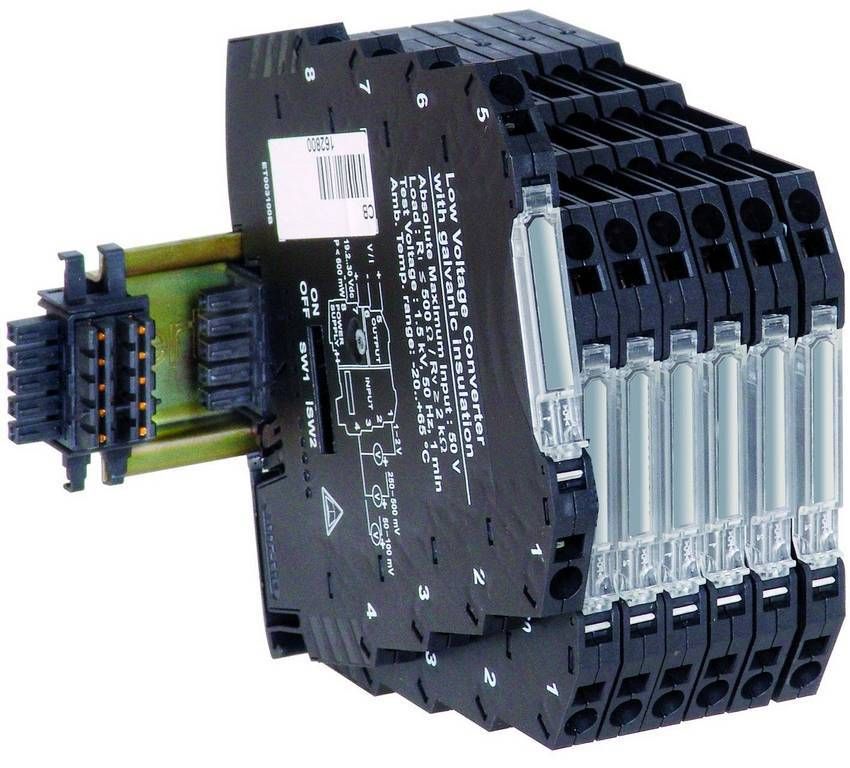

Jun 09, 2010 Operating from 19.2-30 Vdc supply, 7 models of DSCP6x series measure 3.67 x 0.24 x 4.04 in. and are designed for use in data acquisition, test and measurement, and control system applications. Each offers 14-bit resolution and better than ±0.1% accuracy. Along with 1,500 Vac 3-way isolation as well as output overcurrent protection, features include dip-switch configuration, cage clamp connectors, and expandable power-bus connector on DIN rail guide.

Baumer Ltd.    Southington, CT 06489 1534

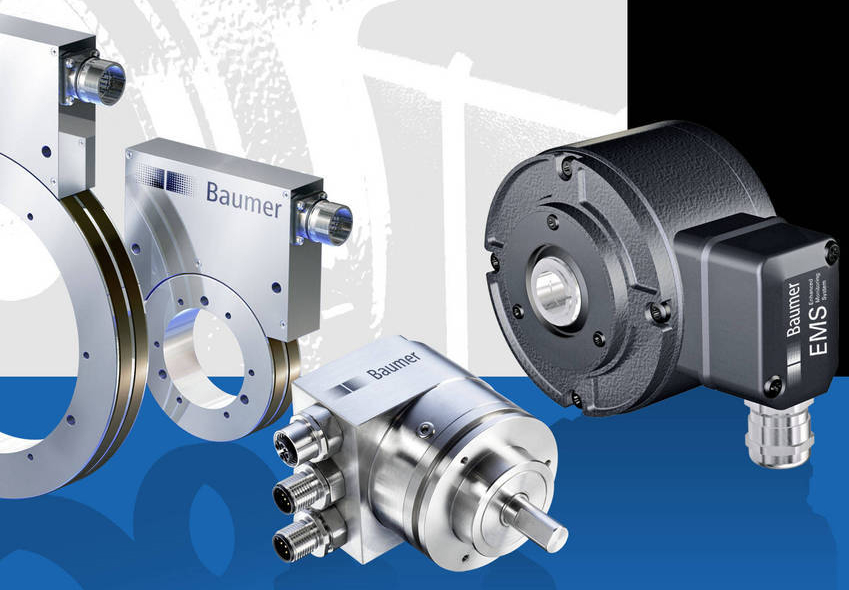

Jun 09, 2010 Magnetic hollow-shaft encoders, hermetically-sealed magnetic encoders, and heavy-duty encoders offer functionality that accommodates wind industry requirements. In addition to providing generator feedback, air gap control, rotor blade stress measurement, rotor speed/position feedback, and nacelle movement control, functionality is available for monitoring tower condition, disc brake pad wear, rotor blade positioning/condition, and hydraulics/cooling/lubrication systems.

Cissoid    Mont Saint Guibert 1435  Belgium

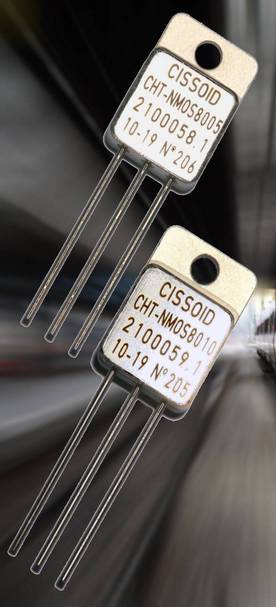

Jun 09, 2010 Supplied in TO-254 metal can packaging, Earth high-temperature, 80 V, N-channel power MOSFETs include 2 versions - CHT-NMOS8005 and CHT-NMOS8010 - respectively rated for 5 and 10 A max drain current. On-resistance and input capacitance of family respectively range from 0.25-0.5 W and 410-850 pF. At 225°C, CHT-NMOS8005's gate leakage current remains below 500 nA, while drain off current is as low as 20 µA, and turn-on delay time is 30 ns.

Sentry Equipment Corp.    Oconomowoc, WI 53066
Jun 09, 2010 Consolidating 50+ controller designs, Model SBC can control every automatic sampler in Sentry's product line. Stand-alone sampler controller offers intuitive operator interface as well as local and remote operating modes. This dedicated logic control system, designed for use with Sentry samplers in general-purpose environment, installs with few connections and offer Quick Start screen to guide operator through setup. Customization is possible via various sampling options.

Kontron    Poway, CA 92064

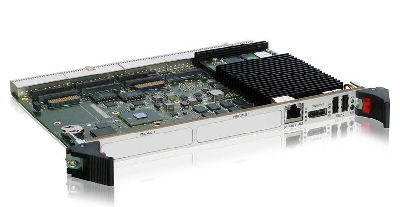

Jun 09, 2010 With 2.53 GHz Intel® Core(TM) i7-610E and LV 2.0 GHz Intel® Core(TM) i7-620LE, Model CP6002 speeds multiprocessing tasks via hyper-threading technology and quickly processes single-threaded tasks using Intel Turbo Boost technology. Unit offers up to 8 GB of soldered DDR3 1,066 MHz ECC memory, CompactFlash socket, and up to 32 GB of NAND Flash via SATA interface. Additional features include VGA/DP/HDMI graphics interfaces, 2 PMC/XMC slots, 6 USB 2.0 ports, 1 RS-232 port, and 1 RS-422 port.

ITW Rocol North America    Glenview, IL 60025
Jun 09, 2010 Made from naturally derived, vegetable-based oils, Rustlick PowerCool Green and PowerCool Green CF water-soluble oils are formulated to provide optimal lubricity and biostability in heavy-duty cutting and grinding applications. Products are safe for all metals and suited for light- to heavy-duty jobs. PowerCool Green contains chlorinated EP additives, while PowerCool Green CF contains non-chlorinated EP additives and is also recommended for use on titanium.

Dwyer Instruments, Inc.    Michigan City, IN 46361

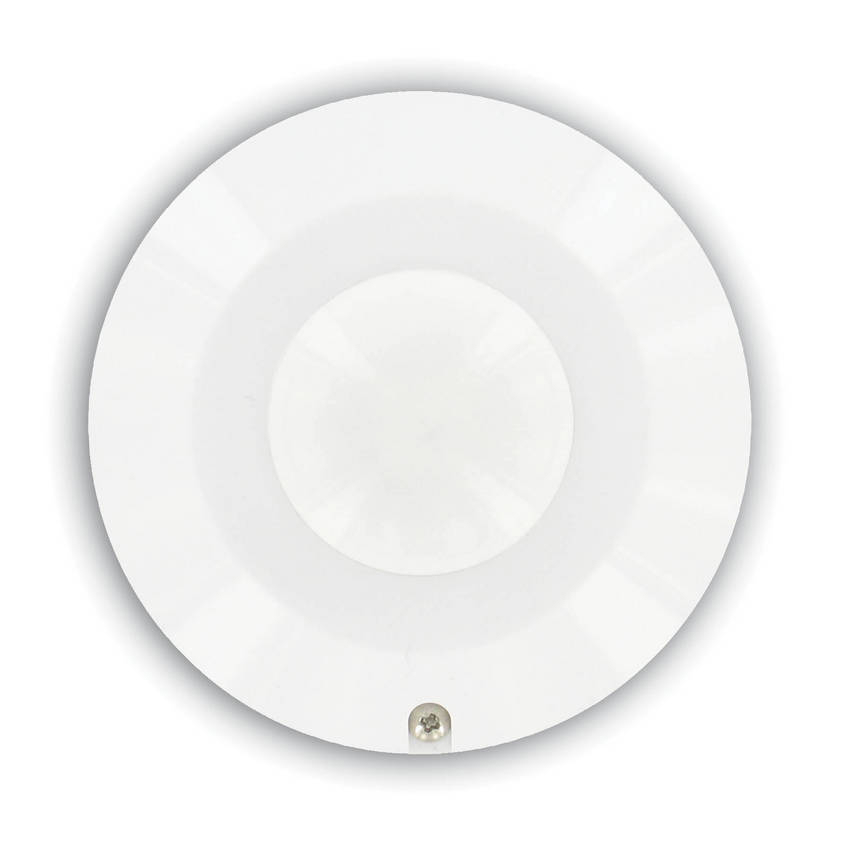

Jun 09, 2010 Model OSC-200 Omnidirectional Occupancy Sensor features spherical Fresnel lens that provides 360° detection zone with use of IR technology. Designed to be ceiling mounted, unit also integrates dual delay processor that conserves energy by eliminating false activation due to short-term occupancies. Sensing range is 34.4 ft diameter at 13.8 ft mounted height.

New Scale Technologies    Victor, NY 14534
Jun 09, 2010 Measuring 20 x 22 x 18.5 mm, M3-F focus module assembles directly to board-mounted camera, accepts standard threaded lens, operates on 3.3 V, and accepts high-level digital motion commands. All lens motion functions are fully integrated in M3-F module including actuator, position sensor, guide mechanism, drive and control electronics, and software. Modules provide 0.5 µm position resolution, better than 30 µm accuracy, and better than ± -0.5° angular alignment.

Colder Products Co.    St. Paul, MN 55114
Jun 09, 2010 Combining dual flow paths into integral hose assembly, Hybrid Connector eliminates need for multiple connections and simplifies user interface between modular tools, umbilicals or hand pieces and device. Integrating high-cycle electrical contacts directly into connector eliminates need for separate power cable to remote tools. Also available in customized versions, connector suits applications such as diagnostic equipment, surgical tools, analytical instrumentation, and hospital beds.

Cito Systems    Santa Clara, CA 95054
Jun 09, 2010 Suited for embedded applications, Millennium Controllers are available in 1, 2, or 4 axes configurations for brush or brushless, mixed brush and brushless as well as stepper or microstepper motors. DSP unit provides S-curve, trapezoidal, velocity contouring, and electronic gearing motion profile modes. Operating from +5, +12, +24, or +48 V supplies, boards interface to external components via 100-pin high-density connector, which provides ±10 V differential analog or PWM motor outputs.

Alemite Corporation    Charlotte, NC 28226 3515
Jun 09, 2010 Operating at 7,500 psi, Pistol Grip Grease Gun includes dual leverage feature for operating in volume or pressure mode, ergonomic rugged cast handle, and universal follower for cartridge and bulk use. Gun delivers 1 oz of grease per 30 strokes and has cylinder capacity of 16 oz. Heavy-duty follower spring maintains prime.
