SemiSouth Laboratories, Inc.    Starkville, MS 39759
Feb 10, 2012 Enabling accelerated evaluation of SJDP120R085 silicon carbide (SiC) JFETs, demo board platform is suitable for applications such as boost, buck, inverter, and PSU half-bridge power stage designs. In cascode configuration, JFET is driven via source-connected MOSFET, allowing existing MOSFET drivers to be used. Solution comes with Gerber files and BOM to allow users to build their own circuits.

Portronics    New Delhi 110001  India
Feb 10, 2012 Powered by built-in 3,000 mAh Li-ion battery that provides 2 hr of operation on one charge, POR 315 Pico projector can deliver colorful images with up to 80 in. diagonal and 1,024 x 600 resolution directly from USB drive. SD card slot allows memory expansion, while standard I/O - USB, VGA, HDMI, and composite video - fosters connection to analog/digital devices. In addition to 45 lm optical engine powered by LCOS, features include 1 W onboard speaker and 20,000 hr LEDs.

ABB, Inc.    New Berlin, WI 53151
Feb 10, 2012 By detecting faults in low- and medium-voltage switchgear, UL-listed Arc Guard System(TM) TVOC-2 prevents injury to personnel and equipment damage. Product carries functional safety rating of SIL-2 when installed along with Emax circuit breakers, detects arc flash in less than 1 msec, and will disconnect power to switchgear within 30-50 msec typ. After optical sensor detects light (arc flash), arc monitor determines intensity, and signal is sent to trip breaker(s).

GL Communications Inc.    Gaithersburg, MD 20877
Feb 10, 2012 Providing 4 or 8 RJ-48 T1 E1 ports and multiples thereof, T1 E1 Quad and Octal Boards are available with GUI for Windows® XP and Windows® 7 with support for T1 E1 Analyzer applications, including Comprehensive Analysis/Emulation of Voice, Data, Protocol, Digital, and Echo Testing. Boards support call recording, generation, and monitoring for hundreds to thousands of calls in one platform. Octal boards are compatible with dual, quad, and higher core motherboards that simulate dual and quad cores.

AXIOMTEK Co., Ltd.    Taipei   Taiwan
Feb 10, 2012 Equipped with AMD G-series dual core 1.65 GHz T56N APU and A50M FCH chipset, Model NANO100 has 1 SO-DIMM socket that supports 4 GB DDR3 1333 memory. Board integrates Radeon(TM) HD 6320 graphics controller with DirectX® 11 support, offering advanced 3D graphics and dual views via VGA and DisplayPort on rear I/O, as well as 18-bit/24-bit single/dual channel LVDS interface. Measuring 120 x 120 mm, board includes 6 USB 2.0 ports, 2 COM ports, dual Gigabit LANs, and PCIe Mini card expansion.

Powervation, Inc.    Palo Alto, CA 94301
Feb 10, 2012 Featuring Auto-Control® adaptive loop compensation algorithm, PV3101 single-output, single-phase, digital DC/DC controller uses DSP/RISC dual-core architecture with precision DAQ engine. Full differential voltage, current, and temperature measurements and 11-bit ADC are used to provide precision measurement; tight control; and accurate, real-time reporting of telemetry information for KPIs. Also, Green Modes(TM) technology reduces power losses during light-load operation and idle conditions.

SemiSouth Laboratories, Inc.    Starkville, MS 39759
Feb 10, 2012 Normally on (NO) silicon carbide (SiC) trench JFET, SJDP120R340, provides high-speed switching in micro inverters. Rated at 1,200 V with max on-state resistance of 340 mohm (typical RDS on of 270 mohm), device features positive temperature coefficient to facilitate paralleling as well as accelerated switching with no tail current at 150°C. Key applications include photovoltaic microinverters, SMPS and UPS, motor drives, and induction heating.

Harting KGaA      Germany
Feb 10, 2012 Han-Modular® open connector system lets users put connector together to suit application requirements; 40+ modules are available for electric, optical, and pneumatic transmission. Also available, No. 362 Cat 6 Ethernet module exhibits mechanical stability and is executed as gender changer on socket side. Two Cat 6 solutions are available on male connector: field-installable version with RJ Industrial, and module that accommodates corresponding HARTING patch cables.

Harting KGaA      Germany
Feb 10, 2012 Han® Q 2/0 Series draws on Han C power contacts in cross-section range from 1.5-10 mm² or 16-8 AWG. Standard version carries 400 V rating at nominal current of 40 A, while high-voltage version has 830 V rating. Both are supplied in size 3A housings with up to IP67 protection. Despite different termination technology, connector pairs are naturally plug-compatible. Additional features include finger protected contacts and 16 coding options.

The MTL Instruments Group PLC    Hampton, NH 03842
Feb 10, 2012 Rated for use in harsh environments, including outdoor mounting, serial Model LS10 and parallel Model LS12 protect LED lighting from transients and surges generated by lightning and switching transients. Units feature Metal Oxide Varistor technology as well as high energy discharge tube technology with failure disconnect network. Offering fully automatic operation, devices provide protection for 120-347 V and 480 V systems.

Aven, Inc.    Ann Arbor, MI 48108

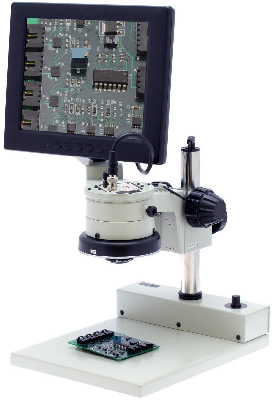

Feb 10, 2012 Featuring 5.7 in. working distance, Macro View is suited for quality monitoring of parts, materials, and finished products. Two parfocal lenses enlarge objects 8 times or 12 times for display of clear, crisp images on included 10 in. LCD screen. Brightness is assured by adjustable LED lights. Available with 2x auxiliary lens option, portable system is suited for medical device manufacturing, electronics assembly, semiconductor production, and textile weaving.

Atlanta Drive Systems    Wall Township, NJ 07719
Feb 10, 2012 Precision Planetary Rack and Pinion Drive Systems offer helical or straight (spur) rack and pinions. HighForce ZTRS systems, for applications with thrust forces to 28,000 lb, feature drives available in 5 sizes with backlash levels down to 1 arc-min. For applications with thrust forces to 12,000 lb, ZTR and ZR systems come in 7 sizes with backlash levels down to 1 arc-min. Planetary reducers with solid output shafts are available for applications with thrust forces to 4,500 lb.

Tel-Tru Mfg. Co., Inc.    Rochester, NY 14605
Feb 10, 2012 Integrating thin film PT100 platinum RTD sensing element and programmable microprocessor-based transmitters in all-welded 316L SS housing, RTD Probe Assemblies eliminate chance of wiring disconnections between transmitter and sensor. Probes are available in .187 and .250 in. diameters with choice of lengths ranging up to 12 in. Protected against vibration, shock, and moisture, probes feature -103 to 392°F range, which can be scaled in field or at factory to all common requirements.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143

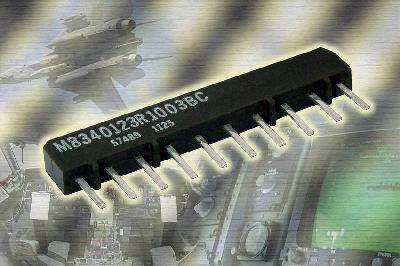

Feb 10, 2012 Offered in 6-, 8-, and 10-pin configurations, Series M83401 provides TCR of ±25 ppm/°C and tight ratio tolerances to ±0.05%. Through-hole, single-in-line devices utilize SPM passivated Tamelox film for less than -30 dB noise, voltage coefficient of less than 0.1 ppm/V, and power ratings from 0.06-0.120 mW/element. Featuring molded thermoset plastic construction with gold-plated copper alloy leads, resistors operate from -55 to +125°C with resistance range of 100 W to 200 kW.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Feb 10, 2012 Featuring PFTE stem packing and ball seat and -40 to +365°F temperature limit, Series UBV Uni-Flange Ball Valve handles working pressures up to 600 psi for gases and liquids. Forged brass construction lends to reliability in residential and industrial applications, while full port design minimizes flow resistance. Sizes, which range from ½-2 in., promote application versatility. Body, cap, stem, gland, and stem nut are of brass, and ball is of chrome-plated brass.

North Atlantic Industries, Inc.    Bohemia, NY 11716
Feb 10, 2012 Housed in single-slot, 0.8 in. pitch, 3U package, Model VPX55-3 supports inputs from +18 to +40 Vdc and provides up to 300 W of power with 6 outputs. Conduction-cooled unit includes option for MIL-STD-1275B transients for operation during +6 Vdc cranking conditions. Equipped with built-in EMI filter, power supply is suited for harsh land, air, and sea applications. Unit meets standard 3U VPX mechanical requirements and has VITA 62 compatible outputs and signaling.

Krytar, Inc.    Sunnyvale, CA 94089
Feb 10, 2012 Measuring 2.62 x 1.00 x 0.40 in., Model 3014320 delivers 3 dB coupling over its broadband frequency range and performs functions such as splitting and combining signals in amplifiers, switching circuits, and antenna beam-forming networks. Coupler offers optimized phase and amplitude matching and handles 20 W average and 3 kW peak power. Specifications include ±1.55 dB amplitude imbalance, ±12° phase imbalance, greater than 12 dB isolation; 1.90 max VSWR, and less than 3.5 dB insertion loss.

Tagetik North America    Stamford, CT 06905
Feb 10, 2012 With Tagetik 4.0 Enabled by Microsoft® SharePoint® Server 2010, Office of Finance can make business information accessible to support multiple inter-related processes throughout organization, accelerating informed decisions that achieve strategic goals. Program unifies key financial processes, including budgeting, planning, and forecasting; financial consolidation and close; statutory and management reporting; GRC; disclosure management and reporting; and cost allocation and profitability analysis.

Broadcom Corp.    San Jose, CA 95110
Feb 10, 2012 Combining functionality of up to 10 chips, BCM85810 Microwave Outdoor Unit enables various types of system architectures, such as split-mount and all-outdoor on common hardware platform. Only 2 variants cover all standard point-to-point microwave frequency bands and all channel bandwidths. Featuring wide AGC dynamic range of greater than 70 dB, chip includes internal power controls and maintains Rx output power over full input power range.

Thermo Fisher Scientific, Air Quality Instruments    Franklin, MA 02038
Feb 10, 2012 Worklist-driven interface, coupled with data tools and decision logic, makes Momentum(TM) v3 suited for automated screening workflows. Enabling multiple users to operate continuously, graphically driven software integrates and controls complete processes to provide walk-away functionality. Features include motion planning and dynamic scheduling; ability for users to define, execute, and monitor complex processes in visual environment; as well as topology and process import/export support.
