Sherwin-Williams    Cleveland, OH 44115
Sep 30, 2009 Fast drying Envirolastic® LT Primer is low-viscosity primer that can be applied in temperatures as low as 0ºF. At 77ºF, surfaces can be recoated after 1 hr, and at 40ºF, surfaces can be recoated after 5 hr. Suited for use with polyurea and polyurethane topcoats, primer offers long pot life for brush/roll applications and minimizes likelihood of irregularities in coating film caused by outgassing from concrete substrate. It can be applied via airless spray.

Advanced Inspection Technologies    Melbourne, FL 32940
Sep 30, 2009 PILIT(TM) Industrial Push Camera or pipe inspection camera inspects pipe lines up to 200 ft long with diameters as small as 1 in. Camera weighs 32 lb and features SS construction along with ac or dc power with up to 3 hr battery operation, 60 GB hard drive with USB file transfer of inspection files, and 7 in. LCD monitor with mini keyboard. Interchangeable camera heads of 1.0 and 1.37 in. allow for inspection of range of pipe diameters.

DuPont Microcircuit Materials    Research Triangle Park, NC 27709
Sep 30, 2009 Targeted at PV cell and module manufacturers, environmentally friendly DuPont(TM) Solamet® PV173 photovoltaic metallization paste for crystalline silicon solar cells provide high adhesion, and enable advanced fine line designs down to 80 microns. It is compatible with lead free Solamet® PV502 and PV505 tab silver pastes, and PV38x aluminum pastes.

ADLINK Technology Inc.    Irvine, CA 92618

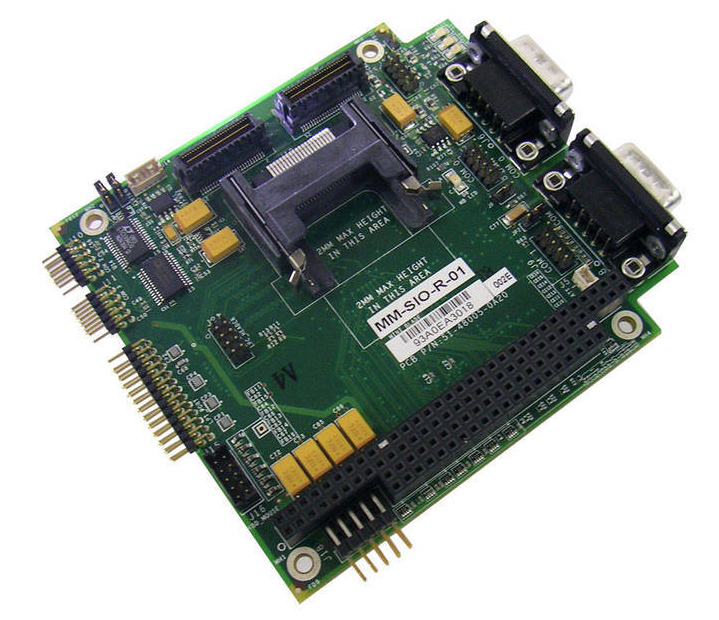

Sep 29, 2009 Ampro by ADLINK MiniModule SIO, designed for Ampro by ADLINK CoreModule® 730, provides PC/104 interface as well as 4 serial ports, including 2 via DB-9 connectors supporting RS-232/422/485 and 2 via pin headers supporting RS-232. It also includes shared parallel port and floppy pin header, PS/2 mouse and keyboard pin headers, and 2 USB 2.0 ports. Ruggedized SUMIT I/O module measures 90 x 96 mm and operates in temperatures from -40 to +85°C.

ADLINK Technology Inc.    Irvine, CA 92618
Sep 29, 2009 Model aTCA-6100 integrates two 2.13 GHz quad-core Intel® Xeon® L5518 processors and Intel® 5520 chipset supporting 6 sockets for DDR3-1066 VLP RDIMM memory up to 48 GB. Processors support multi- and single-threaded workloads to optimize energy efficiency. Unit includes dual GbE or 10 GbE fabric interfaces, dual GbE base interfaces, dual front panel GbE interfaces, and quad SAS channels. For storage, it has 4-channel SAS RAID 0/1, 4 GB NAND flash, and 2.5 in. SATA HDD.

Varisys Limited    High Wycombe HP13 5RE  United Kingdom

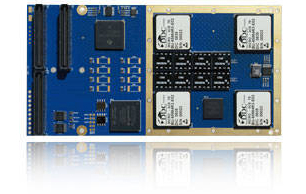

Sep 29, 2009 Offering up to 4 channels of STANAG 3838 or MIL-STD-1553 compatible connectivity, VM1553 IEEE1386-compatible device allows each channel to be individually configured for bus controller, remote terminal, bus monitor operations, or extended RT/BM. Unit requires less than 2 W for single 1553 channel and PCI interface functions with 3.3 or 5 V signaling. Operating in -40 to +85°C temperatures, module is configurable for direct or transformer-coupled interface via same pins on P14 connector.

American Portwell Technology    Fremont, CA 94538

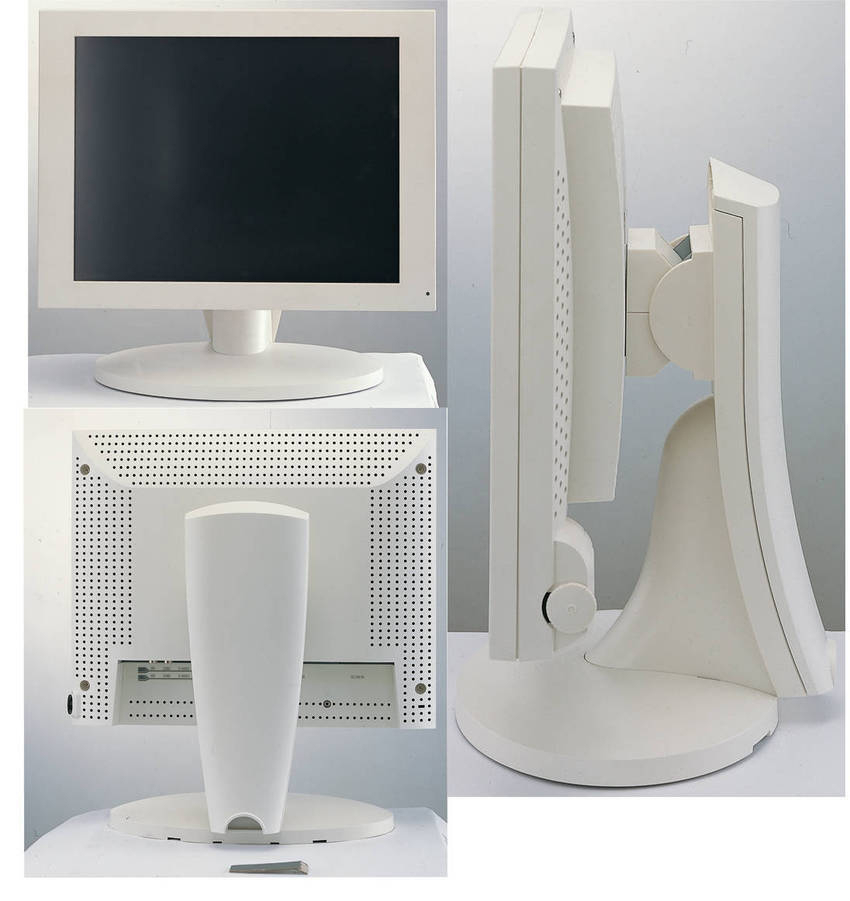

Sep 29, 2009 Available in 15, 17, and 19 in. models, PMD medical-grade displays have 5-wire resistive touchscreen that is resistant to contaminants and chemical spills or surface acoustic wave touchscreen with scratch-resistant glass surface. Displays offer contrast ratio of 400:1 to 1,300:1 and 16-20 ms response time. Various signals input from BNC, standard VGA, S-Video, and composite-to-DVI analog are accepted. Units also include 3-way adjustable stand and support VESA DDC2B mounting.

KORENIX Technologies    Taipei 231  Taiwan

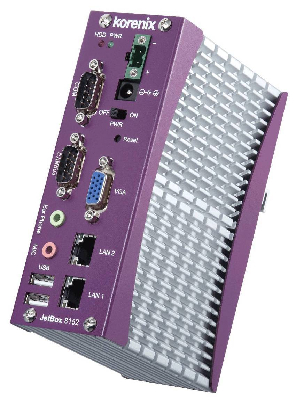

Sep 29, 2009 Based on 1 GHz VIA Eden V4 processor, JetBox 8152 supports CX700M multimedia processor, 1 GB DDR2 memory, and 128 MB VGA memory. Users can benefit from CANbus port by extending deployment up to 10 km in applications with multiple nodes. Featuring anti-shock/anti-vibration design combined with -15 to +70°C operating temperature, JexBox 8152 withstands heavy industrial environments. It includes serial RS-232/422/488 port, 2 RJ-45 Ethernet ports, 2 USB2.0 ports, VGA, and high resolution audio.

LeCroy Corp.    Chestnut Ridge, NY 10977
Sep 29, 2009 Supporting PCI Express® 3.0 specification, Summit(TM) T3-16 captures, decodes, and analyzes PCI Express bus traffic at data rates up to 8 GT/sec per lane on bus widths up to 16 lanes. Based on CATC Trace(TM) architecture, each data view displays PCIe 3.0 transactions in unique ways to discover hard-to-find protocol errors. Documentation tools include protocol traffic summaries, detailed error reports, scripting, and ability to create user-defined test reports.

MEDISON    Seoul   Korea (north)

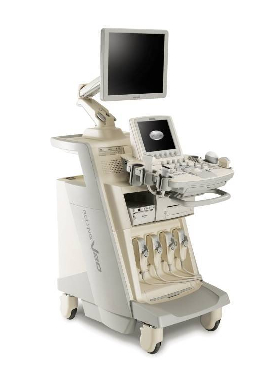

Sep 29, 2009 Equipped with 19 in. flat screen, ACCUVIX V20 Prestige OB/GYN Ultrasound System features 3D Multi-eXtended Imaging(TM), including Multi Volume Slice(TM), Mirror View(TM), Multi OVIX(TM), and 3D Orientation Help(TM). System also comes with extended diagnostic tools such as Auto IMT(TM), panoramic imaging technology, and DMR+(TM), which is optimized for evaluating detailed obstetrical, pelvic, and abdominal anatomy. For optimum user comfort, system provides 360° articulated monitor arm and ergonomic key grouping.

Meta Vision Systems Inc.    Montreal, QC H4S1M5  Canada

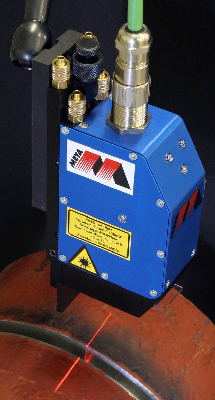

Sep 29, 2009 Smart Laser Sensor (SLS) consists of CMOS megapixel image sensor with integrated FPGA and DSP inside sensor head. Capabilities include seam tracking during welding as well as inspection of bevel on pipe ends before welding and weld bead after it is laid. Able to be directly connected to welding equipment via Ethernet or CANbus interface, sensor achieves tracking position detection and measuring accuracy to within ±0.1 mm.

KBR MAGNETO    Czestochowa 42-224  Poland
Sep 29, 2009 Providing permanent registration of magnetic field presence, Magnetic Field Indicators can be used to identify tampering with water meters, watt-hour meters, and gas meters using external magnetic field. One-threshold Model MFI-3 registers magnetic field coming from neodymium magnets, while 2-threshold Model MFI-4 registers magnetic field coming from ferrite magnets and neodymium magnets. Both can be installed on internal or external surface of measuring device.

Renishaw, Inc.    Hoffman Estates, IL 60192
Sep 29, 2009 REVO® 5-axis machines are available with SFP1 surface finish probe option, which allows surface finish inspection to be fully integrated within CMM measurement routines. With measurement capability of 6.3-0.05 Ra, probe lets CMM users automatically switch between part scanning and surface finish measurement; analysis is contained in one report. Probe incorporates C axis that allows probe tip to be automatically orientated to any angle to suit part.

Visiontron Corp.    Hauppauge, NY 11788
Sep 29, 2009 Designed for traffic control, cone mountable Skipper Retracta-Belt(TM) consists of highly visible tape that extends up to 29 ft, 6 in. Molded design is constructed of polypropylene with glass-filled nylon that will withstand harsh environments. Able to accept sign frame while receiving belts from any direction, Skipper is suited for petroleum transporters protection, construction sites, airports crowd control, parking garages, and manufacturing facilities.

Frederick Cowan & Co., Inc.    Riverhead, NY 11901
Sep 29, 2009 CoronaArc circuit incorporates additional high-voltage transformer and supporting diode to create continuous high-voltage DC spark at firing end. Spark current at surface of igniter electrode enables spark gap to be referenced to ground potential and concurrently serve as directed pathway through which stored energy of capacitor discharges high-current arc.

Baumer Ltd.    Southington, CT 06489 1534

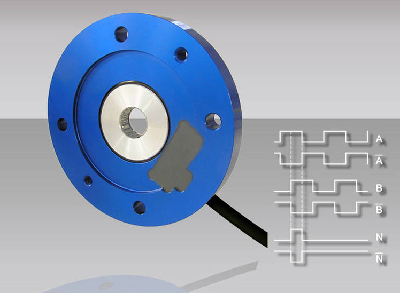

Sep 29, 2009 Measuring 14 mm thick, flange-style MOR 90 and MOR 105 are virtually imperceptible when positioned between motor and gearbox and have little effect on overall size of assembly. MOR 90 measures 90 mm in diameter and fits drives with bore diameters of 11 and 14 mm, while MOR 105 measures 105 mm in diameter and fits drives with bore diameters of 9, 11, and 14 mm. Available with 5 Vdc voltage or variable voltage from 8-26 Vdc, both offer 64, 128, 256, 512, or 1,024 pulses/rev.

Bunting Magnetics Company    Newton, KS 67114 0468

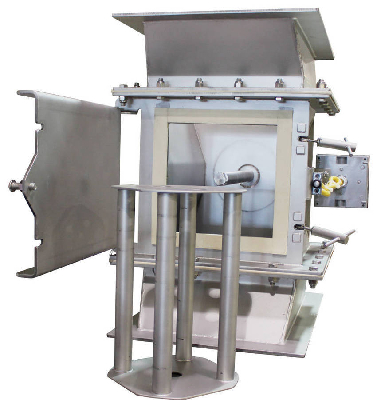

Sep 29, 2009 Suitable for products with poor flow characteristics, RotoGrate features motorized rotating grate magnet, which removes ferrous metals from materials such as cocoa, flour, or starch. System is available in food grade and self-cleaning options as well as standard design. Users can order ceramic, Alnico, or rare earth magnets to get holding force right for application.

Applied Power Systems, Inc.    Hicksville, NY 11801

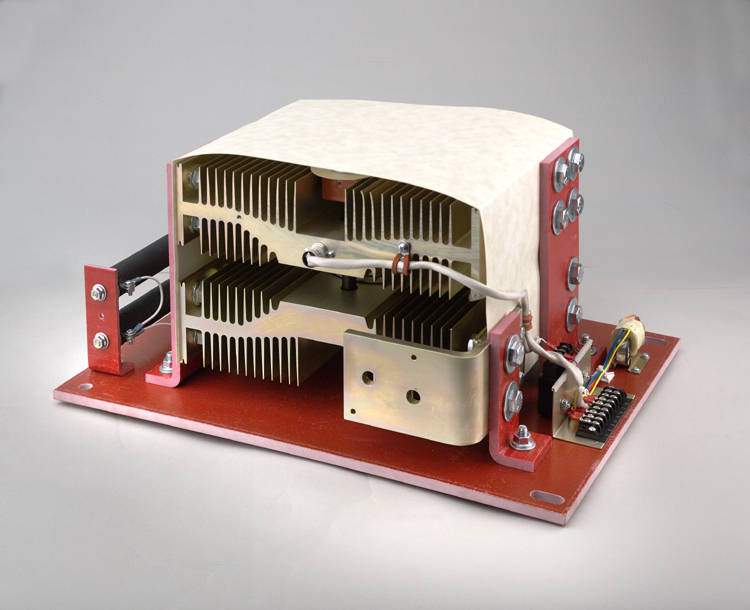

Sep 29, 2009 Featuring voltages from 100-20,000 V and currents ranging from 30-3,000 A, Semiconductor Assemblies come in single, double, or 3-phase circuit configurations. Units are also available as full bridge or as series stacks and AC or static switches. Bus bars, gate firing circuits, fuses, snubbers, blowers, and fans are optional. Typical applications include power supplies, AC/DC and static converters, AC phase controllers, UPS, and motor starters.

Suntech Power Holdings Co., Ltd.    Jiangsu Province 214028  China
Sep 29, 2009 Available in 220 or 225 W power ratings, Wd series 60 cell multi-crystalline PV module weighs ~20 kg and features positive peak power tolerance of 0/+5 W that ensures modules will produce at or outperform nominal power rating. Each is certified to IEC 5400Pa to withstand high wind-pressure and snow load and comes with IP67-rated junction box with thermal isolation, 4 mm thick glass, and 50 mm aluminum frame.

Synopsys, Inc.    Mountain View, CA 94043 4033
Sep 29, 2009 Used for analog mixed-signal and custom digital IC design, StarRC(TM) combines gold standard Star-RCXT(TM) extraction technologies and Raphael(TM) NXT 3D fast field solver into one unified solution. Tools incorporate technologies such as hierarchical extraction, feature-scale chemical-mechanical polishing (CMP) effects modeling, and variation-aware extraction. Able to accommodate 65 and 45 nm process nodes, software supports full-chip, gate-level, and transistor-level designs.
