C&K Components    Newton, MA 02458
Jun 15, 2010 Offering lifespan of greater than 300,000 electrical and mechanical cycles, KMT0 ultra-miniature tactile switch with IP57 rating protects against water and sweat in nomad devices. RoHS compliant and halogen free switch measures just 2.6 x 3.0 x. 0.65 mm, with body height of 0.45 mm and actuator height of 0.2 mm. SPST NO switches are constructed with silver plating and are available with 4 operating forces; 1.0, 1.6, 2.3, and 3.4 N. Operating temperature range is from -40 to +85°C.

Ideal Industries, Inc.    Sycamore, IL 60178

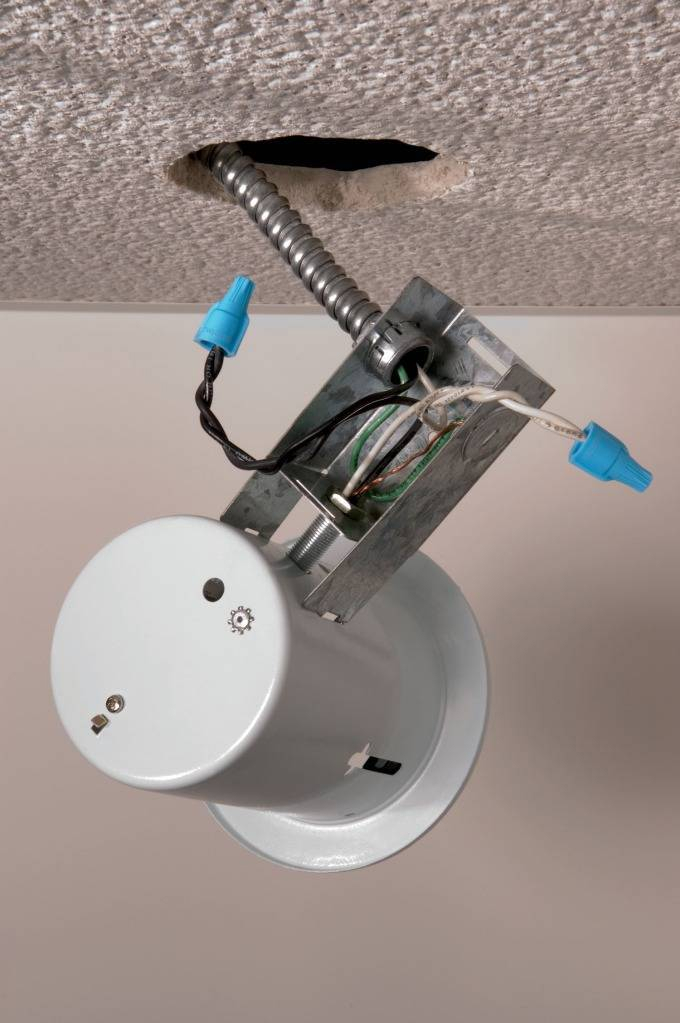

Jun 15, 2010 Suited for lighting and retrofit applications, ultra-compact Twister® LT connectors feature swept-wing design with hexagonal head, providing secure grip whether connecting by hand or by using nut driver. Connectors are rated to 600 V max in building wiring, and 1,000 V max for signs or lighting fixtures. Suited for use with solid or stranded copper wire, connectors have deep, flared skirt to accommodate wide wire range from 2 #22 AWG to 3 #12 AWG.

Vitrium Systems Inc.    Vancouver V6B 2S2  Canada
Jun 15, 2010 Protectedpdf is offered as enterprise version that supports web-portal authorization for access to PDF documents. Once signed on to portal using appropriate credentials, users can access all documents without having to unlock each one individually. Software offers transparent watermarking within body of documents, and lets users track who is accessing content and control access to content even after document distribution. Program is also available as Web-based service.

Umetrics Inc    New Jersey, NJ 07405
Jun 15, 2010 Combining multivariate techniques with semiconductor fault detection and classification (FDC), FabStat v12 seamlessly integrates into existing fab data management system to enable monitoring of entire production. Stand-alone application instantly identifies out-of-control tool and points to leading culprit signals when fault occurs. Able to handle hierarchical, PLS, and PLS-DA models, solution interfaces to data collection system and SPC system.

Capital Safety    Red Wing, MN 55066-5005
Jun 15, 2010 Intended for use during ladder and structure climbing applications, Railok(TM) 90 has shuttle that travels smoothly along entire length of rail. This lets user move up and down without becoming snagged or experiencing motion resistance. Shuttle locks on rail in case of fall, arresting fall and minimizing load forces on user. Installed without special tools, extruded stainless steel or aluminum system does not restrict foot space on ladder rungs and incoporates metallic shock absorber.

Fujitsu Microelectronics Inc.    San Jose, CA 95134 1804
Jun 15, 2010 Optimized for compressed mode operation, MB86L10A transceiver features quad-band GSM/EDGE and up to 5 WCDMA or LTE bands in single-phone configuration. It includes 8 outputs that directly drive power amplifier, eliminating need for TX SAW filters, and receiver also incorporates anti-aliasing filters, digital channel filters, digital gain control, and high-dynamic-range ADCs. Microcontroller simplifies timing and control, and RF API programming speeds radio integration time.

EntropySoft    Paris   France
Jun 15, 2010 EntropySoft appliance manages document transfers between on-premises and cloud repositories. Featuring 36 read/write connectors for linking it to main content-centric applications, unit also includes Content Hub that acts as single access point to all connected content silos and Content ETL that manages all document transfers with full traceability. System enables all major ECM systems to be connected, such as Microsoft SharePoint, EMC Documentum Content Server, and more.

Honeywell International, Inc.    Morristown, NJ 07960
Jun 15, 2010 Supporting speeds to 2,000 m/min, Precision FotoSurf lets mill personnel electronically monitor web surface characteristics throughout paper/board production process to reduce variations in web smoothness and roughness profiles. This helps minimize imperfections during manufacture that could lead to printing problems. Camera and illumination technology automatically adjust to varying machine speeds and sheet surface characteristics to capture sheet surface images with optimal quality.

Dialight Corp.    Farmingdale, NJ 07727
Jun 15, 2010 SafeSite® LED High Bay for Hazardous Locations (Hazloc) luminaire can replace conventional high bay fixtures in hazardous locations. Offering consistent light output performance for up to 10 years, fixture minimizes maintenance as well as dangers associated with bulb changes. Unit incorporates Cree XLamp® XP-G LEDs that provide up to 10,000 lm at 150 W total power consumption. Also, power factor greater than .95 reduces stand-by energy consumption.

Dialight Corp.    Farmingdale, NJ 07727
Jun 15, 2010 Designed for hazardous locations, SafeSite(TM) Series LED Bulkhead luminaire is ATEX-certified for Zones 1 and 21 and complies with ATEX Directive 94/9/EC for use in potentially explosive atmospheres. Integral LED technology delivers 50,000 hr of operation, and compact design makes it suited for confined or hard-to-access spaces. Available in 11 and 22 W versions delivering 73 lm/W, series can replace existing high pressure sodium, metal halide, incandescent, and fluorescent fittings.

Mountz, Inc.    San Jose, CA 95112
Jun 15, 2010 Used to verify and calibrate small hand torque and non-impacting torque power tools, EZ-TorQ torque tester features built-in transducer and graphics display. Small size and portability make it suitable for checking torque tools on production floor to determine whether they are holding given settings, and it is also suitable for lab use. Use of EZ-TorQ II helps avoid over tightening problems such as stripped fasteners and parts.

Mountz, Inc.    San Jose, CA 95112
Jun 15, 2010 TorqueMate® Digital Torque Wrench can be used for torque calibration, joint testing, auditing, or verification of torque applied. It includes memory for over 2,000 values; detailing date, time, torque and angle, and measurement values. Data can be downloaded to PC to evaluate torque results and store test data. Ergonomic unit features up to 99 programmable presets that can be uploaded from PC, and provides audible and visual alarm as user approaches and achieves preset torque values.

Littelfuse, Inc.    Des Plaines, IL 60016
Jun 15, 2010 PLED18 Series is voltage-triggered electronic shunt device that provides current bypass in case of single LED failing into open circuit condition, insuring against loss of entire string of LEDs due to failure of single LED. One PLED18 Series device can protect up to 4 high-brightness LEDs, and is suitable for outdoor lighting and high-intensity applications employing 1, 2, or 3 W high-brightness LEDs with up to 1,000 mA. PLED18 Series is RoHS compliant and offered in QFN chip scale package.

EBM - Papst, Inc.    Farmington, CT 06034
Jun 15, 2010 Models 4100NH3 and 4100NH6, constructed with air intake over struts, handle dense system requirements, such in AdvancedTCA chassis. At free air (0 static pressure), 4114NH3 provides 182 cfm at 6,000 rpm, while 4114NH6 provides 259 cfm at 8,400 rpm. Model 4114NH6 also offers performance to 200 cfm at 1 in. of H2O. Both fans are offered in 12 (H3-H5), 24, and 48 Vdc variations.

Thermal Engineering Corp.    Columbia, SC 29202
Jun 15, 2010 Air Houses accommodate aerospace and other highly controlled manufacturing processes that require large volumes of filtered, temperature- and humidified-controlled air. Able to maintain temperatures at ±3°F with ±5% RH, products sustain consistent air quality in extreme climate conditions. Air volume for these units ranges from 10,000-150,000 cfm, and construction features include structural steel and insulated walls.

Frederick Cowan & Co., Inc.    Riverhead, NY 11901
Jun 15, 2010 CoronaArc Power Pack is available in 3 models - 12 JOULE, RAPID FIRE; 12 JOULE, STANDARD-FIRE; and 12 JOULE - respectively suited for heavy fuel oil, relatively volatile heavy fuel oil applications, and ignition of No. 2 oil main nurners or gas/oil fuel igniters. While RAPID FIRE produces 12-15 pulses/sec at 600 W, STANDARD-FIRE produces 4-6 pulses/sec at 300 W, and 12 JOULE produces 4-6 pulses/sec at 200 W. Latter is available in special gas and flare stack models.

RGF Environmental Group Inc.    West Palm Beach, FL 33404
Jun 15, 2010 With fully automatic operation, Centrifugal Coalescing Clarifier (CCC)-400 and CCC-600 Tanks remove free oil and heavy solids as pretreatment to sanitary sewer or for reclamation. Transportable units, adaptable for chemical additions such as Flocking and pH Control, require minimal maintenance and support optional Ozone or chemical treatment introduction to enhance oil floatation and solids separation. Cone Tank drains particulate into gravity bag filter for collection and removal.

RGF Environmental Group Inc.    West Palm Beach, FL 33404
Jun 15, 2010 Constructed of steel and aluminum with 2-part epoxy coating, Portable Wash Pad offers no-construction solution to in-field washing operations. It requires no permits and can be working within hours to serve temporary or long-term operations. Offered in 2 standard sizes, product supports range of equipment up to 20,000 lb and has built-in wash water catchment trough with sump pump that sends wastewater to recycling or treatment system for reuse/discharge.

Precision Airconvey Corp.    Newark, DE 19702
Jun 14, 2010 TrimPAC(TM) series is available with steel platform, which features industrial strength, non-marking casters with brakes, that supports entire self-contained trim system. Mobile package permits installation of flexible, automated trim handling system that may be rolled from one press, slitter, or die cutter to another to accommodate changes in production demands. This frees operators to run materials that generate difficult waste streams on any suitable line.

VPT, Inc.    Blacksburg, VA 24063
Jun 14, 2010 Intended for distributed power systems, VPTc10-28 Series satisfies reliability requirements for commercial avionics and military systems in USA and Europe. Dual modules in one package reduce reflected noise of DC/DC converters while simultaneously protecting power system from inrush current damage and reverse polarity conditions. Features include up to 10 A output current and up to 150 W output power, 45 dB min attenuation at 500 kHz, and transient operation up to 80, 100, and 202 V.
