STMicroelectronics    Lexington, MA 02421
Feb 13, 2012 Qualified to AEC-Q100, A3G4250D adds positioning accuracy and stability to automotive applications. It can measure angular rates up to ±250 dps and delivers functionality to enhance dead-reckoning and/or map-matching capabilities. Single sensing structure for motion measurement along all 3 orthogonal axes eliminates interference between axes and optimizes measurement precision. Gyroscope provides 2 output lines and 4 user-selectable output data rates.

CureUV    Delray Beach, FL 33445
Feb 13, 2012 Equipped with 1 handheld irradiator and 1 floor irradiator, Total Cure UV Power-Shot 2400 Floor Curing System can instantly cure both waterborne/UV and 100% solid UV curable coatings while protecting work against zipper marks and lap lines. System has max output of over 2,400 W coupled with portability and 8 in. cure width. Requiring 220 V power source for operation, Total Cure distributes 1.5 W/cm² of intensity at high power.

Air-ReNu LLC    Palm Coast, FL 32164
Feb 13, 2012 Through use of nano ionic technology, far infrared rays, and special manufacturing process, Air-ReNu Paint Additive was designed to permanently removes embedded odors caused by smoking, pets, cat urine, and bacterial proliferation. Naturally occurring polymeric matrix materials, ground into fine powder and mixed with paint, produce continuous flow of healthful negative ions and IFRs, detoxifying air while removing odors. Product is non-toxic and will not break down into something hazardous.

Advantech Automation Corp.    Cincinnati, OH 45240
Feb 13, 2012 Featuring standard 170 x 170 mm form factor, Model AIMB-214 combines Intel® Atom(TM) N2600, N2800, and D2700 dual core processors with integrated GMA 640/400 MHz graphics and Memory Controller Hub. Board can support up to 2 or 4 GB of DDR3 1066 SDRAM, depending on processor. Equipped with up to 6 USB 2.0 ports and 6 COM ports, Model AIMB-214 supports dual display output for LVDS, embedded display port, and VGA.

GE Co.    Southfield, MI 48034
Feb 13, 2012 Using Multilin HardFiber Brick IEC 61850 process bus merging unit in distributed bus protection architecture, Multilin(TM) B95Plus System provides 6 zones of 3-phase protection and supports up to 24 feeders. Field wiring is terminated directly at HardFiber Brick installed on primary equipment, and connectorized fiber optic cable between brick and B95Plus is only wiring across switchyard. Measurements and commands are transmitted to and from brick via IEC 61850 message formats.

Mini-Circuits    Brooklyn, NY 11235
Feb 13, 2012 SMT mixer models MAC-24+, MAC-24LH+, MAC-24MH+, MAC-60+, and MAC-60MH+, supplied in cases that meet/exceed aerospace and military ground requirements for hermetic, thermal shock, vibration, and acceleration, deliver broadband performance suitable for instrumentation. While MAC-24xx models cover frequencies from 300 MHz to 2.4 GHz with LO power levels from +7 to +13 dBm, MAC-60xx models are designed for 1.6-6 GHz signals.

CAS Data Loggers    Chesterland, OH 44026
Feb 13, 2012 Available for ADwin-Pro-II data acquisition and control system, Pro II-AIn-32/18-D-TiCo incorporates TiCo timing controller co-processor, which offloads tasks from main processor, enabling pre-processing of local results, implementation of filters, and statistical processing/triggering. Card provides 32 single-ended or 16 differential inputs, 18-bit ADC, and programmable amplifier. With input voltage of ±10 V, card offers sampling rate of 500 ksps and software-selectable gain of 1, 2, 4, or 8.

W.A.C. Lighting Company    Garden City, NY 11530
Feb 10, 2012 Providing 15° spot, 26° narrow, and 45° flood beam spreads, Tesla(TM) High Output LED Downlights offer 2 and 3.5 in. apertures with up to 560 and 812 lumens, respectively. Units can be dimmed to 1% with electronic low voltage dimmer. Lights are available in Warm White 3,000 K color temperature with CRI of 85 or Neutral White 4,000 K with CRI of 82. Designed with die cast aluminum, low-profile trim, downlights operate on 120 or 277 V electrical systems and offer emergency battery backup option.

Supertex Inc.    Sunnyvale, CA 94619
Feb 10, 2012 Used for LCD backlighting, 3-channel HV9989 features PWM dimming control algorithm that regulates each channel's output current down to sub-µs dimming pulses. This permits dimming at frequencies outside audible range without shift in color correlated temperature. Powered by 40 V linear regulator, IC drives boost or SEPIC converters in continuous or discontinuous conduction mode. Three 1 MHz transconductance amps with tri-state outputs close feedback loops and accurately control LED current.

TECHNOSOFT S.A.    Bevaix CH-2022  Switzerland
Feb 10, 2012 Measuring 55 x 26 x 13 mm, Model iPOS3602 MX suits motion control applications where space is critical, and can be integrated to user's motherboard or PCB machine. Drive handles digital I/O and analog input signals, execution of arithmetic and logic operations, and transfer of data between axes. Equipped with CAN/CANopen and optional EtherCAT interfaces, unit provides flexible solution adapted to decentralized control of any rotary or linear brushless, DC brush, or step motor up to 75 W.

SemiSouth Laboratories, Inc.    Starkville, MS 39759

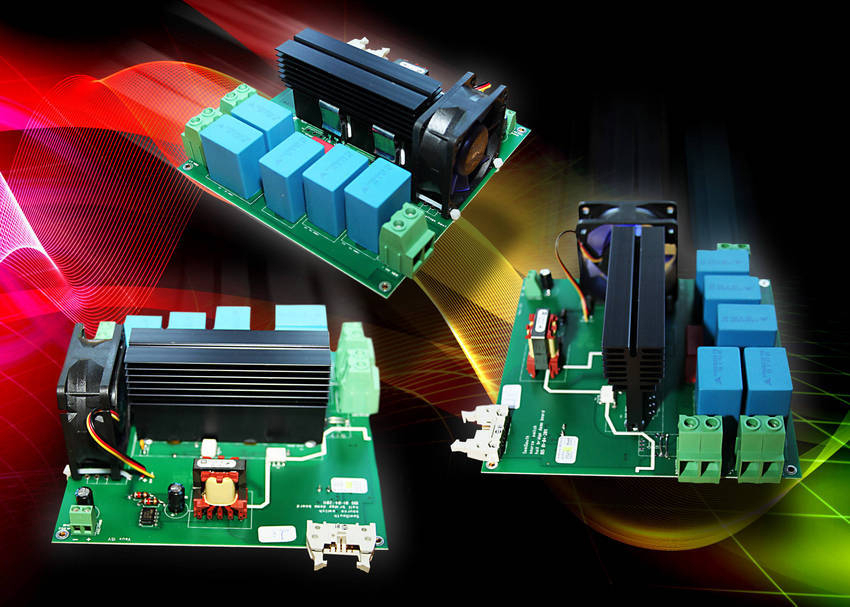

Feb 10, 2012 Enabling accelerated evaluation of SJDP120R085 silicon carbide (SiC) JFETs, demo board platform is suitable for applications such as boost, buck, inverter, and PSU half-bridge power stage designs. In cascode configuration, JFET is driven via source-connected MOSFET, allowing existing MOSFET drivers to be used. Solution comes with Gerber files and BOM to allow users to build their own circuits.

Portronics    New Delhi 110001  India
Feb 10, 2012 Powered by built-in 3,000 mAh Li-ion battery that provides 2 hr of operation on one charge, POR 315 Pico projector can deliver colorful images with up to 80 in. diagonal and 1,024 x 600 resolution directly from USB drive. SD card slot allows memory expansion, while standard I/O - USB, VGA, HDMI, and composite video - fosters connection to analog/digital devices. In addition to 45 lm optical engine powered by LCOS, features include 1 W onboard speaker and 20,000 hr LEDs.

ABB, Inc.    New Berlin, WI 53151

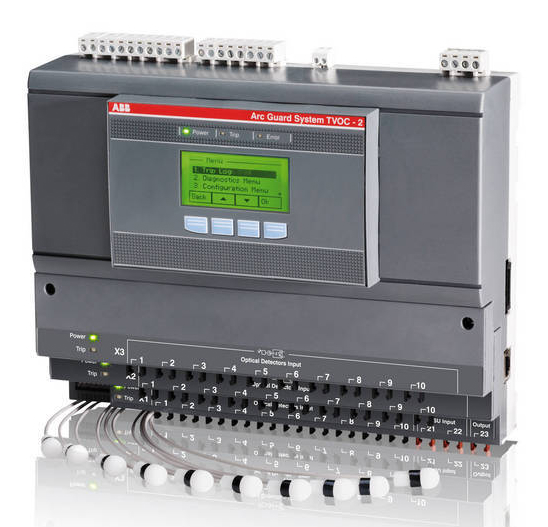

Feb 10, 2012 By detecting faults in low- and medium-voltage switchgear, UL-listed Arc Guard System(TM) TVOC-2 prevents injury to personnel and equipment damage. Product carries functional safety rating of SIL-2 when installed along with Emax circuit breakers, detects arc flash in less than 1 msec, and will disconnect power to switchgear within 30-50 msec typ. After optical sensor detects light (arc flash), arc monitor determines intensity, and signal is sent to trip breaker(s).

GL Communications Inc.    Gaithersburg, MD 20877
Feb 10, 2012 Providing 4 or 8 RJ-48 T1 E1 ports and multiples thereof, T1 E1 Quad and Octal Boards are available with GUI for Windows® XP and Windows® 7 with support for T1 E1 Analyzer applications, including Comprehensive Analysis/Emulation of Voice, Data, Protocol, Digital, and Echo Testing. Boards support call recording, generation, and monitoring for hundreds to thousands of calls in one platform. Octal boards are compatible with dual, quad, and higher core motherboards that simulate dual and quad cores.

AXIOMTEK Co., Ltd.    Taipei   Taiwan

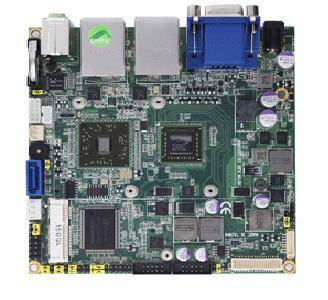

Feb 10, 2012 Equipped with AMD G-series dual core 1.65 GHz T56N APU and A50M FCH chipset, Model NANO100 has 1 SO-DIMM socket that supports 4 GB DDR3 1333 memory. Board integrates Radeon(TM) HD 6320 graphics controller with DirectX® 11 support, offering advanced 3D graphics and dual views via VGA and DisplayPort on rear I/O, as well as 18-bit/24-bit single/dual channel LVDS interface. Measuring 120 x 120 mm, board includes 6 USB 2.0 ports, 2 COM ports, dual Gigabit LANs, and PCIe Mini card expansion.

Powervation, Inc.    Palo Alto, CA 94301

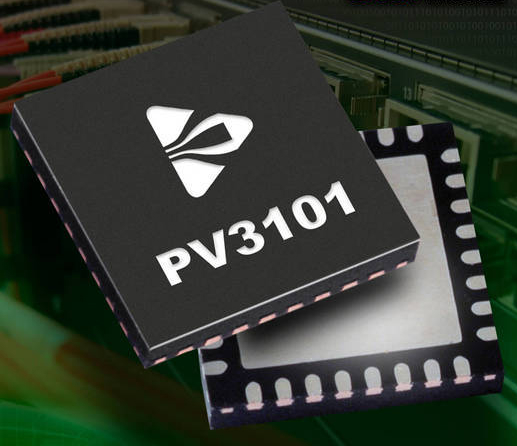

Feb 10, 2012 Featuring Auto-Control® adaptive loop compensation algorithm, PV3101 single-output, single-phase, digital DC/DC controller uses DSP/RISC dual-core architecture with precision DAQ engine. Full differential voltage, current, and temperature measurements and 11-bit ADC are used to provide precision measurement; tight control; and accurate, real-time reporting of telemetry information for KPIs. Also, Green Modes(TM) technology reduces power losses during light-load operation and idle conditions.

SemiSouth Laboratories, Inc.    Starkville, MS 39759

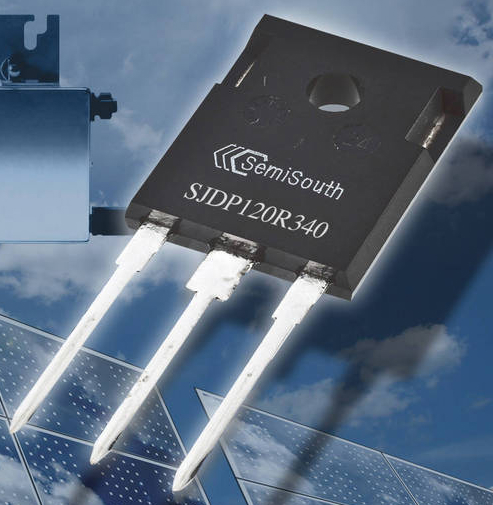

Feb 10, 2012 Normally on (NO) silicon carbide (SiC) trench JFET, SJDP120R340, provides high-speed switching in micro inverters. Rated at 1,200 V with max on-state resistance of 340 mohm (typical RDS on of 270 mohm), device features positive temperature coefficient to facilitate paralleling as well as accelerated switching with no tail current at 150°C. Key applications include photovoltaic microinverters, SMPS and UPS, motor drives, and induction heating.

Harting KGaA      Germany

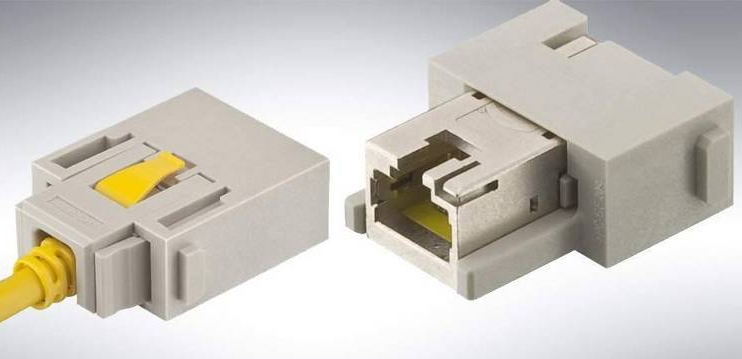

Feb 10, 2012 Han-Modular® open connector system lets users put connector together to suit application requirements; 40+ modules are available for electric, optical, and pneumatic transmission. Also available, No. 362 Cat 6 Ethernet module exhibits mechanical stability and is executed as gender changer on socket side. Two Cat 6 solutions are available on male connector: field-installable version with RJ Industrial, and module that accommodates corresponding HARTING patch cables.

Harting KGaA      Germany

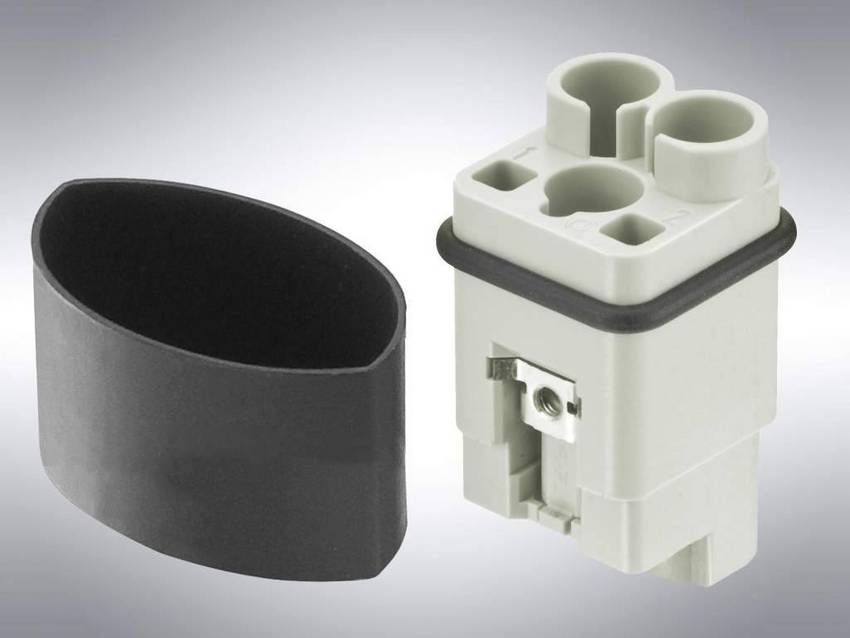

Feb 10, 2012 Han® Q 2/0 Series draws on Han C power contacts in cross-section range from 1.5-10 mm² or 16-8 AWG. Standard version carries 400 V rating at nominal current of 40 A, while high-voltage version has 830 V rating. Both are supplied in size 3A housings with up to IP67 protection. Despite different termination technology, connector pairs are naturally plug-compatible. Additional features include finger protected contacts and 16 coding options.

The MTL Instruments Group PLC    Hampton, NH 03842
Feb 10, 2012 Rated for use in harsh environments, including outdoor mounting, serial Model LS10 and parallel Model LS12 protect LED lighting from transients and surges generated by lightning and switching transients. Units feature Metal Oxide Varistor technology as well as high energy discharge tube technology with failure disconnect network. Offering fully automatic operation, devices provide protection for 120-347 V and 480 V systems.
