Freescale Semiconductor    AUSTIN, TX 78735-8598
Jun 25, 2010 Able to deliver full-rated output power of 300 W CW into load with Voltage Standing Wave Ratio (VSWR) of 65:1, MRFE6VP6300H is optimized for use under potentially destructive impedance mismatch conditions encountered in applications such as CO2 lasers, plasma generators, and MRI scanners. This 50 V RF LDMOS FET, designed for operation from 1.8-600 MHz, can be used in push-pull or single-ended configuration and comes in compact air cavity ceramic NI780-4 package.

Daimer Industries Inc    Woburn, MA 01801
Jun 25, 2010 Using electricity for heating and power, Vapor-Flo® 7000 Series is suited for food manufacturing applications where exhaust is of concern. Four styles are available, including stationary stainless steel model, and 3 mobile models featuring stainless steel case, powder-coated case, and powder-coated case with top loading refill. Entry-level 230 V Vapor-Flo 7100 produces 100 bar and flow rate of 1.5 lpm, while 440 V Model 7960 generates pressure levels of 150 bar and flow rates of 7.6 lpm.

GAO Tek Inc.    Toronto M1B2K4  Canada
Jun 25, 2010 Operating over wavelength of 1,510-1,610 nm with 20 nm channel spacing, Coarse Wavelength Division Multiplexer maximizes existing fiber optic infrastructure by transmitting multiple wavelength signals through same fiber optic cable. Unit enables dual fiber strand to support multiple network topologies and data rates. Encapsulated within non-flux metal bonding micro optic packaging, CWDM has epoxy-free optical path and offers stable performance in demanding environments.

GAO RFID, Inc.    Scarborough, ON M1B2K4
Jun 25, 2010 Available with various transponder ICs, waterproof and dustproof model 113416 is suited for attendance management at schools, hospitals, and sport centers with outdoor, water-based recreational facilities. Read range for this 13.5 MHz tag, which performs even in harsh environments, is 1-10 cm. Resistant to vibration and able to operate over -40 to +70°C range, product complies with ISO 156693 standard and is available with offset and silk screen printing.

Daimer Industries Inc    Woburn, MA 01801
Jun 25, 2010 Designed for heavier cleaning applications where water waste and exhaust are of concern, all-electric Vapor-Flo® 8210 is capable of cold or hot water cleaning, produces no exhaust fumes, and offers flow rates of 0.4 gpm. Electric heating system, which generates temperatures up to 205°F, can convert cold water to hot in ~20 sec and employs stainless steel heating coil. Powered by 1.0 hp motor, this 60 Hz power washer is available with support for 230 or 440 V, 3-phase power.

Bridgelux, Inc.    Sunnyvale, CA 94089
Jun 25, 2010 Delivering 4,100 K color temperature, ES Array Series offers light output options of 400, 800, and 1,200 operational lumens, while RS Array Series delivers 3,400 operational lumens. Units replace incandescent, halogen, CFL, and HID light sources in variety of high-volume outdoor area and commercial lighting applications.

AEMC Instruments    Foxborough, MA 02035
Jun 25, 2010 Model 6501 True Megohmmeters® provide insulation resistance testing at 500 V, as well as resistance testing to 500 kW and continuity testing to 100 W, while Model 6503 operates at voltages of 250, 500, and 1,000 V. Hand-cranked operation provides steady, DC voltage output across entire range for reliable readings. Analog instruments also have auto-ranging feature that expands scale 10x and LED on front panel that illuminates when proper crank speed is attained.

Atc-NY    Ithaca, NY 14850
Jun 24, 2010 P2P Marshal Field Edition automatically detects, extracts, and analyzes P2P evidence on hard drives. It lets investigator analyze mounted disk images and monitors file sharing usage from P2P programs such as Ares, BitTorrent, Frostwire, LimeWire, uTorrent, and Azureus Vuze. Per-user information such as downloaded files, peer servers, and configuration and log information is presented, and reports are produced in CSV, RTF, PDF, and HTML formats.

Analog Devices, Inc.    Norwood, MA 02062-9106
Jun 24, 2010 Operating from supply voltage of 2.7-5.5 V in temperatures from -40 to +150°C, 16-bit Models ADT7420 and ADT7320 are available with I²C and SPI digital interfaces, respectively. Sensors achieve ±0.25° accuracy over -20 to +105°C temperature range and ±0.5°C accuracy over -40 to +125°C range. Operating at 3.3 V, supply current is 210 µA. Sensors include low-power, 1 sample/sec mode that draws 46 µA at 3.3 V, and offer shutdown mode that reduces supply current to 2 µA.

Atlas Copco CMT USA, Inc.    Commerce City, CO 80022
Jun 24, 2010 With all controls and connections accessible via front panel, 2010 generation LP 18 power packs come in petrol- or diesel-driven versions ranging from 9-18 hp and electric versions from 5-11 kW. Top cover protects engine well and can be opened to reach hydraulic parts as well as air and oil filters when change-out is required, while frame, wheels, and foldable handles facilitate transport. All moving parts work in closed, lubricated circuit, minimizing wear.

Atlas Copco CMT USA, Inc.    Commerce City, CO 80022
Jun 24, 2010 Featuring 1,020 cfm capacity at 150 psi, ZoneAir XATS 1020 utilizes 175-gal stainless steel fuel tank for 8 hr of operation at full load. Compressor is driven by Cummins QSM 11 Tier 3 compliant engine with flameproof Pyroban components. Housed in 15 ft DNV container, system also includes Pyroban's 3GP proactive gas detection system, which eliminates need for exhaust flame arrestors. Fully ATEX 94/9/EC certified for Zone 2 hazardous area operation, compressor is suited for oil and gas industry.

ifm efector, Inc.    Exton, PA 19341
Jun 24, 2010 Featuring quick-disconnect M12 connection, Model TP3237 turns any Pt100 or Pt1000 RTD probe into programmable transmitter. Once connected, transmitter verifies type of RTD and automatically makes correct settings for application. Transmitter can be programmed for scaling between -58 to 572°F and has IP69K environmental rating that prevents liquid ingress. With 4-20 mA analog output and 20-32 Vdc operating voltage, Micro DC unit is suited for industrial automation and sanitary applications.

Linear Technology Corp.    Milpitas, CA 95035
Jun 24, 2010 Supplied in 6-pin ThinSOT(TM) package, high-reliability military temperature grade versions of LTC3803/-3/-5 current mode flyback controllers are specified for and 100% production tested over -55 to +150°C junction temperature. Power supplies based on LTC3803/-3/-5 do not require any minimum output load for stable operation and offer input and output voltage ranges limited only by external components. ICs offer constant 200 or 300 kHz operating frequency and 100 mV current sense threshold.

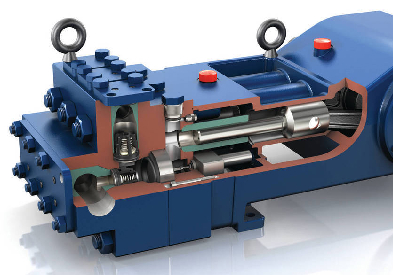

Wanner Engineering, Inc.    Minneapolis, MN 55403
Jun 24, 2010 Featuring double-ended shaft to accommodate various installation options, Hydra-Cell T80 Series employs asynchronous, hydraulically-balanced diaphragms with valve system that allows diaphragms to be hydraulically coupled to displacing plungers with no mechanical coupling required. Zero-leakage units can run dry without damage, will operate with closed or blocked suction line, and can pump abrasive fluids effectively. Model T8045 has flow rate capacity of 1532 BPD at pressures up to 3,000 psi.

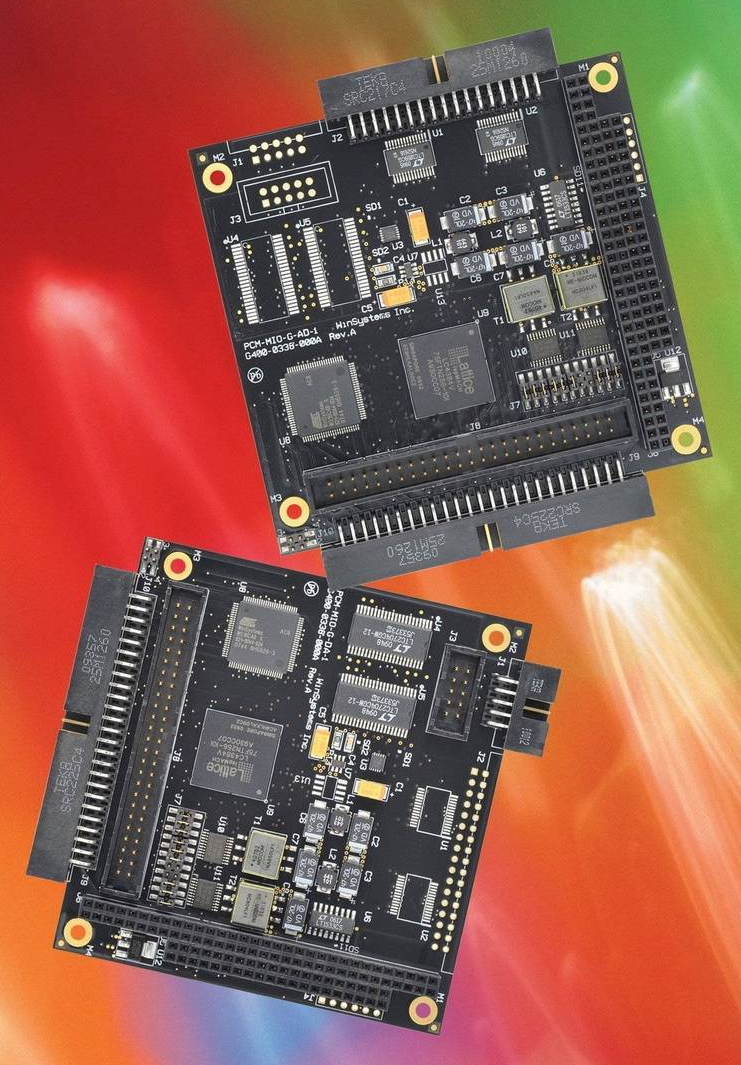

WinSystems, Inc.    Arlington, TX 76011
Jun 24, 2010 Operating over -40 to +85°C range, 16-channel PCM-MIO-G-AD-1 analog input card and 8-channel PCM-MIO-G-DA-1 analog output card are 90 x 96 mm expansion boards based on Linear Technologies' converters and voltage references. In addition to supporting 0-5, ±5, 0-10, and ±10 V input ranges, PCM-MIO-G-AD-1 features 2 independent, 16-bit ADCs. Along with output voltage ranges of 0-5, 0-10, ±5, and ±10 V, PCM-MIO-G-DA-1 has 8 independent, 12-bit DACs. Both cards also support 48 DIO lines.

Linear Technology Corp.    Milpitas, CA 95035
Jun 24, 2010 Featuring 2.5-5.5 V operation, Model LTC4362 utilizes 2% accurate 5.8 V overvoltage threshold to detect overvoltage event and responds within 1 µs to isolate downstream components. Overvoltage protection up to 28 V is achieved with internal, avalanche rated, low RDS(ON) MOSFET. Device also monitors voltage drop across internal current sense resistor to provide 1.5 A overcurrent threshold. Housed in 2 x 3 mm DFN package, IC is suited for cell phones, MP3/MP4 players, and digital cameras.

Kistler Instrument Corp.    Amherst, NY 14228 2119
Jun 24, 2010 RoaDyn® S615 System 2000 6-component unit is based on 3 load cell concept and features carbon fiber reinforced plastic rim, rim ring, and wheel disk. Device allows maximum vertical load Fz of approximately 15 kN. Mounted on vehicle as complete wheel, it measures forces Fx, Fy, and Fz and torques Mx, My, and Mz on rotating wheel. Measurement signals are converted to digital in wheel electronics and transmitted to on-board electronics and output as analog or digital signals.

Klinkau America, Inc.    Exton, PA 19341
Jun 24, 2010 Membrane filter plate in empty chamber design utilizes detachable membrane made from elastomeric compounds. Sealing system between membrane body and membrane is identical on both sealing edge and stayboss supports. This reliably separates filtrate, wash, and squeeze mediums during complete filtration cycle and also prevents drainage of squeeze medium within filter press when opened for cake discharge. Adjustable material properties enable use in almost all filtration applications.

BrandTech Scientific, Inc.    Essex, CT 06426
Jun 24, 2010 Constructed from composite materials for minimized weight and autoclavability, Transferpette® S comes in fixed and adjustable models with volumes ranging from 0.1 µL to 10 mL. Easy Calibration(TM) technology enables lab calibration adjustments without tools for ISO/GLP compliance. Compatible with most brands of tips, pipette features one-handed volume adjustment, covered ID label, and easy disassembly for cleaning.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jun 24, 2010 Using 418 MHz transmitter, Series WHP can transmit data up to 100 ft without repeater. When coupled with receiver and output module, series can output voltage, current, or resistance values for humidity and temperature. It is powered using 2 AA batteries and accommodates location changes. With transmit rate of 1 reading every 10 sec, battery is estimated to last 5-8 years. Duct mount and outside air sensors come standard with sintered filters for protection against particulate.
