Flexible Steel Lacing Co.    Downers Grove, IL 60515-4200
Jun 28, 2010 Available in workbench version and as splitter with its own stand, Novitool® PLY 130 cuts in between plies of conveyor belt, which is often required in preparation of splicing belt with splice press. Unit can prepare finger over finger splices as well as stepped splices. For safety, machine is provided with one electrical switch for on, off, and reversed operation, and foot pedal for controlling splitting operation.

Flexible Steel Lacing Co.    Downers Grove, IL 60515-4200
Jun 28, 2010 Manually operated without aid of electricity or air pressure, Novitool® PUN M(TM) punches fingers into PU and PVC conveyor belts in preparation for installing vulcanized splices. Design facilitates on-location setup and use, and 50 kN punching force is created by lever pulled with one hand. Available in standard widths of 12, 24, and 36 in., punch weighs 55, 66, and 77 lb, respectively, and features open construction that enables punching wider belts in multiple steps.

DMP    Springfield, MO 65803
Jun 28, 2010 Suited for range of commercial applications, DMP XR500(TM) Command Processor Panel can be used as slave fire communicator with any separate Fire Alarm Control Panel or as standalone FACP using its own built-in communicator. System can be configured with up to 8 different communication options using Network, Cell, or Dial-Up technologies.

STMicroelectronics    Lexington, MA 02421
Jun 28, 2010 Housed in 1.0 x 1.0 x 0.4 mm Micro-DFN package, Model ESDA6V1-5T6 integrates ESD protection diodes for 5 data lines and features 34 pF capacitance for data speeds up to 15 MHz. Model ESDALC6V1-5T6, with less than 9 pF capacitance for data speeds up to 100 MHz, is suited for use with high-speed data lines such as those in SIM-card, camera, or display interfaces. Five-channel devices have low leakage current of 0.1 µA at 3 V and are compliant with IEC 61000-4-2 level 4.

Kinetic Systems, Inc.    Boston, MA 02131
Jun 28, 2010 Designed to support KSI breadboards and optical tables, 500AP Series includes trifilar and quadfilar leg stands that respectively support 500-2,000 lb and 250-1,000 lb loads. Products are available individually as modular mounts or as leg stands with braces and casters. Class 100 cleanroom series offers natural frequencies of 1.25 Hz along horizontal axis and 1.50 Hz along vertical and can achieve isolation efficiencies of 98% (horizontal) and 95% (vertical) at 10 Hz and above.

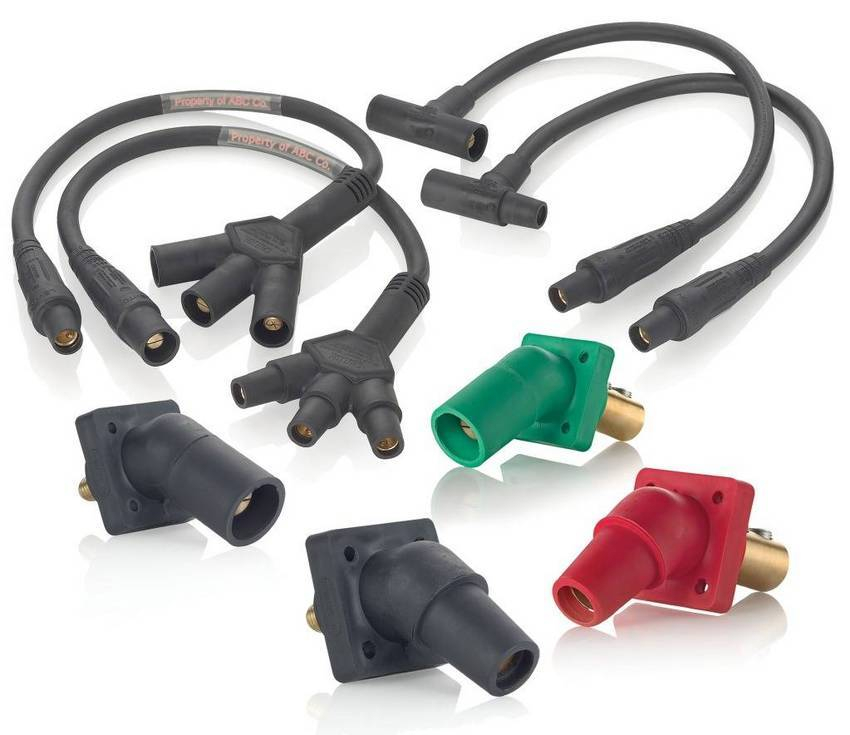

LEVITON    Melville, NY 11747
Jun 28, 2010 With 45º angle design, 16 Series Panel Mount Receptacles have solid brass contacts and Santoprene(TM) TPV insulators. Products provide power for applications up to 400 A/600 V and are constructed to provide secure, reliable connectivity and uniform heat dissipation under load. Single-Pole Taper-Nose Corded Adapter Assemblies, available in soft paralleling tee, soft tapping-tee, soft 3-fer, and reverse soft 3-fer configurations, are rated 400 A/600 V and have lay-flat design for safe routing.

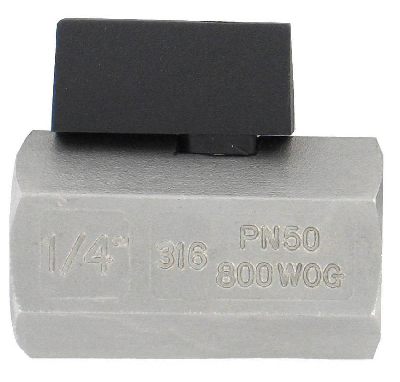

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jun 28, 2010 Featuring 316 stainless steel, PTFE, and Fluoroelastomer wetted materials, Series SMV is suited for applications with corrosive media. Units have ABS plastic handles for durability, and PTFE ball seats that provide broad media compatibility and bubble tight shutoff. Offering choice of Female x Female or Male x Female process connections to facilitate installation, mini ball valves have pressure limit of 800 psi and temperature limit of 212°F.

Reed Manufacturing Co.    Erie, PA 16512
Jun 28, 2010 Combo Roll Groover model RGCOMBO812 forms standard rolled grooves in 8-12 in. steel, stainless steel, and aluminum pipe with up to 0.188 in. wall thickness. Professional-grade, 2-in-1 service tool allows complete change in minutes from power machine operation to manual work. Compact and designed for portability, tool meets jobsite grooving requirements of mechanical piping system installations and is available with one wrench for power grooving and angled wrench for manual grooving.

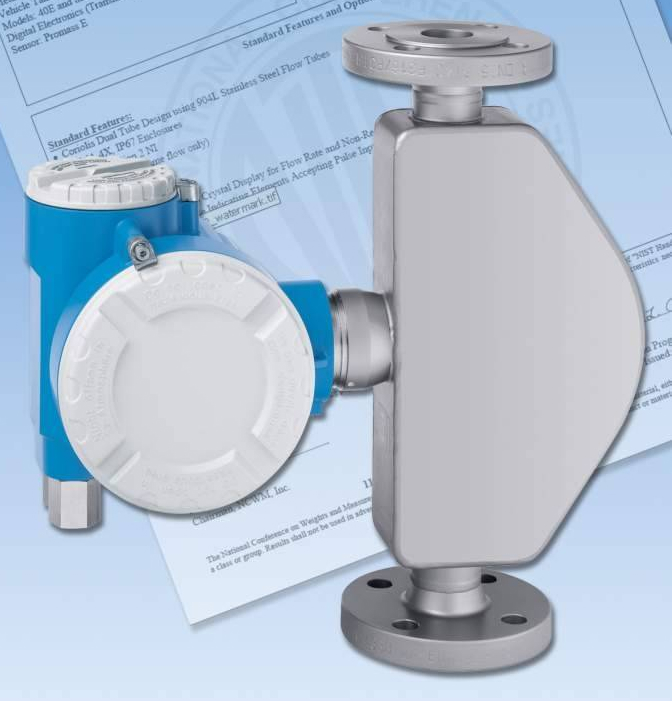

Endress + Hauser Inc.    Greenwood, IN 46143
Jun 28, 2010 Used during diesel exhaust fluid (DEF) production, tank storage, dispensing, and transportation aboard trucks and tankers, Promass 8FE measures and compensates for environmental influences directly by combining integrated temperature measurement with intelligent conversion functions based on internationally recognized API table. For communications, unit provides pulse output with possible phase offsets of 0°, 90°, or 180° and/or MODBUS link with status output.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Jun 28, 2010 Offered in captive, non-captive, and external linear configurations, High Output Can Stack Stepper Motor Linear Actuators feature optimized stator tooth geometry, neodymium magnets, custom-engineered plastics, and large ball bearings for rotor support. Actuators are suited for variety of applications including precision medical equipment, scientific instrumentation, scanning devices, printing equipment, and advanced optics.

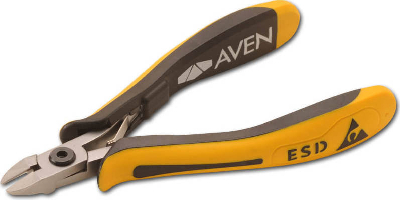

Aven, Inc.    Ann Arbor, MI 48108
Jun 28, 2010 Measuring 5 in. long, Accu-Cut Hard Wire Cutters feature ergonomic handles with cushioned safety grips to avert ESD risk. Made from solid tungsten alloy steel rated 66-68 on Rockwell hardness scale, miniature Class W cutters have 7.1 mm heads in oval or tapered styles. Class T cutters, with solid tungsten carbide brazed into jaw, have 79-81 HRC ratings on cutting edges and are intended for thicker or harder wire. All can cut fine hard wire made from stainless steel, nickel, Nitinol or tungsten.

Gowanda Electronics Corp.    Gowanda, NY 14070
Jun 28, 2010 QPL approved to MIL-PRF-83446/04, MLRF1010 Series includes surface mount inductors with Q min from 22-60, SRF min from 22-2,700 MHz, DCR max from 0.06-6.9 W, and DC current rating from 120-1,270 mA. Measuring .100 x .100 in, inductors are suited for RF applications including communication, guidance and security, as well as radar, test and evaluation, in military, aerospace, and defense communities.

Widia Inc.,    Latrobe, PA 15650
Jun 28, 2010 Designed for precision tapping applications in steel and stainless steel, WIDIA-GTD(TM) HSS-E taps feature powder-metal substrate with high levels of cobalt content for optimal heat resistance and extended tool life. Manufactured to ANSI and DIN standards, taps feature precision h6 shanks for use with conventional tap holders with square drive or precision round tool holders. Choices include 15° left-hand helix for tapping through holes or 45° right-hand helix for blind holes.

Linear Technology Corp.    Milpitas, CA 95035
Jun 28, 2010 Available in leadless 4 x 4 mm QFN-20 package, power management IC LTC3109 features auto-polarity architecture to generate usable power from input voltages as low as ±30 mV, enabling temperature differences to ±1°C across TEG to be harvested. Device uses 2 standard compact step-up transformers. Inbuilt 2.2 V, 4 mA LDO's main output is pin selectable to one of four (2.35, 3.3, 4.1, or 5 V) fixed voltages to power sensor, data acquisition circuits, and/or wireless transmitter.

Crystek Corp.    Fort Myers, FL 33913
Jun 28, 2010 Operating at 5,800 MHz with tuning voltage range of 0.5-4.5 Vdc, CVCO55CXT-5800-5800 coaxial VCO features typical phase noise of -100 dBc/Hz at 10 kHz offset and comes in industry-standard 0.5 x 0.5 in. SMD package. Unit exhibits output power of +3 dBm typical into 50 o load with supply of +8.0 Vdc and typical current consumption of 35 mA. Pulling and Pushing are minimized to 1.0 MHz and 3.0 MHz/V, respectively, and second harmonic suppression is -30 dBc typical.

NLB Corporation    Wixom, MI 48393 2824
Jun 28, 2010 Enabling users to clean pipes and tubes with high-pressure water, Rotating Line Moles (RLM) feature operating pressures of 10,000 or 20,000 psi and are available with variety of flows and nozzle patterns. They polish ID of tubes/pipes as they clear them of hard deposits, even around bends, and come with left- or right-hand threads, and wrench flats for attachment to flex lance or rigid lance. Self-lubricating action minimizes wear, while rebuild kit enables field replacement of parts.

NKK Switches    Scottsdale, AZ 85260-3420
Jun 28, 2010 Available in illuminated and non-illuminated versions, RoHS compliant LP01 Series pushbuttons have behind panel depth of only 14.0 mm and cap diameter of 13.6 mm, making overall diameter including housing just 20 mm. Switches come fully assembled and illuminated versions feature option of red, green, or amber LED illumination and translucent white cap. Rated at 3 A at 125 V/250 Vac or at 30 Vdc, pushbuttons also have UL94V-0 flammability ratings and meet UL and CSA standards.

Tridak    Torrington, CT 06790
Jun 28, 2010 With internal design that prevents fluid contact with actuating components, 475 Series diaphragm valves are suited for use with reactive fluids such as cyanoacrylates and solvent-based adhesives and coatings. Standard Model 475 features UHMW polyethylene diaphragm and acetyl copolymer fluid body. Model 475-T features Teflon® diaphragm and fluid body, while Model 475-SA incorporates UHMW polyethylene diaphragm and passivated stainless steel fluid body.

Axiomatic Technologies Corp.    Mississauga, ON L4Z1Z8  Canada
Jun 28, 2010 Suited for off-highway excavators, backhoes, pile drivers, or bulldozers, Bucket Positioning System (BPS) provides continuous assessment of bucket, blade or attachment position as part of complete 2D/3D OEM machine control system. It interfaces with CANopen® devices for angle sensing, and offers fast data exchange with machine control display via Ethernet. Features include operating range of 9-36 Vdc, IP67 rated sealed enclosure, and 2 CAN, 1 Ethernet, and 1 RS-232 serial COM port.

Avago Technologies    San Jose, CA 95131
Jun 28, 2010 Supplied in 6-leaded SOP measuring 5 x 4 x 1.85 mm, ASMT-Jx33 series is available in Cool White (80 CRI), Neutral White, and Warm White (90 CRI). Each 3 W LED, featuring Pb-free construction compliant with RoHS standards, can be driven to up to 700 mA and offers viewing angle of 140° to meet color uniformity demands. Delivering flux output of 70 lm at 350 mA, products have max allowable junction temperature of 135°C and offer 16 kV ESD resistance.
