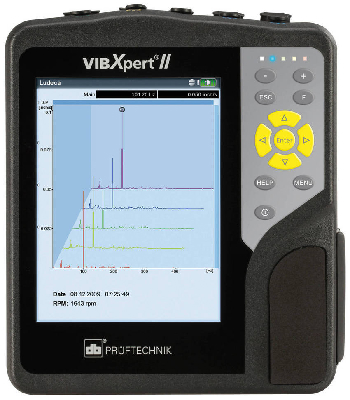

Ludeca Inc.    Miami, FL 33172
Jul 02, 2010 With Fmax of 51 KHz and up to 102,400 lines of resolution, VIBXPERT II is suitable for capturing and analyzing machinery problems. Basic 1-channel device can be user-upgraded at any time to 2 individually configured channels via passcode. All forms of machine vibrations, bearing conditions, process data, and visual inspection information can be collected and stored on expandable CF card for report generation, or transferred to OMNITREND® software for further analysis, reporting, and archiving.

Applied Analytics, Inc.    Concord, MA 01742

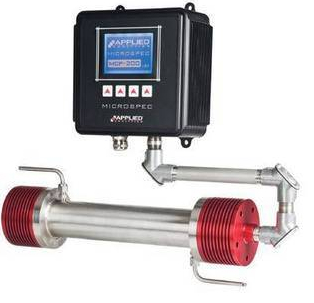

Jul 02, 2010 Based on infrared detector, Microspec MCP-200 monitors wide range of concentrations of water in various solvents, as well as CO and CO2 gas. Solid-state unit has sapphire and 316L stainless steel wetted materials, cast aluminum enclosure, and ¼ in. tube fittings. Able to perform measurements online continuously, real-time analyzer offers replacement for lab personnel performing routine applications for liquid samples that require Karl Fischer titration to determine amount of water in sample.

Servoflo Corp.    Lexington, MA 02421
Jul 02, 2010 Comprised of monolithic piezoresistive ceramic sensors, 18 mm dia ME75X Series comes in various gauge pressure ranges from 2-400 bar for measurement in air, liquid, and harsh environments. Onboard ASIC provides amplified and calibrated output, and 3 output options are available: 0.5-4.5 V ratiometric, 4-20 mA, or 0-10 V non-ratiometric. When temperature changes, internal electronics provide offset and span correction as well as aging detection and compensation.

Union Process, Inc.    Akron, OH 44313

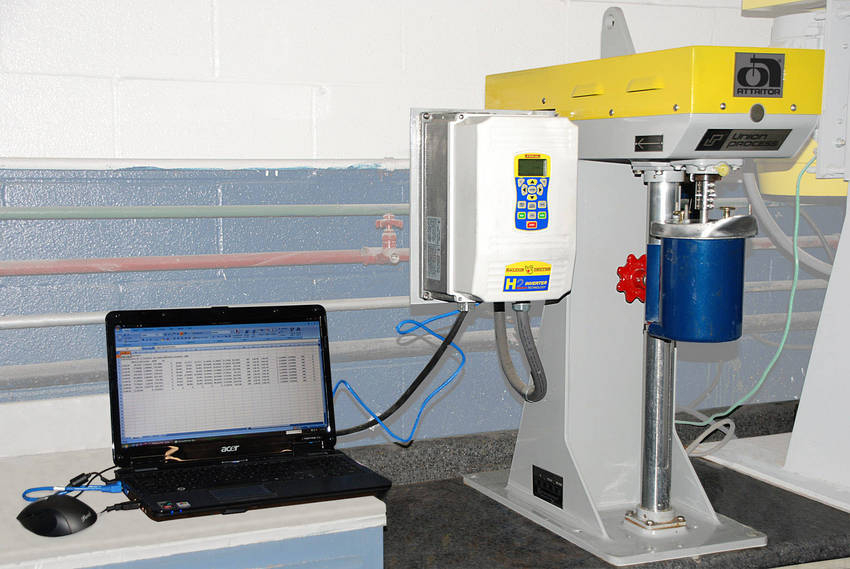

Jul 02, 2010 Consisting of expansion board, crossover cable, and software, data acquisition (DAQ) package interfaces with Baldor VS1SP variable frequency drive found standard on most Union Process Attritors. It provides real-time data for monitoring conditions in mill as well as improving QC and providing method to perform test comparisons. With this package, users can monitor 8 additional parameters to supplement the 3 available via drive display on standard Attritor readout.

Vicor Corp.    Andover, MA 01810 5424
Jul 02, 2010 With input range of 9-36 V, Mini Series DC-DC Converters are appropriate for MIL-COTS and industrial applications operating from 12 or 24 V inputs, which are typical for battery systems in vehicles. Fully encapsulated 28 Vdc modules offer 8 different output voltages ranging from 3.3-48 V with max power of 150 W and 4 operating temperature grades, including -55°C. Baseplate options include slotted, threaded, and through-hole.

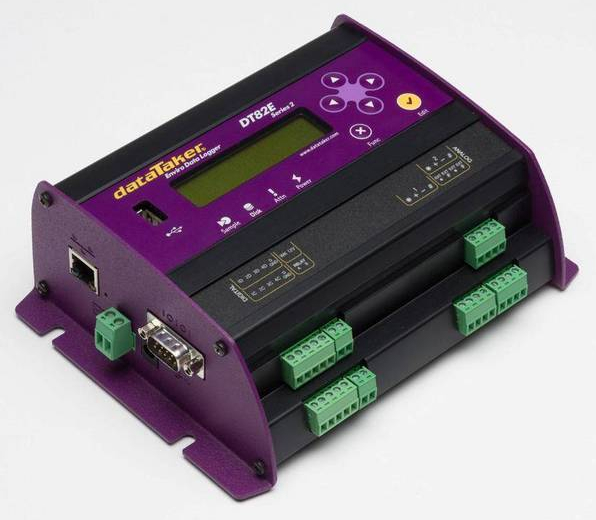

CAS Data Loggers    Chesterland, OH 44026
Jul 02, 2010 All 6 dataTaker DT8x data loggers are available with dEX web-based software for configuration, data monitoring, and retrieving data. Working with loggers connected remotely via Ethernet or locally via USB, software also offers customizable interface, security settings, and help screens. Data loggers feature universal analog inputs for TC, RTD, thermistors, strain, voltage, resistance, and current as well as DIO, counters, SDI-12, and serial sensor interfaces.

Crystal Systems, Inc.    Salem, MA 01970
Jul 02, 2010 Available in 15 in. diameter, Sapphire Plates measure 9 on Mohs scale with low coefficient of thermal expansion and operating temperature above 2,000°F, making them suitable for harsh environments where material failure is unacceptable. Plates are suitable for applications in semiconductor, aeronautical, and aerospace industries. Custom sizes and shapes are available.

Reelcraft Industries, Inc.    Columbia City, IN 46725

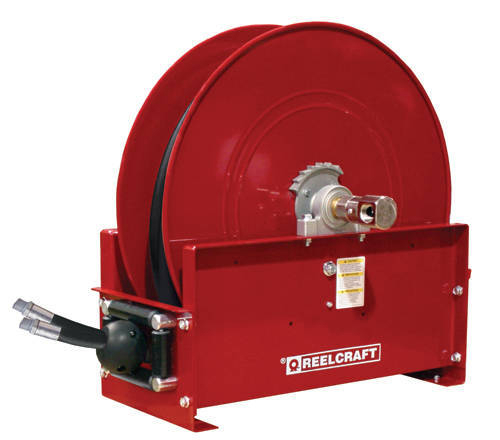

Jul 02, 2010 Able to accommodate longer lengths of twin hydraulic hose, mobile base 9000 Series features corrosion-resistant, industrial steel construction with individually powder coated parts. Reels exhibit rigidity, stability, and strength due to heavy gauge base design as well as drive springs made from scaleless blue spring steel. While reels may be mounted to floor, ceiling, or wall, they are specifically engineered for truck mount applications.

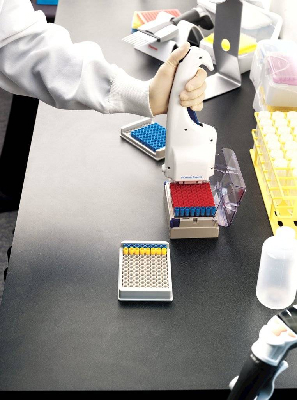

Thermo Fisher Scientific    Waltham, MA 02454
Jul 02, 2010 Designed for capping and decapping of multiple tubes in 96-well microplate footprint, 8-Channel Decapper helps eliminate risk of repetitive strain injury. Unit is capable of uncapping column of 8 screw-top tubes in 4 seconds. Caps are tightened uniformly and at optimal torque to prevent any spills or leakage, maintaining sample integrity, and avoiding sample loss during cryogenic storage and freeze-thaw cycles.

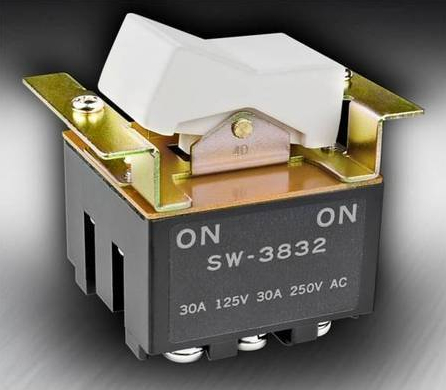

NKK Switches    Scottsdale, AZ 85260-3420
Jul 02, 2010 High electrical capacity SW3800 Series switches are rated at 30 A at 125 Vac, 30 A at 250 Vac, and 30 A at 30 Vdc for resistive loads; and up to 30 A at 125 Vac and 15 A at 250 Vac for inductive loads. Designed for panel mount applications, they feature steel mounting frame and screw terminals made of brass with nickel plating. Units operate in temperatures from -10 to +70°C and have mechanical life of 50,000 operations minimum. They are available DPST, DPDT, 3PST, and 3PDT configurations.

Advanced Anti-Vibration Components - AAC    New Hyde Park, NY 11040
Jul 02, 2010 Impervious to corrosion and suited for shipboard applications, V10Z70-... Series employs 2 or more stainless steel U formed leaves to form elliptical shape when joined together in center portion with face plates. Spaces between U formed leaves are filled with polymer or stainless steel mesh, depending on model, that serves as damping compound. Operating over 50 to 86°F range, mounts feature leaves of 304 stainless steel and washers of nylon and stainless steel.

Olympus Imaging America Inc.    Center Valley, PA 18034

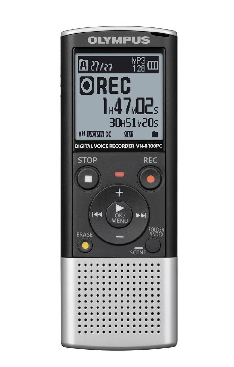

Jul 02, 2010 Equipped with variable control voice actuator, Models VN-7000 and VN-8100PC record automatically when sound is detected at pre-set level. Model VN-7000 provides 39 hr battery life, while Model VN-8100PC, able to record sound in both MP3 and WMA formats, lasts up to 51 hr. Set to LP mode, VN-7000 can record 1,200+ hr consecutively and VN-8100PC can record for 850+ hr. Model VN-8100PC is also PC Downloadable, allowing users to save and email audio files to any PC/Mac using USB cable.

Associated Environmental Systems    Ayer, MA 01432
Jul 02, 2010 Featuring stainless steel interior, SM series thermal shock test chamber has top station that produces temperatures from above ambient to +392°F, and bottom station that achieves temperatures from -85 to +250°F. Refrigeration system includes 2-stage cascade, air-cooled R404A and SUVA 95 refrigerants. Programmable controller with computer communications enables data logging, while 2 in. traveling port allows routing of cables and wires from product under test to external device.

TecHarmonic, Inc.    San Jose, CA 95119
Jul 02, 2010 Measuring 1.7 x 2 x 3 ft, Monsoon provides exhaust scrubbing capacity of 400 Lpm for etchers or 12,000 Lpm for fume hoods and consumes 2 gph to conserve water usage. Design solves challenge of exhaust clogging via integration of 4 in. inlet, optionally heated up to 300°C. By removing HCl, unit minimizes maintenance and loss of production due to ammonium hydroxide and HCl forming aluminum chloride crystals.

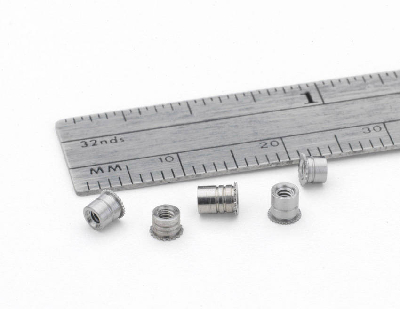

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Jul 02, 2010 Manufactured from 400 Series stainless steel, PEM Type MSO4(TM) Micro Standoffs are engineered with threads as small as M1.0/#00 and in lengths down to 2 mm/.080 in. Units can be installed into sheet metal as thin as 0.4 mm/.016 in. with max hardness up to HRB 88 on Rockwell B scale. Suited for spacing or stacking applications in compact electronic assemblies, RoHS-compliant standoffs clinch permanently into place by pressing them into properly sized mounting hole using punch and anvil.

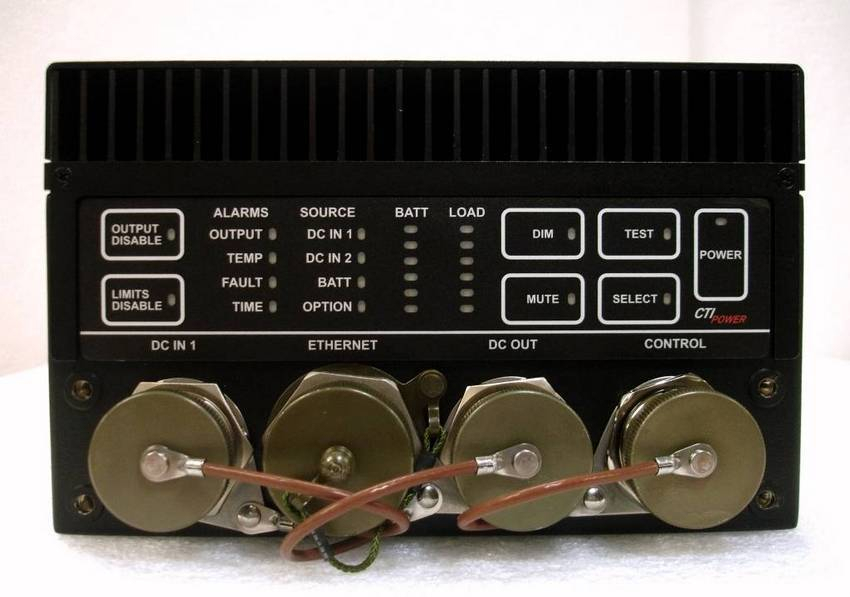

Control Technology Inc.    Oklahoma City, OK 73116
Jul 02, 2010 Specified over -40 to +70°C range, DC-UPS750A offers 28 V, fully isolated, 750 W DC output from 14 x 8.5 x 5.25 in. case. Unit also features dual DC inputs and can support an optional lightweight battery module. Offering full UI and control capabilities, bulkhead- or rack-mountable UPS operates from 22-36 V input and provides Ethernet, USB, and discrete interface capabilities. User programmable shutdown timing sequences and remote turn on/off capabilities are also standard.

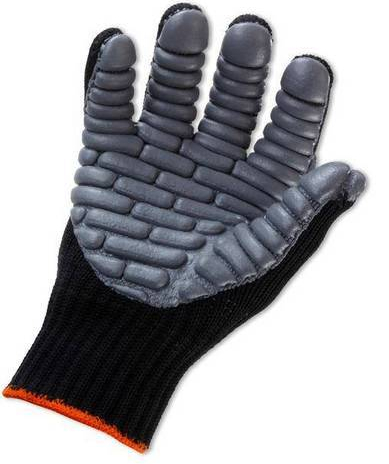

Ergodyne Corp.    St. Paul, MN 55108
Jul 02, 2010 Certified to ANSI S3.40/ISO 10819-1996/EN388/EN420, ProFlex® 9000 anti-vibration (AV) glove features chloroprene rubber palm padding and breathable 7-gauge cotton/nylon seamless knit construction. Pre-curved design provides comfort, dexterity, and flexibility, while elastic cuff ensures secure fit. Available in M, L, and XL sizes, glove helps reduce risk of Hand/Arm Vibration Syndrome (HAVS) and other vibration-related hazards, including worker fatigue and discomfort.

Nilfisk Industrial Vacuums    Morgantown, PA 19543
Jul 02, 2010 Featuring electronic keypad with LED indicators that monitor performance of main and HEPA filters, 2-motor S2 comes with 13 gal collection container, while S3, 3-motor machine, is available with 26 gal collection capacities. They include manual filter shaker, oversized handle, accessory storage tray, and cable holder. Both lines of vacuums can be equipped with multi-stage filtration, including optional HEPA filter to capture 99.97% of particulate, down to and including 0.3 microns.

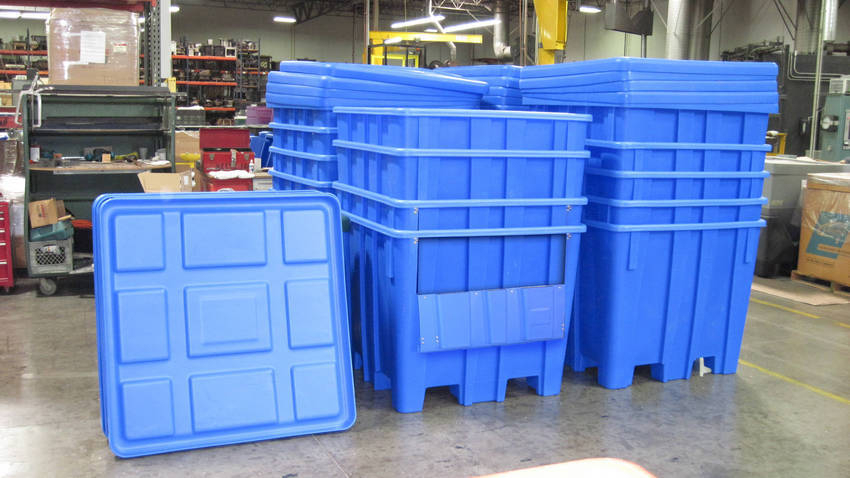

Meese Orbitron Dunne Co. (MOD)    Saddle Brook, NJ 07662
Jul 02, 2010 The P-433 Ship Shape(TM) Container with ergonomic hinged panel may be opened while container is either uncovered or covered and sealed shut without tools when readying for lifting and transportation. It is rotationally molded in single piece, 100% weatherproof polyethylene for handling payloads of up to 700 lb on 44 x 44 in. footprint with 4-way lift access. Available in choice of 16 standard colors and custom colors, palletless container stacks when covered and nests when empty.

Jaro Thermal    Boca Raton, FL 33487
Jul 02, 2010 Ultra-thin, micro-sized fan Super-Flow Micro delivers output of .57 cfm and comes with IP 57 water resistance rating. Designed to provide min 30,000 hr of life, fan is suited for various space-limited applications, including PDA, MID, smartphone, CCTV, GPS, mask and goggle, pocket projector, micro fuel cell, and air sensing usages.
