Emerson Process Management - Daniel Measurement and Control, Inc.    Houston, TX 77055
Oct 15, 2009 With diagnostic firmware and software, Daniel® Ultrasonic Meters offer real-time monitoring and alarm capabilities. Software detects oil and gas flow disturbances that may affect measurement, delivers maintenance alarms prompting action to avoid failure, and provides intuitive view of meter health. In addition to AGA 10 Speed of Sound calculations, firmware offers continuous flow analysis and generates actionable alerts to identify abnormal flow profiles, upstream blockage, and deposit build-up.

Maxim Integrated Products    Sunnyvale, CA 94086

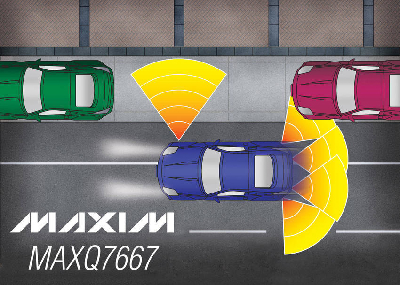

Oct 15, 2009 Supplied in 48-pin 7 x 7 mm LQFP, MAXQ®7667 mixed-signal RISC MCU suits applications that must measure weak signals over long distances or identify multiple targets. Integrated data acquisition system SoC offers functions for adding intelligence to cost-sensitive sensor-conditioning applications. Integrated main functional blocks required to measure position include burst control, analog echo reception, digital signal processing, and 16-bit, 16 MIPS MCU.

Maxim Integrated Products    Sunnyvale, CA 94086

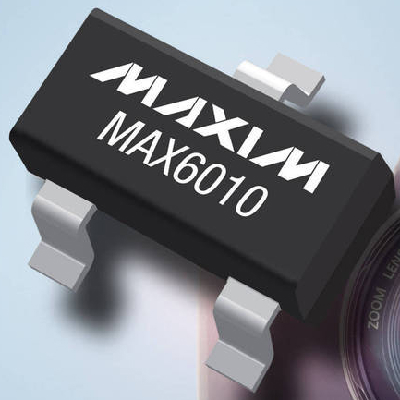

Oct 15, 2009 Supplied in 2.9 x 2.3 mm SOT23 package, MAX6010 offers PSRR of 51 dB (typ) at 2 kHz to facilitate design of applications with electrically noisy environments. It has 200 mV dropout voltage and 3 µA (typ) supply current independent of supply voltage. Suited for portable and battery-operated applications, solution operates from 3.2-5.5 V input and has output of 3.0 V. Reference has initial accuracy of ±0.2% (A grade) and ±0.4% (B grade) as well as temperature drift of 16 ppm/°C (typ).

IRC    Corpus Christi, TX 78411

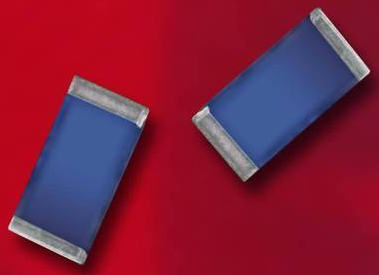

Oct 15, 2009 Qualified to K and M characteristics, TMC Series MIL-PRF-55342 R Level resistors includes 1206 Mil/7, 2010 Mil/8, and 2512 Mil/9 package sizes with respective power ratings of 250, 800, and 1,000 mW as well as voltage ratings of 100, 150, and 200 V. Each thick film military chip resistor conforms to all DSCC qualifications and is specified over -55 to +150°C range. While 1206 style is qualified from 1 W to 10 MW, 2010 and 2512 package sizes are qualified from 1 W to 15 MW.

Asahi/America    Malden, MA 02148
Oct 15, 2009 Available in 1¼ x 1¼ in. and 1½ x 1½ in. sizes, Type-343 Zero Dead Leg 3-Way Valves come in 45+ configurations for Purad PVDF, PolyPure PP-natural, and PP-Pure pigmented PP. Pigmented and natural polypropylene T-343 valves are available in 12 configurations each, which include ¾ x ¾ in. and ¾ x ½ in. sizes, and Purad PVDF valves operate up to 285°F. Valves are suited for use with aggressive chemical as well as high-purity applications.

AVX Corp.    Myrtle Beach, SC 29578
Oct 15, 2009 By providing low insertion and return losses, GX Series Multilayer Capacitors address DC blocking issues from 16 kHz to 40 GHz. Units are completely orientation insensitive with standard EIA 0402 footprint to minimize board space requirements. Available with X5R or X7S dielectric characteristic, capacitors are suited for semiconductor data communications, receiver optical subassemblies, trans-impedance amplifiers, and test equipment.

Littelfuse, Inc.    Des Plaines, IL 60016
Oct 15, 2009 Offered with current ratings from 1-5 A and variety of lead configurations, 808 Series features 250 Vac/450 Vdc rating, making it suited for power supplies and adapters, battery chargers, consumer electronics, and industrial controllers. TE5® fast acting fuse is halogen-free, lead-free and cURus agency approved.

Littelfuse, Inc.    Des Plaines, IL 60016
Oct 15, 2009 Housed in SOT23-6 package, SP3050 Series suppresses large surge/lightning transients per IEC61000-4-5. Four-channel diode array features integrated zener diode and is suitable for secondary or tertiary protection in 10/100/1000 Ethernet applications. It is also usable in USB 2.0 applications where enhanced level of ESD protection is required. Compliant with RoHS, unit has 6 V reverse standoff voltage with low leakage of ≤1 µA and dynamic resistance under 0.7 W.

Littelfuse, Inc.    Des Plaines, IL 60016
Oct 15, 2009 Operating up to 150°C, 440 Series has high inrush current withstand rating up to 12.95 A²s for eliminating nuisance fuse open during momentary overload conditions. Surface mount 1206-size units have max fault current rating of 50 A at rated voltage and are 100% lead-free, halide-free, and RoHS-compliant. Fuses are particularly suitable for protecting AC/DC over-current conditions in LCD TVs, LCD monitors, notebook computers, hard disk drives, and XDSL modems.

LumaSense Technologies    Santa Clara, CA 95054
Oct 15, 2009 Luxtron LumaSMART Winding Hotspot temperature monitor for transformers integrates touchscreen display with trending tools and alarm configurability. It features 1 GB of storage for historical data, and connectivity options include RS232, RS485, TCP/IP, and USB along with numerous protocols, simplifying integration with SCADA or DCS packages in substations. Temperature monitor can be expanded to configurations allowing up to 16 measurement points and 16 programmable relays.

Powerex, Inc.    Harrison, OH 45030
Oct 15, 2009 Suited for applications in medium power range up to 20 hp for both 230-480 Vac lines, DIPIPM(TM) Series incorporates CSTBT(TM) Carrier Stored Trench Gate Bipolar Transistor IGBT technology with on-chip current sense for short circuit protection. Models PS21A79 and PS21A7A are rated at 50 and 75 A, 600 V while PS22A72-PS22A78-E range from 5-35 A at 1,200 V. Operating from single 15 Vdc supply, RoHS-compliant units include control supply undervoltage lockout and 2,500 Vrms isolation voltage.

Igus, Inc.    East Providence, RI 02914 0349
Oct 15, 2009 Targeting machine-tool industry and reverse bending radius applications, RX Energy Tube is airtight and almost 100% chip-proof. Smooth domed exterior prevents debris such as metal or wood chips from attaching. Carrier has large interior space for cables and hoses, which can be divided using vertical separators, and horizontal shelf to safely route cables and hoses, preventing abrasion. Made from igumid HT material, high-temperature version can withstand chips up to 1,562°F.

Watlow    St. Louis, MO 63146
Oct 15, 2009 Featuring EZ-ZONE® PM and EZ-ZONE RM integrated temperature controllers, PROFIBUS DP facilitates plant design and eliminates hard wiring. System features status LEDs, cycle read/writes up to 135 data points, and acyclic read/write capabilities. With generic station description file editor, users can create customized data exchange packets. Additional features include support for DP-Version 0 and 1 functionalities, 16 or 32 bit formatting, and independent temperature units in °C or °F.

Z-Communications, Inc.    San Diego, CA 92126

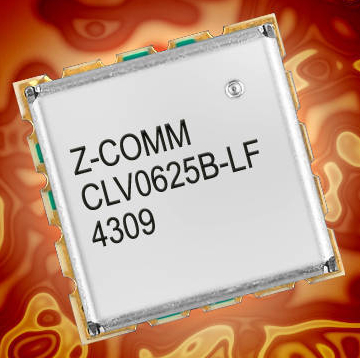

Oct 15, 2009 Operating from 540-710 MHz with tuning voltage range of 0.5-11.5 Vdc, Model CLV0625B-LF features typical phase noise of -114 dBc/Hz @ 10 kHz offset and typical tuning sensitivity of 20 MHz/V. RoHS-compliant VCO delivers typical output power of 1 dBm at 3.3 Vdc supply while drawing 27 mA (typ) over -40 to +85°C range. It has typical second harmonic suppression of -15 dBc and comes in 0.5 x 0.5 x 0.16 in. MINI-14S-LOW package.

Chicago Pneumatic Co.    Rock Hill, SC 29730-7463
Oct 15, 2009 Featuring 4,000 rpm speed and forward working torque range of 443-2,290 lb-ft with 4 adjustable settings, CP6930 PALED 1½ in. impact wrench is designed for plant maintenance, petrochemical, refinery, and off road construction equipment repair industries. It features inside or outside trigger, forward/reverse switch, and suspension bail to decrease operator fatigue. Adjustable exhaust helps to deflect exhaust away from operator.

E-Switch Inc.    Brooklyn Park, MN 55428 1514

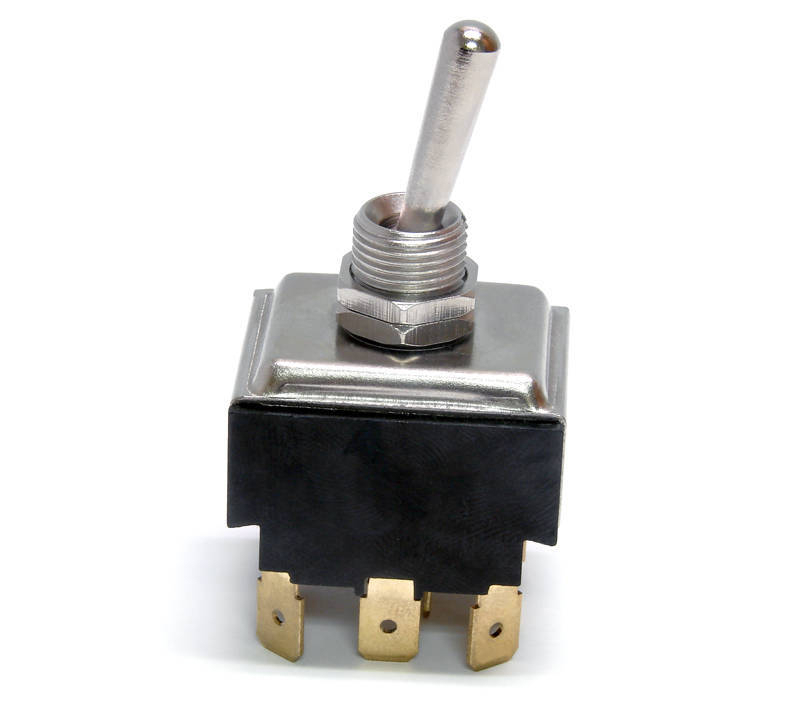

Oct 15, 2009 Operating at temperatures of -20 to +85°C, ST3 series toggle switch features UL approvals, and tab, screw, and solder terminal options. It has contact rating of up to 24 A/2 hp, maximum contact resistance of 50 mW, insulation resistance of 800 MW minimum at 500 Vdc, and dielectric strength of 1,500 Vac for 1 min. Switch has rubber boot for water and dust protection and suits industrial applications, instrumentation, telecom, appliances, and medical equipment.

Mott Corporation    Farmington, CT 06032 3159
Oct 15, 2009 Capable of accommodating flow rates of 300 and 650 sLpm in standard filter lengths of 3.31 or 5.0 in., respectively, High Flow Defender Series filters attain filtration efficiencies at 9 LRV (99.9999999% efficiency) down to 0.003 µm particles sizes. Porous metal filters are suited for use in semiconductor, flat panel display, and photovoltaic industries.

Fox Electronics    Fort Myers, FL 33905 5022

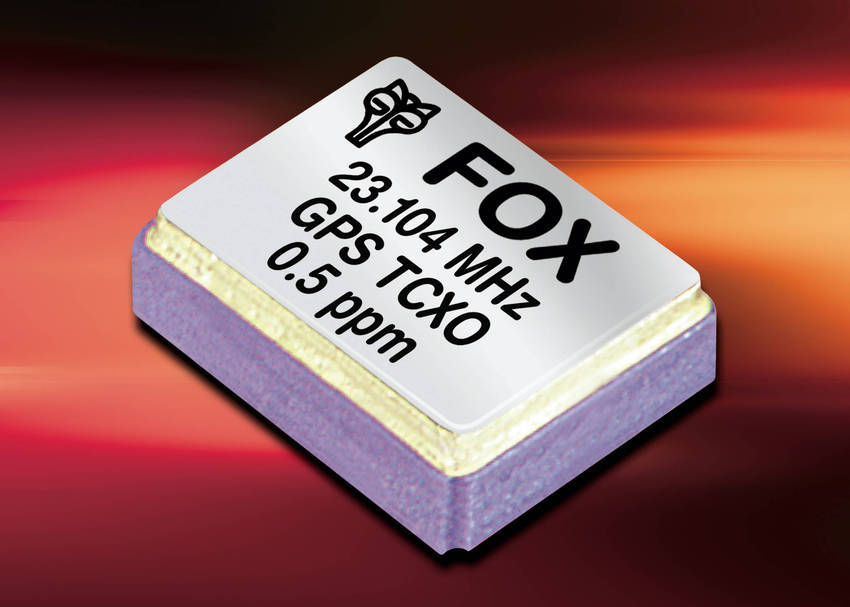

Oct 15, 2009 With footprint of only 3.2 x 2.5 mm and height of 1.2 mm, FOX923-GP Series comes with stability of up to ±0.5 ppm across operating temperature range of -30 to 85°C. RoHS-compliant ceramic SMD devices offer frequency range from 16-27 MHz, and have input current of 1.5 mA in frequencies from 16-23 MHz and 1.7 mA from 24-27 MHz. Available as TCXOs or VCTCXOs, products come in supply voltages from 1.8-3.3 V. Stability over supply voltage change is ±0.3 ppm and ±0.2 ppm over load change.

Ideal Industries, Inc.    Sycamore, IL 60178

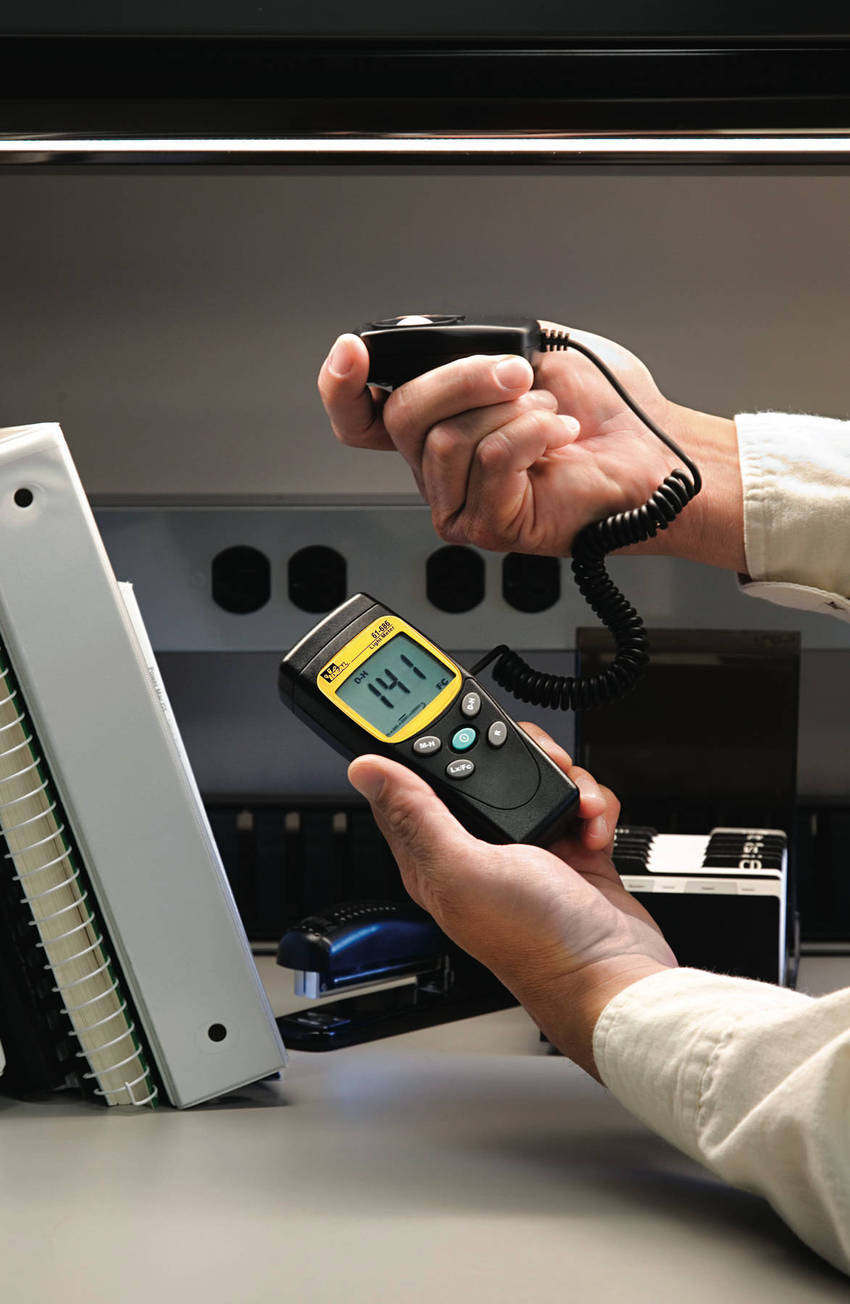

Oct 15, 2009 Featuring remote sensor with 1.5 m cable, Digital Light Meter (61-686) precisely measures incandescent, fluorescent, metal halide, high-pressure sodium, and halogen lamp output. Light level is displayed on LCD read-out, and values are saved by pressing Data Hold button or Max Hold button to capture maximum value.

Mazak Corp.    Florence, KY 41042 3092

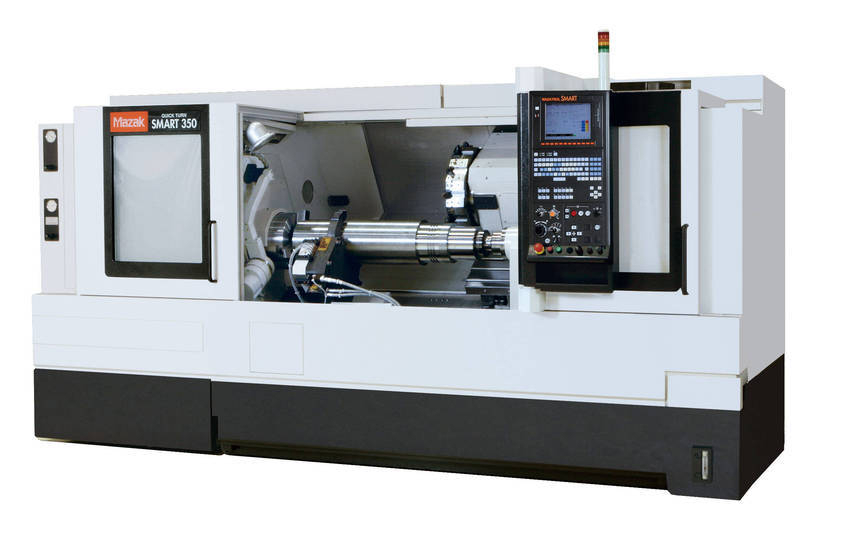

Oct 15, 2009 QUICK TURN SMART Series feature MAZATROL SMART control with 10.4 in. LCD color display, QWERTY keyboard, pointing device, and USB port for downloading programs. Headstock includes 12 in. chuck, mounted on 40 hp, 3,300 rpm integrated spindle motor that delivers max torque of 596 lb-ft and allows 4 in. bar material to be machined. Feedrates are 1,811 in./min on X-axis and 1,299 in./min on Z-axis. Machine also features 12-position, high-speed, non-lift drum turret for rapid tool indexing.
