Opto Diode Corp.    Newbury Park, CA 91320

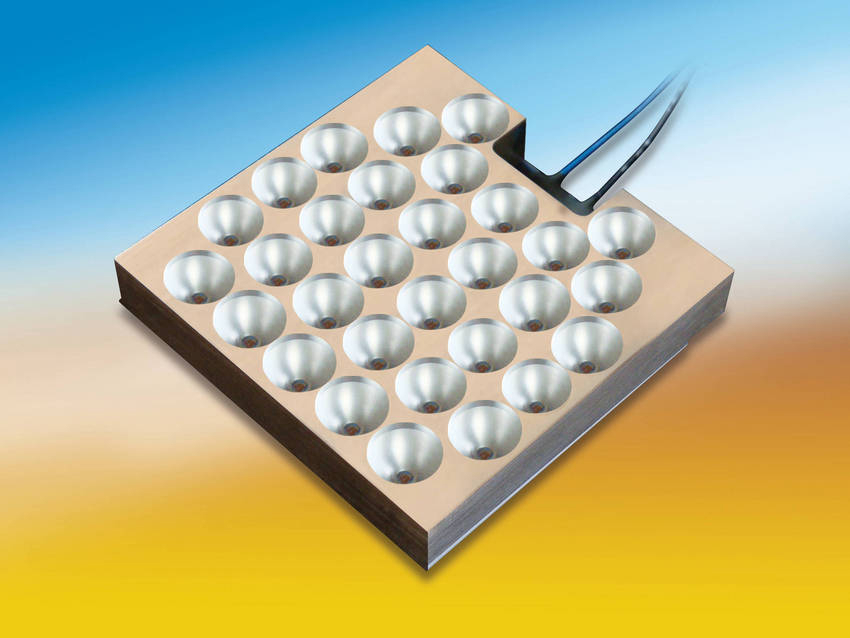

Jul 14, 2010 Model OD-850-30-030 NIR LED array features wavelengths from 840-865 nm, with peak wavelength of 850 nm and total optical power output of 16 W. Operating temperature range is from -20 to +100°C and maximum junction temperature is 125°C with thermal resistance, junction to case, of 0.8°C/W. Unit can be stored in temperatures from -40 to +125°C and is suitable for night vision systems and skin therapy applications.

Holophane    Granville, OH 43203

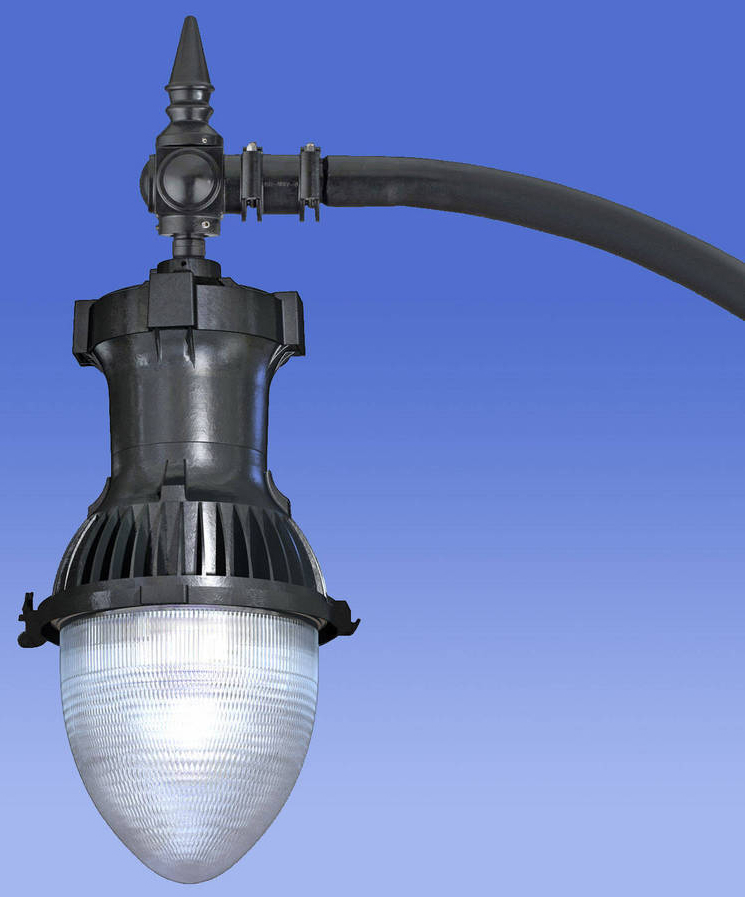

Jul 14, 2010 Tear Drop LED Series is comprised of 20th century, historically styled tear drop luminaires with LEDs and die cast construction for true street lighting performance. Offering tool-less access to all components, IP66-rated modular design features permanent glass optical lens and comes in various styles and sizes. Cast aluminum door supports tear drop, bowl, or sag-shaped thermal-resistant borosilicate glass refractor that provides asymmetric cut-off distribution.

Northstar Polymers    Minneapolis, MN 55406
Jul 14, 2010 Designed to prolong life of equipment used in bulk material handling operations, such as aggregate handling, mining, and concrete handling, Rhino Hyde Spray 8500AR is spray-applied to virtually any thickness and creates seamless membrane that eliminates corrosion. Product is applied with 2-component high-pressure impingement mixing spray machine and is suitable for screen deck grids, slurry tanks, weigh hoppers, and chute liners.

TDK-Lambda Americas Inc.    San Diego, CA 92154

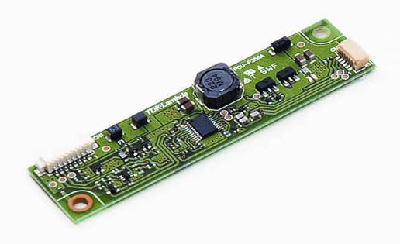

Jul 14, 2010 Specifically designed for LED backlighting of LCD displays used in industrial and consumer applications, ALD Series Multi-Output DC-DC Drivers include models for LEDs arranged in 2, 3, and 4 string configurations. Resistive, analog, or PWM inputs provide smooth LED brightness control. Operating with input voltages of 10.8-13.2 Vdc, drivers have max open-circuit output voltage of 42-44 Vdc. Units are convection-cooled and operate in ambient temperatures from -30 to +85°C with 90% efficiency.

Triangle Manufacturing Co.    Oshkosh, WI 54903

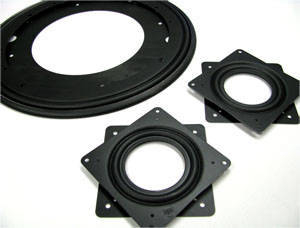

Jul 14, 2010 Available in 3, 4, 6, 9, and 12 in. sizes, black lazy susan bearings are manufactured from galvanized steel and painted black to accommodate those who desire functionality of turntable without noticeable bearing. Products are made to be used in displays and cabinetry, adding finished look to any project or application from tabletop video poker machines to retail displays. Other colors are available upon request for high-volume orders.

Dwyer Instruments, Inc.    Michigan City, IN 46361

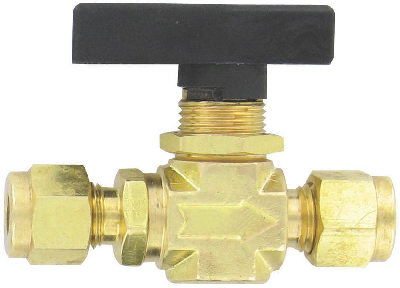

Jul 14, 2010 Available in brass or 316 stainless steel with choice of fractional tube fitting or female NPT connections, Series MSV provides ¼-turn directional control of fluids in instrumentation and process systems. Blowout proof ball and stem provide safety in event of over-pressure, while micro-finished ball and PTFE seats ensure optimal seal. Valves handle pressures up to 1,500 psi over temperature range of -40 to 350°F.

Edmund Optics    Barrington, NJ 08007
Jul 14, 2010 Used in collimated spaces and placed near pupil, TECHSPEC® plates compensate and correct known amounts of spherical aberration. Transmitted wavefront is accurate to 1/10 lambda, and plates can be combined to induce desired amount of compensatory spherical aberration in given system. Diameters of 12.5, 25, and 50 mm, in positive and negative sign plates, are available with aberrations of 0.25, 0.50, and 1.00 lambda.

RIDGID    Elyria, OH 44035
Jul 14, 2010 Designed for ¾ to 2½ in. drain lines, K-45 manual and K-45AF AUTOFEED® are available with ¼, 5/16, and 3/8 in. cable, each in varying lengths up to 50 ft. Two-way AUTOFEED on K-45AF model lets users advance and retrieve cable without stopping to reverse motor. Quick-acting slide chuck locks cable, while inner drum design eliminates cable flip-over within drum, and compression-wound inner core cable combines strength and flexibility to avoid kinking.

AXIOMTEK    Taipei   Taiwan
Jul 14, 2010 Measuring 132 x 95.4 x 47.5 mm, eBOX511-820-FL is powered by Intel® Atom(TM) Z530 (1.6 GHz) or Z510 (1.1 GHz) CPU with up to 2 GB DDR2 system memory and has 10-30 V DC power input. Connectivity is fostered via Gigabit Ethernet, 4 USB 2.0, 2 COM, VGA, audio, and PS/2 ports, while expansion is made possible via support for one CompactFlash(TM) card. Consuming less than 10 W typ, computer also incorporates Intel System Controller Hub US15W with integrated Intel GMA 500.

AXIOMTEK    Taipei   Taiwan
Jul 14, 2010 Featuring 8 PoE ports, 2 GbE ports, and two 10/100base-FX ports, Managed iCON-78000 series switches support PoE on ports 1-8, power IEEE802.3af compliant devices, transmit data simultaneously, and provide network recovery within 15 ms. Maximum bandwidth can be set on each port individually and units include 48 Vdc redundant power input via terminal block or power jack. Power Polarity Reverse and overload current resettable fuse are also included.

Men Micro Inc.    Lago Vista, TX 78645-4160
Jul 14, 2010 Based on 1.33 GHz Intel® Atom(TM) Z520PT processor, Model SC21 is suited for controlling 10.4 in. or bigger LVDS displays with resolution up to 1,366 x 768 pixels. Fanless unit features PSU with input range of 8-36 V, 1 GB DDR2 SDRAM, and ability to connect additional microSD card and/or SATA hard disk. Standard I/O includes 2 USB ports, 5 binary inputs, and 2 Fast Ethernet. For wireless functions, MiniPCI Express card slot with SIM card slot can be connected to external antenna.

Men Micro Inc.    Lago Vista, TX 78645-4160
Jul 14, 2010 Based on 400 MHz PowerPC® MPC5121e or MPC5123, ESMini MM50 features up to 512 MB DDR2 SDRAM, 64 MB boot Flash, and 128 kB non-volatile FRAM. e300-core processors pair display interface unit - with or without 3D graphics engine - and integrated I/O features with power up to 3 W max. Measuring 95 x 55 mm, module includes 1 Fast Ethernet interface, 6 USB 2.0 ports, 2 UARTs, and up to 4 CAN bus interfaces. Unit operates from -40 to +85°C and can be equipped with conduction-cooling enclosure.

Octasic Inc.    Quebec H1Y 3L1  Canada
Jul 14, 2010 Model TXP1000 high-density video transcoding cards can deliver 335 channels of video transcoding with low power consumption. They include host API as well as audio/video media processing and transcoding software stack that provides H.264, MPEG-4, and H.263 codec support from QCIF to HD resolution. Software also provides dynamic bit-rate and quality adaptation; frame rate and resolution scaling; and video mixing engine for conferencing, graphics overlay, and stream insertion.

Octasic Inc.    Quebec H1Y 3L1  Canada
Jul 14, 2010 Currently comprised of OCT2224M for media processing and OCT2224W for wireless baseband applications, software-programmable OCT2200 series uses Opus DSP core architecture to help system designers minimize power consumption and maximize performance. Devices based on second generation Opus DSP core, Opus2, can deliver over 36 GMACs with less than 55 mW of power consumption per GMAC. Products incorporate up to 24 Opus2 DSP cores with diverse I/O interfaces.

Octasic Inc.    Quebec H1Y 3L1  Canada
Jul 14, 2010 Model OCT2224W performs LTE PHY and MAC for 20 MHz 2 x 2 BTS at 3 W and is designed for basestations of all sizes and for all air interfaces. Unit includes 24 Opus2 DSP cores able to process up to 64 HSPA+ or LTE users on single device. Featuring Opus Studio IDE, it is fully programmable, and also has PHY software libraries that offer GSM, EDGE, WCDMA, HSPA+, and LTE functionality. Serial Rapid I/O, GbE, USB, PCIe, NAND, and TDM are included, as well as up to 3 native radio interfaces.

Tensilica, Inc.    Santa Clara, CA 95054
Jul 14, 2010 Featuring Free Lossless Audio Codec (FLAC) decoder that supports stereo and multi-channel formats, HiFi Audio DSP family of IP cores are intended for SoC designs targeting products such as cellular phones, DTVs, Blu-ray Disc players, and home theater systems. Integration is facilitated via power, dimensions, support for over 60 audio and voice codecs, as well as post processing software.

Lattice Technology, Inc.    San Francisco, CA 94104
Jul 14, 2010 Available in Basic, Standard, and Pro editions, XVL Studio v9.1 delivers tools for processing 3D data into manufacturing data for illustration, process design, and validation. Ultra Large Data Handling enables manufacturers to check, visualize, and verify accuracy of very large assemblies, create and test processes, and document processes for downstream users. For realistic visualization, program offers real-time measurement of parts in cross-section mode and animation of tools and equipment.

Mentum    Paris   France
Jul 14, 2010 Using Windows-based Mentum Planet® v5.2, wireless operators, integrators, and equipment vendors can plan, manage, and optimize performance of wireless access networks. Users can model multi-band and shared antennas, including MIMO and smart antennas, between different technologies. With Automatic Site Placement tool, users can generate new network plans with a few mouse clicks and investigate various potential deployment scenarios.

phocas Ltd    Oxford   United Kingdom
Jul 14, 2010 Accessible from PC or mobile device, Phocas Xpress provides pre-defined business intelligence reports, favorites, alerts, and dashboards, and enables users to perform lateral analysis within browser window. Management Studio tool allows control over what data employees, suppliers, or customers have access to, while optional Reporting Services module generates dashboards and KPI indicators. Using Microsoft SQL server and Microsoft IIS server technology, program provides password-protected security.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Jul 14, 2010 Agilent SurePrint G3 devices permit from 60,000 probes on each of 8 arrays per slide to up to 1 million features per standard 1 x 3 in. slide. Systems, accommodating long intergenic non-coding RNA content, along with mRNA probes, enable users to run 8 whole-genome experiments per slide and can detect low-expressing genes. Available in catalog and custom configurations, they can be used with Low Input Quick Amp Labeling Kit to support sample input as low as 10 nanograms.
