Newport Electronics, Inc.    Santa Ana, CA 92704
Aug 02, 2010 Used for remote surveillance of environmental conditions, Virtual Chart Recorders(TM) let users view virtual charts as well as record temperature, relative humidity, dew point, and barometric pressure over Ethernet network or Internet via Web browser. Instruments can trigger alarm - email or cell phone/PDA text message - if reading goes above/below user-determined set point, and removable 2 GB SD Flash Memory card stores up to 7 years of readings taken at 10 sec intervals.

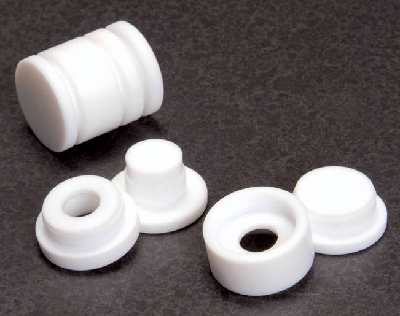

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Aug 02, 2010 Suited for equilibrium dialysis, regular dialysis, or electro-elution in ElectroPrep(TM) tank, PTFE DIALYZERS(TM) cover volumes of 25, 50, 100, 250, 500, 1,000, and 1,500 µl. Units consist of double-sided chambers that can be sealed with another chamber plus 2 solid caps, or with 2 open caps for use with separate membranes between them. Open main chambers facilitate sample introduction and withdrawal. To accelerate dialysis, DIALYZERS(TM) can be placed in temperature-controlled device.

Kaman Aerospace, Measuring & Memory Systems    Middletown, CT 06457
Aug 02, 2010 Using dual-coil design to minimize thermal and radiation effects, inductive-based Non-Contact Position/Displacement Sensors operate from -320 to +1,000°F continuous and up to +1,200°F short term. Units feature sealed, all-Inconel construction and use metal-jacketed, mineral-insulated cable. Available in single- and multiple-channel models with NEMA enclosure, sensors are suitable for highly corrosive gas or liquid environments as well as radiation environments.

HBM, Inc.    Marlborough, MA 01752 3014
Aug 02, 2010 Platform load cell PW27 meets EHEDG guideline for applications in food sector and is available with maximum capacity of 20 kg. Product integrates overload stop that prevents it from being damaged if load is too great. Protected to IP68 and IP69K, cylindrical unit has no corners or edges, and features solid tubular housing that hermetically encapsulates measuring element with the strain gauges, which provides insensitivity to cleaning and disinfection agents used in food industry.

Balluff, Inc.    Florence, KY 41042-0937
Aug 02, 2010 With IO-Link, users can connect complex devices, such as RFID processors, to industrial network via gateway using standard discrete wiring. Solution can replace I/O enclosure, 4 shielded cordsets, and 4-port RS232 PLC module with single IO-Link Expansion Module and four 3-conductor, non-shielded cordsets. Additional I/O points are made available by Expansion Module that can be used for analog devices, pressure sensors, or discrete sensors.

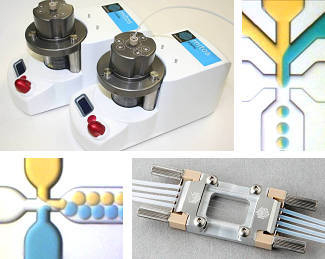

Dolomite Centre Ltd    Royston SG8 5TW  United Kingdom
Aug 02, 2010 Developed for experienced researchers, modular Droplet Advanced System can produce over 10,000 monodispersed droplets per second with 20-250 µm dia. Flexible solution, featuring all required pumps, connectors, and chips, provides pulseless and stable liquid flow with 0-10 bar pressure range. Pressure-driven pumps and flow resistors enable precise control over flow rates and droplet size, and quick changes to flow conditions enable accelerated optimization of droplet parameters.

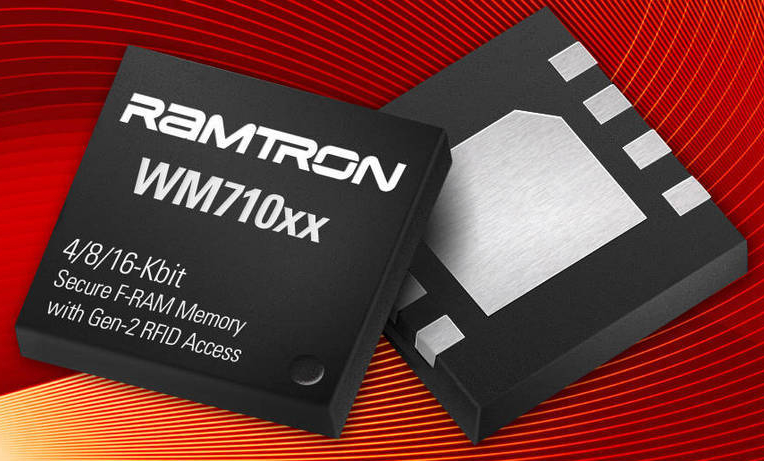

Ramtron International Corp.    Colorado Springs, CO 80921
Aug 02, 2010 MaxArias(TM) wireless memory devices combine nonvolatile FRAM memory technology features with wireless access to enhance mobile data collection. Specifically, products offer up to 16 Kb nonvolatile FRAM memory with EPCglobal Class-1 Generation-2 UHF Air Interface Protocol Standard. Use with optimized antenna design enables power-up via energy harvested from RF field. Able to store up to 1,000 16-bit words of data, products operate over distances to 10 m at -13 dBm read/write sensitivity.

Peddinghaus Corp.    Andrews, SC 29510
Aug 02, 2010 Supplied with Peddiflex3D CAD programming, batch nesting, and production reporting software, Advantage 2 is capable of drilling, tapping, countersinking, and multi-axis scribing for various profiles. It utilizes 3 drill spindles, each accompanied by optional 5-station automatic tool changer. Automatic tool changing, paired with carbide drilling up to 2,250 rpm and 27 ipm feed rates, result in profile capacities to 300 lb/ft. Complete electronic motion and spindle control is standard.

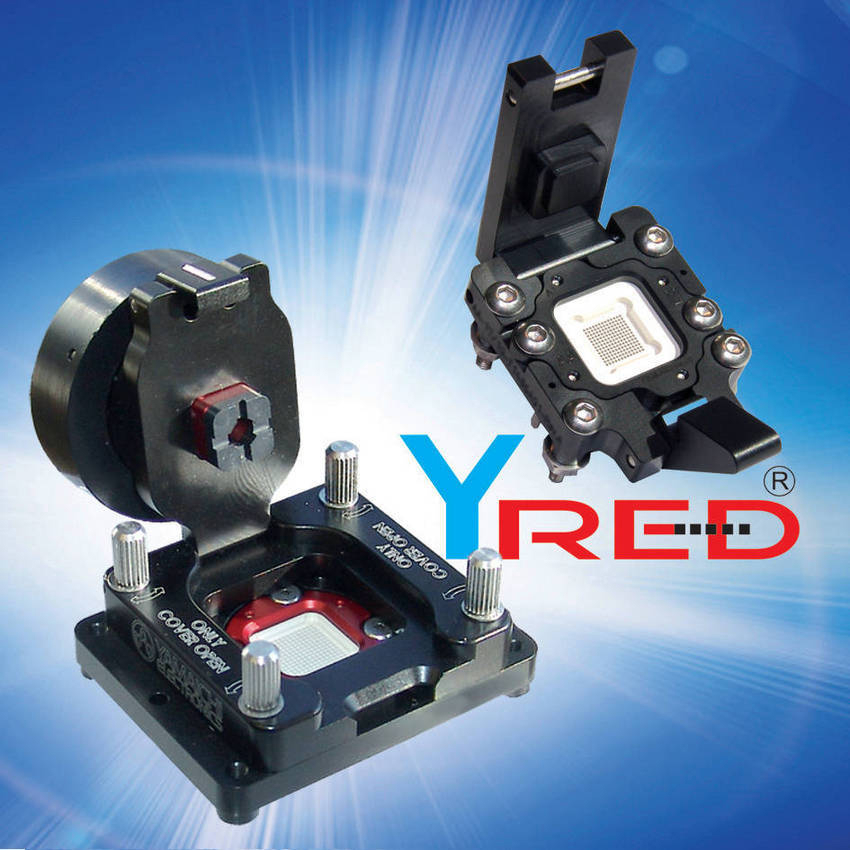

Yamaichi Electronics U.S.A. Inc.    San Jose, CA 95134
Aug 02, 2010 Y-RED volume test socket features top side removable insert and tool-free cover mounting to minimize changeover times when testing semiconductors. Unit includes spring probe with crown plunger tip for BGA, and conical plunger tip for LGA and QFN packages. Its 2-piece pin has contact resistance below 50 mW and is stable for up to 500,000 mating cycles. Available for standard temperature range of -40 to +125°C, pin is also offered for temperature range of -55 to +150°C.

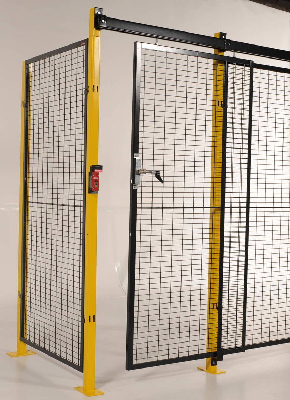

WireCrafters Inc.    Louisville, KY 40214
Aug 02, 2010 Designed to exceed ANSI/OSHA, CSA, and EU 953 standards, modular RAPIDGUARD(TM) consists of framed panels, posts, and variety of door styles, including hinged and slide types. Panel's wires are welded at each intersection, then framed with 1¼ in. x 1¼ in. x 13 gauge angle. Furnished in standard system heights of 5, 6, and 8 ft, systems are available with options such as door interlocks, wire chases, polycarbonate and solid steel panels, as well as weld curtains.

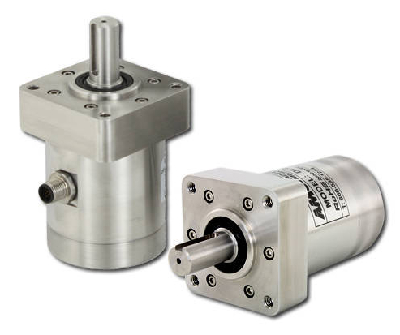

Advanced Micro Controls, Inc.    Terryville, CT 06786
Aug 02, 2010 Available with stainless steel housing and IP67 or IP69K rating, DuraCoders® are protected against high-pressure and high-temperature washdowns and liquid ingress from immersion in water or contaminants. Units come with 2.5 in. housing and double row sealed bearing. Offered in solid shaft and hub shaft models, encoders provide shaft loadings up to 100 lb radial and 50 lb axial. SSI, Digital, Analog, Incremental, DeviceNet, and Ethernet/IP versions are available.

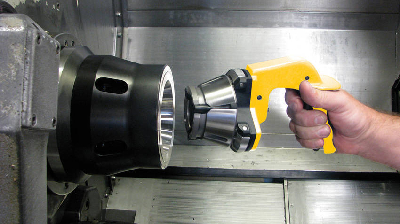

Royal Products, Div. Curran Mfg. Corp.    Hauppauge, NY 11788
Aug 02, 2010 Available in capacities from 1 5/8 to 3 1/8 in., Quick-Grip(TM) CNC Collet Chucks are installed with tool that compresses rear end of collet so that it can be inserted. Upon expansion, collet locks into place via hook and groove arrangement. Each segment of collet is completely separated from other segments by vulcanized rubber spacer, enabling gripping range of 1/16 in. Additionally, units have full collapse range of 0.062 in.

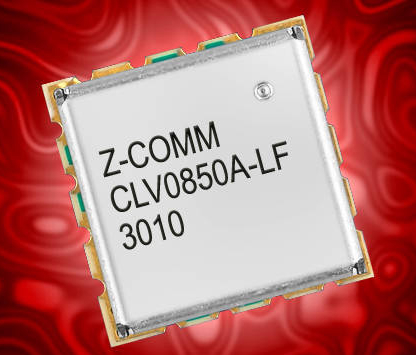

Z-Communications, Inc.    San Diego, CA 92126
Aug 02, 2010 Model CLV0850A-LF VCO in UHF band operates at 850-851 MHz with tuning voltage range of 0.5-3.3 Vdc. Designed to deliver output power of 0 dBm at 3.3 Vdc supply while drawing 18 mA, it also features typical tuning sensitivity of 31 MHz/V and second harmonic suppression of -15 dBc. RoHS-compliant unit is contained in MINI-14S package measuring 0.5 x 0.5 x 0.22 in. and is suited for satellite communication and fixed wireless applications.

Thermo Fisher Scientific    Waltham, MA 02454
Aug 02, 2010 Suited for cell-based arrays, Nunc(TM) Edge 96-well Plates incorporate large perimeter evaporative buffer zones that reduce overall plate evaporation rate to less than 2% after 7 days of incubation. Zones enable use of all 96 wells, minimizing edge effect. Prevention of cell death and toxicity in plates' outer wells allows results to remain true to population phenotype for high-throughput analysis. By eliminating occurrence of chromatic aberrations, flatness of plates optimizes automated imaging.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Aug 02, 2010 Model DM-MD8X8-RPS, 16X16-RPS, and 32X32-RPS DigitalMedia(TM) (DM) matrix switchers incorporate 1M hour MTBF redundant power supply. Card-based and field-configurable, these solutions deliver low-latency switching and pure, lossless distribution of HDMI(TM) and other signals. LEDs on front panel show status of each individual power supply. Devices are also available with remote monitoring and are suitable for broadcast environments and government applications.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Aug 02, 2010 Weighing only 2.3 g, Endevco® model 8530B series transducers are offered in ranges of 200, 500, and 1,000 psia with 300 mV full scale output and resonant frequencies of 750 and 1,000 kHz. They include self-contained full hybrid temperature compensation, and feature active four-arm strain gauge bridge, diffused into sculpted silicon diaphragm for max sensitivity and wideband frequency response. Operating at -18 to 93°C, units are rugged to 20,000 g shock and min 4X burst pressure.

Acopian Technical Co.    Easton, PA 18044
Aug 02, 2010 Infinity power supplies have line and load regulation of just 2 mV, and ripple is less than 0.25 mVrms, 0.75 mVp-p with low common mode noise. Rugged units come with outputs to 150 V and 150 W, with both 'slot' output voltage ranges and wide-adjust models that are adjustable from 0 to max rated output voltage, and can provide either constant voltage or current. Functional options include output programming, switching and monitoring, undervoltage alarms, and auxiliary outputs.

Binder-USA, LP    Camarillo, CA 93012
Aug 02, 2010 Panel-mounted receptacles of M8 connectors are available in PCB mountable and prewired versions. Prewired versions have crimped leads and come in front- and rear-mounted housings, while PCB-mountable versions feature straight or right-angle PCB pins and shielding sheet for mounting onto printed circuit boards. Units are mating-compatible with all M8 field-attachable connectors and cordsets.

Servoflo Corp.    Lexington, MA 02421
Aug 02, 2010 Low pressure sensor, MS5701 measures as low as ±2.5 to ±10 in. H₂O in differential version, and from +2-20 in. H₂O in gauge version. I2C or SPI interface communicates up to 20 MHz. Utilizing MEMS technology, unit offers low supply voltage of 1.8-3.6 V with 1 mA power consumption. It has resolution of 0.0004 in. of water and conversion of 0.54 msec, and operates in temperature range of -20 to 85°C.

E Instruments International LLC    Langhorne, PA 19047
Aug 02, 2010 Hydraulic hand pump HHP 1000 includes transparent fluid chamber reservoir for viewing of fluid levels, fine adjustment vernier, pressure release valve, high/low selection knob stroke adjustment, and scissor action pump. Optional features included are hydraulic hose with fitting, carrying case for pumps, hoses and adaptors, and up to 5 set of adaptors.
