AXIOMTEK    Taipei   Taiwan
Jul 15, 2010 Suited for SOHO users, Model NA-813FL is built around Intel® 945GSE Express chipset and 1.2 GHz Intel® Atom(TM) N270 processor. Unit features 1 DDR2 SODIMM slot that supports 400/533 memory up to 2 GB capacity. It also includes 2.5 in. SATA HDD bay, CF(TM) card, 1 DB9 console port, 2 USB 2.0 ports, and power connector. With height of 44 mm, appliance fits into space-limited and harsh environments and is suited for VPN, content filtering, UTM, network security gateways, and firewalls.

ASM Sensors, Inc.    Elmhurst, IL 60126
Jul 15, 2010 Available to fit 27, 35, and 50 mm shaft diameters, POSIROT® PMIR7 Series generates up to 102,400, 131,072, and 184,320 pulses/revolution, respectively. Non-contact incremental encoder system consists of PMIS4 magnetoresistive read head and PMIR7 dual channel magnetic ring. Sensor head is completely enclosed in metal housing and generates A, B, Z output pulses for quadrature detection with reference mark. Available outputs include HTL, TTL, and TTL24V with max output frequency of 480 kHz.

Elma Electronic Inc.    Fremont, CA 94538
Jul 15, 2010 Available in 4 standard lengths to 2 m and various colors, HB LED Light Tubes feature 2 dragon LEDs and aluminum body. Single modules can be combined with rigid or flexible light guides in various lengths and are also available in all monochrome colors as well as RGB version. Offered with connecting leads or as plug-and-light version with main plug, tubes feature LED lighting housing in single- or double-ended configurations that send light in uniform color arrangement.

Samtec, Inc.    New Albany, IN 47151 1147
Jul 15, 2010 Able to accommodate two .062 in. thick PCB cards, DSEC Series high speed edge card socket consists of .0315 in. pitch system in right-angled configuration that provides industry standard .276 in. spacing between cards. Connector is available with 30, 40, or 50 Edge Rate(TM) contacts per row; additional card spacings and elevated single-card system are also available. Pb-free solder charge terminations are standard, with tin-Pb solder charges available as alternative.

Advantech Co.Ltd.      Taiwan
Jul 15, 2010 Equipped with LGA 1156 socket, Model AIMB-780 supports Intel® Core(TM) i7/i5/i3 processors as well as Xeon® server-grade processors with ECC DDR3 support. Board includes 1 PCIe x16, 1 PCIe x4, 1 PCIe x1, and 4 PCI expansion slots as well as 4 serial ports, 14 USB 2.0 ports, and 6 SATA II 300 MBps connectors. With dual core i5 and i3 series, integrated graphics controller includes Intel Dynamic Video Memory Technology to support 1 GB max shared memory when total system memory is 2 GB and above.

Mitsubishi EDM/MC Machinery Systems, Inc.    Wood Dale, IL 60191
Jul 15, 2010 Measuring 283.0 x 185.1 x 9.7 mm, AA121TD01 wide-XGA color TFT LCD module integrates LED driver and is built to support use in harsh, outdoor environments. It does not require high-voltage inverter and is completely mercury-free and compliant with RoHS. At 25°C, white LED backlight has typ operating life of 80,000 hr, and overall brightness is rated to 700 cd/m². Display operates over -30 to +80°C range and offers resolution of 1,280 x 800 dots and 700:1 contrast ratio.

Advantech Co. Ltd    Irvine, CA 92618
Jul 15, 2010 Integrating DIO, analog I/O, and counter functions, PCM-3810I consists of 250 KSPS, 12-bit, 16-channel, multifunction PCI-104 module suited for embedded system applications. Self-stacking bus and pin-and-socket connector technology lend to vibration resistance and enable stacking on PC/104, PC/104 plus, and PCI-104 modules. Supporting pre-, post-, delay-, and about-trigger modes, module is bundled with Device Manager and supports several data logging tools, libraries, and examples.

Mitsubishi Electric Automation, Div.    Vernon Hills, IL 60061
Jul 15, 2010 Featuring permanent magnetic gearless traction machine that hoists ropes using PM motors, NEXIEZ Series offers load capacity of 450-1,350 kg and speeds from 60-105 m/min. Customers can select LED lighting for ceiling lights and hall lanterns to cut energy consumption. With regenerative converters, electricity generated by motor spinning in reverse can be effectively utilized for other equipment inside building rather than wasted as heat.

ATEN International Co., LTD    Sijhih City,Taipei 221  Taiwan
Jul 15, 2010 Model VE200 Audio/Video Extender has dual output that supports 1 local and 2 remote displays and offers video up to 1,920 x 1,200 at 60 Hz at 30 m, 1,600 x 1,200 at 60 Hz at 150 m, and 1,280 x 1,024 at 60 Hz up to 200 m. Product uses Cat 5e cable to connect local transmitting unit and remote receiving unit. Video quality adjustment is enabled by IR receiver, and IR remote control allows for screen on/off and video adjustment at remote site. Two RS-232 channels are also included.

Red Lion Controls    York, PA 17406 9428
Jul 15, 2010 Series G3 HMIs are available with G3ENET Ethernet expansion card, which adds one 10 Base T/100 Base-Tx Ethernet port to preexisting one to increase bandwidth and separate networks. In addition to supporting 10 simultaneous Ethernet protocols, HMIs with G3ENET card offer ability to communicate with devices on 2 distinct Ethernet networks simultaneously and without need for industrial router. HMIs also provide complete data logging, remote monitoring, and serial communications.

FIPA, Inc.    Atlanta, GA 30318
Jul 15, 2010 Able to handle components with hollow openings as well as those difficult to grip, Expander comes in mini design with immediate effect for gripping workpieces with 4.5-8.7 mm IDs. It works safely, even with non-circular openings, and can be used with all hollow shapes. To accommodate sensitive and thin-walled parts, gripping force can be controlled with help of supply pressure as required. Workpiece is held tight and safe as result of force directed outwards.

Bohle Machine Tools, Inc    Plymouth, MI 48170
Jul 15, 2010 Featuring modular design, 5-axis ENDURA® 700Linear is suitable for machining 5 sides of parts made from plastic, composite materials, ureol, and aluminum, as well as for finishing cast and steel materials. Two-axis fork milling head with high frequency milling spindle is mounted on Z-axis lifting beam, which travels across gantry. Providing XYZ axis travels of 2,200 x 2,800 x 1,200 mm, machine offers feed rates of 5-65,000 mm/min in all axes with acceleration up to 3.5 m/sec².

FOX IV Technologies, Inc.    Export, PA 15632
Jul 15, 2010 Utilizing two Zebra Xi4(TM) print engines, 2-sided TwinPrint Tabletop can produce shipping label and packing slip information on single label. System features serial and Ethernet communication ports, embedded fonts and languages, silk-screened media paths, and fan-fold label docking station with capacity for more than 1,100 6 x 8 in. labels. Media is available in Direct-Thermal over Thermal-Transfer stock or with 2-sided Direct-Thermal coating.

Phoenix Contact    Harrisburg, PA 17111 0100
Jul 15, 2010 Second generation STEP power supplies include 24 Vdc/0.5 A and 12 Vdc/1 A versions as well as 12 Vdc/1.5 A model with shallow-depth design. Designed for applications with low current or low profile requirements, all versions have DIN rail clip for mounting either on rail or in panel. At 43 mm deep, 12 Vdc/1.5 A power supply measures 18 mm smaller than regular STEP design. Applications include building automation or any location requiring compact and reliable power supply.

CLASSIC TUBE    Lancaster, NY 14088
Jul 15, 2010 Featuring corrosion-resistant, 5-layer design using 304 stainless braided wire, Teflon® hose, and Kevlar® braid, D.O.T.-approved STOPFLEX® Brake Line Kits virtually eliminate volumetric brake line expansion, preventing spongy feel when applying brakes and providing firm, responsive pedal. Kits feature factory-style brackets for installation and can be used for both street and racing applications.

Coxreels    Tempe, AZ 85283-4323
Jul 15, 2010 Designed for 1125 Series Hose Reels, Wand Holder is constructed of lightweight aluminum, with black powder coating finish for corrosion resistance. Unit measures 24 in. long and 1.6 in. in diameter, making it suited for storing pressure washing guns and other spraying devices directly on reel. Supplied with rust-inhibiting stainless steel mounting hardware, holder can be mounted on left, right, front, and rear slides of A-frame reel base.

Toshiba Machine Co., America    Elk Grove Village, IL 60007

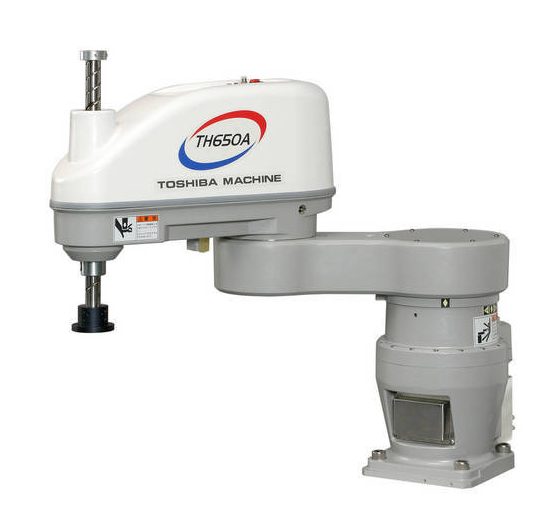

Jul 15, 2010 Model TH650A robots have 10.0 kg maximum payload mass and maximum composite speed of 7.52 m/sec, while TH850A, with speed of 8.13 m/sec, and TH1050A, that reaches up to 9.15 m/sec, carry 20.0 kg. On all models, axis one and two combine to provide near 360º working area, and robot arms are constructed of aluminum casting and span from 650-1,200 mm. Series also includes internal wiring harnesses that protect against contaminants and TS2100 Controller that uses SCOL programming language.

Daimer Industries Inc    Woburn, MA 01801
Jul 15, 2010 Used to remove stains and bacteria from upholstery and hard surfaces in vehicles, KleenJet® Mega 1000CVP systems bundle industrial vacuum for dry/wet cleaning and HEPA filtration for eliminating allergens. ATIS® (Advanced Thermal Ionic Sanitization(TM)) germ-killing technology is standard, and each mobile unit is outfitted with 4 L boiler, 3 L chambers for detergent and continuous refill, as well as 5 L extraction tank. Systems are configured for 320°F cleaning at pressures to 89 psi.

Dytran Instruments, Inc.    Chatsworth, CA 91311

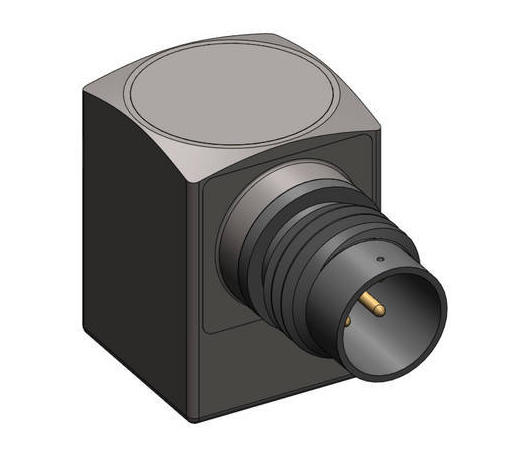

Jul 15, 2010 Featuring laser-welded titanium design, 3363A series IEPE-type piezoelectric sensors have ceramic sensing elements coupled to low-noise JFET electronics. Series include low-end frequency response of -5% down to 0.3 Hz as well as optimal signal-to-noise ratio. Hermetically sealed for normal operation in moist and dirty environments, units incorporate 10-32 stud mount, 4-pin radial connector. They are available in sensitivities of 10, 50, and 100 mV/g.

Ayrstone Productivity LLC    North Oaks, MN 55364
Jul 15, 2010 Ayrstone AyrMesh(TM) enables homesteaders to access broadband or high-speed Internet connection from anywhere on their property. Built to spread Internet connection radius over section of land or more, platform provides wireless range from ½-2 miles. AyrMesh Hub automatically configures itself as gateway hub when attached to Internet connection. Within ½ mile WiFi range, additional AyrMesh Hub wirelessly links to WiFi network as remote hub to supply additional ¼ mile of access.
