Duraline Div., J.B. Nottingham & Co., Inc.    Islandia, NY 11749
Jul 21, 2010 Weatherproof when caped or mated, molded rubber 8-wire, 10 A, polarized plugs and connectors are available with 14 AWG cable and have max rating of 10 A, 600 V. Industrial-/commercial-grade quick disconnect connectors, suited for power/control applications, are molded to heavy-duty, 8 conductor, 600 V SOOW cable in solid Hypalon Rubber, UL/CSA-Rated to UL 94 V-0 in all colors. Specific products include 8MP-10 Male and 8FP-10 Female models.

Uvex Safety Inc., A Bacou USA Co.    Smithfield, RI 02917
Jul 21, 2010 Available in 5 diopter strengths from +1.0 to +3.0, Uvex Stealth® Reader Goggles protect workers in detail-oriented environments. Goggles feature clear lens with Uvextreme® anti-fog coating and 99.9% ultraviolet protection. Wrap-around style delivers complete coverage and unobstructed vision, while adjustable slide headband features pivoting clips to optimize comfort, even with hard hats. Goggles meet ANSI Z87.1-2010 standard for impact protection as well as CSA Z94.3 safety standard.

Magid Glove & Safety Mfg. Co.    Chicago, IL 60639
Jul 21, 2010 Made with soft, hypo-allergenic polyurethane foam with tapered design that ensures comfortable fit, E2® IHP932J and IHP932CJ jumbo-sized uncorded and corded disposable earplugs provide hearing protection for workers in wide range of environments. Fluorescent colored earplugs come corded for easy identification and loss prevention, providing high visibility during compliance checks. With high noise reduction rating (NRR) of 32, earplugs help comply with workplace safety standards.

Maxim Integrated Products    Sunnyvale, CA 94086
Jul 20, 2010 Supplied in 16-pin TQFN package, MAXQ1004 integrates random-number generator and AES encryption engine supporting 128-, 192-, and 256-bit key sizes. These features enable secure authentication and communication schemes while resisting analytical and cryptanalysis attacks. Along with 16 KB integrated flash memory and communication options such as SPI(TM) and 1-Wire® interfaces, MCU offers power consumption rates from 3.75 mA at 6 MHz to 300 nA in lowest power stop mode.

APEM Components    Haverhill, MA 01835
Jul 20, 2010 Intended for SMB surveillance camera control, IP series USB Joystick delivers accurate and responsive control from compact desktop housing that features 10 programmable buttons on base and 2 additional instantaneous access programmable hot buttons on handle. This 3-axis joystick employs contactless hall effect technology for 10,000,000 trouble-free operations. Included software utility option creates joystick/mouse functionality toggle and joystick 4th axis.

Amprobe    Miramar, FL 33025
Jul 20, 2010 Featuring 180° rotating head, Model ACD-21SW provides unobstructed view of 3½ digital LCD in hard-to-reach places. Unit measures AC current up to 400 ACA, AC/DC voltage up to 600 V, resistance, capacitance, temperature, and continuity with measurement rate of 2 times/sec. Accommodating conductors up to 1.18 in., meter includes auto power off, data hold, and low battery indication. Model ACD-21SW operates for 150 hr with carbon-zinc battery and up to 300 hr with alkaline battery.

Amprobe    Miramar, FL 33025
Jul 20, 2010 With large jaw to accommodate wide diameter wires, Model ACDC-3400 IND suits industrial applications/utilities that require extra level of safety. Featuring True RMS sensing for accuracy, it measures AC current up to 1,000 ACA, voltage up to 750 Vac/1,000 Vdc, frequency, resistance, capacitance, and duty cycle. Unit has overload protection of 1,000 Vdc or 750 Vac rms. Safety CAT IV 600 V, CAT III 1,000 V rated product operates for 75 hr with carbon-zinc battery and 150 hr with alkaline battery.

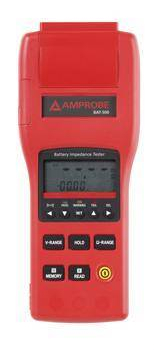

Amprobe    Miramar, FL 33025
Jul 20, 2010 Without taking batteries off line, BAT-500 simultaneously measures resistance to 40 W with accuracy of ±1% of reading ±10 digits and voltage to 40 V with accuracy of ±0.1% of reading ±6 digits. Comparator function with pass/warning/fail indication accelerates testing of batteries up to 500 Ah. There are 99 memory locations to store results, and RS232 interface enables data export to PC for trending/life cycle analysis. Solution comes with test probe, software, and RS232 cable.

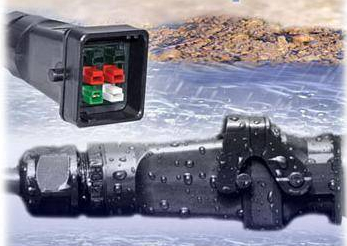

Anderson Power Products    Sterling, MA 01564
Jul 20, 2010 Featuring IP68 shell, SPEC (Sealed Power For Environmental Connections) Pak connector may be used anywhere rugged or waterproof, high-power signal and ground interconnect solution is required. Customer-configured solution incorporates core APP Powerpole technology and comes with power housings, standard and finger proof, that handle up to 45 A as well as signal and ground housings. These housings, combined with contacts for wire gauges No. 24-10 AWG, provide many design possibilities.

Anderson Power Products    Sterling, MA 01564
Jul 20, 2010 Rated 125 A at 30°C temperature rise, PowerMod®HP connectors have touch-safe female housings and positive latches. They may be used in appropriate applications to 160 A and accommodate wire sizes from No. 6-2 AWG and 16-35 mm². Sterling contact technology minimizes electrical resistance, provides 500 min mating cycles, and is rated for circuit interruption. Offered in 10 housing types, connectors also offer latching system and integral coding key.

Anderson Power Products    Sterling, MA 01564
Jul 20, 2010 Designed to correct misalignment during blind mating, Power Drawer Connectors feature integral guide pins, with optional floating mount used to minimize fatigue stress on connector during blind mating. Pin and socket contacts are available for both connectors with crimp, solder cup, or printed circuit board termination. Power Drawer Connectors are used on N + 1 power supply and rectifier systems suited for server, telecommunications, and network applications.

American Power Conversion    West Kingston, RI 02892
Jul 20, 2010 Providing up to 100 kW hot-scalable power protection, runtime, and power distribution, Symmetra PX 100kW is suited for small and medium data centers. Rack-based modular design enables users to scale power capacity in 10 kW increments up to 100 kW N+0 or 90 kW N+1. Unit also features Power Distribution Unit with Maintenance Bypass for safety, and hot-swappable Static Bypass Switch that enables UPS to transfer load to utility power without interruption in event of overload.

APEM Components    Haverhill, MA 01835
Jul 20, 2010 Available with solder, wire, or cable terminals and choice of 3 stainless steel grades for bushing and plunger, momentary AV Pushbutton Switches are sealed to IP67 and feature max current/voltage rating of 1 A/30 Vdc with resistive load. When 2 contacts are required, either NO or NC can be used for power. When several pushbuttons are used, 2 contacts are connected as chain to prevent activating both critical functions simultaneously.

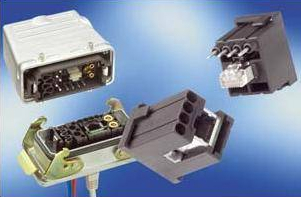

Amphenol-Tuchel Electronics GmbH      Germany
Jul 20, 2010 Suited for industrial environments, Model C146M RJ45 Interface features housing that can accommodate up to 5 components alongside RJ module. Plastic body of module fixes and secures standard RJ45 components, while aluminum die-cast housing guarantees protection to IP65. Female connectors are spring bedded and, under intense mechanical stresses and vibrations, transmittance remains 100% without interruption or failure, in conformance with CAT5 standards.

Maxim Integrated Products    Sunnyvale, CA 94086
Jul 20, 2010 MAX17040/MAX17041 and MAX17043/MAX17044 1- and 2-cell fuel-gauge ICs utilize ModelGauge(TM) algorithm to estimate state of charge of Li+ battery without requiring current sensing. THey track battery state continuously over varying charge/discharge usage profile while using supply current of 50 µA. Inputs connect directly to battery pack and ICs also offer programmable low-battery alert that warns system MCU to initiate power-management actions.

APEM Components    Haverhill, MA 01835
Jul 20, 2010 Designed to withstand high number of cycles and repetitive jogging, OFF-MOM IH Switch devices feature dome-shaped actuator and spring return. They provide tactile feedback that switch has been activated. Featuring proportional output, IH Linear versions are suited for control valves or variable speed drives, and react to pressure exerted on switch, with response proportional to actuator travel. Both versions include Hall Effect sensors and operate for 5 million cycles.

Maxim Integrated Products    Sunnyvale, CA 94086
Jul 20, 2010 Composed of 2 VVAs integrated into 1 monolithic IC, MAX19790 delivers 44 dB of linearly controlled dynamic range with S21 flatness over frequency and all attenuation settings. Each attenuator incorporates control circuit that provides 22 dB of attenuation range with linear control slope of 10 dB/V. When operating over any 125 MHz contiguous band between 950-2,150 MHz, IC delivers typical and max flatness levels of 0.13 and 0.89 dB peak-to-peak, respectively, through 30 dB to total attenuation.

Amphenol Pcd    Beverly, MA 01915-1065
Jul 20, 2010 Suited for grounding connections in areas with limited visibility or accessibility, ground|mate(TM) conserves time to make earth connection by plugging into threaded bolt without requiring any tooling. Radsok contacts, offering contact-covering up to 65%, provide minimal contact resistance, while click|fit locking system ensures connection stability during vibration and shock. Grounding system is designed for threaded bolt sizes M6 or M8 as well for pins with diameter 3.6, 6, or 8 mm.

Amphenol Pcd    Beverly, MA 01915-1065
Jul 20, 2010 Utilizing carbon fiber-filled plastic material for EMI shielding, C16-3 EMI Connectors are IP65-rated and therefore protected against dust and splashing water, making them suitable for harsh environments. Units handle currents up to 30 A and are available in many different contact layouts. In long-term testing, connectors showed ability to handle intensive temperature and damp heat cycles, and also offer corrosion resistance in salt spray testing.

Analog Devices, Inc.    Norwood, MA 02062-9106
Jul 20, 2010 Featuring HDMI® Version 1.4 Specification support for color spaces, Advantiv® ADV7541 transmitter converts 480i/p and 1080i interlaced output into progressive 1080p format. It includes deinterlacer, consumer electronics control, level shifters, and MCU in 3.75 x 3.75 x 0.65 mm package. Unit also provides audio support of S/PDIF for compressed audio, including Dolby Digital® and DTS®, and 2-channel I2S audio for transmitting stereo at sample rates up to 192 kHz.
