Broadcast Pix    Billerica, MA 01821

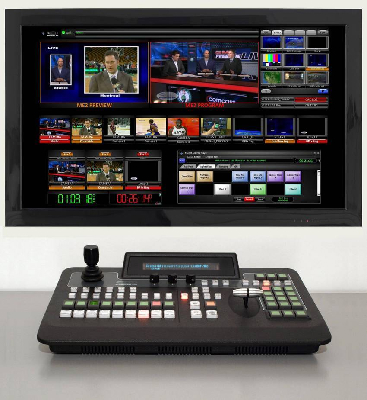

Aug 12, 2010 Combining HD switcher with HD server running Fluent(TM) workflow software, 50 Hz Granite(TM) enables users to create live HD video. Housed in 3 RU frame, switcher offers 8 outputs and 11 HD/SD-SDI video inputs, plus equivalent of 14 more inputs from server via PCIe connection, including clip channel, 2 animation channels, and 4 graphic channels. Separate 2 RU Granite Server features Intel Quad processor and accommodates up to 2 TB of storage in RAID 10 array.

Rockwell Automation    Milwaukee, WI 53204

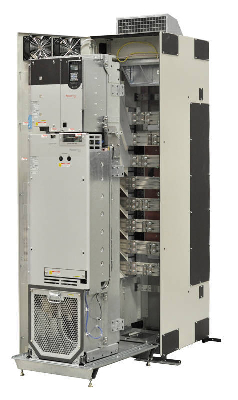

Aug 12, 2010 With design that facilitates access for installation and maintenance, Allen-Bradley PowerFlex 755 AC Drives are suited for motor control applications in variety of heavy industries. Advanced diagnostics indicate blown fuses and surge protectors, as well as monitor operating data on cooling fans, I/O relay cycles, and motor run times for preventive maintenance. Supplied with embedded Ethernet port, drives provide 5 option slots that enable them to be tailored to application.

AXIOMTEK    Taipei   Taiwan

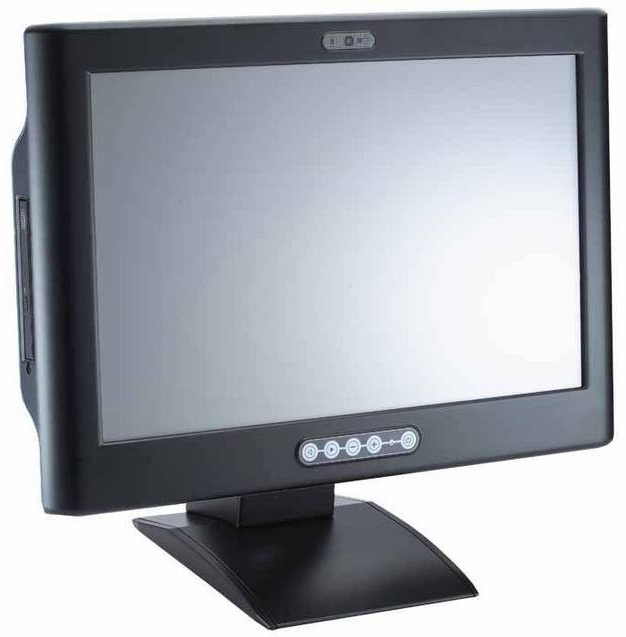

Aug 12, 2010 Supplied in IPX1-rated enclosure with IP65-rated front bezel, IFO2225-830 is powered by 1.6 GHz Intel® Atom(TM) N270 and Intel 945GSE+ICH7M core logic chipset. Integral 22 in. WSXGA+ TFT widescreen panel supports 1,680 x 1,050 pixel resolution, and back aluminum chassis dissipates heat efficiently to promote system stability. In addition to diverse networking, I/O, and mounting options, computer offers built-in 1.3 MP camera and speakers to foster interaction.

Wilden Pump & Engineering Co.    Grand Terrace, CA 92313

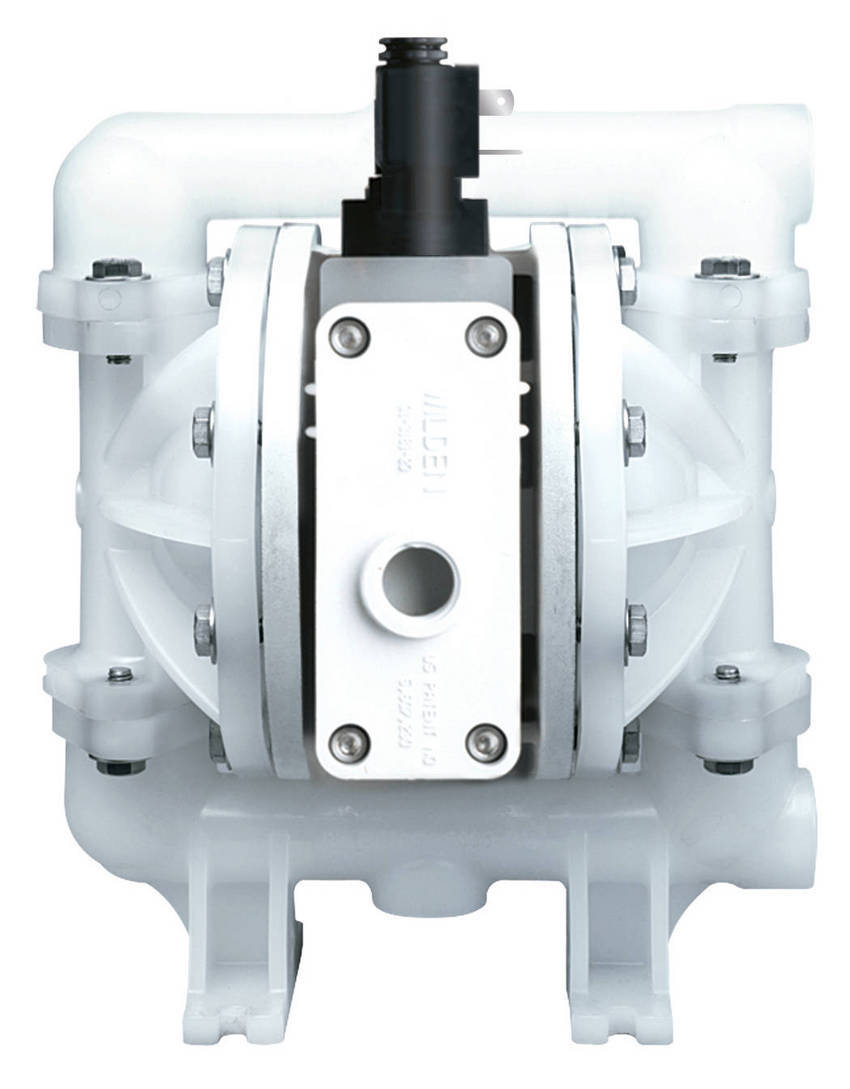

Aug 12, 2010 Meeting required abrasion, temperature, and chemical compatibility parameters, Advanced(TM) Plastic Series A100P Air-Operated Double-Diaphragm Pumps delivers flow rates to 11.2 gpm with max pressure of 125 psi. Bolted configuration ensures total product containment, while liquid path reduces internal friction to maximize output and efficiency. This ½ in. pump, with max dry-suction lift capability of 21.5 in., can handle solids with 0.06 in. dia.

Acnodes Corporation    Walnut, CA 91789
Aug 12, 2010 Model FES8912 supports Intel Core(TM)2 Duo/Core(TM) Duo or Celeron M processor in rugged aluminum alloy chassis. Featuring four PCI slots or two PCI plus one PCIe x16 and PCIe x1 slots, 4-slot fanless industrial shoebox barebone system supports 2.5 in. SATA drive bay for high-capacity storage. Two GbE ports, six USB 2.0, four COM ports, PS/2 keyboard and mouse, and VGA port are included on one side of housing. Box computer can be wall-mounted and is equipped with 10-30 Vdc, 150 W power supply.

SUYIN Connector GmbH    Pfarrkirchen 84347  Germany
Aug 12, 2010 Mini USB jack, model 020200MB010S565ZL, offers contact pitch that allows it to be mated with 10-pin hybrid Mini USB plugs as well with 5-pin standard Mini USB plugs. Additional 5 contacts can be used for audio- or data-transfer, and for measuring and testing, jack can also be switched as JTAG interface. Featuring height above PCB of 2.7 mm, unit has 2 plastic positioning pegs that secure it at insertion and unmating, and 4 SMD solder latches at sides for mechanical stability.

SUYIN Connector GmbH    Pfarrkirchen 84347  Germany
Aug 12, 2010 Provided as receptacle/plug for complex backplane connections, SUYIN-µTCA-power interface features 24 power pins specified to current rating of 9.3 A and 72 signal pins that are fully compliant with µTCA specifications. Receptacle and plug are designed for hot-plugging, enabling replacement of defective boards. Specified PCB hole diameter for press-fit contacts is 0.6 mm ±0.05 mm.

Tryten Technologies, Inc.    Seattle, WA 98104
Aug 12, 2010 Mac Mini Security Mount secures Mac Mini to various locations, including back of monitor or to any side of workspace without limiting functionality. Adaptable, rugged mount includes LockBar with 7-pin pick-resistant lock as well as open design that allows access to peripheral connections and disk slot, all while maintaining optimal WiFi and Bluetooth communications. It is also available with Tryten Security Cable and alternative locking options including keyed or combination locks.

Linear Technology Corp.    Milpitas, CA 95035

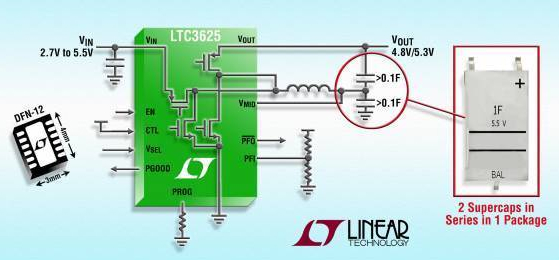

Aug 12, 2010 Supplied in 3 x 4 x 0.75 mm DFN package, LTC3625/-1 address peak power, data backup, and dying-gasp needs in portable and data storage applications. Both programmable 1 A buck-boost 2-cell supercapacitor chargers employ switchmode topology. Respectively, LTC3625 and LTC3625-1 can charge 2 supercapacitors in series from 2.7-5.5 V current-limited supply to pin-selectable output voltages of 4.8 or 5.3 V and 4 or 4.5 V. Quiescent current draw is 50 µA.

Binder-USA, LP    Camarillo, CA 93012

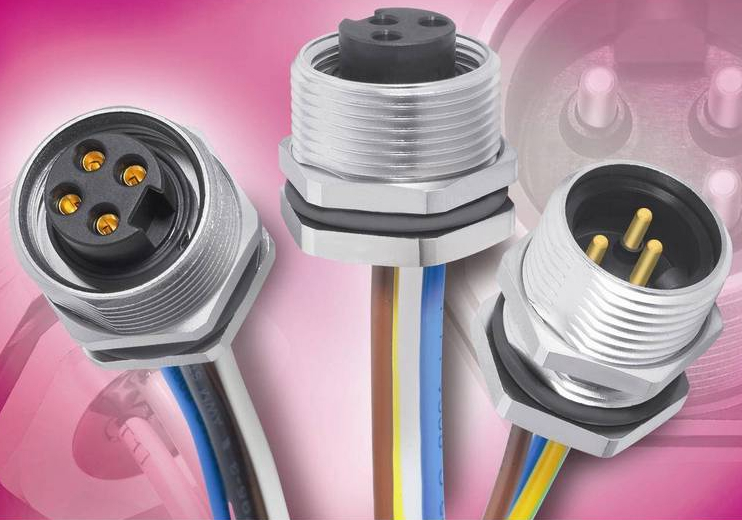

Aug 12, 2010 Suited for industrial automation applications, Series 820 includes 7/8 in. screw-locking connectors with rear-mountable receptacles. Male and female receptacles are available with 2+PE, 4, or 4+PE gold-plated contacts, and all receptacles are prewired with crimped UL-approved 18 AWG leads. When fully mated, receptacles are sealed to IP67 for protecting connection from dust and debris.

Linear Technology Corp.    Milpitas, CA 95035
Aug 12, 2010 TimerBlox(TM) devices accommodate 5 timing functions: VCO, low-frequency oscillator, PWM oscillator, monostable pulse generator (one-shot), and delay. Together, series offers one common platform and allows use of precise building block solutions for each function. Proprietary silicon oscillator technology enables parts to combine programmable oscillator with precision circuitry and logic. Each part can operate over wide frequency or time range and is programmed with 1-3 resistors.

Huntingdon Fusion Techniques-USA Inc.    Melbourne, FL 32936-1175
Aug 12, 2010 Developed for high-speed welding of Liquid Natural Gas pipe work, Argweld® Quick Purge(TM) Systems incorporate argon purging valve arrangement that is optimized for all different pipe diameters. Original adjustment system is eliminated so trial setting is not necessary. To help welders identify location of purge systems below weld joint where it is normally dark, high-visibility Glo Strip has been incorporated centrally between dams, ensuring accurate positioning.

LEVITON    Melville, NY 11747
Aug 12, 2010 Lev-Lok® 15 and 20 A, 120/277 V switches are heavy-duty solutions available in traditional toggle, illuminated toggle, and tamper-resistant versions. All employ twist and lock modular wiring system, accelerating installation while ensuring safe, reliable connection. Protective cover prevents debris from entering contacts until module is connected to switch. While finger grips facilitate installation, factory-installed circuit ID label aids in device location identification.

Thomas & Betts Corp.    Memphis, TN 38125

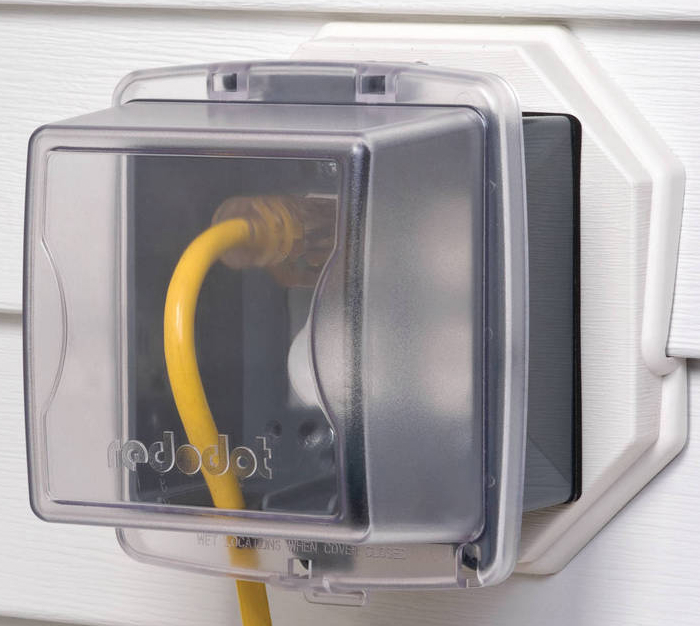

Aug 12, 2010 Available for single- and dual-gang boxes in standard- and deep-wall sizes, Red Dot® Code Keeper® Non-Metallic While-In-Use Cover features reinforced, polycarbonate hinge pin that increases durability and enables vertical or horizontal installation. Included adapter plates allow cover to fit various outlet configurations, while hinge pin reduces impact of undue stress. Other features include keyhole mounts, pre-adhered gaskets, lock, and wasp guard.

Wittenstein, Inc. (formerly Alpha Gear Drives, Inc.)    Bartlett, IL 60103

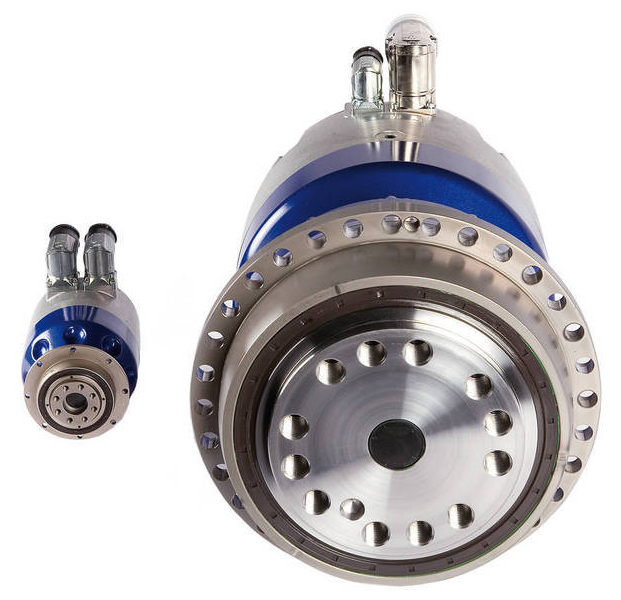

Aug 12, 2010 With compact design that couples alpha TP+ 300/500 gearbox and 220 series motors, TPM+/TPM+ High Torque sizes 300/500 are designed for optimal rigidity and torque. Actuators deliver torque up to 10,000 Nm and are available with optional strengthened output bearing (special gear housing).

LDD Trading Associates, LLC    Milford, NH 03055

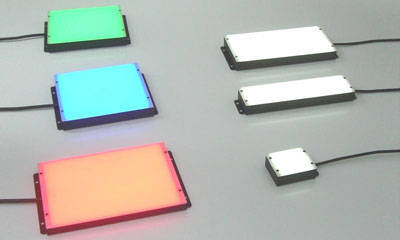

Aug 12, 2010 IDHM Series direct LED backlights come in 46 size and wavelength configurations. They are available with illuminated area dimensions ranging from 32-122 mm, and with red, white, blue, or green LEDs. Configuration of high output LEDs mounted in dense array directly below diffuser results in highly uniform and intense light from very thin package. Series suits imaging applications such as silhouetting parts, viewing openings or detecting material presence/absence, thickness, or density.

GAO RFID Inc.    Toronto   Canada
Aug 12, 2010 Measuring 80 x 57 x 19 mm, portable model 223015 addresses HF (13.56 MHz) and LF (125 kHz) RFID tags simultaneously. Hot-pluggable unit, able to read/write tags at distances to 70 mm, has USB interface for data transmission and power. Areas of use include RFID tag/label verification and programming, personnel identification and access control to computers terminals or POS applications, as well as other applications for supply chain, retail, or logistics.

GAO RFID Inc.    Toronto   Canada
Aug 12, 2010 Featuring max contactless read/write distance of 12 cm, model 113415 uses 1k Mifare chip and is compliant with ISO 14443 standard. Clear tag, laminated with PVC, has adhesive backing and can survive temperatures from -20 to +85°C. Serial number printing is available. Areas of use include asset tracking, anti-counterfeiting, and tour patrol in process control, factory automation, item identification, and security systems applications.

Daimer Industries Inc    Woburn, MA 01801
Aug 12, 2010 Intended for hard surfaces and challenging jobs in indoor environments, mobile Vapor-Flo® 8610 series uses electricity to generate heat to 205°F and pressure levels to 1,880 psi and can generate 1.0 gpm water flow. Systems can clean with hot and cold water and incorporate integral coil system that turns cold water hot in ~30 sec. Available in 60 Hz, 440 and 480 V designs, products come in all-stainless steel case and employ heavy-duty electrical motor and direct drive pumps.

Daimer Industries Inc    Woburn, MA 01801
Aug 12, 2010 Powered by 3.0 hp motors, portable Vapor-Flo® 8810 series uses electricity to produce pressure to 2,030 psi and heat water to 175°F. Exhaust-free products, offered in 60 Hz, 440 and 480 V versions, produce water flow to 1.4 gpm, offer heated and unheated cleaning, and can be deployed in indoor environments. Heating system uses stainless steel pressure coil capable of turning cold water hot in under 1 min. Units come with 15° industrial pressure nozzle featuring embedded filter.
