Semtech Corp.    Newbury Park, CA 91320
Jul 29, 2010 Housed in 3.0 x 3.0 x 0.6 mm MLPQ package, EcoSpeed(TM) SC493 features input supply voltage of 3-28 V and output voltage of 0.5-5 V. I²C interface can be used to fine adjust output voltage and implement margining, as well as to program all device functions. Providing programmable switching frequency from 250 kHz to 1 MHz, converter incorporates SmartDrive(TM) technology, which minimizes EMI and provides FET gate drives capable of supporting output currents to 25 A.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 29, 2010 Available in 17 case sizes from 35 x 50 mm to 45 x 100 mm, Series 095 PLL-4TSI 4-terminal capacitors feature cylindrical aluminum case insulated with blue sleeve and pressure relief. Polarized aluminum electrolytic capacitors, with non-solid electrolyte, include voltage ratings from 350-450 V and capacitance/voltage combinations from 390 µF at 450 V to 2,200 µF at 350 V. Units also have rated ripple current to 8.6 A, and rated life of 10,000 hr at +85°C.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 29, 2010 Housed in PLCC2 Plus package, Models VLMR51, VLMK51, VLMY51, and VLMW51 are red, amber, yellow, and white LEDs, respectively, with luminous flux from 8.5-30.6 lm and luminous intensity from 2,850-9,750 mcd. Devices provide low junction-to-ambient thermal resistance down to 100 K/W and power dissipation up to 738 mW, enabling drive currents up to 200 mA. Housed in 3.5 x 3.5 x 1.2 mm package, LEDs are suited for automotive, architectural, decorative, and backlighting applications.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 29, 2010 Featuring SMD wraparound construction with gold terminations, Sfernice PHT resistors are optimized for use in multi-chip modules for down-hole drilling and aerospace applications. They operate from -55 to +215°C and offer load life stability of 0.5% after 1,000 hr at 215°C. Typical TCR is 25 ppm/°C, with available tolerances down to 0.05%, and available 0603/0805/1206/2010 case sizes have 0.5 mm profile. Ohmic range is 10 W to 7.6 MW, and power ratings range from 12.5-100 mW.

Kimberly-Clark Corp.    Roswell, GA 30076
Jul 29, 2010 Part of Smith and Wesson line, 44 Magnum features cut-to-shape, distortion-free, one-piece lens; flexible nose piece that conforms to different nose shapes; and vents on temples that help optimize air flow. Aviation model, designed with nylon frame, also provides cut-to-shape, distortion-free, one-piece lens. Both gender-neutral glasses come with several different lens tints, meet ANSI Z87.1-2003 standard, and are CSA Z94.3 compliant.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jul 29, 2010 Model 6160 measures relative resistance or susceptibility of material to surface abrasion and scratching caused by oscillating abrasive media. Specimens are mounted in holder located in bottom of tray, which is filled to uniform depth with standardized abrasive media. With optional Bayer Test Kit, unit can determine abrasion resistance of ophthalmic lenses. Speed range is 100-200 cycles/min, and adjustable stroke range is 0.25-6.0 in.

Thermo Fisher Scientific    Waltham, MA 02454
Jul 29, 2010 Containing hardware, software, and sampling accessories, DXR Nanocarbon Analysis Packages provide information on molecular structure and morphology of carbon nanomaterials. DXR Nanocarbon Microanalysis Package, featuring DXR Raman Microscope, provides microcharacterization, while DXR Nanocarbon Analysis Package, leveraging SmartRaman, provides bulk materials characterization. Both use automated calibration and alignment routines and provide quality checks to every spectrum collected.

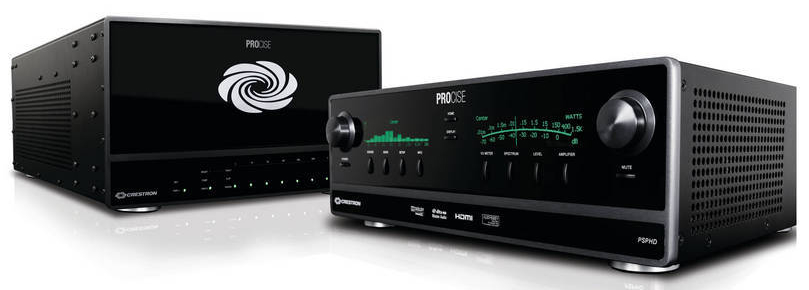

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Jul 29, 2010 PROCISE(TM) features PSPHD high-definition 7.3 surround sound audio processor and offers 3 independent subwoofer outputs. Automatic room calibration ensures optimal clarity and tone, HDMI switcher offers HDCP support, and intelligent pairing provides communication between PSPHD and PROAMP-7X400 or PROAMP-7X250 7-channel amps. Also, 3-channel line mixer and distribution amp in PSPHD enable combination of multi-channel HD audio and video teleconferencing.

Weed Instrument Co., Inc.    Round Rock, TX 78680
Jul 29, 2010 Approved for use in hazardous area locations, temperature sensor and transmitter assemblies are certified for flame-proof and intrinsically-safe applications. Flame-proof certification covers spring-loaded sensor and connection head assembly, which is suitable for all types of thermowells. Intrinsically-safe certification covers temperature transmitter, springloaded sensor, and connection head assembly, which is suitable for all types of thermowells.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Jul 29, 2010 Housed in aluminum die-cast enclosure, Series VPI has NEMA 6/IP67 rating, ensuring protection against ingress of liquids and debris. Units feature spring-loaded splined cams, which require no tools for precise adjustment. Offering 60-360° rotation, mechanical models are designed with 2 SPDT limit switches, while proximity models feature 2 solid-state inductive limit switches, eliminating need for cams to make contact with switches.

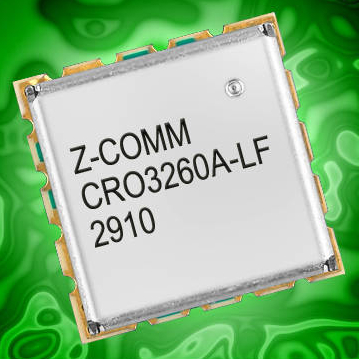

Z-Communications, Inc.    San Diego, CA 92126
Jul 29, 2010 Operating at 3,203-3,317 MHz with tuning voltage range of 0.5-4.5 Vdc, model CRO3260A-LF features typical phase noise of -103 dBc/Hz @ 10 kHz offset and typ tuning sensitivity of 42 MHz/V. It delivers typical output power of 1 dBm at 5 Vdc supply while drawing 24 mA (typical) over -40 to +85°C range. VCO also features typical second harmonic suppression of -15 dBc and comes in 0.5 x 0.5 x 0.22 in. MINI-16-SM package. Uses include fixed wireless and digital radio applications.

Deprag Inc.    Lewisville, TX 75057 4726
Jul 29, 2010 Developed for MICROMAT®-F and MINIMAT®-F pneumatic screwdrivers as well as electronic screwdrivers of 341 Series, Model fc20 enables up to 7 sequences to be arranged from up to 99 programs, respectively. Unit has freely usable power outputs, so integration of workpiece lock into process is possible. Finished workpiece can only be removed from workpiece holder once all assembly tasks have been successfully completed. Communication with superordinate control is carried out via 24 V E/A interface.

Mosaic Industries    Newark, CA 94560
Jul 29, 2010 Measuring 2.5 x 4 in., PDQ Board(TM) features Motorola 68HCS12 processor and 1 MB memory as well as 8 digital I/O lines with counter/timer capabilities, 8 PWM digital output signals, and 8 general purpose digital I/O lines. Additional I/O includes 16 analog inputs with 10-bit resolution, dual RS232/485 ports with speeds to 256 KBaud, and synchronous SPI and IIC serial interfaces. Board can host up to 8 I/O mezzanine modules called Wildcards that can be mixed-and-matched depending on application.

Lechler, Inc.    St. Charles, IL 60174
Jul 29, 2010 Available in choice of stainless steel or nickel-plated brass, AirMist(TM) Nozzle provides consistent, precision spray mist with very fine droplets created through collision of fluid and metered air. Unit comes in internal or external mix models and is especially appropriate for spraying applications that require coating, cooling, or humidification. Optional accessories for shut-off control and cleanout are available.

Aven, Inc.    Ann Arbor, MI 48108
Jul 29, 2010 Equipped with 7 in. lens and 115 V lamp, Maxi-Mag provides 1.75x magnification or total of 4x with optional 5-diopter second lens, which swings into position when needed for inspecting circuit boards, jewelry, watches, or other fine-detail materials. Portable task lamp features spring-balanced arm with jointed neck and tension control knob that allows up to 45 in. of reach. Unit comes with 5 ft electrical cord and C-clamp for mounting on desk, workbench, or table.

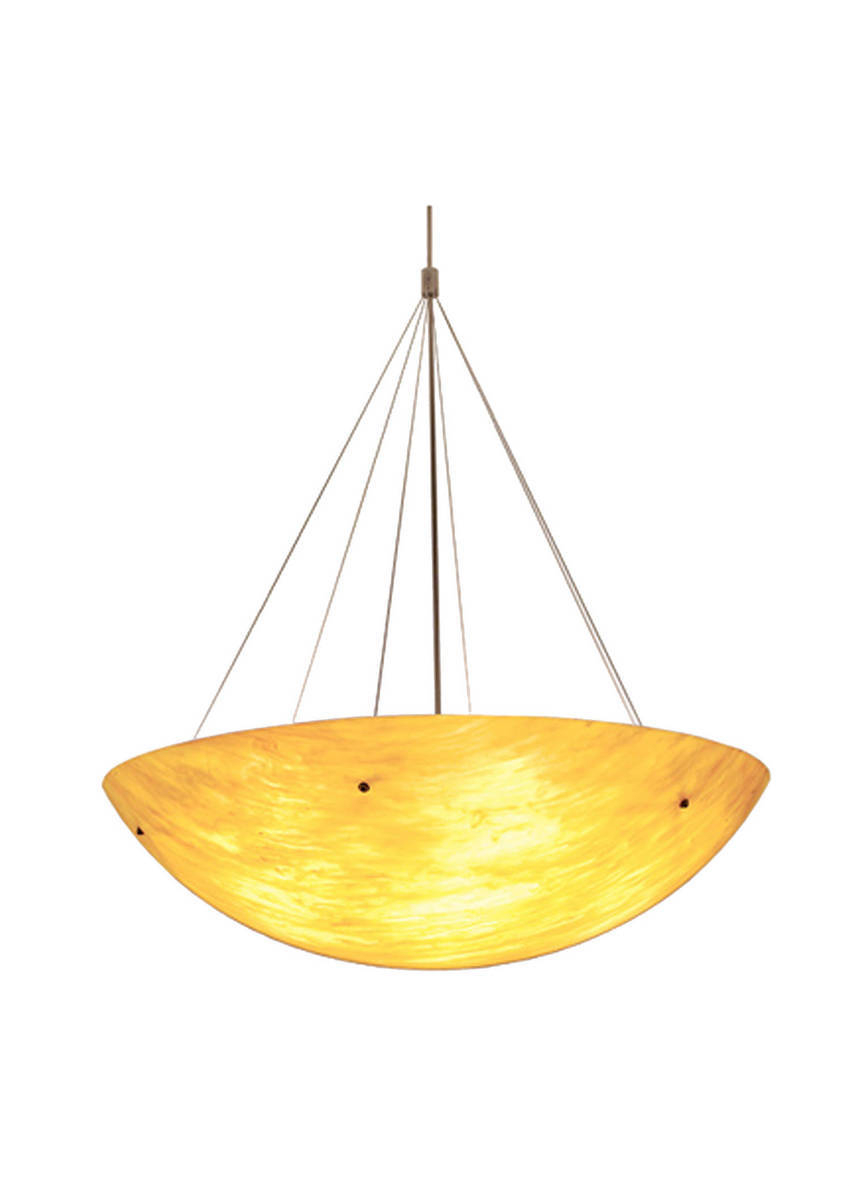

Meyda Tiffany    Yorkville, NY 13495
Jul 29, 2010 Cypola family of inverted bowl pendants offer textured look featuring Caramel faux alabaster shade complemented with hand finished Brushed Nickel hardware. Suited for large spaces such as lobbies and foyers, 60 in. wide model 50716 has total height of 70-109.5 in. from ceiling plane, depending on ceiling or application. Custom shade colors, styles, and sizes and hardware finishes are also available.

Ideal Industries, Inc.    Sycamore, IL 60178
Jul 29, 2010 Utilizing IR heat-sensing technology, Non-Contact Thermometer allows users to safely measure surface temperatures of live circuits, difficult-to-reach objects, or moving parts from a distance. Point-and-shoot style thermometer has 12:1 distance-to-spot ratio, wide temperature range of -76 to 932°F, and built-in laser pointer to identify center of measurement area. Unit displays max, min, average, and differential temperature readings and can be programmed with audible alarm warnings.

HellermannTyton    Milwaukee, WI 53224
Jul 29, 2010 Designed to replace plastic and metal faceplates found on control panels, foam and foam button nameplates are laminated with high-performance polyester film that is printable using thermal transfer printing system. They provide flat printed surface that is resistant to chemicals, solvents, heat, and UV exposure. High-density foam nameplates feature strong adhesive that sticks to smooth or powder coat-painted surfaces.

Exinda Networks    Seattle, WA 98104
Jul 29, 2010 ExOS v5.5 for WAN Optimization for Model 10060 appliance delivers up to 10 Gbps full duplex, 20 Gbps aggregate device performance. Product's flow export enables 3rd-party reporting, centralized reporting, and ability to integrate with various reporting systems. It also includes VLAN rewrite capability that enables service providers to tag/retag VLAN identifiers, and HTTPS Acceleration that speeds performance of secure Web applications such as Sharepoint.

GE Intelligent Platforms    Charlottesville, VA 22911
Jul 29, 2010 Proficy Accelerator for Weighing Operations digitizes manual process of pre-production ingredient preparation and recording. Key capabilities include weigh order creation and dispatching, automated selection of appropriate weighing equipment based on established certification criteria, and operator guidance during weigh and dispense of materials. Other features include registration of material lot code and verification of correct material usage and historical data recordkeeping.
