GEISS AG    Seßlach D-96145  Germany
Jul 30, 2010 Manufactured in any size with any level of automation, FZ Combined Ultrasonic and Milling Composite Trimming Machine uses combination of processes to increase productivity and flexibility. Ultrasonic blades, up to 3 in. long, and rotational ultrasonic disks offer quick-change ability. Ultrasonic horns have frequencies and amplitudes automatically programmed and controlled by Siemens 840D. There are no limits on travel distance, so any machine size can be produced.

Victaulic    Easton, PA 18040
Jul 30, 2010 Clean EPDM gasket compound eliminates all possible organic nutrients that support microbial growth and cause membrane biofouling. It may reduce microbial growth in reverse osmosis systems, and does not contribute to microbial growth that can clog membranes, reducing plant downtime due to maintenance and replacement of filtration media.

Victaulic    Easton, PA 18040
Jul 30, 2010 Style 296A coupling for fiberglass-reinforced plastic (FRP) pipe engages into pre-manufactured Advanced Groove System (AGS) grooved built-up FRP pipe ends to form secure, rigid pipe joint for pressures up to 150 psi. Installed anytime, anywhere, and in any weather condition without special tools, coupling features FlushSeal gasket, available in Grade E EPDM, Grade S Nitrile, or Grade O Fluoroelastomer, with center lip that positions between pipe ends to ensure smooth flow path.

QuadTech, Inc.    Maynard, MA 01754
Jul 30, 2010 Providing automated testing of high voltage cable harnesses, medical cabling, and switches, CaptivATE HXV performs AC/DC Hipot, insulation resistance, DC resistance, continuity, LCR, megohmmeter, and functional tests with up to 128 points. All test steps can be seen in sequence with pass/fail for each step, and software provides option to terminate testing or mark failed step and continue testing all points. Data can be collected and stored in database for SPC and historical recall.

Stik-II Products    Easthampton, MA 01027
Jul 30, 2010 Made of cross-linked polyolefin foam, high-density 12 lb SDL (Simulated Divided Light) tape with high performance foam adhesive permanently bonds window grilles constructed of wood, metal, vinyl, and other plastics and composite materials to glass. Tape shadows well for clean sight lines in SDL mounting, and provides anchorage in permanent mounting of interior and exterior muntin bars. Product is available in variety of colors and thicknesses.

GE Intelligent Platforms    Charlottesville, VA 22911

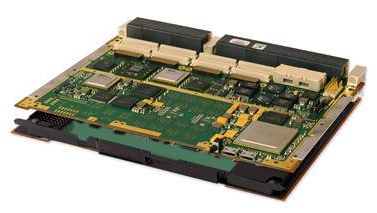

Jul 29, 2010 Suited for ISR, electronic warfare, and mission computing applications, SBC612 leverages 8-core QorIQ P4080 CPU (1.5 MHz), supports up to 8 GB dual channel DDR3 memory, and offers flexible I/O set. SBC will allow multi-slot configuration to be reduced to single slot for legacy applications based on Power Architecture(TM). Further addressing connectivity and expansion, there are four x4 Serial RapidIO® links, four x4 PCI Express links, 2 XMC/PMC-capable mezzanine sites, and one AFIX site.

Rotoflex International    Mississauga, ON L5T2R5
Jul 29, 2010 Fully compatible with in-plant job management systems, Genesis provides variable and multi-shape label inspection, intuitive defect management, as well as missing label and matrix detection. Real-time processor simultaneously handles critical functions, while automatic repeat detection and sensor calibration facilitate setups. Along with independent lane configuration, system features reporting options such as tracking each user input and machine event with time-stamp resolution.

Supercritical Fluid Technologies, Inc.    Newark, DE 19711

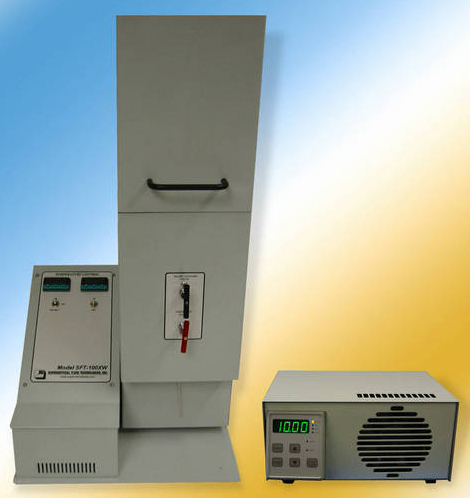

Jul 29, 2010 Supercritical Fluid Extraction (SFE) System, SFT-100XW, is used to investigate feasibility of applying supercritical fluid techniques to various analyses and processing challenges. Dual sapphire syringe pump technology accurately pressurizes stainless steel vessel, which can contain supercritical fluids to 10,000 psi. Pressure vessels up to 500 mL can be accommodated, and system may be configured to run with multiple vessels. Integrated pre-heater ensures consistent fluid temperature.

Telogis    Irvine, CA 92618

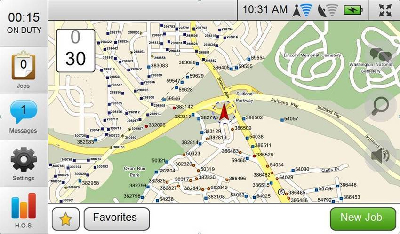

Jul 29, 2010 Based on Telogis GeoBase geospatial mapping platform, Telogis Layers allows organizations to integrate custom GIS data into existing Telogis solutions. Data layers are stored within the Telogis Cloud, allowing them to be accessed via Telogis Fleet or Telogis Mobile. Suited for utility and telecommunications companies, software enables end users to route to relevant locations such as power poles, oil wells, and gas lines. Users can tab between different layers for clear and accurate details.

Bruel & Kjaer    Norcross, GA 30071

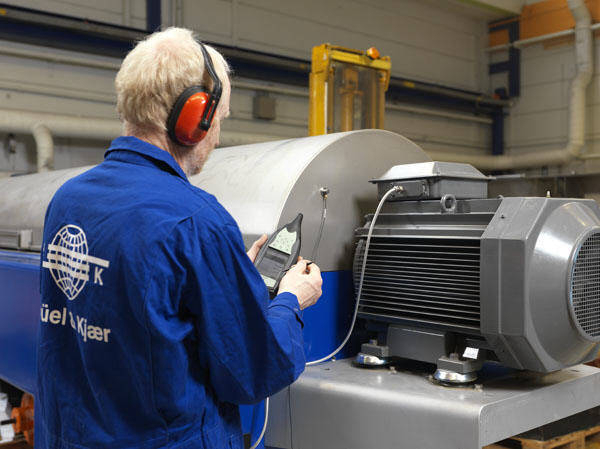

Jul 29, 2010 Used to conduct vibration measurements, 2250-H contains advanced Fast Fourier Transform (FFT) software v3.3 for pass/fail test results as well as detailed frequency analysis. Color touchscreen display facilitates measurement process by helping users perform tasks required most often, such as overlaying 2 measurements for comparison, while drag-and-drop tolerance windows aid pass/fail spot checks. Overview display can show test results for up to 10 different ranges, levels, or parameters.

IBM (Corporate Headquarters)    Armonk, NY 10504-1783
Jul 29, 2010 Scalable zEnterprise mainframe server allows workloads on mainframe, POWER7, and System X servers to share resources and be managed as single, virtualized system. More than 100,000 virtualized servers can be managed as single system, and product is combined with IBM zEnterprise BladeCenter Extension and IBM zEnterprise Unified Resource Manager. System's zEnterprise 196 core server features 96, 5.2 GHz microprocessors capable of executing more than 50 billion instructions/sec.

Fairchild Semiconductor    San Jose, CA 95134
Jul 29, 2010 IntelliMAX(TM) FPF1038/FPF1039 help designers reduce in-rush current when switch is used to disconnect loads with output capacitances above 100 µF. Specifically, slew-rate controlled turn-on characteristics with TR=2.7 mS prevent voltage droop on supply rails with bulk capacitances as large as 200 µF. Slew-rate controlled low-impedance MOSFET switch (21 mW typ) joins features such as less than 1 µA consumption, load discharge path, ESD protection, and GPIO/CMOS compatible-enable circuitry.

Fairchild Semiconductor    San Jose, CA 95134
Jul 29, 2010 Model FAN5362 features VIN of 3.6 V and VOUT of 2.9 V, allowing it to deliver peak efficiency of 94% and maintain over 86% efficiency at light load of 1 mA. As battery approaches lower end of range, unit transitions seamlessly into and out of 100% duty cycle operation and is designed to respond with minimal under and overshoot. Measuring 0.96 x 1.31 mm with 0.6 mm profile, 3 MHz, 500 mA regulator works in conjunction with small I/O capacitors and 0805 multilayer chip inductors.

Fairchild Semiconductor    San Jose, CA 95134
Jul 29, 2010 Produced using advanced Power Trench® process, 150 V Model FDMS86200 features low RDS(ON) of 17 mW max, gate to source voltage of ±20 V, and operating temperature range of -55 to +150°C. Shielded-gate MOSFET technology minimizes switching noise, ringing, and EMI. Housed in 5 x 6 mm MLP package, device can optimize efficiency in LED lighting as well as solar and industrial designs.

Maxim Integrated Products    Sunnyvale, CA 94086
Jul 29, 2010 Supplied in 2.0 x 2.0 x 0.65 mm WLP, MAX8952 synchronous DC-DC step-down converter delivers 2.5 A of output current and maintains output-voltage accuracy by integrating bandgap reference and minimizing offset errors in feedback circuit. Fully differential remote sense ensures precise regulation at load by eliminating resistive losses associated with PCB trace impedance. Operating from input as low as 2.5 V, IC features I²C interface and programmable output voltage from 770 mV to 1.40 V.

Maxim Integrated Products    Sunnyvale, CA 94086
Jul 29, 2010 Model MAX16833 for boost, buck-boost, and buck configurations can sustain battery load-dump peaks up to 65 V. It provides single-wire connection to LEDs and includes high-side dimming p-channel MOSFET driver and current-sense amplifier that detect short-circuits, with protection between output and ground, and input and output. Frequency dithering is included on MAX16833, while MAX16833B has ±2%-accurate 1.64 V reference voltage output. Both operate over -40 to +125°C temperature range.

Maxim Integrated Products    Sunnyvale, CA 94086
Jul 29, 2010 Operating from 1.7-3.6 V external supply, 16-bit MAXQ613 can be powered directly from two AA cells. Unit includes USART, SPI(TM) master/slave communication port, IR module with carrier-frequency generation, and up to 24 general-purpose I/O pins. Secure memory-management unit prevents device cloning and unauthorized access to sensitive application code. Available with 48 KB Flash and 1.5 KB SRAM, microcontroller is suited for sensors, IR remote controls, meters, and data loggers.

Seiko Epson Corporation    Suwa, Nagano   Japan
Jul 29, 2010 Display controller IC Model S1D13524 has built-in color processor for E Ink's Vizplex(TM)-enabled electronic color paper displays. Able to be configured to match color and CFA needs, integral color engine has built-in dither function that minimizes host overhead and can be connected to any host processor via 16-bit parallel or TFT LCD bus. IC supports multiregional and concurrent display updates and also features sequencer engine, power management, I²C thermal sensor, and serial flash.

Seiko Epson Corporation    Suwa, Nagano   Japan

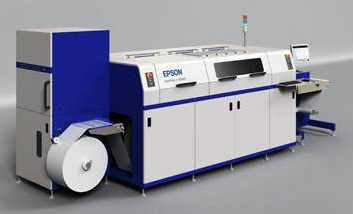

Jul 29, 2010 Accommodating jobs requiring fast turnaround, low volumes, and multiple label versions, SurePress L-4033A prints on off-the-shelf papers and film up to 0.32 mm thick and 80-330 mm wide at speeds to 5 m/min. It fits into existing digital workflows and leverages MicroPiezo ink jet technology as well as 6-color, water-based, pigment inks. Offering resolution to 720 x 720 dpi (paper) and 1,440 x 720 dpi (film), system does not require any chemicals or plates in pre-press process.

Seiko Epson Corporation    Suwa, Nagano   Japan
Jul 29, 2010 Intended for 3LCD projectors, light control system uses Epson high-temperature polysilicon (HTPS) TFT LCD drive technology and Philips' lamp technology for optimal performance regarding projector image contrast and energy consumption. System is comprised of projector lamp and lamp drive circuits. Optimal image quality and color reproduction is achieved by automatic adjustment, in real-time, of white balance deviations that occur due to changes in lamp power.
