Crestron Electronics, Inc.    Rockleigh, NJ 07647

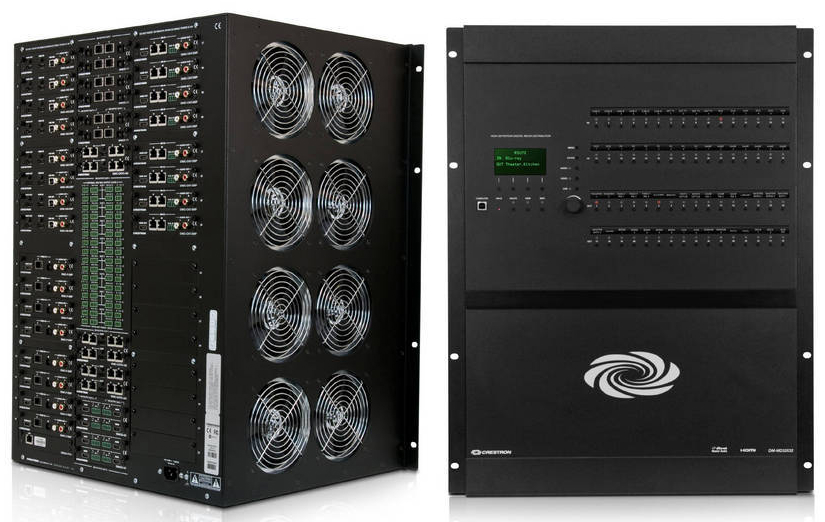

Aug 02, 2010 Model DM-MD8X8-RPS, 16X16-RPS, and 32X32-RPS DigitalMedia(TM) (DM) matrix switchers incorporate 1M hour MTBF redundant power supply. Card-based and field-configurable, these solutions deliver low-latency switching and pure, lossless distribution of HDMI(TM) and other signals. LEDs on front panel show status of each individual power supply. Devices are also available with remote monitoring and are suitable for broadcast environments and government applications.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675

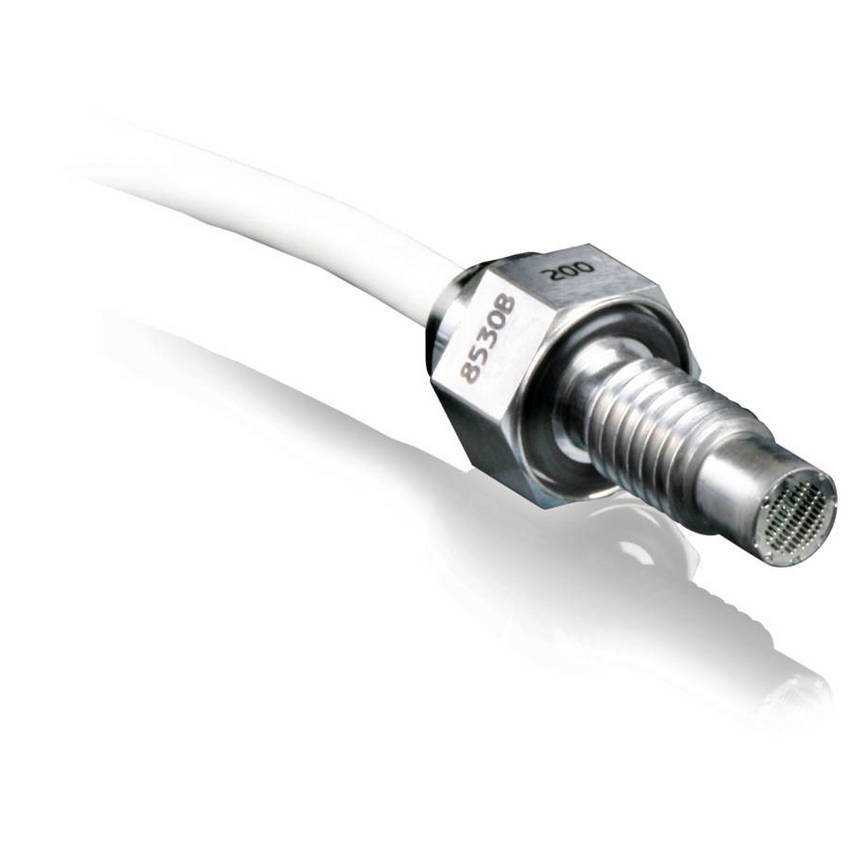

Aug 02, 2010 Weighing only 2.3 g, Endevco® model 8530B series transducers are offered in ranges of 200, 500, and 1,000 psia with 300 mV full scale output and resonant frequencies of 750 and 1,000 kHz. They include self-contained full hybrid temperature compensation, and feature active four-arm strain gauge bridge, diffused into sculpted silicon diaphragm for max sensitivity and wideband frequency response. Operating at -18 to 93°C, units are rugged to 20,000 g shock and min 4X burst pressure.

Acopian Technical Co.    Easton, PA 18044

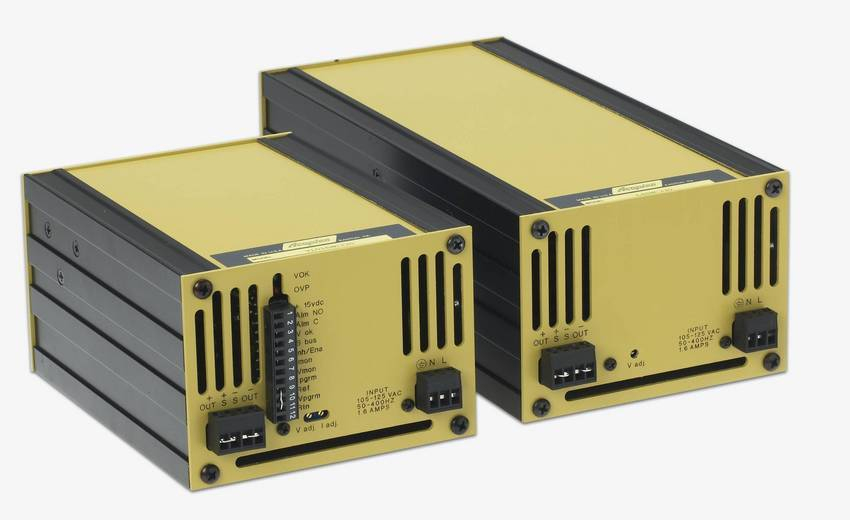

Aug 02, 2010 Infinity power supplies have line and load regulation of just 2 mV, and ripple is less than 0.25 mVrms, 0.75 mVp-p with low common mode noise. Rugged units come with outputs to 150 V and 150 W, with both 'slot' output voltage ranges and wide-adjust models that are adjustable from 0 to max rated output voltage, and can provide either constant voltage or current. Functional options include output programming, switching and monitoring, undervoltage alarms, and auxiliary outputs.

Binder-USA, LP    Camarillo, CA 93012

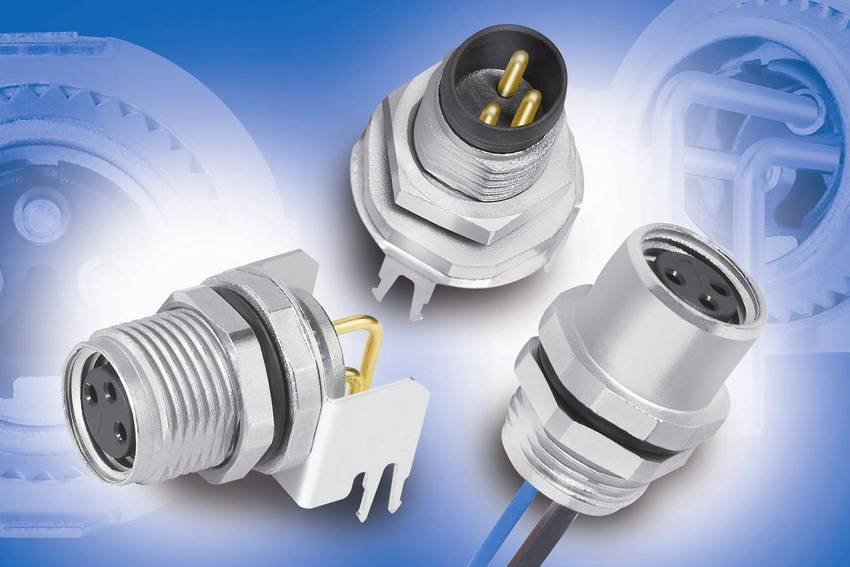

Aug 02, 2010 Panel-mounted receptacles of M8 connectors are available in PCB mountable and prewired versions. Prewired versions have crimped leads and come in front- and rear-mounted housings, while PCB-mountable versions feature straight or right-angle PCB pins and shielding sheet for mounting onto printed circuit boards. Units are mating-compatible with all M8 field-attachable connectors and cordsets.

Servoflo Corp.    Lexington, MA 02421
Aug 02, 2010 Low pressure sensor, MS5701 measures as low as ±2.5 to ±10 in. H₂O in differential version, and from +2-20 in. H₂O in gauge version. I2C or SPI interface communicates up to 20 MHz. Utilizing MEMS technology, unit offers low supply voltage of 1.8-3.6 V with 1 mA power consumption. It has resolution of 0.0004 in. of water and conversion of 0.54 msec, and operates in temperature range of -20 to 85°C.

E Instruments International LLC    Langhorne, PA 19047
Aug 02, 2010 Hydraulic hand pump HHP 1000 includes transparent fluid chamber reservoir for viewing of fluid levels, fine adjustment vernier, pressure release valve, high/low selection knob stroke adjustment, and scissor action pump. Optional features included are hydraulic hose with fitting, carrying case for pumps, hoses and adaptors, and up to 5 set of adaptors.

Analog Devices, Inc.    Norwood, MA 02062-9106
Aug 02, 2010 Housed in 72-lead LFCSP, dual, 16-bit TxDAC+® Model AD9125 includes features optimized for direct conversion transmit applications, including complex digital modulation, and gain and offset compensation. Unit offers programmable full-scale output current from 8.7-31.7 mA and 4-wire serial port interface that allows programming/readback of many internal parameters. Flexible CMOS digital interface allows standard 32- wire bus to be reduced to 16-wire bus.

Integrated Device Technology, Inc.    Santa Clara, CA 95054
Aug 02, 2010 Supporting 3D resolution in notebooks that use LCD monitor, eDP 3D TCON complies with VESA DisplayPort 1.1a standard and supports up to 4 differential-pair lanes at 1.62 Gbps and 2.7 Gbps link rates. This embedded DisplayPort®-based timing controller (TCON) also supports resolutions from 1,280 x 800 to 1,920 x 1,200 for notebooks using TFT LCD panels. Integrated backlight LED driver improves image quality on notebook LCD while lending to reduced power consumption and component count.

Melexis Inc.    Concord, NH 03301
Aug 02, 2010 Housed in 5 x 5 mm QFN package, 4-channel Model MLX80001 supports vehicle serial data network communication using Local Interconnect Network protocol. Unit offers slew rate selection for 10.4 kbps and 20 kbps, optimizing radiated emission behavior. Consuming 25 µA in sleep mode, device includes EMC immunity and LIN short to ground protection. Sleep mode capability allows shutdown of complete master node, while wake-up function detects incoming dominant LIN messages and enables voltage regulator.

Melexis Inc.    Concord, NH 03301
Aug 02, 2010 Supplied in TSOT 3-lead RoHS-compliant package, US5681 integrates voltage regulator, Hall sensor with advanced Correlated Double Sampling (CDS) offset cancellation system, and open-drain output driver. Temperature range of -40 to +85°C and operating range of 3.5-24 V make this product suited for automotive and solid-state switch applications. Designed in mixed signal CMOS technology, switch features chopper-stabilized amplifier stage and low current consumption.

Vacuum Instrument Corp.    Ronkonkoma, NY 11779
Aug 02, 2010 Designed to test integrity of systems, containers, and parts, MS-60Dry Helium Mass Spectrometer Leak Detector offers 5 x 10^-12 atm-cc/sec sensitivity and is available with standard 16 cfm Dry foreline/roughing pump for clean room applications. Fully automatic unit provides 3 modes of auto-zero capability and 3 modes of vacuum operation: gross, rough, and fine. Password security protects against tampering and changing of set points.

Conduant Corp.    Longmont, CO 80501
Aug 02, 2010 Featuring StreamStor® Amazon Express high-speed recording and playback technology in industrial 19 in. rack-mount chassis, Big River(TM) RTX16 includes PC server for integration of user-supplied data acquisition boards or other peripheral options. Unit can be configured with up to 16 removable HDDs with total data storage capacity up to 32 TB. Dual Core Xeon processor provides 4 GB of RAM, which can be used to handle command and control as well as data manipulation.

Applied Measurements Limited    Aldermaston, Berkshire RG7 8PN  United Kingdom
Aug 02, 2010 Collecting data over multiple channels simultaneously, T24 system wirelessly connects any strain gauge-based sensor for measurement of load, pressure, torque, and displacement as well as standard 0-10 V and 4-20 mA sensors. Products include acquisition, relay output, and printer modules; handheld displays; analog output; and USB base station. Acquisition module uses secure transmission network and provides live data over distances of up to 120 m line-of-site.

Guyson Corporation of U.S.A.    Saratoga Springs, NY 12866
Aug 02, 2010 Developed for technical surface treatment of gears and aerospace components, Model RB-10 combines 60 x 60 x 60 in. blast cabinet with 6-axis robot as blast nozzle manipulator. Rotary table, measuring 52 in. in diameter, is servomotor driven to be controlled as seventh axis of robotic motion. Peening media delivery system includes 3.5 ft³ ASME-certified pressure vessel fitted with shot level sensors, and media storage hopper that automatically adds shot when low level is detected.

Torrey Pines Scientific, Inc.    Carlsbad, CA 92010
Aug 02, 2010 Featuring 12 in. square ceramic heater tops, Analog Stirring Hot Plates have temperature range up to 450°C. Five-position stirring unit can stir 5-800 ml beakers, while 9-position unit can stir 9-500 ml beakers of aqueous solutions with stirring range from 100-1,500 rpm. Available in 100 Vac/50 Hz, 115 Vac/60 Hz, 220 Vac/60 Hz, and 230 Vac/50 Hz, hot plates support more than 50 lb on plate surface and are designed to keep spills out of chassis.

Maxim Integrated Products    Sunnyvale, CA 94086
Jul 30, 2010 Model MAX19993 is 1,200-1,700 MHz dual, downconverting mixer with on-chip LO switch, buffer, and splitter. Packaged in 6 x 6 mm, 36-pin TQFN, unit also integrates 2 mixer cores, 4 amplifiers, and 3 baluns. Monolithic IC provides 2 independent downconversion channels, each with +27 dBm IIP3, 6.4 dB conversion gain, and 9.8 dB noise figure. It also offers 2RF-2LO spurious rejection of 72 dBc for RF level of -10 dBm, and 67 dBc for level of -5 dBm.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 30, 2010 Housed in TO-220, TO-220 FULLPAK, and D²PAK TO-263 packages, respectively, 500 V/12 A Models SiHP12N50C-E3, SiHF12N50C-E3, and SiHB12N50C-E3 feature 0.555 W max on-resistance at 10 V gate drive and gate charge of 48 nC. RoHS-compliant devices help minimize conduction losses, saving energy in power factor correction boost circuits, PWM half bridges, and LLC topologies used in notebook computer AC adapters, PC and LCD TVs, and open-frame power supplies.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 30, 2010 Model VEMD25x0X01 high-speed silicon PIN photodiodes offer 12 µA light current and spectral sensitivity range of 350-1,120 nm, while VEMT25x0X01 NPN planar phototransistors offer light current of 6 mA and spectral sensitivity from 470-1,090 nm. Sensitive to visible and NIR radiation, both photo detectors feature 1 nA dark current, ±15° angle of half sensitivity, and temperature range of -40 to +100°C. They are available in 1.8 mm gullwing and reverse gullwing SMT packages.

CRAIC Technologies Inc.    San Dimas, CA 91773
Jul 30, 2010 ImageUV(TM) collects, analyzes, and processes images from CRAIC microscopes and microspectrophotometers running 64-bit Windows 7®. Suited for industrial processes and scientific research, program is designed to facilitate use while offering various advanced digital imaging control and analysis features. User can control all digital imaging systems in CRAIC microscopes and acquire UV, color, and NIR images under any lighting conditions. Then, software is used to analyze those images.

Tingue Brown & Co.    Saddle Brook, NJ 07663
Jul 30, 2010 Company's line of 100 different laundry cart covers and 200+ laundry sling bags are available with custom-printed logos, names, and other graphics to facilitate and cart identification, sorting, and tracking. Full color printing of images and text also helps deter theft as well as enhance visual appeal. Supporting brand marketing initiatives, custom logos as large as 18 x 18 in. are printed on tear-resistant, nylon square in permanent ink and sewn directly onto products.
