Hyde Industrial Blade Solutions    Southbridge, MA 01550

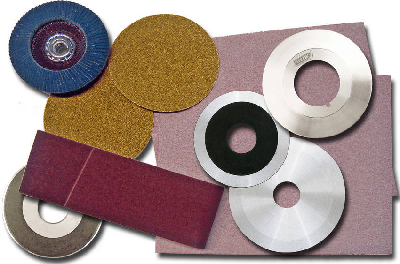

Aug 04, 2010 Designed for harsh manufacturing conditions, Abrasive Converting Blades are available in circular or straight edge designs. Circular blades, engineered for slitting of larger abrasive rolls or coils, are manufactured in carbon alloy or high speed steel, and come in single and double beveled edges with standard or wavy cut edge designs. Straight blades are also available to convert abrasives into finished strips, sheets, and belts.

Alliance Plastics    Erie, PA 16510
Aug 04, 2010 Vented pipe caps as well as pipe and conduit open end pipe caps protect non-threaded and threaded NPT pipe ends as well as rigid metal and intermediate metal conduit. Manufactured from LDPE and MDPE, standard pipe caps protect pipe ends from damage and debris. Vented holes stop pressure build-up that would force caps off during storage/shipment. Available in 1/8-64 in. sizes to accommodate popular pipe sizes, caps offer push-on application to facilitate tool-free installation/removal.

Marposs Corp.    Auburn Hills, MI 48326-2954
Aug 04, 2010 Suited for machine tool applications, Crashsensor ACS-3 combines 3-axis acceleration sensor, evaluation electronics, and microcontroller in one housing that can be mounted directly on machine or headstock. Once activated, system monitors acceleration to various limits. If limit is exceeded, datalogger writes information to alarm recorder with date and time, which can be read out via serial interface. Sensor unit is packaged in stainless steel housing, which can be sized to user's specifications.

Infineon Technologies AG Dep. CIC MC      Germany
Aug 04, 2010 OptiMOS(TM)-T2 30 V MOSFET model IPB180N03S4L-H0 is N-channel device with drain current of 180 A and RDS(on) of 0.9 mW at 10 V gate-to-source voltage. Unit operates in applications over 500 A where operation of many MOSFETs in parallel is required, and can provide battery protection through reverse connection. Available in D2PAK-7 package, it meets AEC-Q101 specifications and also utilizes advanced trench technology to provides low gate charge, low capacitance, and low switching losses.

Infineon Technologies AG Dep. CIC MC      Germany
Aug 04, 2010 Supporting 315, 434, 868, and 915 MHz bands, Models TDA5240, TDA5235, and TDA5225 provide data rate up to 112 kchips/sec with typical sensitivity of -119 dBm for FSK and 116 dBm for ASK. Sigma-delta fractional-N PLL synthesizer provides fine multi-channel resolution of 10.5 Hz. Models TDA5240 and TDA5235 support autonomous receive mode where desired payload is automatically extracted and interrupts can trigger host controller to read payload from FIFO memory.

Infineon Technologies AG Dep. CIC MC      Germany
Aug 04, 2010 Measuring 89 x 250 mm, PrimePACK(TM) 3 FF1400R17IP4 offers 1,400 A in 1,700 V and features intelligent chip layout that optimizes distribution and dissipation of heat. Applications include renewable energies, traction applications, CAV, and industrial drives. EconoDUAL 3 FF600R12ME4, also measuring 89 x 250 mm, delivers 600 A in 1,200 V, making it suited for frequency converters, central inverters in photovoltaic systems, and diesel generator drives.

Infineon Technologies AG Dep. CIC MC      Germany
Aug 04, 2010 Suited for wireless communication devices, Models BFP640ESD, BFP720ESD, and BFP740ESD feature max input power of 20 dBm and noise figure of 0.6 dB at 2.4 GHz. When used as low noise amplifier stage of RF signal chain, bipolar transistors minimize risk of ESD that can lead to failure or damage of wireless system. Applications include mobile phones, WLAN routers, WiMAX and GPS modules, set-top boxes, active antenna, and WiFi data cards.

MAG IAS, LLC    Erlanger, KY 41018
Aug 04, 2010 Intended for oil and gas industry work, Big Bore VDF 800 DUS features 14 in. spindle diameter, 32 in. swing over bed, and 4,500 lb Z-axis cutting force. Main drive is rated at 50 hp continuous, 74 hp max with 7,200 Nm max torque. Top speed of 900 rpm enables machine to handle range of small diameter parts as well. Built on box-type Meehanite cast iron bed measuring 22 in. wide, lathe offers turning lengths of 3.3-13.1 ft and is available with Siemens or Heidenhain CNC.

Marposs Corp.    Auburn Hills, MI 48326-2954
Aug 04, 2010 Based on Intel® Atom(TM) industrial-grade platform, Model E9066e is housed in sealed, shop-floor proof enclosure. Diskless technology and use of solid-state memory eliminates hard disk failures and allows for working temperatures up to 45°C. For connectivity, unit includes 4 USB 2.0 ports, 1 GigE port, 1 Ethernet 10/100 port, 1 RS232 port, and up to 2 CF or SSD devices. Embedded fanless computer is adaptable for bench mount or swiveling arm installations using VESA-compliant supports.

Marposs Corp.    Auburn Hills, MI 48326-2954
Aug 04, 2010 Based on ARM9 RISC technology, Gage Pod(TM) connects to Marposs E9066 industrial computer or commercial PC running Marposs Quick SPC software. System uses variety of modules that snap together without interconnecting cables, and can be combined and tailored to any application. All modules are synchronized for demanding dynamic measurements including linear and rotary encoder signals. Gage Pod connects to computer via USB or Ethernet cable or wirelessly through Bluetooth® or Wi-Fi connection.

Marposs Corp.    Auburn Hills, MI 48326-2954
Aug 04, 2010 Without requiring any tools, i-Wave allows plug-and-play changeover of mechanical gauge heads. StarLock locking device allows connection of new/existing gauges to wireless gauging. Able to work in severe shop floor conditions, wireless handle accommodates any mechanical gauge head featuring standard M10, M6, or M3,5 thread. Unit is protected against coolants and dust, and alkaline C batteries allow over 220 hr continuous operation, extendable via programmable auto-shutdown feature.

Marposs Corp.    Auburn Hills, MI 48326-2954
Aug 04, 2010 As in-process gauge for cylindrical grinders, Protomar 300 measures diameters to 300 mm having continuous or interrupted surfaces of any shape and number of teeth. Absolute gauge, featuring ±2 microns accuracy, can be used with Marposs P7 multi-function control unit, eliminating need for special software in machine CNC for control and machine/operator interface. Measurements are referenced to one calibration cycle, eliminating dedicated setup master for each part/diameter.

Marposs Corp.    Auburn Hills, MI 48326-2954
Aug 04, 2010 Suited for large or 5-axis machines, Mida WRS System features 2.4 GHz applied transmission frequency band that promotes worldwide applicability. Touch probing system offers 15 m operating range and has receiver interface with remote programming capability and 4-digit display. Automatic searching for best signal among radio channels ensures optimal probe/receiver communication. Additional sub-channels permit use of multiple probes on same machine by means of NC selection code.

ANCA Inc.    Farmington Hills, MI 48335
Aug 04, 2010 Delivering versatile operation, FastGrind brings regrinding in-house for diverse industries and applications. Features facilitate and accelerate setup as well as lend to tool accuracy and surface finish quality. Specifically, machine employs double-ended HSK wheel spindle, iGrind software, and CNC grinding technology. Resharpening machine is also available, with some manufacturing capabilities. Grinding flexibility accommodates various tool types.

Guhring    Brookfield, WI 53045
Aug 04, 2010 Featuring micro-fine grain carbide substrate, RT 100 VA Drills have heat- and wear-resistant PVD coating, which remains stable in operations up to 1,470°F. Dual helical coolant ducts provide optimum coolant delivery to cutting edges, while VA point geometry creates short, manageable chips that can be evacuated from hole, eliminating need for peck cycles. Available in 3.0-20.0 MM diameters, Series 8510 drills to 3 times its diameter, while Series 8511 drills to 5 times its diameter.

Parlec, Inc.    Fairport, NY 14450 0059
Aug 04, 2010 Clamping with up to 900 lb of force, Power clamping spindles for Series 1500 and 1800 TMM presetters positively clamp taper styles including ISO/SK/CAT/BT tapers as well as HSK and CAPTO style tooling. Units are suitable for when micron-precision repeatability is required and also minimize effects of tooling variability on measuring process.

Parlec, Inc.    Fairport, NY 14450 0059
Aug 04, 2010 Available in Cat, BT, and HSK shanks, DIN-style Heat Shrink Toolholders are pre-balanced to achieve optimal rpm and designed to be compatible with any heat shrink machine outfitted with DIN cooling systems. Inch and metric IDs are available, and AD/B coolant delivery is standard. Also, standardized lengths and nose shapes eliminate compatibility issues with machine types and program changes.

Kitamura Machinery of USA, Inc.    Wheeling, IL 60090
Aug 04, 2010 Combining 13 kW AC motor, hardened box ways, and No. 40 taper spindle, Mycenter-HX400iSII provides freedom of full 4th axis rotary table with direct drive motor that enables speeds of 125 rpm and positioning of ±2.5 arc/sec. Four-step, gear-driven dual-contact spindle operates at up to 20,000 rpm. With max work piece size of 24.80 x 29.33 in. and table capacity of 770 lb, Mycenter-HX400iSII is suitable for multi-part tombstone fixturing and complex multi-angle large part machining.

Parlec, Inc.    Fairport, NY 14450 0059
Aug 04, 2010 Available on Series 1500 and 1800 TMM presetters, Centering Camera Option allows customers to set, inspect, and measure all lathe tools. Option utilizes 2 ParleVision® high-resolution camera systems, enabling one TMM presetter to provide optimal surface inspection of all cutting tools for milling and turning applications.

Parlec, Inc.    Fairport, NY 14450 0059
Aug 04, 2010 Form AD/B toolholders provide solution for convertible coolant delivery connections to machine tools. Units accommodate machines with either flange entry coolant or through spindle coolant and enable machine shops with multiple types of coolant delivery to use same holder for either type of machine. Coolant delivery is available on DIN-style heat shrink, ER collet chucks, shell, and end mill holders and HSK, CAT, and BT shanks.
