VeriFone Holdings, Inc.    Paris 75010  France
Sep 01, 2009 Complying with PCI DSS requirements, PAYware CMS v8.0 is intended for banks, financial institutions, processors, and retailers that wish to issue cards and accept electronic payments. For acquirers, PAYware CMS supports individual merchant needs such as acquiring services contracts to accept, authorize, and settle card transactions. Security features include encryption of sensitive data, PAN masking, and detailed audit tracking of user activity.

Tema Systems, Inc.    Cincinnati, OH 45249
Sep 01, 2009 Short Bowl Decanter sedimentation centrifuge for stage #1 lactose dewatering position features overhung bowl and scroll with bearing support at drive end only, allowing for simpified inspection after CIP cleaning by removing bolts on front cover to see discharge end of bowl and scroll. Removable inspection panels on housing allow for visual inspection of outside of bowl and shaft and seal area between back of bowl and product housing back partition.

Celesco Transducer Products, Inc.    Chatsworth, CA 91311
Sep 01, 2009 Supplied in 8 x 4 x 4.75 in. polycarbonate IP67-rated enclosure, SR1E is designed for construction equipment and factory use in wet environments and outdoor applications. Incremental encoder delivers linear resolution of 101 pulses/in. while providing full stroke linear measurement range up to 125 in., and push-pull encoder driver can be powered by 5-30 Vdc. Characteristics include 80 ips max velocity, ±1% FSO accuracy, and ±0.5% FSO repeatability.

GAO RFID Inc.    Toronto   Canada
Sep 01, 2009 Suited for asset tracking and inventory control, UHF RFID semi-passive reader, 902 MHz Model 236005 offers up to 100 m read range in free space. Visual status indicators include green LED for power, yellow LED for activity, and red LED for error. It can be configured with up to 4 antenna pairs. Model 236005 performs reliably in environments where liquids, metals, and other RF-unfriendly conditions are found to ensure accurate readability of fully loaded pallets and containers.

Process Sensors Corp    Franklin Lakes, NJ 07417
Sep 01, 2009 Featuring dual grip handle to assist in steady aiming in small target, long distance applications, Models PSC PTLST-20-1M and 2M offer temperature ranges of 650-1,800ºC on 1M version, and 385-1,600ºC on 2M. Spectral responses are 1.0 and 1.6 µm respectively. Twin lasers are mounted such that beams converge at target distance, illuminating measured area. Other features include internal 2,000 reading data logger, and max/min audible and visual 3 color alarm signaling on integral display.

Apricorn Inc.    Poway, CA 92064
Sep 01, 2009 Offering choice of AES-128 or 256 bit hardware encryption, Aegis Padlock Secure Hard Drive offers users secure access to stored data via customized personal identification number. Drive weighs 6 oz, fits into any laptop bag, and features 16-point omni-directional shock mounting system for protection from drops and knocks. Up to 10 unique user IDs and 1 administrator can be enrolled. With software-free design and ability to run on any platform, product also suits business travelers.

Standard-Knapp, Inc.    Portland, CT 06480
Sep 01, 2009 With single, double, and three lane configurations, Tritium(TM) Multipacker arranges products into compact multi-pack patterns and wraps them in printed or registered film. Bundler features Robo-Wand wrapping section, servo-driven film cutting system, wrinkle-free bull's eye and bottom seal, and pull-out film feed module. Modular stainless steel bundler comes equipped with transparent, safety-interlock gull wing guard doors which provide clear view of all moving belts and chains.

Bliley Technologies, Inc    Erie, PA 16508-0428
Sep 01, 2009 Available in through-hole and surface mount configurations, DIP NVG79 OCXO series features low start-up power requirements, low steady state power, and rapid warm-up time. RoHS compliant OCXO measures only 0.355 in. high and offers wide frequency range of 20 kHz to 54 MHz. Device is configured for mobile communication and mobile data transmission systems in telecom, utility, industrial, and military sectors.

GAO Instruments Inc.,    Toronto   Canada
Sep 01, 2009 Able to be embedded into target systems to carry out development, A0710001 arbitrary waveform generator module generates standard waveforms such as sine waves, square waves, saw-toothed waves, and pulse waves and frequency and amplitude modulation. DDS CORE controller drives arbitrary waveform generation with output repeat frequency range from 0.02 Hz to 5 MHz with 0.02 Hz adjustment steps. It can be used in various situations where complex signal/excitation sources are required.

GAO Tek Inc.    Toronto M1B2K4  Canada
Sep 01, 2009 Integrating functions of ATDR, ohmmeter, megohmmeter and automatic bridge, portable and multi-functional automatic communication cable-fault tester, 8B locates faults such as core wire breakage, misconnection, water absorption and poor installation. Backlit LCD screen displays 6 resistance values between A, B paired lines and connection line. Cold and pressure resistant unit has intelligent switch-mode power supply and battery charger with over-voltage and over-current protection.

Kennametal, Inc.    Latrobe, PA 15650-0231
Aug 31, 2009 Designed for machining centers and multi-tasking machines, shrink-fit toolholding system includes 2 series. GP (General Purpose) series accommodates carbide, HSS, and steel shanks with clamping torques suitable for general engineering, die and mold, automotive, and other machining tasks. (High Torque) series accommodates heavy roughing operations requiring higher clamping torque levels or machining of difficult-to-cut materials. Shrinking and cooling process does not exceed 30 sec.

Bosch Security Systems    Fairport, NY 14450 9199
Aug 31, 2009 Divar Control Center software enables extension of Divar-2 systems with Divar XF Hybrid H.264 recorders. Upgrade path lets Divar-2 users increase flexibility and capabilities of installation as well as migrate to H.264 IP cameras. Accessed through one UI, software enables connection and control of unlimited number of Divar-2 and Divar XF units. Entire system can be managed remotely over IP, or up to 30 Divars may be operated and managed locally via one Bosch CCTV keyboard.

Pentek Inc.    Upper Saddle River, NJ 07458
Aug 31, 2009 Accepting clock, sync, gate, and trigger signals as inputs, Model 6891 delivers buffered versions of signals to other modules in system to ensure synchronous sampling and data collection across all connected modules. Board provides up to 8 timing signal cables compatible with multi-pin front panel timing signal connectors found on PMC modules. For larger systems, up to 8 VME boards can be linked together, providing synchronization for 64 I/O modules, producing systems with up to 256 channels.

Yamaichi Electronics U.S.A. Inc.    San Jose, CA 95134
Aug 31, 2009 BoardFit P3/P4 series combine attributes of miniature connector with ability to transfer currents up to 9 A. There are 2 variants: BoardFit 3.0, which has 3 mm pitch and transfers up to 5 A, and BoardFit 4.2, which has 4.2 mm pitch and handles currents to 9 A. Both types are available as board and cable connectors in different designs (90° and 180°) as well as SMT or TH solder connection. Pin count, ranging from 2-24 pins, can be arranged in single- or double-row design.

BVM Ltd    Southampton Hampsh SO30 0GH  United Kingdom
Aug 31, 2009 Based on Intel 945GSE chipset, Model LE-575 supports low-power N270 Atom processor running at 1.6 GHz with 533 MHz FSB. Fanless SBC features 5.25 in. form factor and supports up to 2 GB DDR2 memory. It includes 2 x USB 2.0 ports, 2 x mini-PCI, 2 x 150 MB/s SATA interfaces, and 1 x PCI port. Equipped with 18-bit LVDS dual channel connector, integrated audio, and GMA 950 VGA interface, embedded board is optimized for digital signage, kiosks, thin clients, digital security, and industrial control.

STEMMER IMAGING LTD    Surrey   United Kingdom
Aug 31, 2009 Featuring 4,096 x 48 or 96 pixel resolution and CameraLink data transfer interface, DALSA Piranha HS-82-04K provides max line rate of 110 kHz and throughput up to 640 MHz. Selectable area mode of operation facilitates camera alignment and optical focusing. Capable of bidirectional scanning, camera has up to 96 selectable stages and prevents over-exposure with 100x anti-blooming. Time Delay Integration technology maximizes integration time available to collect incident light from moving object.

Intersil Corporation    Milpitas, CA 95035
Aug 31, 2009 Operating from single 1.8-3.3 V supply, Model ISL54222A enables 2 USB 2.0 high-speed interface transceivers to share single USB connector. Bidirectional unit features HBM ESD performance greater than 12 kV on I/O terminals and internal charge pumps that lower switch resistance and open USB eye for optimal performance at 480 Mbps. Switches rated at 5.5 W can pass USB full-speed data signals ranging from 0-3.6 V and USB high-speed data signals ranging from 0 V to 400 mV.

Intersil Corporation    Milpitas, CA 95035
Aug 31, 2009 Created on bipolar process technology, 40 V Model ISL28127 offers low-frequency voltage noise performance of 3.0 nV/√Hz at 10 Hz, offset voltage of 70 mV, and 10 nA max input bias current. Device also features offset voltage drift performance of 0.5 mV/°C max and is unity-gain stable over full -40 to +125°C temperature range. With supply voltage range of 4.5-40 V and gain bandwidth of 10 MHz, amp is suited for laboratory instrumentation, ATE, power line monitors, and environmental analyzers.

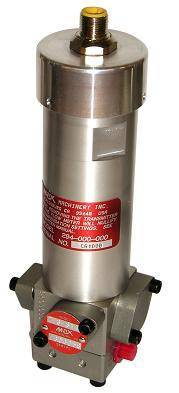

Max Machinery, Inc.    Healdsburg, CA 95448
Aug 31, 2009 Available in ±10 Vdc and ±20 mA configurations, microprocessor-based Model 294 offers 16 point linearization to hold accuracy within 0.2% of reading, digital filtering for smoothing of output signal, and user-selectable anti-dither adjustment from 1-100% of meter rotation to prevent erroneous counting under vibrating or flow pulsing conditions. When combined with positive displacement flow meters, transmitters cover difficult applications involving bi-directional flow indication.

Maple Systems Inc.    Everett, WA 98204
Aug 31, 2009 Models HMI5100N and HMI5100T (with Ethernet) are 800 x 480 pixel, 65K Color, 10.2 in. TFT widescreen displays that employ 400 MHz CPU with 128 MB Flash and 64 MB DRAM. With resolution of 800 x 600 pixels, HMI5104XH 10.4 in. Hi-Res Graphic operator interface utilizes 500 MHz CPU with 256 MB Flash and 256 MB DRAM. This solution can also run video media player. All models incorporate Ethernet, USB, and serial ports as well as 4-wire analog resistive touchcreen.
