Seco Tools Inc    Troy, MI 48083

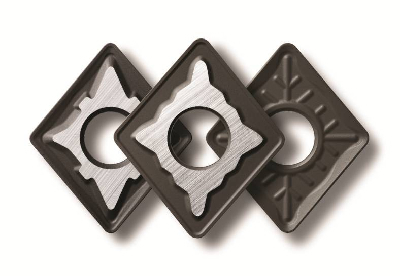

Aug 05, 2010 Suited to variety of steel machining operations, Duratomic® TP0500 Grade Insert combines Duratomic coating with plastic deformation-resistant, fine-grained substrate for wear resistance. Unit is offered in complete range of chipbreaker geometries that includes negative inserts, positive inserts, and high-feed wiper inserts.

Solutionware Corp.    San Jose, CA 95129
Aug 05, 2010 Available with integrated full CAD/CAM system, MazaCAM CAD/CAM and Editor v5.0 provides 3D programming cuts that output in Mazatrol as well as ability to take long programs and automatically convert them to multiple Manual Units that are continuous. User interface in MazaCAM Editor provides programmer with interactive plot-shape and tool-bar icons. With Post-Processor Assistant, MazaCAM helps G-code users create customized post-processors for both mills and lathes.

Sterling Edge Inc.    Wixom, MI 48393

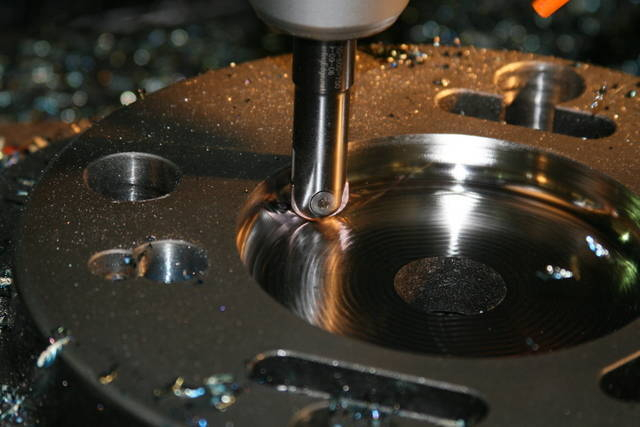

Aug 05, 2010 Intended for hardened steel applications when wearing out nose is of concern, Hog Nose Cutters enable 5-axis mill-like cutting with vertical machine. Each uses standard proprietary Ball Nose body and are available with coatings and grinds for ferrous and nonferrous materials. Geometry eliminates problem of zero velocity at center of insert. Standard sizes include 3/8, ½, 5/8, ¾, 1, and 1¼ in. as well as 10, 12, 16, 20, 25, and 30 mm.

Alliance Plastics    Erie, PA 16510
Aug 05, 2010 Available in different styles, sizes, and colors, IP68-rated Cable Glands protect internal electronics of machinery from dust, dirt, water and other foreign debris. Units are made of UL approved Nylon 66 and come in NPT, PG, and Metric thread styles to fit machinery of all kinds. Able to withstand temperatures from -40 to 221°F, cable glands are self extinguishing after certain period of time and are suited for indoor/outdoor use.

SNK America Inc.    Elk Grove Village, IL 60007

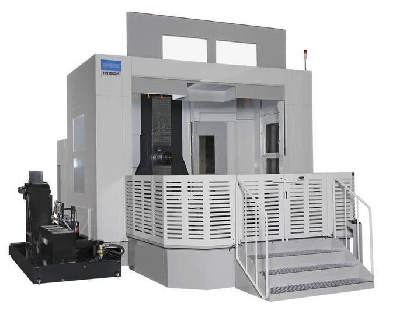

Aug 05, 2010 Providing rapid traverse rate of 1,575 ipm, Model HN1000-S is capable of swinging parts up to 90.6 in. in dia and 72.8 in. in height. Machine features hybrid guideway system consisting of heavy-duty roller guide system on X- and Z-axes and hardened ground box way system on Y-axis. Minimizing need to extend quill to reach part, rigid spindle snout provides radial load capacity for heavy milling cuts, while center-mounted spindle eliminates column twist of side-mounted spindle.

Selco Products Co.    Reno, NV 89521-5908
Aug 05, 2010 Available in manual or automatic reset models, CAP Series provide temperature control for commercial and consumer heating applications. They are offered with various preset temperature ranges, ceramic bodies, temperature ranges of 32 to 752°F, and differentials from 2.7°F ±1.8°F to 16.2°F ±7.2°F. Compliant with UL, C-UL, VDE, EC, and RoHS standards, products are available with various knobs, dials, or set screws for determining temperature set point.

Clore Automotive    Lenexa, KS 66215

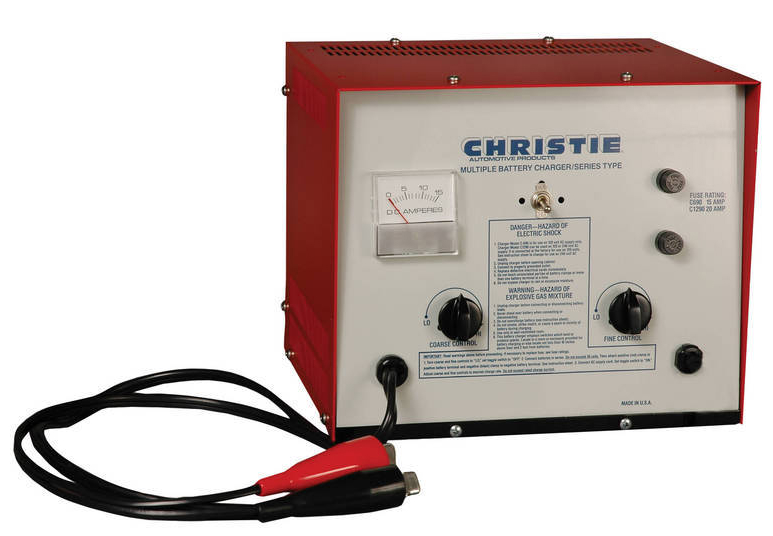

Aug 05, 2010 Suited for gang charging multiple batteries, Christie's C1290 series type multiple battery charger can simultaneously charge up to six 12 V batteries in series at 12 A rate. It can output 0-90 V @ 12 A, allowing it to charge up to 36 cells (six 12 V batteries) to final charging voltage of 15 V each. Rate control switches provide for coarse and fine control of charging output levels, and each switch offers 8 positions for accurate control of charging current.

FasTest, Inc.    Roseville, MN 55113-1317

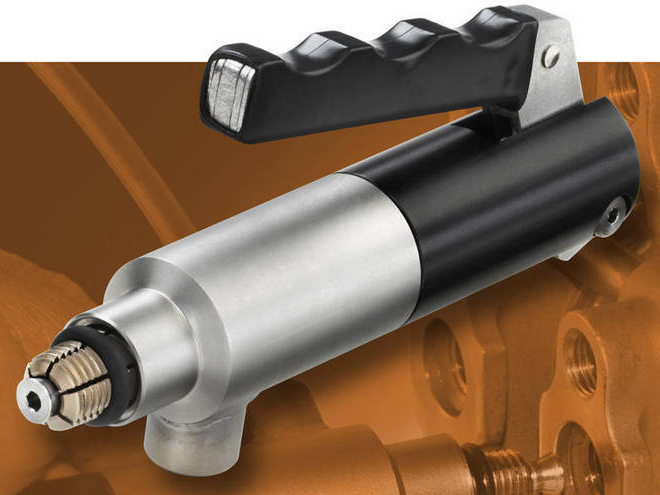

Aug 05, 2010 For accelerated, safe, repeatable connections to all types of transmitters, FasCal Lever series are hand-squeezed and inserted into ¼ in. threaded ports. Release of lever forms instant, leak-tight, high-pressure (5,000 psi max) connection, promoting productivity, safety, and calibration efficiency. Each stainless steel calibration connector has pressure-assisted, grip-and-seal design that facilitates connections to threaded profiles. Plug-and-play design eliminates tape and sealants.

Penn Stainless Products, Inc.    Quakertown, PA 18951
Aug 05, 2010 Offered in thickness from 3/16-¾ in., 330 Plate and Processed Flat Bar (Alloy 330 UNS N08330) suits high-temperature, high-pressure applications such as chemical and petrochemical processing, thermal processing, ore processing, and power generation. Austenitic, nickel-chromium-iron-silicon alloy, used where resistance to combined effects of thermal cycling and carburization is necessary, can be custom-fabricated to any shape/size via water jet cutting or other in-house processing methods.

SKF USA, Inc.    Lansdale, PA 19446

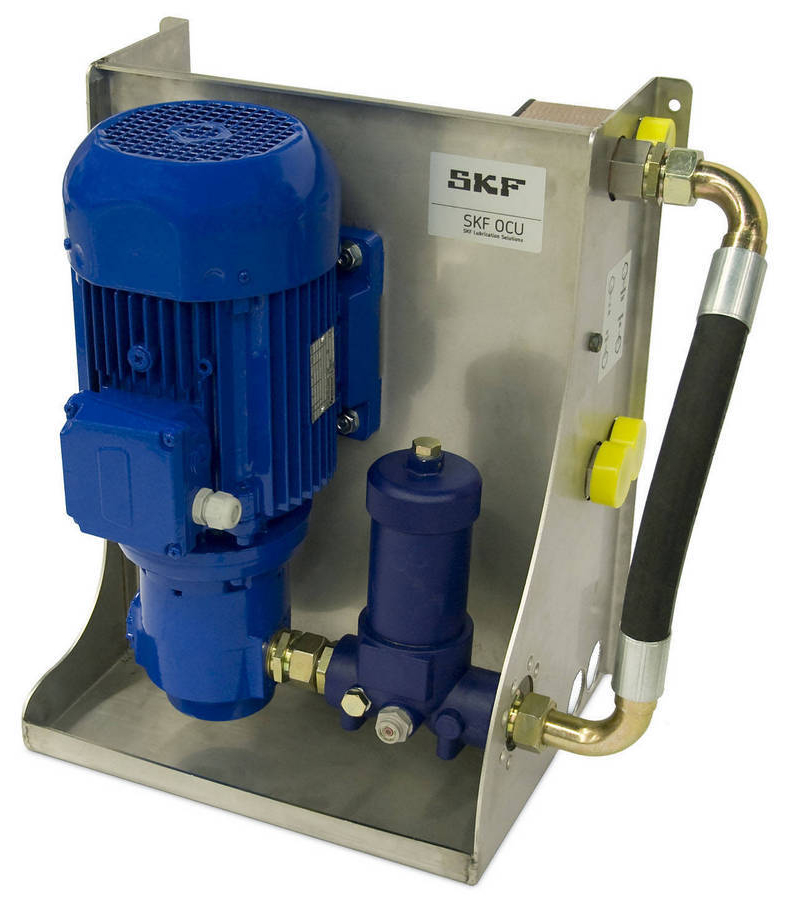

Aug 05, 2010 Serving as low-pressure pump filtration unit, SKF® Oil Conditioning Unit circulates oil in system to optimize lubrication performance. It removes contaminants from oil supply and enables desired temperature range to be consistently maintained. Available in filtration only and filtration with air/water cooler versions, product can perform continuously without constant maintenance. It connects directly to sumps, bearing housings, gearboxes, compressors, and other machines.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Aug 05, 2010 Providing 90V and 60V notches, quarter-turn Series SVB is suitable for use with gases and liquids that are compatible with wetted materials, such as CF8M, 316 stainless steel, PTFE, and TFM1600. Stainless steel valves feature pressure limit of 1,000 psi and temperature range of -30 to 400°F. ISO 5211 mounting pad allows direct mounting of pneumatic and electric actuators.

Phoenix Contact    Harrisburg, PA 17111 0100

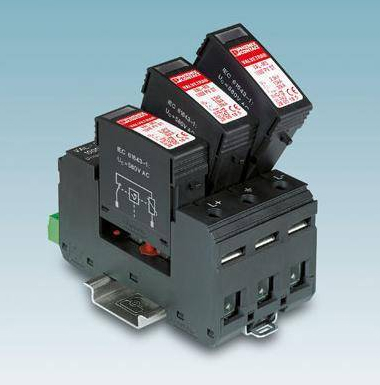

Aug 05, 2010 Available with or without remote indication contact, VAL-MS 1000DC/2+V-FM protects 2-position DC voltage systems up to 1,000 V. VALVETRAB MS units are also available for other voltages commonly used in small-scale photovoltaic systems and power systems ranging from 12-600 Vdc. Rail-mountable arresters protect both insulated and solidly grounded systems. Protective circuit is thermally and dynamically monitored, and in event of damage, disconnects arrester from generator.

BVM Ltd    Southampton Hampsh SO30 0GH  United Kingdom
Aug 05, 2010 Including integrated graphics and video processing, 3.5 in. LE-376 is based on single core N450 and D410 and dual core D510 Intel Atom processors, all running at 1.66 GHz. It features ICH8M 3D GPU based on 3rd generation graphics core Intel GMA 3150 architecture that supports large display applications and dual display types such as VGA+LVDS. Accepting external 9-24 Vdc input, SBC has 2 SATAII interfaces, and 5 RS232C, 1 RS232/422/485, 3 Giga LAN, and 5 USB2.0 ports.

Anite    Berkshire SL1 4PF  United Kingdom
Aug 05, 2010 Nemo Outdoor v5.60 supports LTE tracking area update events, LTE handover and cell reselection events, and radio resource state events with LTE. It delivers diverse LTE scanner support, including R/S TSMW LTE scanning receiver, and also supports Qualcomm HSPA+ dual cell chipset MDM8220; multi cell measurement support enables logging of L1 and link adaptation parameters for primary and secondary channels. Other features include support for Qualcomm EVDO Rev. B chipset MSM7850.

Morse, M.K., Co., The    Canton, OH 44711
Aug 05, 2010 Available in 1, 1¼, and 1½ in. sizes, M-Factor CH Blades are engineered for cutting case hardened materials, while M-Factor GP Blades handle general purpose cutting of carbon steels and stainless steels. Made of sub-micron grade carbide, blades feature triple chip tooth profile and are available in variety of band widths and thicknesses.

Analog Devices, Inc.    Norwood, MA 02062-9106
Aug 05, 2010 Model AD9644 dual-output ADC consumes 423 mW at 80 MS/sec and features multi-stage, differential-pipelined architecture with output error correction logic. At 70 MHz and 80 MS/sec, it achieves SNR of 73.7 dBFS and SFDR of 92 dBc. ADC is available in 48-lead LFCSP package, while single output AD9641 is offered in 32-lead LFCSP, both incorporating JESD204A data converter serial interface standard with coded data rate that supports up to 1.6 Gbps per link.

Smart City Holdings, LLC    Las Vegas, NY 89118
Aug 05, 2010 Designed to streamline provision and sale of Internet services, Smart Connexion is intended for small and mid-sized convention facilities that do not have dedicated technical or customer service staff. All order processing, billing, credit card security, and financial reporting systems are built in to system. In addition, Smart Connexion provides interfaces needed for venue to communicate effectively with event managers on Internet orders.

Genedata AG    Basel CH-4016  Switzerland
Aug 05, 2010 Part of Genedata Phylosopher® biological data management system, PatentExplorer assesses patent situation of novel biomolecules and targets. Interdisciplinary solution integrates patent information to provide comprehensive and structured analysis of patented biomolecule sequences, related claim information, and freedom-to-operate, facilitating IP evaluation from business and biological standpoints. Functionality handles commercial data sources and publicly available patent information.

Acoustical Solutions, Inc.    Richmond, VA 23228
Aug 05, 2010 AudioSeal(TM) sound blanket line will include AlphaEnviro(TM) Baffle, AudioSeal(TM) Drop Tile Ceiling Sound Barrier, AlphaEnviro(TM) Wall Panel, AudioSeal(TM) Pipe and Duct Wrap, AlphaFlex(TM) Banner, and PolyWrap(TM) Baffle. Each contains Knauf Insulations's formaldehyde-free Ecose Brand Fiberglass, which is manufactured from naturally occurring and/or recycled raw materials, bonded using a bio-based technology, and 100% recyclable.

Scotchman Industries, Inc.    Philip, SD 57567
Aug 05, 2010 Able to swing 45° right or 60° left, 20 in. DS-20 horizontal band saw comes with quick-slide vise, 1¼ in. blade, saw guides with carbide inserts, and remote control console. Hydraulic clamping and head lift combine to provide semi-automatic cycle control Respective capacities for this general-purpose band saw at 90°, 45°, and 60° are 14 in. high x 20 in. wide, 14 x 14 in., and 14 x 10 in. Minimal maintenance is required.
