Sunnen Products Co.    St. Louis, MO 63143
Aug 06, 2010 Able to size and finish hard-coated small-engine cylinders to micron-level accuracy, SV-1000 Series utilizes TC superabrasive tools designed for blind, ported cylinder bores. Modular system is designed for part diameters from 0.120-2.56 in., and includes 10 hp, 100-4,000 rpm spindle. Measuring 95 x 91 x 107 in., unit includes servo-controlled stroking drive and load-sensing tool feed system that senses where and how much to hone bore. Fully automated versions can support up to 4 spindles.

Tungaloy America, Inc.    Wood Dale, IL 60191
Aug 06, 2010 Designed to reduce interference with workpiece, YWMT inserts can be used for wide array of copy turning. They enable chip control using ZF chip breaker for finishing or ZM chip breaker for semi-finishing. Units are offered in CVD coated carbide T9025 grade used for general turning of various steels, and PVD coated cermet GT730 grade for finishing and hard turning applications.

Vollmer of America Corp.    Carnegie, PA 15205
Aug 06, 2010 Combining rotary erosion and fluting with polishing wheel, Model QXD 200 provides mirror-like finish in single machine setup. Machine features 6 programmable axes as well as 6-position tool changer, which allows for flexibility in electrodes and polishing wheel selections that can be utilized in unattended operation. Offline simulation creates 3D model that can be incorporated into other software packages for verification of end results on tool geometry.

Zoller Inc.    Ann Arbor, MI 48108

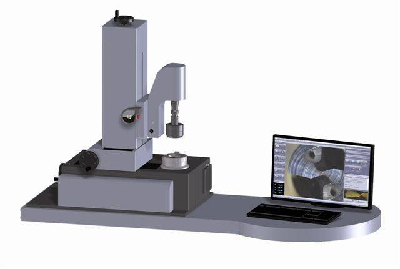

Aug 06, 2010 Intended for tool manufacturing industry as well as grinding and sharpening companies, »pom« Series Process Oriented Measuring Machines utilize CCD color cameras for precise inspection of cutting edge in incident light. Six-fold magnification provides option to measure both small and large tool geometries simultaneously. Automatically displayed in clearly laid-out overview table, measuring results can be printed, stored in ZOLLER database, or directly transferred to network.

Poindus Systems GmbH    Taipei 114  Taiwan

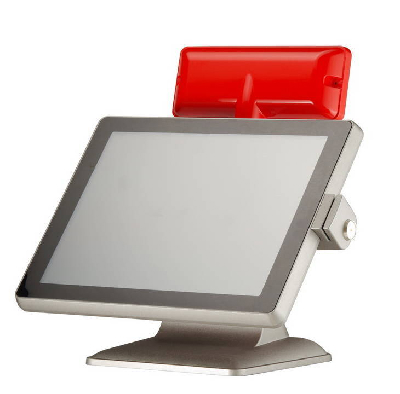

Aug 06, 2010 Based on Intel Pineview D-410/D-510 CPU that supports up to 2 GB DDRII memory, VariPOS(TM) 715 features scratch-resistant 15 in. color TFT LCD with 1,024 x 768 resolution. Utilizing projected capacitive technology, screen supports multi-touch function and permits intuitive, accurate operation. I/O connections include 4 x RS-232, 4 x USB 2.0, 1 x RJ-11, 1 x RJ-45 GigE port, and 1 x printer port. Featuring IP65-rated waterproof front panel, system is suited for retail and hospitality applications.

Newport Corp.    Irvine, CA 92606
Aug 06, 2010 Designed to connect directly to SmartTable-OTS frame, OTSE Integrated Overhead Shelf features 23.5 in. deep surface and 300 lb load capacity to accommodate large instruments. Blank front panel enables use in applications that may be sensitive to electrical fields generated by power outlet strips. Available in 6, 8, and 10 ft widths, shelf can be mounted in front, center, or rear of frame and provides full 5.5 in. of assembly height adjustment.

Alpha Vision Design,    Dublin 22   Ireland

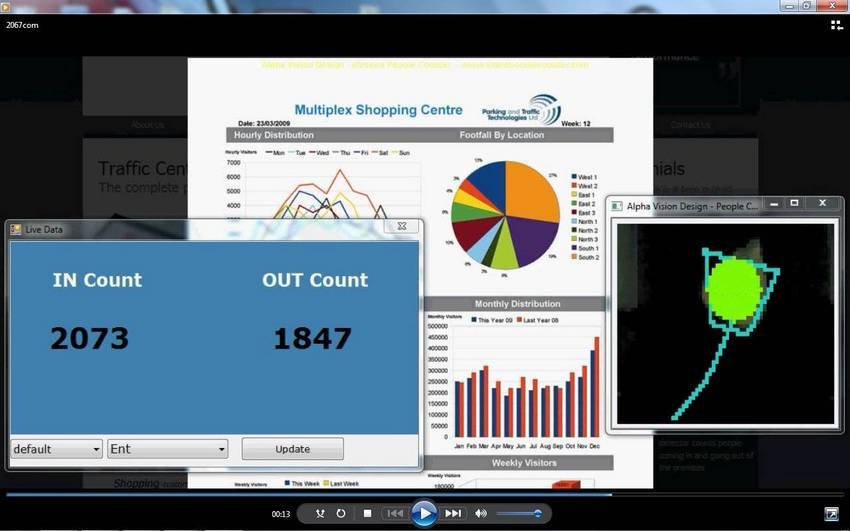

Aug 06, 2010 Employing volume measurement technology to count people, Ulysses bi-directional footfall sensor automatically tracks and counts number of visitors entering or exiting building. It can distinguish adults from children, pets, shopping carts, and strollers and is suitable for measuring pedestrian traffic on streets, within malls, stores, banks, and nightclubs. Unaffected by effects of A/C units, sunlight, and light changes/conditions, sensor can operate standalone or networked together.

Hielscher USA, Inc.    Ringwood, NJ 07456
Aug 06, 2010 Providing flow rate of approximately 1 lpm, Ultrasonic Glass Reactor Vessel offers clear visibility of cavitational process. Unit features 2 feedports on bottom side, which can supply 2 immiscible fluids into vessel. Fluid exits flow cell by discharge port on left side after passing cavitational hot spot generated at sonotrode. To control processing temperature, cooling or heating liquid can be pumped through cooling jacket.

Kurt Manufacturing    Minneapolis, MN 55421

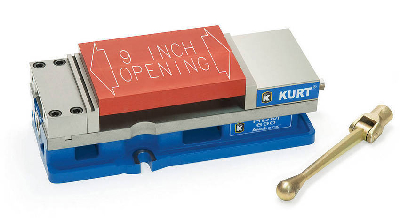

Aug 06, 2010 Suited for clamping large parts, Model HDM690 distributes up to 6,000 lb of clamping force evenly across jaw surface. Unit provides 0.0007 in. accuracy and minimal stationary jaw deflection. Constructed with 80,000 psi ductile iron body, vice features quick-change movable jaw, precision roller bearings, hardened vise screw mechanism, and AngLock® spherical segment in jaw that minimizes jaw lift. Pull-type body design stabilizes stress in body for accurate clamping.

Birchwood Casey    Eden Prairie, MN 55344 2138
Aug 06, 2010 PATINA GREEN(TM) forms mixture of different copper compounds on copper, brass, and bronze surfaces that appears similar to natural aging and oxidation of outdoor weathering conditions. For bright green or mint green finishes, it is applied onto clean copper, brass, or bronze surface using brush, dipping, or spray. It can also be applied as secondary treatment over brown or black base coat to create slightly muted tones that are somewhat opaque. Product is available in 1, 5, and 55 gal containers.

Aeroflex    Irvine, CA 92618

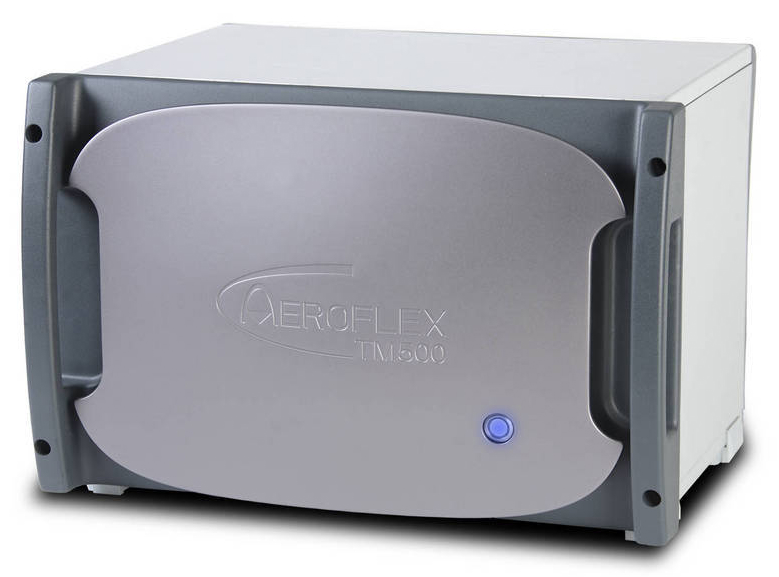

Aug 06, 2010 Combining MIMO with DC-HSDPA for 84 Mbps data rate, TM500 Test Mobile supports 3GPP WCDMA Release 9 standard, which permits concurrent operation of MIMO and DC-HSDPA. This doubles max data rate to 84 Mbps. Infrastructure test system enables 3G infrastructure equipment manufacturers to test DC-HSDPA base stations, accelerating development of infrastructure equipment and its deployment in networks. Model provides full implementation of HSDPA Categories 1-28.

Bel-Art Products    Wayne, NJ 07470
Aug 06, 2010 Constructed of polycarbonate, Scienceware® Clear View Glove Boxes come in 2-port 1 x 1 and 2 x 1 models as well as 3-port 3 x 1 model respectively measuring 87 x 61 cm, 132 x 61 cm, and 178 x 61 cm. All units are 66 cm high and can be customized. While 1 x 1 unit has side-entry single door pass-through, other units can be ordered with side-entry pass-through or with air lock double-door entry. Glove port holes accept standard glove box gloves and clamping rings or bellows style gloves.

Bel-Art Products    Wayne, NJ 07470
Aug 06, 2010 Model F50020-1010 1 x 1 Scienceware Clear View Fume Hood measures 26 x 24 x 26 in. and has single 6 in. OD top port hole opening for connection to exhaust system. Measuring 44 x 24 x 26 in., model F50020-2010, 2 x 2 hood includes two 6 in. OD port hole openings on top panel. Both hoods have sliding sash that can be lowered all the way or set at choice of two height positions. Suited for laboratory, classroom, or production facilities, units allow full visibility into hood from all sides.

CFR    Fort Worth, TX 76140
Aug 06, 2010 Cascade 20 carpet extractor utilizes Continuous Flow Recycling technology that enables cleaning solution to be filtered and recycled, minimizing need to refill tanks significantly. It also uses moisture controlled wand technology to remove deep-down soils, leaving carpets thoroughly clean with rapid dry times.

Gateway Safety, Inc.    Cleveland, OH 44131 1045

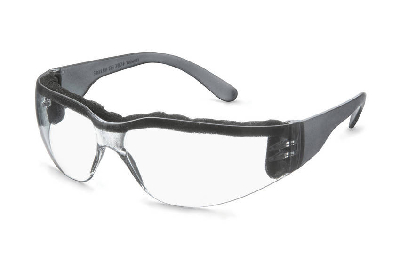

Aug 06, 2010 Designed to meet or exceed ANSI Z87.1+ standard, StarLite® FOAM features soft foam edge that blocks dirt and debris and helps absorb perspiration in warm indoor and outdoor work environments. Glasses are also suitable for those working with drywall or similarly dusty applications. To fight glare, scratch-resistant polycarbonate lens blocks more than 99.9% UV-A, B, and C light. Anti-fog lens helps prevent fogging when going from hot weather to air conditioning.

Agie Charmilles, LLC    Lincolnshire, IL 60069

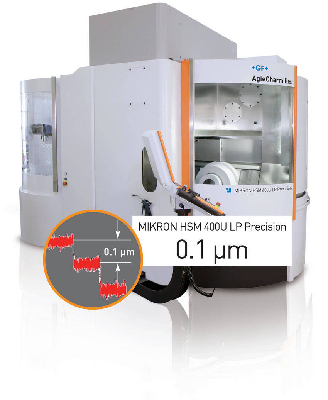

Aug 06, 2010 With Intelligent Tool Measurement feature, Mikron LP Precision Series provides optical tool measurement at full spindle speed. ITM records tool tip with image sensors and then uses specialized software to clean up image, resulting in ability to obtain tool measurement with absolute Z-reference in micron range. Each linear axis, as well as rotation/tilt unit, has its own cooling circuit. Quick dispersion of heat results in geometric stability that provides high repeat accuracy in axial movement.

Supertex Inc.    Sunnyvale, CA 94619

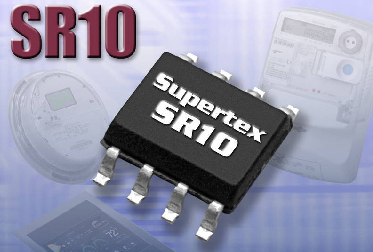

Aug 06, 2010 Designed for direct AC line operation, Model SR10 can be internally programmed at 6, 12, or 24 V, or can be externally adjusted with feedback divider from 6-28 V. Output current can be scaled via safety-rated, series coupling capacitor on AC line. IC also uses capacitor to meet voltage safety standards for load. Available in RoHS-compliant, 8-lead SOIC package, shunt regulator features standby power consumption of less than 20 mW and is suited for utility meters, A/V, or white goods.

Janus Remote Communications    Aurora, IL 60505

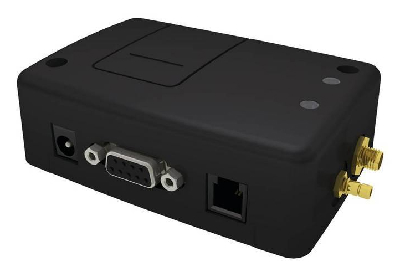

Aug 06, 2010 Featuring Sprint Certification, dual-band Terminus CDMA864D provides communication control over CDMA networks. Unit allows for stand-alone use via industry standard interconnects or system integration via standard 50-pin 0.1 x 0.1 in. dual row header. Offering ability to configure 9 GPIOs as CMOS input or output, device is suited for M2M telemetry and telematics applications including fleet and asset management, vending, security, and alarm monitoring.

Acromag, Inc.    Wixom, MI 48393 7037
Aug 06, 2010 Providing DB25 male to 26-pin female IDC ribbon cable connection, Model 4001-110 interfaces rack of up to 16 3B or 5B modules, providing conditioned voltage signals from analog sensors to Ethernet I/O modules. Converting signal conditioners' outputs to digital data, Ethernet I/O modules can provide Modbus TCP/IP communication to PCs, PLCs, and other distributed control devices. Typical applications include SCADA, process control, and test and measurement systems.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004

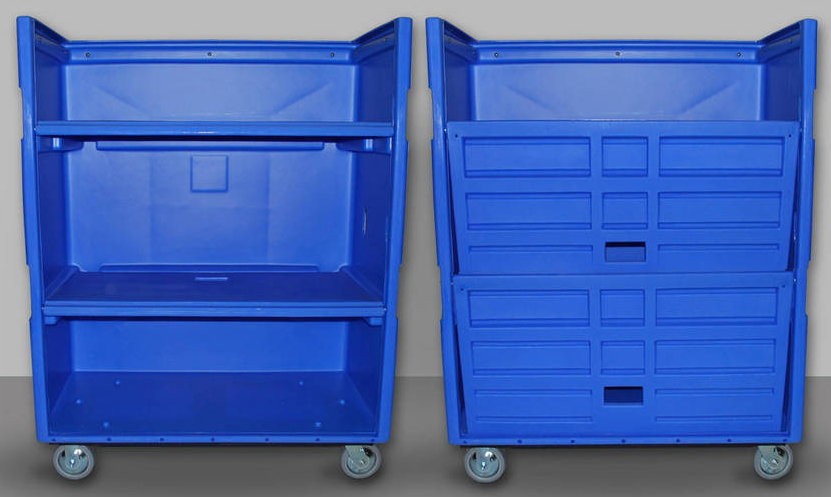

Aug 06, 2010 Standing 65 in. tall and offering 37 ft³ capacity, 103P bulk linen transport cart can upgrade existing laundry cart fleets without disrupting operations or inconveniencing staffers. Non-removable, hinged, plastic shelving design and dimensions provide staffers with access to top shelf for safe, efficient loading/unloading. One person can switch 2 plastic shelves from horizontal, clean linen delivery position to vertical, soiled linen return position in seconds without removing shelves.
