Absolute Analysis    Newbury Park, CA 91320
Aug 23, 2010 Supporting speeds from 1.25-6.25 Gbps, Investigator(TM) for RapidIO facilitates test, debug, and validation of Serial RapidIO. Unit provides full protocol decodes, intuitive display of data, and real-time statistics. Multiple protocols can be supported on same hardware, providing tools designers need to validate compliance and interoperability testing. Analyzer will interface into device under test using diverse range of methods, including SMA connectors, mid-bus probe, and custom connectors.

Bivar, Inc.    Irvine, CA 92618 2593
Aug 23, 2010 ORCAdapt(TM) consists of ORCA adaptor, with built-in ORCA Super Flux LED, and flexible light pipe system available in 1 or 2 mm sizes. Available lengths range from 2.5 in. to 238 ft, system works with single, bi-color, and tri-color ORCA LEDs. Press fit lens mounting facilitates installation and provides vibration and shock resistance. Featuring input-driven color adjustment capabilities, system suits field instrumentation, heavy equipment, and transportation applications.

Ruckus Wireless    Mountain View, CA 94043
Aug 23, 2010 Strand-mounted 802.11n WiFi access point, ZoneFlex(TM) 7761-CM, helps cable operators accelerate deployment of broadband wireless services. Functionality provides MSOs with flexible service options, including community WiFi, IP-based video applications, multimedia hotspots, extended WLAN services, and 3G data offloading. Plant-powered solution combines DOCSIS 3.0 modem with dual-band 802.11n smart antenna technology that supports dynamic beamforming.

Gleason Corp.    Rochester, NY 14692 2970
Aug 23, 2010 Available in variety of materials for wide range of applications, Opti-Form® Honing Wheels feature outside diameters from 270-400 mm with widths up to 60 mm and modules from 0.8-5 mm. Wheels are supplied with features like profile, lead crowning, and low run-out, minimizing amount of dressing and stock removal required before going into production.

ADSI    San Antonio, TX 78249
Aug 23, 2010 Suited for companies of any size, Ship-IT v4.0.5 automates filing of electronic SEDs (Shippers Export Declaration) through AESDirect.gov and also lets users add, edit, or delete hazardous codes from configuration menu. Drop-down selection of freight terms and terms of sale/purchase facilitates service level conversion, and other functionality aids retrieval of DOT Proper Shipping Name, Hazardous Class, Packing Group, DOT Required Label, and mass/capacity information.

austriamicrosystems AG    Premstatten   Austria
Aug 23, 2010 Supplied in 16-ball, 1.6 x 1.6 mm WL-CSP, Class G AS3560 and Class H AS3561 extend music playback time while maintaining optimal audio performance in any media device that uses headphones. These 30 mW amps minimize power consumption by continuously adjusting supply rails in response to input signal. Quiescent current is 1 mA (both channels enabled), shutdown current is under 5 µA, and amps maintain audio performance with greater than 100 dB SNR @ 1 Vrms and THD of 0.02% at 16 W.

Blue Sky Energy, Inc    Vista, CA 92081
Aug 23, 2010 Solar Boost(TM) 1524iX utilizes Maximum Power Point Tracking (MPPT) technology and carries dual 15/20 A rating for respective delivery of up to 15 and 20 A in 24 and 12 V systems. Other features include programmable Post-Dusk and Pre-Dawn lighting control, Low Voltage Disconnect, ability to charge second battery, and Integrated Power Net(TM) architecture. Auxiliary output can function as 15/20 A load controller or 2 A auxiliary battery charger.

CimQuest INGEAR    Phoenixville, PA 19460
Aug 23, 2010 INGEAR NET.LOGIX v3.0 enables those writing automation and control applications in Visual Basic.NET or Visual Studio C# to communicate with Allen-Bradley ControlLogix and CompactLogix programmable automation controllers (PACs) design custom communications and DAQ applications, and deploy them on as many machines as desired. This set of Visual Studio .NET class libraries includes PeerMessage class for Unsolicited Messages as well as DTEncoding class.

Malcom Co., Inc. (Distributor of LEISTER Hot Air Tools)    Tiverton, RI 02878
Aug 23, 2010 Powered by 48 V battery, Malcom MCH-100 delivers 1,000°F hot air at 2.66 cfm air flow through hand tool connected to water-resistant power pack with flexible 9 ft cord. Portable unit is suited for applying heat shrink tube and solder sleeves in remote locations and is available with selection of specialty nozzles. Equipped with shoulder strap, heat gun is also suitable for sensor testing, drying, de-icing, and plastic welding.

ICM Controls    Syracuse, NY 13212
Aug 20, 2010 Designed around ZigBee's Smart Energy profile for communication with smart meters, SimpleComfort® SE5000 programmable communicating thermostat (PCT) series features in-home energy display that lets end-user monitor key energy data in real-time. In-home display, coupled with residential thermostat, provides direct HVAC load control by utility companies serving Smart Grid customers. Series also offers multi-stage heat/cool compatibility with adjustable temperature differential.

Dematic Corp.    Grand Rapids, MI 49505

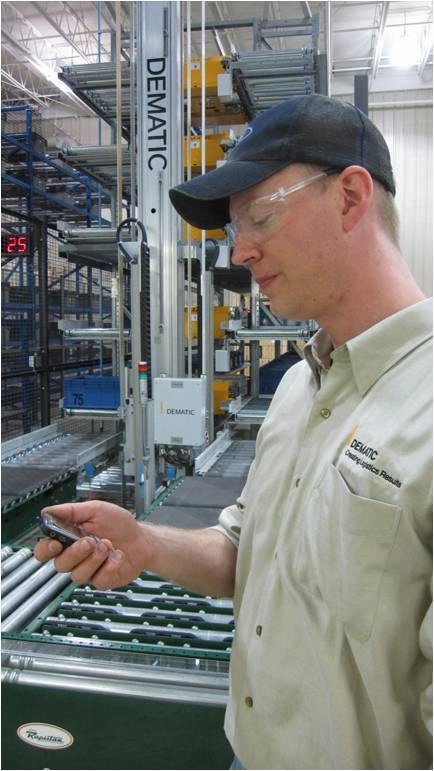

Aug 20, 2010 Alert Monitoring Service provides constant view of user's material handling system and provides notifications about status of controls, computer hardware, and equipment. It uses smart filters and monitors trends so operational and technical issues can be addressed before impact to system performance occurs. Dematic manages definition and configuration of metrics, alerts, and notifications so personnel automatically receive electronic alerts in case of configured and tracked condition.

Siemens Energy & Automation, Inc. Electronics Assembly Division    Norcross, GA 30071

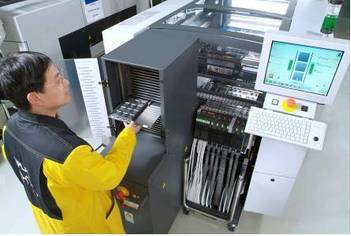

Aug 20, 2010 Featuring 1.90 x 2.65 m footprint, 4-gantry SIPLACE SX4 can be equipped with variety of placement heads, which can be changed in minutes when production requirements change. Machine can operate with all SIPLACE conveyor versions ranging from single transport to dual transport, as well as Quad Lane with 4 tracks for PCB sizes up to 285 x 150 mm. Software supports whispering-down-the-line features and station-by-station downloading of production data.

Siemens Energy & Automation, Inc. Electronics Assembly Division    Norcross, GA 30071
Aug 20, 2010 To realize its Capacity-on-Demand concept, SIPLACE SX placement platform employs SIPLACE MultiStar CPP head, flexible setup, and line concepts that enable production to adapt to order situation for electronics manufacturers. Self-calibrating and modular solution allows users to scale performance and capacity separately. By adding SIPLACE SX+ basic modules, which occupy 5 ft of line length, users can add up to 120 feeder positions.

G.R.A.S. Sound & Vibration A/S    Holte DK-2840  Denmark
Aug 20, 2010 Compatible with most signal analyzers and IEPE-type data acquisition devices, prepolarized CCP Type 50GI is supplied in kit form with phase matched ½ in. prepolarized intensity-microphone set, two ¼ in. CCP preamplifiers, 4 solid interchangeable spacers, windscreen, 2 BNC cables, and probe handle. Spacers allow microphones to be placed at varying lengths of 12-100 mm across full frequency range of 50 Hz to 10 kHz. Probe is suited for any sound intensity or sound power measurement application.

Schréder Lighting LLC    Elk Grove Village, IL 60007

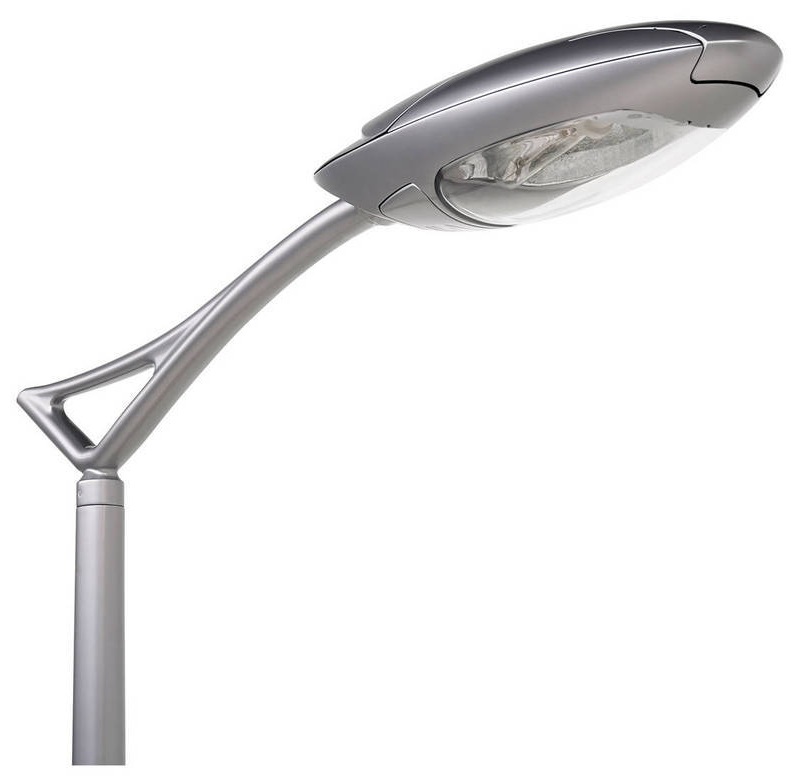

Aug 20, 2010 Using Philips® CosmoPolis HID lamp and ballast system, FURYO is designed for energy efficient roadway and architectural lighting. Compact miniR® and multilayer High Reflect HiR® reflectors promote optimal performance, while design separates control gear from lamp compartment to ensure extended life. Suited for public lighting, luminaire features IP66-rated Sealsafe® optical unit; separate IP66 compartment, thermally optimized for electronic ballast; and self-cleaning, flat or sag lens.

Kee Safety, Inc. (formerly Kee Industrial Products, Inc.)    Buffalo, NY 14206-2665
Aug 20, 2010 Designed for workers accessing roof during construction or maintenance, Kee® Walk protects roof and uniformly distributes pedestrian load. Modular system can be adjusted on-site and accommodates flat, barrel, or sloping roofs, with steps and traverse options allowing access for virtually any roof configuration from 0-35°. With raised rough surface and open design, treads offer slip resistance and enable drainage of water. Pre-assembled step configurations come in 3 ½, 4 ½, 5, and 10 ft lengths.

Linear Technology Corp.    Milpitas, CA 95035

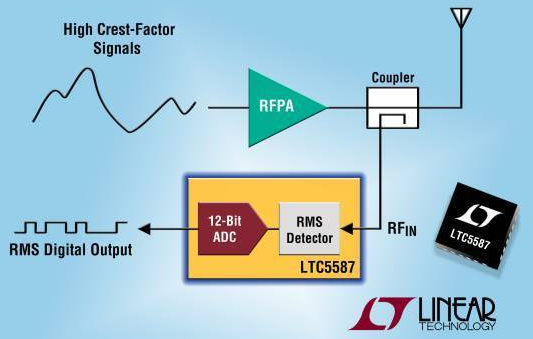

Aug 20, 2010 Supplied in 3 x 3 mm DFN package, LTC5587 has 40 dB dynamic range and integrates 12-bit serial ADC. Latter captures and digitizes detector measurement at rates up to 500k samples/sec and delivers data via bit stream over serial SPI port. Measurement accuracy of high crest-factor signals is ±1 dB, independent of modulation used, and product can operate over 10 MHz to 6 GHz range. Powered from single 3.3 V supply, IC offers 0.014 dB/bit measurement resolution.

APEM Components    Haverhill, MA 01835

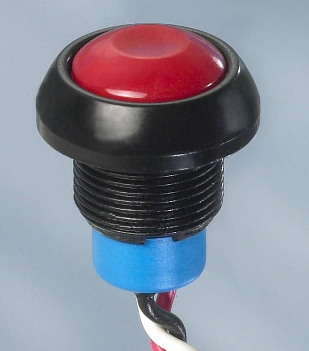

Aug 20, 2010 Sealed to IP67, IHS Hall Effect Pushbutton Switch is protected against immersion in water 15 cm to 1 m deep for 30 min. Contactless switching is achieved using Hall Effect sensor that varies output voltage in response to changes in magnetic field. Rated for 28 Vdc at 50 mA, switch features supply voltage of 3.5-24 Vdc and expected life of 5 million cycles. In off position, switch consumes 2.5-5 mA.

Endress + Hauser Inc.    Greenwood, IN 46143
Aug 20, 2010 Suited for monitoring influent and effluent at water/wastewater treatment plants, stationary Liquistation CSF48 and portable Liquiport CSP44 accept hot plug-and-play inputs from 2 digital sensors to measure nitrates, conductivity, oxygen, pH, ORP turbidity, or suspended solids. Stationary unit can be supplied with 17 bottle configurations, while portable unit can be supplied with 6. Both include 2 analog inputs, 2 binary inputs, 2 binary outputs, backlit display, SD card, and CDI-interface.

Triangle Manufacturing Co.    Oshkosh, WI 54903

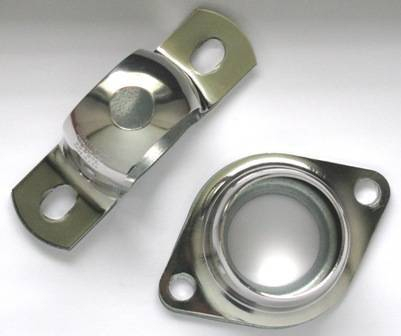

Aug 20, 2010 Designed to accommoate food processing industry demands, pillow block bearings may be used in conveying machinery, cutting and slicing machines, packaging mechanisms, and other environments where sanitation is prioritized. Hygienic and strength properties come from combination of corrosion-resistant stainless steel and pillow block design architecture. Proprietary stamping process maintains material strength and hygienic metal surface while minimizing material usage.
