Mazak Corp.    Florence, KY 41042 3092
Nov 30, 2009 Accommodating up to 5,500 lb on 59.1 x 31.5 in. work table, FJV-35/60 II employs 50 taper, 40 hp, 10,000 rpm spindle that generates up to 433 lb-ft torque for heavy-duty cutting of cast iron, steel, and aluminum workpieces. ATC tool chip-to-chip time is 5.0 sec, and 5-face machining option is available. In addition to feedrates of 1,574 ipm in X/Y axes and 1,181 ipm in Z axis, VMC features Z-axis stroke of 25.98 in. that enables machining of workpieces up to 25.20 in. high.

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 30, 2009 Powered by Intel® Atom(TM) N270 processors combined with 945GSE + ICH7M chipsets, 12.1 in. Model PPC-L128T and 15 in. Model PPC-L157T offer choice of standard SVGA resolution at 800 x 600 pixels or XGA resolution up to 1,024 x 768 pixels. Both are equipped with IP65/NEMA4 compliant front bezels and dual Gigabit Ethernet connectors supporting failover or LAN teaming. Model PPC-L128T optionally supports sunlight readable display, making it suitable for outdoor use.

Animatics Corp.    Santa Clara, CA 95054
Nov 30, 2009 Model SM3416DT-PLS2(TM) features 8-pole, segmented stator design and includes motor, amplifier, encoder, and motion controller in NEMA 34 frame. Programmable motion control system delivers up to 480 oz-in. peak torque, while maintaining over 200 oz-in. of continuous torque, and is capable of maximum speed of over 5,000 rpm. Registration function suits demanding packaging and labeling applications.

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 30, 2009 Embedded PCM-9588, powered by Celeron M CPU and Intel® 910GMLE chipset, supports dual display and has UL60601 medical certification. With 15.4 mm PCI slot as highest component on top side and 9.5 mm CF socket as highest component on bottom, this 203 x 146 mm form factor board can be integrated into 1U chassis and suits applications with space limitations. I/O connectivity includes USB 2.0, COM, GPIO, and 10/100 Ethernet with GbE option.

Exact Flow    Scottsdale, AZ 85260
Nov 30, 2009 Mini-Comp(TM) Dual-rotor Turbine Flow Meter, supported by miniature flow computer, tracks all variables to compensate for viscosity effects due to fluid temperature variations. It provides 3 msec response to output dynamic data in engineering units and has calibration uncertainty of ±0.05% of reading, repeatability of ±0.02%, and linearity of ±0.1%. Standard range is 0.035-6.0 gpm. Unit's pickoff system is impervious to vibration and provides RTD temperature sensor thermal well.

Animatics Corp.    Santa Clara, CA 95054
Nov 30, 2009 Combining controller, amplifier, and encoder into Brushless DC Servo Motor(TM), SmartMotor SM2315 is based on Animatics Motion Control Chip, which handles all processing functions, including PID loop, trajectory generator, user program execution, I/O control, and all communications over 3 serial channels simultaneously. Featuring die-cast aluminum housing, machine wound stator, and molded magnet, system delivers up to 30 oz-in. of continuous torque and operates up to 10,000 rpm.

Allegro MicroSystems Inc.    Worcester, MA 01615

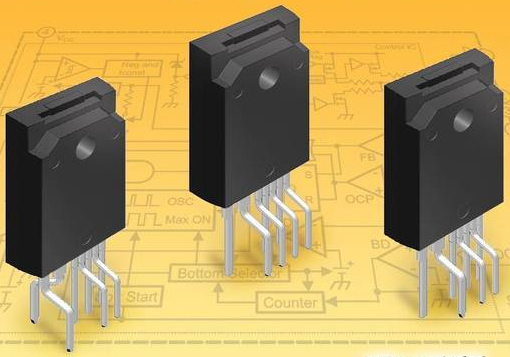

Nov 30, 2009 Series STR-X6700 is comprised of hybrid integrated circuits (HICs) with built-in power MOSFET and control IC designed for quasi-resonant type switch-mode power supplies. In normal operation, HIC promotes efficiency and minimal EMI noise with bottom-skip quasi-resonant operation during light output loads. Power consumption is also minimized by blocking (intermittent) oscillation during auto-standby mode on select models and reduced further in manually triggered standby mode.

Broadax Systems, Inc. (BSI)    City of Industry, CA 91748
Nov 30, 2009 Supporting Intel Core i7 and XEON 55 series processors, 3U Model RMS-343 features four 5.25 in. drive bays, two 3.5 in. drive bays, and up to 7 expansion slots. Supporting Intel and AMD processors, 4U Model RMS-575 provides three 5.25 in. drive bays, one 3.5 in. drive bay, and support for 7 full-size expansion cards. Both operate from 32-140°F, and are available with 250 GB 7,200 rpm SATA hard drive, 1 GB 800 MHz DDR2 memory, and 400 W 80Plus power supply.

Maxim Integrated Products    Sunnyvale, CA 94086
Nov 30, 2009 Housed in 3 x 3 mm, 14-pin TDFN package with exposed pad, Model DS1842 integrates 76 V current source and dual current mirrors for monitoring APD current. It also includes FET switch that is configured to work in conjunction with external DC-DC controller to implement DC-DC boost converter. Specified over -40 to +85°C extended temperature range, integrated circuit eliminates discrete high-voltage components required for APD biasing and current monitoring.

Micro-Epsilon UK Ltd    Cheshire   United Kingdom
Nov 30, 2009 Non-contact thermal sensor thermoMETER CT is suited for measuring temperature of metals, metal oxides, ceramic, and semiconductor materials from 700 to 1,800°C. Fiber optic pyrometer, insensitive to contaminants, provides faultless measurements and operates on 2-channel principle. Response times of 5 ms can be realized, and 25 mm dia x 70 mm long sensor head enables mounting in space-restricted areas. Additionally, sensor offers optical resolution of 80:1 with selectable focus.

Parker Hannifin - domnick hunter Industrial Div.    Gateshead NE11 0PZ  United Kingdom
Nov 30, 2009 Providing simple and routine removal of spectroscopic interferences, 40H-ICP is designed for use with Collision-Reaction Interface (CRI) of Varian 820-MS Inductively Coupled Plasma - Mass Spectrometer (ICP-MS). Generator produces 99.999% pure hydrogen from de-ionized water and electricity to provide constant, on-demand supply of gas to Varian's CRI. As safe alternative to high-pressure gas cylinders, product features automatic leak detection and 7-stage fail safe protection system.

Parker Hannifin Corp.    Oxford, MI 48371
Nov 30, 2009 DPS cluster makes complete vehicle information accessible in one location, optimizing operational efficiency and productivity for range of industrial vehicles. Supporting up to 4 CAN communication channels as well as USB, RS232, J1708, and LIN, UI has maximum of 39 digital inputs, 5 analog inputs, 2 frequency inputs, and 6 outputs. Outputs provide max current of 2.5 A as well as analog feedback for open circuit, shot to battery, and ground detection.

Cissoid    Mont Saint Guibert 1435  Belgium

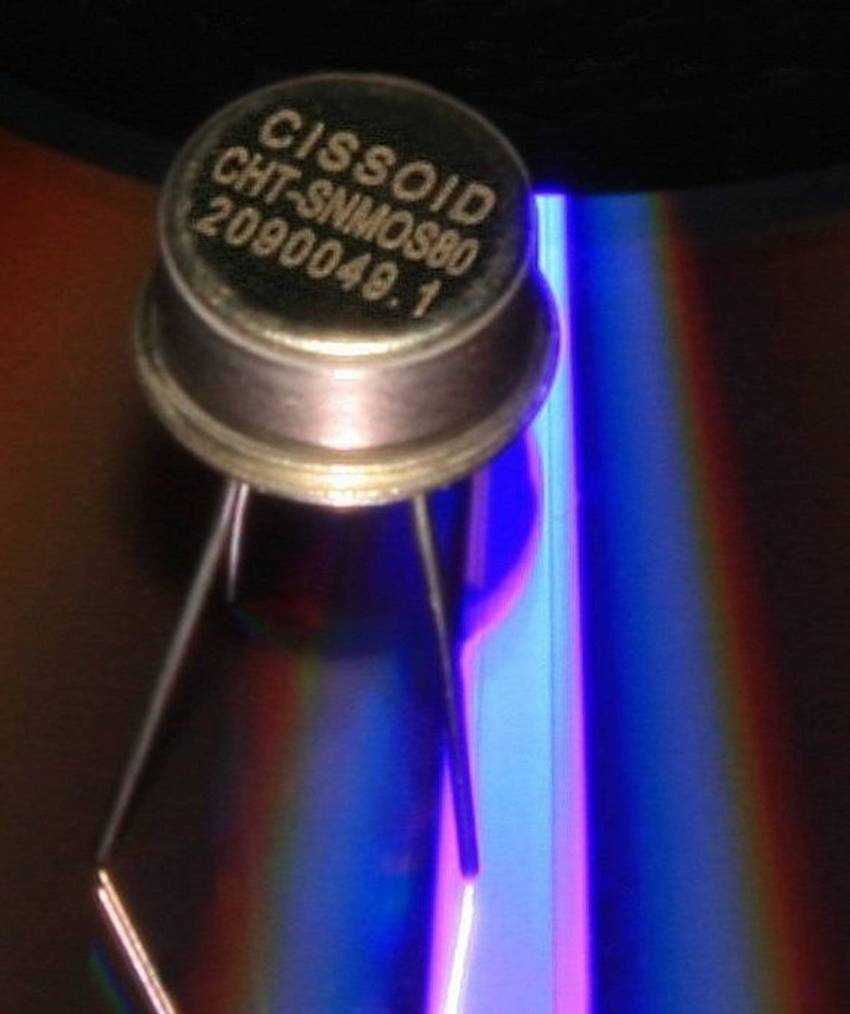

Nov 30, 2009 Model CHT-SNMOS80 small-signal N-channel MOSFET transistor, operating in temperatures from -55 to +225°C, has input capacitance of 32 pF and gate leakage limited to 5.6 µA at 225°C. It sinks up to 230 mA at 225°C and can convert 3.3/5 V logic signal to high-voltage open-drain output with turn on/off times lower than 5 nsec. With gate tied to source, unit can be used as 80 V small current diode for high reliability at high temperatures. MOSFET is available in TO-39 Metal Can package.

Z-Communications, Inc.    San Diego, CA 92126

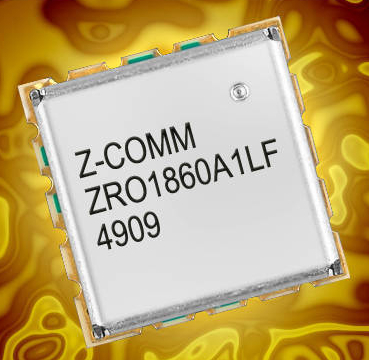

Nov 30, 2009 Model ZRO1860A1LF in L-band operates at 1,860 MHz with tuning voltage range of 0.5-4.5 Vdc and typical tuning sensitivity of 5 MHz/V. Unit delivers typical output power of 3 dBm at 5 Vdc supply while drawing 25 mA over -40 to +85ºC temperature range, and features 2nd harmonic suppression of -25 dBc. Suited for satellite communication and fixed wireless applications, it is available in MINI-16-SM package measuring 0.5 in. x 0.5 in. x 0.22 in.

STMicroelectronics    Lexington, MA 02421
Nov 30, 2009 Based on ST23 microcontrollers and secure operating system, AuKey turnkey solution helps brand owners authenticate products such as computer accessories, add-in cards, printer cartridges, network infrastructure products, and metering devices. AuKey supports advanced security crypto algorithms including AES shared-key system and Elliptic Curve Cryptography. Microcontroller and OS, together, also secure chip's data-read and data-write mechanisms.

Franklin International    Columbus, OH 43207
Nov 30, 2009 Covinax 404 vinyl acrylic copolymer was developed specifically for use in adhering vinyl to other substrates. It is suited for use with vinyl lettering applied on banners and other signage, works on metal, and performs well in outdoor environments. It features approximately 3 lb of peel and 3,000 minutes in shear, making it also useable as permanent general-purpose adhesive. It works well on many substrates, including polyester and paper as well as vinyl.

Flexaust Co., Inc., The    Warsaw, IN 46581
Nov 30, 2009 Available in 2-24 in. and 60-300 mm ID sizes, Flexaust Flx-Thane® MD polyurethane hose has 0.030 in. thick wall and comes in FDA-acceptable clear and black colors. Suitable for light bulk material transfer and fume evacuation applications, rugged hose features smooth interior, 4:1 compressibility, resists most chemicals, and remains flexible at temperatures from -65 to 225°F. It is offered in standard 25 and 50 ft lengths; factory installed 2 in. soft cuffs are optional.

CUI, Inc.    Beaverton, OR 97005
Nov 30, 2009 Offering 2-bit quadrature resolution with square wave output signal, C14 panel mount optical encoder suits application in industrial equipment, portable communication equipment, and medical equipment. Series has 16 or 32 angle of throw position along with 3 shaft options that include 3.175 mm with slotted end, 6 mm dia round, and 6.35 mm with D-cut. Termination options included are solder holes, 130 mm cable with connector, and pcb or panel mount.

Spectro Coating    Leominster, MA 01453
Nov 30, 2009 Available in 54 in. widths on polyester base in plain or textured finish, NFPA 701 passed VividHD(TM) flocked fabrics accept direct sublimation printing onto fiber to create colorfast, brilliant pictures, graphics, and patterns. They feature soft plush pile, are not pretreated or coated, and are washable. Suitable applications include banners, signage, draperies, contract fabrics, heat transfers, and gaming tables.

Tumbler Technologies, Inc.    Santa Clara, CA 95054

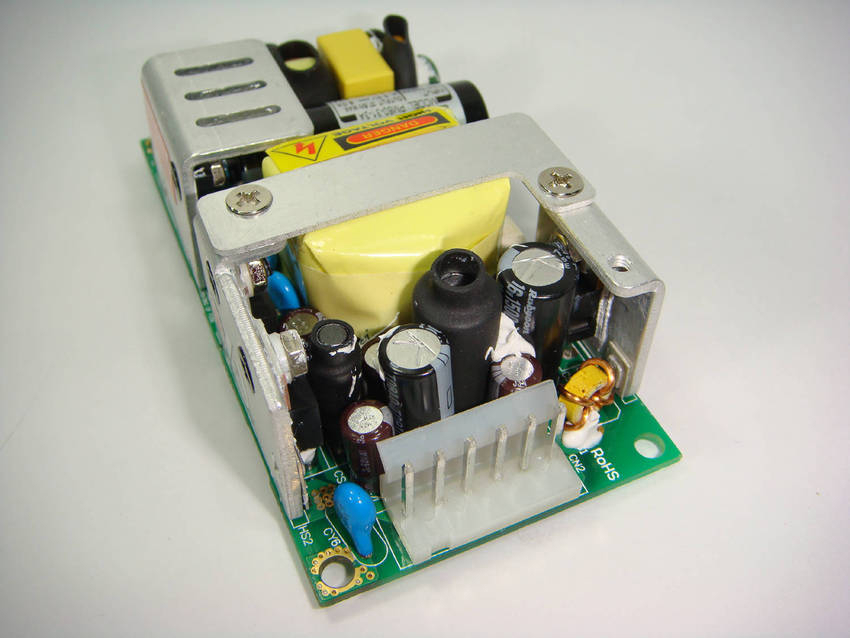

Nov 30, 2009 Available in 12 standard models, TMC60 series 37.5-64 W AC/DC switching power supplies have output voltage ranges from 5-48 Vdc, and input voltages within 90-264 Vac, 47-63 Hz. They offer min MTBF of 400,000 hr at full load and 25°C ambient, calculated per MIL-HDBK-217F. Withstand voltage is 4,000 Vac from input to output, 1,500 Vac from input to ground, and 500 Vac from output to ground. Earth leakage current is 150 µA max at 264 Vac/60 Hz.
