Saelig Co., Inc.    Pittsford, NY 14534
Dec 04, 2009 GTO(TM) helps locate single or multiple components on PCBs featuring up to 2,000 components. Combination of top and bottom Gerber silkscreens, pick-and-place drill files, and formatted Bill Of Materials produces single, unified PCB image that lets users perform various tasks by showing exactly which parts need to be located in which precise locations on PCB. GUI tool also provides instant parts identification and supports direct ECN/EAR integration.

NKK Switches    Scottsdale, AZ 85260-3420
Dec 04, 2009 Offered in SPST and DPST models, CWSB Series is rated 6 A at 250 Vac for resistive load with minimum mechanical life of 30,000 operations, minimum electrical life of 10,000 operations with resistive load, and 6,000 operations with inductive load. RoHS-compliant units feature stationary contact construction, polycarbonate housing, and polyamide actuator. Snap-acting contact mechanism delivers smooth actuation and audible feedback, while I/O inscriptions offer visible status indication.

General Kinematics Corp.    Crystal Lake, IL 60014
Dec 04, 2009 STM-S series utilizes 2-mass/sub-natural frequency drive design to boost throughput while utilizing less horsepower for mining and mineral processing industry applications. Design allows for accelerated unit removal for reconditioning, and modulated polyurethane screen decks are designed to facilitate installation and replacement. Dual in-board vibratory motors eliminate belts, shafts, and bearings for increased uptime and extended service intervals.

L-Com, Inc.    North Andover, MA 01845

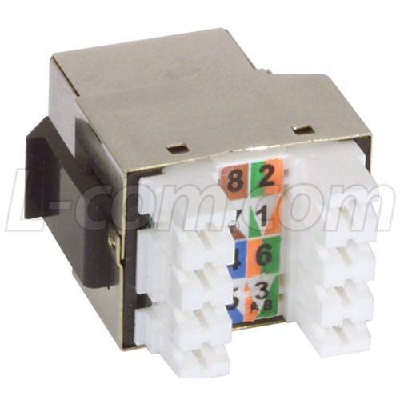

Dec 04, 2009 Supplied with color coding for EIA/TIA 568A and B wiring, wire guard, and solderable shield box, Shielded Side-Exit Jack is suited for installation in tight spaces, where RFI/EMI is problematic, and Category 5e performance is critical. Jack features keystone style front for snap-in to wall plate or panel, and 180° termination to allow cable entry from side.

L-Com, Inc.    North Andover, MA 01845
Dec 04, 2009 RoHS-compliant item No. R05-EXT-DSS extends digital video signals up to 100 ft @ 1,024 x 768 XGA or 50 ft @ 1,600 x 1,200 UXGA resolution for digital signage market. Featuring plug-and-play operation, it does not require software or external power, and each RJ45 jack supports Cat 5 or better UTP cables. Extender kit consists of 2 DVI Female connectors to Cat 5e jacks to be installed at each end of Cat 5 UTP cable run.

Protek Test & Measurement    Englewood, NJ 07631
Dec 04, 2009 Model Z8900 LCR meter offers 6 measurement modes at test frequencies of 100 Hz, 120 Hz, 1 KHz, or 10 KHz, with drive voltages of 0.1, 0.3, or 1.0 V and measurement rates to 12/sec. It includes comparator that sorts components by value/tolerance, RS232 interface for remote operation, parts handler interface to operate sorting equipment, and 5-digit dual LCD. Measuring 13 x 15.7 x 6 in., it operates in temperatures from 32-104°F and requires 220 or 120 V, 50/60 Hz AC power.

Young Engineering Mfg., Inc.    San Dimas, CA 91773
Dec 04, 2009 Able to withstand 5x rated pressure before failure, UL-approved 1 gal non-repairable Bladder Expansion Tank (BET) protects anti-freeze sprinkler systems in commercial and residential applications from damaging effects of thermal expansion. By absorbing expanding fluid, internal system pressure is controlled within safe level. Industrial-strength tank, designed to 175 psi, is manufactured in accordance with ASME code Section VIII, Div 1 and exceeds safety requirements of UL and NFPA.

Macro Sensors    Pennsauken, NJ 08110 1334

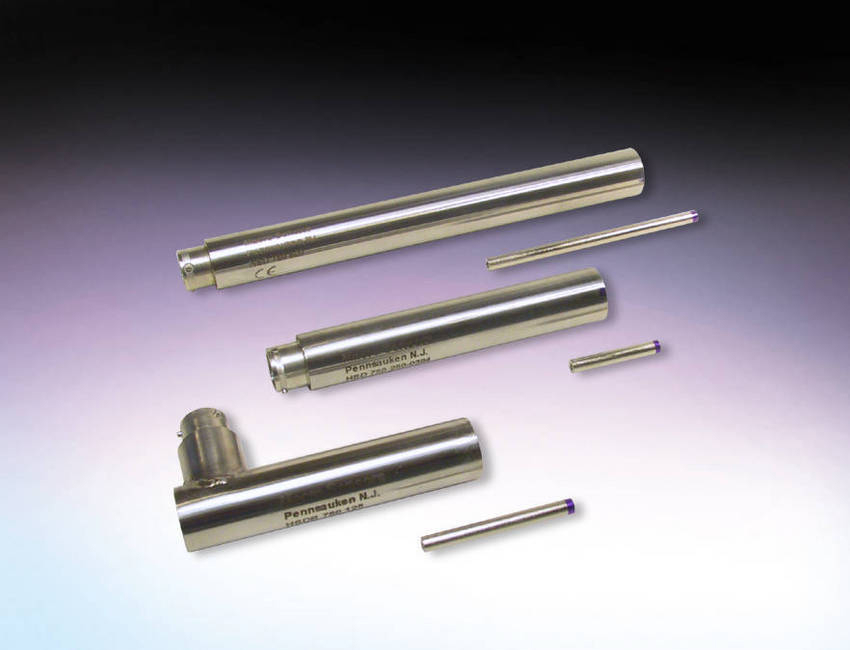

Dec 04, 2009 HSD/HSDR 750 Series hermetically sealed linear position sensors operate from ±15 Vdc input and offer precalibrated 0 to ±10 Vdc output, offering easy integration with PLCs, digital indicators, ADCs, and data processors. Coil windings are sealed against hostile environments to IP68, and sensors are impervious to dirt, water, steam, and other corrosive elements. Available in ranges of ±0.050 to ±10.0 in., sensors are offered with options including Teflon® bore liners and metric threaded cores.

E Instruments International LLC    Langhorne, PA 19047

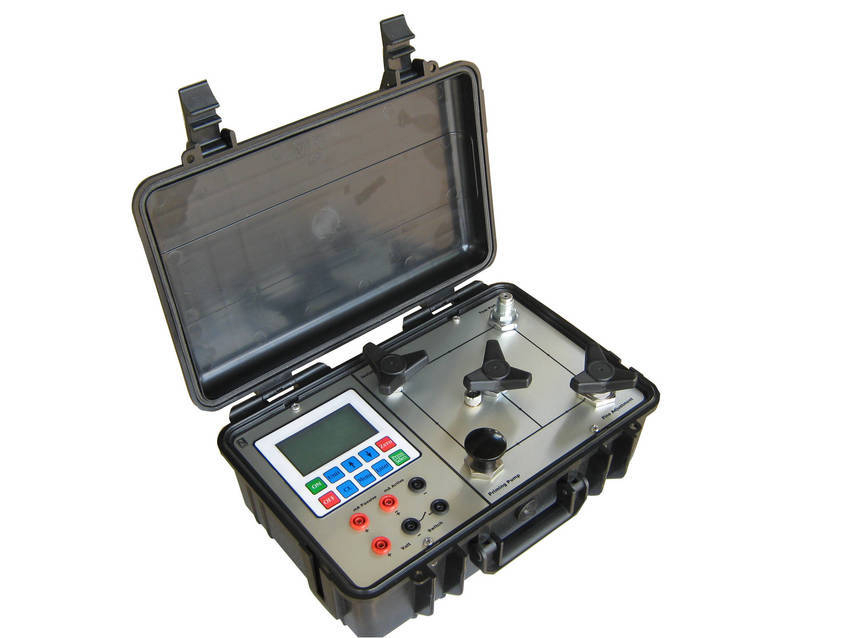

Dec 04, 2009 Offered in pneumatic or hydraulic models, PPC Series is used to check calibration of pressure, differential pressure gauges, and many other types of pressure switches and recorders. Range is -0.85 to 400 bar pressure with overall accuracy of ± 0.05% FS + 1 digit and temperature compensated between 0-50°C. Multiple engineering units are supported. Electrical Specifications include voltage range of 0-30 Vdc and pressure switch test of 9 Vdc max with 0.01 mA/V resolution.

Mass-Vac, Inc.    North Billerica, MA 01862 0359
Dec 04, 2009 Able to collect up to 3,000 in³ of solids, MV Multi-Trap® vacuum pump inlet trap features knock-down stage with integral 500 in² water-cooled baffle wrapped with 3/8 in. cooling tube to help condense material entering trap. Unit measures 30 in. high x 12 in OD and has ISO 80 port. Water-cooled baffle is 20 in. high x 10 in. OD and surrounds 2 stages of five 9.5 in. filter elements. Filters offered include stainless steel, copper-gauze, and polypropylene in 2-, 5- and 20 µm sizes.

Binder-USA, LP    Camarillo, CA 93012

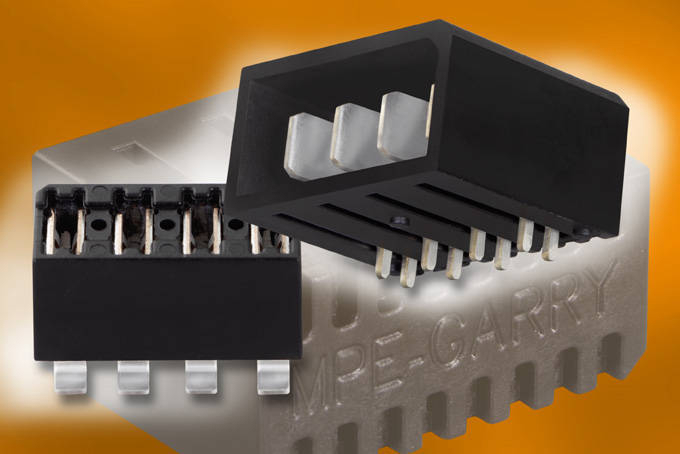

Dec 04, 2009 Suited for board-to-board connection in solar panel industry, PCB power connector has continuous operating voltage of 600 Vac and can withstand temperatures in range of -40ºC to 105ºC. It is built on 5.08 mm pitch. Parts are available as board-to-board connectors with 2, 4, 6 and 8 contacts for surface-mount, through-hole and pin-in-paste technology.

Altera Corporation    San Jose, CA 95134
Dec 04, 2009 Supporting mainstream serial protocols, Cyclone® IV series responds to bandwidth requirements driven by demand for mobile video, voice, and data access. Cyclone IV GX devices, supplied in packages down to 11 x 11 mm, have up to 150K logic elements, up to 6.5 Mbit RAM, 360 multipliers, and 8 integrated 3.125 Gbps transceivers. Cyclone IV E devices offer features suited for power-sensitive applications such as handheld software-defined radio.

Conexant Systems, Inc.    Newport Beach, CA 92660
Dec 04, 2009 Supplied in 76-pin QFN package, CX2070X series includes audio/voice DSP, multi-bit codec, digital and analog I/O interfaces, and 2.5 W/channel Class-D amp to drive stereo speakers or optional PWM and differential line-out for external speaker systems amps. Dual dynamic noise reduction filters for incoming and outgoing audio streams eliminate ambient near- and far-end noises, while sound is further enhanced via beam forming as well as sub-band acoustic and line echo cancellation.

Freescale Semiconductor    AUSTIN, TX 78735-8598
Dec 04, 2009 Housed in lead-free package, 12-electrode Model MPR121 features 1.71-3.6 V operation and average supply current of 29 µA. Capacitive touch sensor includes hardware-configurable I2C address, expanded filtering system with debounce, and independent electrodes with auto-configuration built in. Compatible with more than 300 8-bit microcontrollers, Touch Sensing Software Suite enables range of features including rotary, slider, and keypad functionality.

Freescale Semiconductor    AUSTIN, TX 78735-8598
Dec 04, 2009 Providing 2 portable demo boards, one sensor transceiver board, and one USB receiver board, RD3965MMA7660FC ZSTAR3 reference design facilitates demonstration and evaluation of accelerometer-based applications with low-power wireless connectivity. Included MMA7660FC triple-axis accelerometer enhances mobile phone and small appliance UIs with features such as tilt orientation and gesture detection. Wireless communication is enabled by 16-channel MC13213 ZigBee-ready 2.4 GHz transceiver.

Imagination Technologies Ltd    Hertfordshire WD4 8LZ  United Kingdom
Dec 04, 2009 Combining general purpose and DSP capabilities within hardware multi-threaded execution infrastructure, Series2 META 32-bit SoC processor IP cores promote optimal processor utilization and tolerance to SoC system latencies. Products deliver ability to respond to external event within one clock cycle while also providing Linux/Android applications processor platforms with coherent caches and MMUs. Other features aid efficient integration with multi-standard communications engines.

StoredIQ, Inc.    Austin, TX 78745
Dec 04, 2009 StoredIQ Assessment Services provide visibility into unstructured data across enterprise from sources such as storage, email, archiving, content, document and record management systems, as well as remote desktop environments. This gives organizations critical understanding of their business content, enabling them to make informed decisions about management, retention, and disposition of data. Services also help comply with PII and PCI laws as well as GLBA and HIPAA standards.

Lattice Semiconductor Corp.    Hillsboro, OR 97124
Dec 04, 2009 Featuring DSP capacity of 320 18 x 18 multipliers, 6.8 Mbits of memory, and up to sixteen 3.2 Gbps SERDES channels, LatticeECP3(TM)-150 is suited for complex Wireless Remote Radio Heads such as MIMO-based RF antenna solutions. Device also provides Wireline Access developers with low-power Ethernet, SONET, and PCI Express solutions. FPGA is supported by ispLEVER® v8.0 design suite, which provides tools for project management, IP integration, design planning, and power analysis.

FiberGraf Materials LLC    Nashport, OH 43830
Dec 04, 2009 GrafMat materials, produced by graphitizing fiber/resin mixture at very high temperatures in solid format, provide process engineers with fine powder graphite particle that can be mixed precisely into resin systems for enhanced thermal, electrical, and mechanical improvements. Grades offered are GrafMat A50, A275, and A500 with 50, 275, and 500 micron particle lengths, respectively. Bulk density of powder, at 0.87 gm/cc, allows high fiber loadings on volume percentage basis.

EXAIR Corporation    Cincinnati, OH 45249-1621
Dec 04, 2009 Producing laminar sheet of airflow that is infinitely adjustable to blowoff, dry, or cool surfaces up to 96 in., Long Super Air Knives minimize compressed air use by entraining 40 parts room air to 1 part compressed air. Units feature 1.75 x 1.44 profile with compressed air inlets located on each end and bottom to permit mounting in tight spaces. Available in 60, 72, 84, and 96 in. lengths, air knives come in aluminum, Type 303 SS, or Type 316 SS and have no moving parts.
