Philips Lighting Co.    Somerset, NJ 08875
Dec 10, 2009 Suitable for both new construction and retrofit applications, EssentiaLine(TM) 0-10 V Ballasts are compatible with daylight sensors or wall dimmers as well as existing fluorescent lamps and 0-10 V dimming controls. Units are available in 2-lamp T8 models with .88 Ballast Factor and dim lamps from 100% down to 20% power. RoHS-compliant ballasts meet all NEMA Premium® and CSA energy efficiency requirements.

Strategic Test Corporation    Woburn, MA 01801-1915
Dec 10, 2009 Measuring 67.6 x 26 x 4.2 mm, Model TX51 contains ARM8 Cortex 800 MHz i.MX51 processor coupled with 128 MB mobile DDR-SDRAM, 128 MB NAND Flash memory, and 200-pin SODIMM connector. Module features LCD resolution up to 1,280 x 768 pixels at 24 bpp, OpenGL ES 2.0 and OpenVG 1.1 hardware accelerators, and multi-format HD 720p video decoder and D1 video encoder engine. Suited for embedded multimedia applications, Model TX51 also offers high-speed USB 2.0 OTG and Host, and 10/100 Mbps Ethernet.

CDCLarue Industries, Inc.    Sand Springs, OK 74063
Dec 10, 2009 Standing 25 in. tall with 16 in. dia, 30 lb Pulse-Bac® PB-550 collects up to 8 gal of dust/debris generated by hand tools used to cut, grind, or sand. It can generate over 121 cfm air flow, offers 74 in. of lift, and features 2-stage filtration compliant with 2010 EPA standards. While first filter captures particles down to .5 micron, second stage delivers .3 micon efficiency. Automatic Self-Cleaning Vacuum Control Technology allows extended working periods without filter clogging.

Linear Technology Corp.    Milpitas, CA 95035
Dec 10, 2009 Supplied in 3 x 3 mm package, LT3686 step-down switching regulator operates from 3.6-37 V range and offers programmable switching frequency from 300 kHz to 2.5 MHz. Internal 1.85 A switch delivers up to 1.2 A continuous output current at voltages down to 0.8 V, and overvoltage lockout protects regulator and load from transients. Design ensures constant frequency switching, even in very light load conditions, and integrates boost diode, oscillator, control, and logic circuitry.

Advantech Co.Ltd.      Taiwan
Dec 10, 2009 Driven by 45 nm Intel® Atom(TM) N270 processor, PCM-9361 employs 945GSE and ICH7M chipset and uses integrated Intel GMA950 graphic engine. Support for multiple display outputs includes 36-bit LVDS1, 48-bit LVDS2, CRT, and 18-bit TTL LCD. Available with up to 2 GB DDR2 memory and range of I/O, communications, and expansion options, SBC supports QNX as well as Windows 7/Vista/XP/XPe/WinCE 5.0/WinCE 6.0 OSs. Total height, including fanless heatsink, is 27 mm.

Ansys, Inc.    Canonsburg, PA 15317
Dec 10, 2009 While leveraging Smart Engineering Simulation(TM) to automate design and analysis cycles, ANSYS® v12.1 also extends integration with industry applications - for electronics, polymer and glass-forming, and hydrodynamic applications - into ANSYS Workbench(TM) environment. This fosters accelerated modeling and range of cross-physics integration. Further functionality lets users record, customize, and automate analysis steps through journaling and scripting.

King Engineering Corp.    Ann Arbor, MI 48106
Dec 10, 2009 Designed specifically for fluid processing operations, KING-GAGE® LP3 Liquid Level Gauging System delivers graphic display of inventory status within horizontal or vertical tanks. Inventory monitoring package performs analog signal acquisition and ensures accurate volumetric measurement using preconfigured application dataset. Able to monitor up to 32 tanks, system includes color TFT LCD touchscreen, integrated web server, and support for Modbus TCP/IP and Ethernet/IP.

King Engineering Corp.    Ann Arbor, MI 48106
Dec 10, 2009 Applicable to most tanks or process vessels whose contents remain at normal atmospheric pressure, KING-GAGE® ES2 Transmitters have IP68 rated connections and offer resistance to moisture, condensation, and aggressive cleaning agents in heavy washdown installations. Transmitter turndown ratio is 3:1 for 0-15, 0-30, and 0-50 psig nominal ranges. Providing 4-20 mAdc output signal, transmitters are compatible with PLCs or other control architectures using analog I/O.

PDC International Corp.    South Norwalk, CT 06854
Dec 10, 2009 Without using vacuum, pneumatics, or spinning knives, F-160 Evolution Shrinkbander applies shrinkbands 1-2.3 in. in height and 2.5-6.75 in. dia around lids of tapered and straight-wall tubs used for food and dairy products. Fully mechanical solution uses dual servos for product handling and sleeve feeding. Offered in 3 standard models with line speeds from 30-400 cpm, product incorporates touchscreen interface, static eliminator, low material sensor, and Mitsubishi PLC control.

Henkel Corporation    Rocky Hill, CT 06067
Dec 10, 2009 Loctite® Head Bolt and Water Jacket Sealant is designed for use on threaded fasteners such as head bolts that penetrate into water or chemical jackets. It lubricates threads, ensuring consistent torque during assembly, and also acts as anti-seize agent. Suited for bolts with ½-¾ in. dia and long engagement areas, black anaerobic paste resists temperatures of -65 to +300°F and handles pressures to 10,000 psi. It is available in 50 mL tube for hand application.

Tregaskiss, Ltd.    Oldcastle, ON N0R1L0  Canada
Dec 10, 2009 Available for semi-automatic and robotic MIG guns, QUICK LOAD(TM) Liners minimize downtime for MIG gun liner installation and also facilitate regular/routine maintenance. Each liner, made of high carbon steel, consists of 2-piece system with retainer that installs in power pin on first use. Offered in lengths to 25 ft for semi-automatic MIG guns and 15 ft for robotic applications, products accommodate wire diameters from .035-1/16 in.

Sauer-Danfoss    Ames, IA 50010
Dec 10, 2009 Designed to complement H1 axial piston pumps, H1 60 cm³ Motors are optimized for electrical control and are fully PLUS+1(TM) compliant, enabling seamless integration with company's electronic control architecture. Variable displacement motors are designed with IP67 and IP69K rating to withstand harsh working environments. Centered on displacement ratio of 32°, motors are suited for rough terrain forklifts, combines, sprayers, road rollers, wheel loaders, and road building equipment.

Olympus NDT    Waltham, MA 02453
Dec 10, 2009 Consisting of COBRA 1-axis manual scanner, OmniScan® MX Phased Array flaw detector with 16:128 module, and OmniScan MXU software, system offers inspection solution for circumferential welds in pipes with diameters as small as 0.84 in. OD. Featuring spring-loaded design, COBRA clamps onto carbon steel and stainless steel pipes and can hold 2 low-profile phased array probes for complete inspection of weld in one pass. Scanner is waterproof, rustproof, and CE compliant.

Z-Communications, Inc.    San Diego, CA 92126

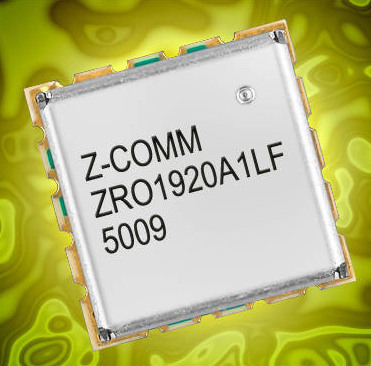

Dec 10, 2009 Operating at 1,920 MHz with tuning voltage range of 0.5-4.5 Vdc, L-band Model ZRO1920A1LF features typical phase noise of -117 dBc/Hz at 10 kHz offset and typical tuning sensitivity of 5 MHz/V. Unit delivers output power of 2.5 dBm at 5 Vdc supply while drawing 25 mA over temperature range of -40 to 85°C. Housed in MINI-16-SM package measuring 0.5 x 0.5 x 0.22 in., RoHS-compliant VCO features typical harmonic suppression of -25 dBc.

Sealed Air Corp., Engineered Products Div.    Danbury, CT 06810
Dec 10, 2009 Instapak® Complete(TM) foam-in-bag packaging system produces Continuous Foam Tubes (CFTs) as small as 1 in. dia. System allows operators to create protective foam packaging with 24 preset combinations for creating CFTs and foam-filled bags. Combinations are selected using Instapak® Complete(TM) system interface. Programmable perforation technology applies perforations between tubes for separation so that desired amount can be obtained.

Sealed Air Corp.    Saddle Brook, NJ 07663-5291
Dec 10, 2009 With NewAir I.B.® Express, users can create Barrier Bubble® material that can be used for cushioning, blocking, and bracing applications. System offers variety of film sizes and includes options for film strength to accommodate variety of applications. By creating packaging materials on-site and on-demand, system eliminates need to store bulky materials. It is compatible with roll winder attachment, Instasheeter(TM) converting system, and Jet Stream(TM) delivery system.

Xactly Corp.    San Jose, CA 95126
Dec 10, 2009 Xactly Territories(TM) enables companies to utilize real-time data to assign proper credit for compensation to sales representatives, and daily reports summarize credits prior to commissions being paid. Program automates management of sales representative's territory definitions to maximize performance, including modifying distribution of zip codes, area codes, and products sold. It also supports collaboration between sales management, executives, and sales operations personnel.

CODA    North Yorkshire   United Kingdom
Dec 10, 2009 Leveraging SOA capabilities, CODA Financials v11.3 provides financial support to retailers by providing stream of cohesive, actionable data. Additional features include international capabilities, dual line level and quantity invoice matching, as well as group level balancing. Also, customization capabilities let users create screens, actions, and activities that match work needed to get done. Further functionality also eliminates need for additional procurement software.

Direct Insight Ltd    Banbury OX17 2DH  United Kingdom
Dec 10, 2009 Measuring 68 x 26 mm, TRITON-TX51 is 200-pin SODIMM module based on Freescale i.MX51 device which features 800 MHz ARM® Cortex-A8 core with NEON Floating Point Unit, PowerVR graphics engine, and video codec with up to 720p resolution support. Module operates from single 3.0-5.5 V supply, provides 128 MB mobile DDR400 RAM and 128MB NAND Flash as well as power management and external real-time clock. Support is provided for Windows CE 6.0 and Linux 2.6.

Altium USA    Lyme, CT 06371
Dec 10, 2009 Designed to work with fixed-FPGA NanoBoard 3000 and fully-configurable NanoBoard NB2, Prototyping Peripheral Boards eliminate need to create custom PCBs for circuit prototyping. Single on-board connector plugs into NanoBoard to give direct access to I/O on host NanoBoard FPGA and common NanoBoard resources, including power and JTAG lines. Pre-defined land patterns for SMDs accommodate pitches of 0.5, 0.65, 0.8, and 1.27 mm, and each SMD pad is connected to 0.5 mm hole.
