Binder-USA, LP    Camarillo, CA 93012

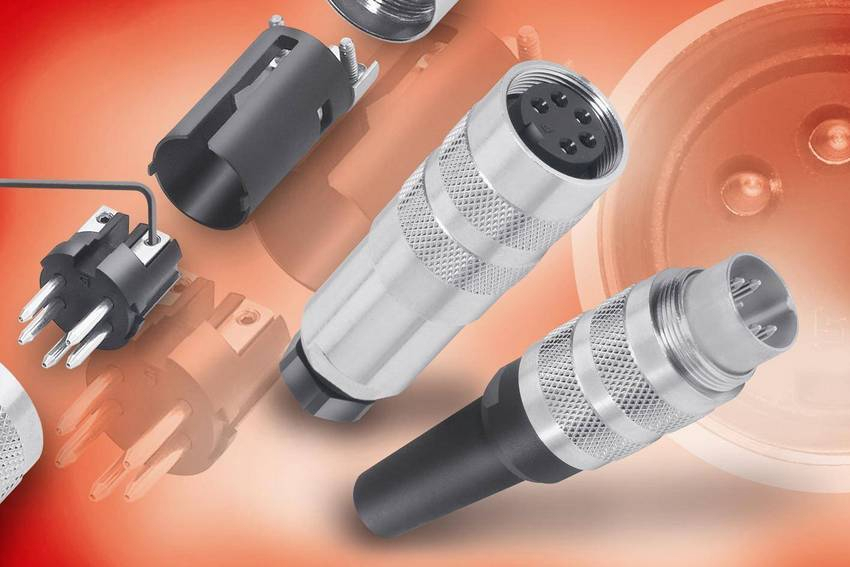

Sep 16, 2010 Series 423, rated IP67, and Series 581, rated IP40, are M16 cable connectors that include hex screws for terminating cable conductors. Offered in male and female versions available with 3, 4, or 5 gold-plated contacts, cable connectors accept cables with 4-8 mm OD. They are suited for commercial and industrial applications requiring solderless assembly.

Dicon Fiberoptics Inc.    Richmond, CA 94804
Sep 16, 2010 Suitable for any application that requires wavelength tuning, MEMS Tunable Optical Bandpass Filter can be optimized for either 50 or 100 GHz channel plan. Unit features both continuous scan and channel parking capability. It can act as optical channel monitor for DWDM systems, optical spectrum analyzer for test and measurement, or tunable demultiplexer at ROADM node. Filter also meets needs of military and defense avionic systems.

Elobau Sensor Technology, Inc.    Lake Bluff, IL 60044

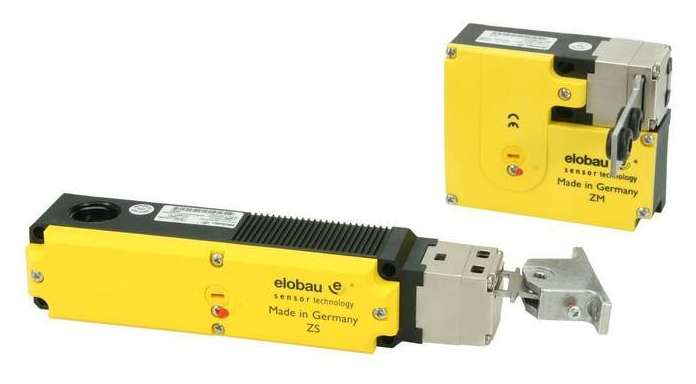

Sep 16, 2010 Made of die-cast aluminum actuator head and housing, IP67-rated switches protect personnel by monitoring and interrupting safety circuit depending on position of machine guard. Features include solenoid locking, rotatable actuator head with top and side entry, and actuator insertion funnel that increases entry area. To meet worldwide standards, positive opening contacts and redundancy ensure switches fail to safe state. Versions with LEDs are also available.

Schweitzer Engineering Laboratories Inc.    Pullman, WA 99163
Sep 16, 2010 Providing per-phase control and harmonic inhibitor logic, 3-Phase Model SEL-734B helps optimize power quality for smart grid projects. Remote communications and control over DNP3 make advanced volt/VAR control possible. Optional enclosure provides weather-tight protection and space to mount network radios, power supplies, and encrypting transceivers. With optional Ethernet communications, DNP3 protocol, and digital or analog I/O, system can be integrated with new and existing capacitor banks.

Sidel, Inc.    NOrcross, GA 30092
Sep 16, 2010 Bottle Switch(TM) improves blow molder flexibility by reducing mold changeover time in order to adapt to accelerated product changeover times on filler. Less than 1 min is required to change mold, reducing machine downtime while helping to avoid investment in storage silos or intermediate palletization. Semi-automatic solution places required blowing station directly in front of operator, who is only required to change molds. Removal/installation in mold support units is tool free.

Vesper Marine Ltd.    Auckland 1010  New Zealand
Sep 16, 2010 Combining built-in GPS antenna, AIS receiver, and Class B AIS transponder, AISWatchMate® 850 transmits boat's name, size, position, speed, and course over AIS channels while displaying information boaters need to interpret potential hazards and react accordingly. Filtering algorithm eliminates screen clutter and false alarms. Waterproof to IPx7 standard, AISWatchMate® 850 measures 8.9 x 5.3 in. with 5 in. daylight-viewable LCD screen. Unit uses less than 3 W and includes 12-24 Vdc power supply.

Extreme Engineering Solutions (X-ES)    Middleton, WI 53562

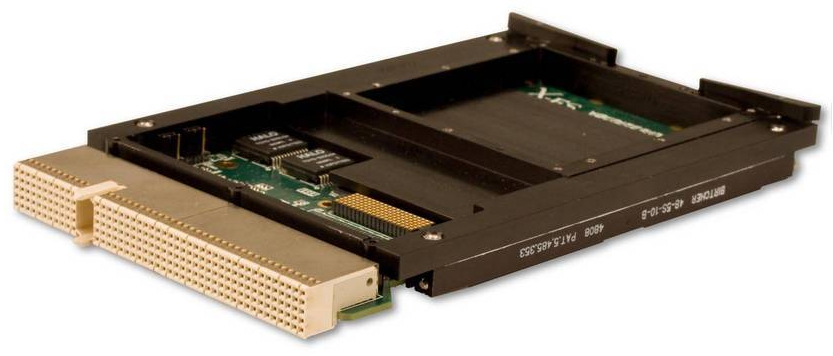

Sep 16, 2010 Engineered to support compute- and I/O-intensive communication, networking, and military ISR applications, XPedite5430 consists of 3U cPCI SBC based on Freescale QorIQ P4080 processor with eight 1.5 GHz Power Architecture e500 cores. Conduction- and air-cooled versions support up to 8 GB DDR3-1333 ECC SDRAM, up to 16 GB NAND flash, and 256 MB redundant NOR flash. Features such as X4 PCIe or Serial RapidIO interfaces, 2 GgE ports, 2 serial ports, and 2 USB ports foster connectivity.

Optima Electronic Packaging Systems    Lawrenceville, GA 30043

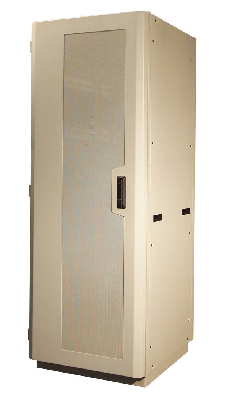

Sep 16, 2010 Featuring extrusion-based modular design, IT Cabinet can be customized to specific requirements. Unit has integrated ground points and independent removable sides, panels, and doors. Shape of front and rear doors is convex to provide extra space for cabling. For cable-intensive applications, unit includes several cable managers, brackets, D-rings, Velcro straps, and bundle retainers. Multiple EIA-310 standard mounting rail options are available, including to IEC 60297-2.

Primera Technology, Inc.    Plymouth, MN 55447-4446
Sep 16, 2010 Supporting all linear and 2D bar code symbologies, RX900 prints, encodes, verifies, and dispenses labels one at a time. Built-in Intermec® RFID reader/encoder module complies with EPC Global Gen 2 Class 1 and ISO 18000-b/-c specifications. Able to work with matte and gloss inkjet papers, vinyl, polypropylene, and polyester substrates, product delivers print resolution up to 4,800 dpi and full-color print speeds to 4.5 ips. Most inlays from RFID companies can be integrated into labels.

Kistler Instrument Corp.    Amherst, NY 14228 2119

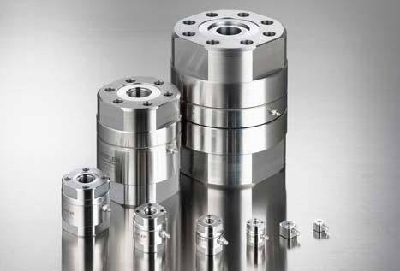

Sep 16, 2010 Recommended for measuring dynamic as well as quasistatic forces, Type 9393A offers measuring ranges of 0-700 kN, 0-70 kN, and 0-7 kN. Flange connections on both ends provide flexibility for mechanical interfacing with machine environment, while centering rings facilitate axial adjustment. With diameter of 145 mm and height of 190 mm, piezoelectric sensor has symmetrical shape that makes it suitable for mounting in connecting rods or for installation of press plunger.

Control Co.    Houston, TX 77258 8307
Sep 16, 2010 Traceable® Manometer displays gauge and differential pressure/vacuum in 11 different units via 5/8 in. high digits that are visible from 6 ft. Hose fittings permit use of hose/tubing with ID from 1/16-3/16 in. Count-up timer displays up to 99 hr, 59 min, 59 sec, DATA HOLD key freezes display to capture readings, and memory feature recalls highest and lowest reading over any time period. Powered by 9 V battery, device's accuracy is ±0.3% of FS between 0-50°C.

Kontron    Poway, CA 92064

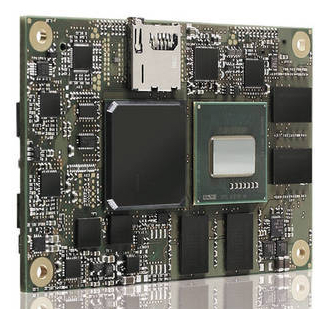

Sep 16, 2010 Along with PICMG® COM Express(TM) Type 10 pin-out, nanoETXexpress-TT Computer-On-Module (COM) features form factor of 55 x 84 mm and supports Intel® Atom(TM) E6XX CPU @ 600 MHz or 1/1.3/1.6 GHz. Industrial-grade components function over -40 to +85°C range, and Intel® Platform Controller Hub EG20T allows flexible configuration. In addition to full x86 compatibility, COM provides 4 PCIe lanes, SPI, dual data storage options, and multiple display interface options.

Automation Products Group, Inc.    Logan, UT 84321
Sep 16, 2010 Rated IP65 for indoor/outdoor applications, Model PG10 features 5.5 in. display casing, 5-digit display with 0.68 in. tall characters, and 270° digital dial or radial bar graph that shows user-selectable pressure range from 0-100%. Unit operates from 0-160°F and provides pressure ranges from vacuum to 500 psi or 0-10,000 psi with ±0.25% full scale accuracy. Outputs are 0-2 Vdc for battery-powered units, 4-20 mA for loop-powered units, and 0-5 Vdc for externally powered units.

Diamond Systems Corporation    Mountain View, CA 94043

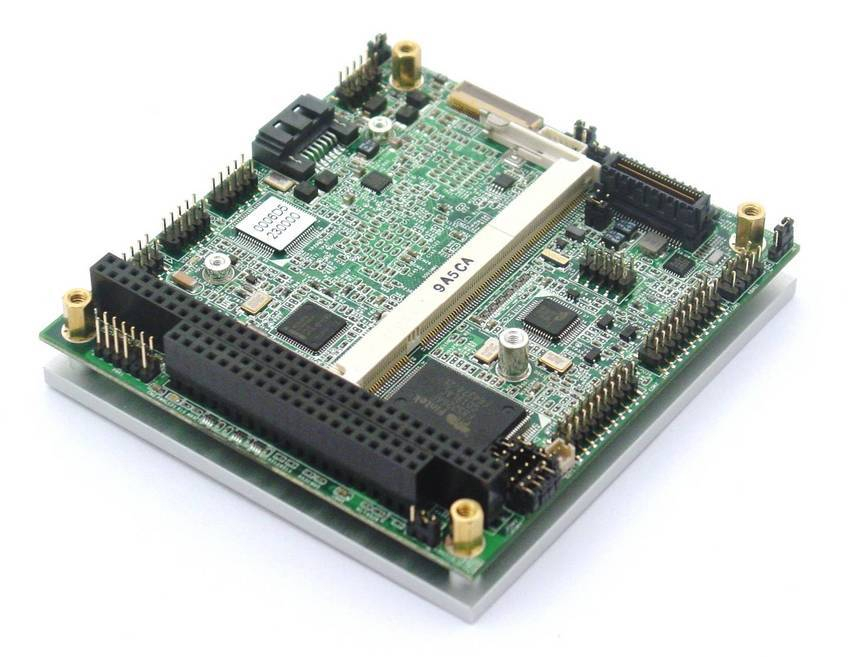

Sep 16, 2010 Featuring 1.6 GHz Intel® Atom(TM) Z530 CPU and 3.6 x 3.8 in. PC/104 form factor, Aurora meets needs of basic command, control, data collection, portable, and communications applications. SUMIT-A and PC/104 ISA bus expansion is standard along with SODIMM RAM up to 2 GB, Gigabit Ethernet, USB Flashdisk, SATA, 4 RS-232, 4 USB 2.0, and PS/2 keyboard and mouse interfaces. Operating from single +5 V input over -40 to +71°C range, SBC also allows I/O customization via plug-in SUMIT module.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

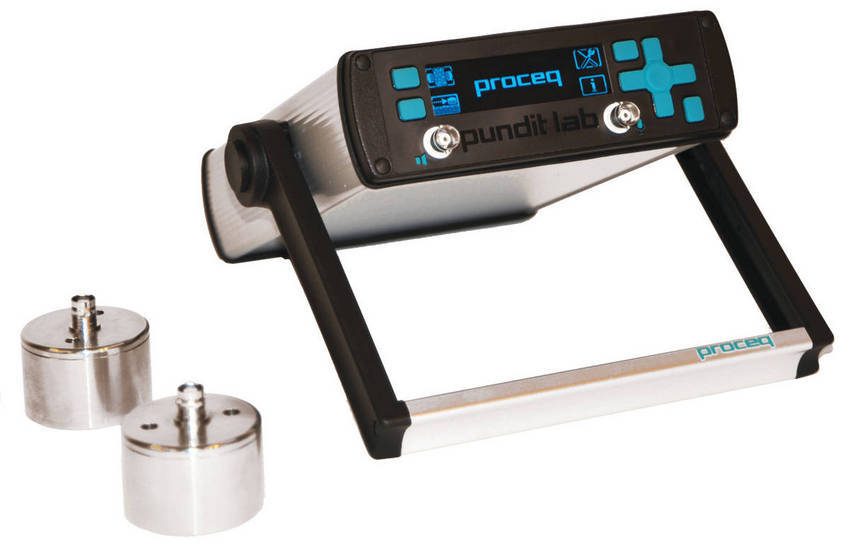

Sep 16, 2010 Supplied with full remote control capability, Pundit Lab offers measurements for transit time, pulse velocity, path length, perpendicular crack depth, and surface velocity. Construction, along with optimized power consumption, make unit suited for on-site use. Coupled with automated combination of transmitter voltage and receiver gain, pulse shaping promotes transmission range at lower voltage levels while ensuring optimum received signal level.

Cubic Designs Inc.    New Berlin, WI 53151
Sep 16, 2010 Cubic LiteRail installs on stairways and around loading docks, production areas, and assembly lines. It includes LED security lighting that defines walkway areas and is engineered to meet all building codes including uniform and point load requirements. System has square tubing design and intermediate railing connection that eases installation and expansion of handrail sections. Available in double or triple level versions, it also has durable powder coat finish offered in 14 colors.

Flexicon Corporation    Bethlehem, PA 18020 8006
Sep 16, 2010 Pre-engineered and pre-wired, Bag Dump System collects dust generated during manual dumping and compaction of bags, and conveys bulk material downstream. System integrates receiving hopper, dust collector, bag compactor, and fully enclosed flexible screw conveyor, which handles free- and non-free-flowing bulk materials. Entire system is available mounted on frames with boom and casters, and is constructed of stainless steel finished to food, dairy, pharmaceutical, or industrial standards.

Intersil Corporation    Milpitas, CA 95035
Sep 16, 2010 Configurable for single or dual supply operation, EL5111T high voltage rail-to-rail I/O amplifier typically consumes 3 mA. It has output short circuit capability of ±300 mA and continuous output current capability of ±70 mA. Featuring slew rate of 100 V/µs, unit also provides common mode input capability beyond supply rails, rail-to-rail output capability, and 60 MHz bandwidth at -3 dB. It includes thermal protection and operates over ambient temperatures from -40 to +85°C.

Tiffen Co. LLC, The    Hauppauge, NY 11788
Sep 16, 2010 Built around Vu-Lite and Spectra-Lite Systems, PromptXpress Series comes with 15 in. LED displays. Power is supplied via AC power supply or battery, and user can choose Anton/Bauer Gold Mount or IDX V-Lock type plates. Weighing 23.8 lb, product is configured with wide-angle fold-down hood, sliding balance plate, camera riser, and sliding top platform. Additionally, support for Clear-Com Concert(TM) and IntraCom VCom software-based Intercom enables multi-user conferencing.

Protiviti Inc    Alexandria, VA 22314
Sep 16, 2010 Governance Portal is comprehensive platform that gives organizations functionality they need to manage and mitigate critical risk and compliance issues. It lets users access same instance of it in their local language, ensuring uniform communication and consolidated reporting across international businesses. Translation capability also enables Protiviti to add additional languages or business terms. Dutch, English, French, Japanese, Portuguese, and Spanish are supported.
