Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
Sep 20, 2010 Operating at 0.9 V, including entire analog and digital logic, while consuming 45 µA (active), MSP430L092 enables multiple applications to run from single-cell battery and does not require on-board boost converter. Integrated and programmable Analog Functions Pool (A-POOL) can serve as ADC, DAC, system voltage supervisor, temperature sensor, or comparator. With up to 2 KB RAM and 2 KB ROM, variations include MSP430L092 (RAM), MSP430C091, (ROM) and MSP430C092 (ROM).

Virtify, Inc.    Cambridge, MA 02142
Sep 20, 2010 Helping companies remain compliant with EU labeling standard, Virtify PIM Enterprise enables creation of PIM submissions in collaborative, best-practices environment. Structured content approach lets users operate at PIM element and PIM fragment level, promoting content control and flexibility while also permitting parallel processing of different PIM submission sections. Web-based product has deployment and implementation cycle independent of third party infrastructures or solutions.

Asset InterTech Inc.    Richardson, TX 75080
Sep 20, 2010 Designed for memory suppliers, ScanWorks® DDR3 Memory Toolkit verifies performance of bus that connects DDR3 memory devices to Intel's processors. Toolkit employs Intel® IBIST Interconnect Built-In Self Test embedded instrumentation in Intel processor to drive data patterns onto bus. These patterns form basis for tests that verify read/write capabilities. In addition, certain operational parameters on bus, such as voltage and signal timing, can be modulated.

STMicroelectronics    Lexington, MA 02421
Sep 20, 2010 Connecting to Intel Atom E6xx processor via PCIe interconnection, ConneXt I/O Hub optimizes automotive In-Vehicle Infotainment systems. Hub supports Ethernet Audio Video Bridging, CAN, and Media Oriented Systems Transport, as well as general-purpose I/O such as SATA and USB On-the-Go. Typical next-generation system will simultaneously provide driver with 3D navigation and hands-free cell phone use, while passengers are using Internet or playing games on multiple displays.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Sep 20, 2010 Supplied in 5 x 5 mm, 32-pin LLP, dual-channel and dual-phase LM5119 features emulated current-mode control and enables regulation of single or dual high-current voltages directly from 5.5-65 V inputs. Functionality enables direct regulation of 2 output voltages from one input, and dual outputs can also be connected in parallel to power loads up to 40 A with interleaved switching. Operating frequency is user-programmable from 50-750 kHz and can be synchronized to external clock signal.

Laird Technologies    Chesterfield, MO 63017
Sep 20, 2010 Designed to resist solder joint fracture, Board-Level Shield comes in single-piece, 2-piece, and multi-compartmental models. Elimination of drawn flange minimizes space needed on PCB for shielding trace width by potentially ~0.3 mm. Partially drawn corner is located near top portion of shield, resulting in torsional rigidity with no drawn lip and no draft. For parts over 2 mm, corner is both drawn and formed with interlocking multi-radius corner, providing optimum EMI shielding.

TDK-Lambda Americas Inc.    San Diego, CA 92154

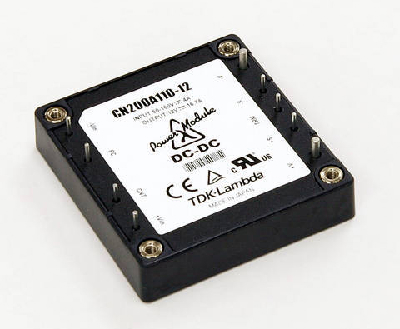

Sep 17, 2010 Housed in half-brick package measuring 2.4 x 2.28 x 0.50 in., CN200A Series operates from 60-160 Vdc with output power rating of 200 W and power density up to 73.1 W/in³. Fully-regulated power modules provide input-to-output isolation of 3,000 Vac and include current-share feature, which is suitable for paralleling 2 or more units. Equipped with standard pin-outs, baseplate-cooled converters provide full output power from -40 to +100°C at baseplate without derating.

Hoffman    Anoka, MN 55303 1778

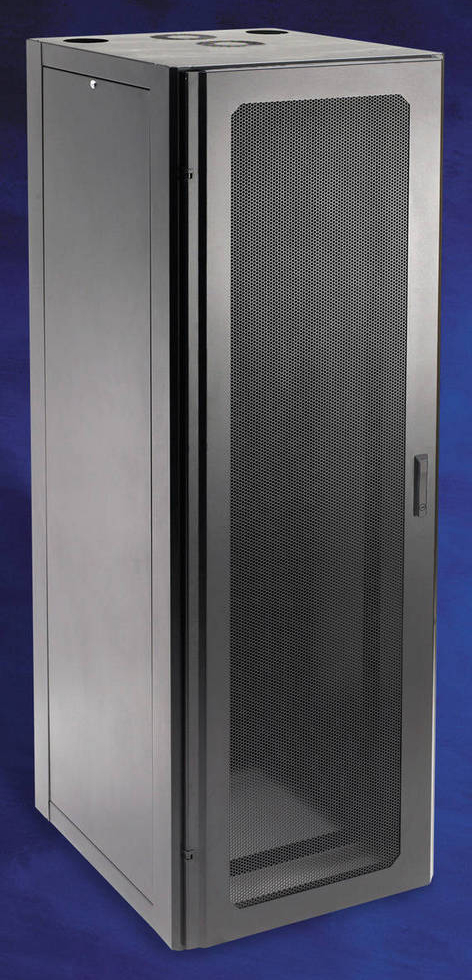

Sep 17, 2010 Schroff® brand MIDAS cabinets feature fully welded, heavy-gauge steel frame that enables mounting of equipment, cable management and active cooling products, as well as other accessories. Pre-configured models come in 6 standard sizes, from 23RU-48RU high x 600-700 mm wide x 800-1,000 mm deep. The 700 mm wide communication cabinets can accommodate 19 or 23 in. equipment and cables, and the 600 mm wide server configurations offer square-hole rack angles for 19 in. equipment.

Autodesk, Inc.    San Rafael, CA 94903
Sep 17, 2010 Combining 2011 extension 1 releases of Autodesk Flame, Autodesk Smoke Advanced, and Autodesk Lustre software into single offering, Autodesk Flame Premium 2011 helps post-production companies expand creative services. Program provides solution for 3D visual effects creation, editorial finishing, and real-time color grading. It offers one-step cross-product project and user profile creation with automatic linking of project data, unified project and data management, archiving and format support.

Thermo Fisher Scientific    Waltham, MA 02454

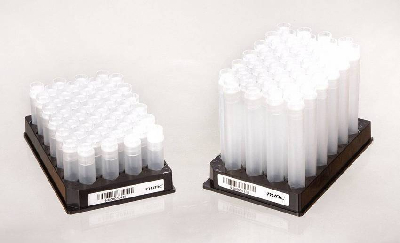

Sep 17, 2010 Available in 2 mL and 5 mL sizes, Nunc(TM) Cryobank Vials incorporate 2D barcode tracking for sample storage, tracking, and retrieval. Standard microplate format facilitates pipetting and robotic handling, and cap is fully compatible with automated de-cappers. Sterile, non-pyrogenic tubes are CE marked and IATA certified, making them suitable for long-term storage of larger volumes of biological samples at -80°C or in liquid nitrogen.

KYOCERA Corporation    Kyoto 612-8501  Japan

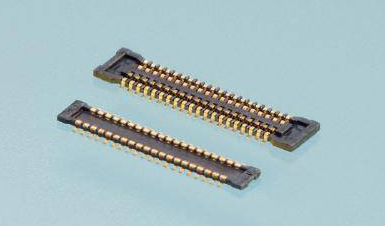

Sep 17, 2010 Measuring 2.4 mm deep, 5803 Series 0.4 mm Pitch Board-to-Board Connector enables distance between boards of 0.5 mm when plug and receptacle connectors are mated. No contact is exposed on connector bottom with insulator housing, assuring circuit insulation between connector and board. Dual-contacting structure, with touch of contact tip on inner wall of insulator housing, restrains mating wobble and optimizes mating stability. Product has rated current of 0.3 Adc and rated voltage of 50 Vdc.

Thermo Fisher Scientific    Waltham, MA 02454

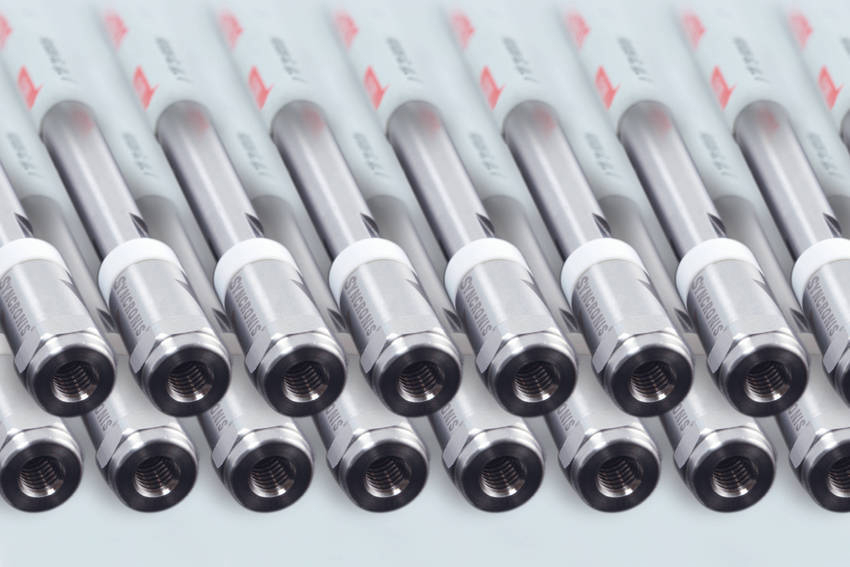

Sep 17, 2010 By providing highly pure, high surface-area silica; dense bonding; and double endcapping, Syncronis series delivers consistent, predictable separations from run to run and column to column. Automated column packing methods promote consistency, and every column is individually tested to ensure it meets required specifications. Columns are available with 5 µm particle size for conventional HPLC applications and 1.7 µm particle size for high-speed, high-efficiency UHPLC separations.

Makita U.S.A., Inc.    La Mirada, CA 90638
Sep 17, 2010 Weighing 4.2 lb, GA4534 is 4 ½ in. paddle switch angle grinder with non-protruding brush holders and motor that lend to reduce barrel diameter of 2 3/16 in. Side handle is positioned at increased 20° angle for comfort and control, and 6 A motor delivers 11,000 rpm. Engineered with machined bevel gears, grinder also features labyrinth construction that seals and protects motor and bearings from dust and debris. All-ball bearing design and metal gear housing promote durability.

Greenheck    Schofield, WI 54476 0410

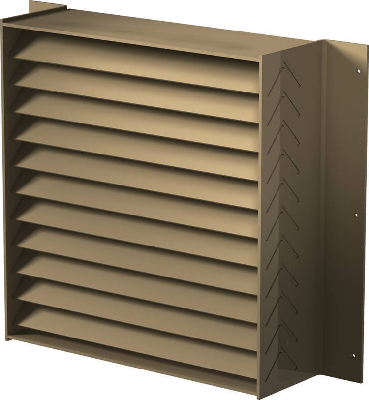

Sep 17, 2010 Fabricated of 0.25 in. thick hot rolled steel with inverted V-style blades, FEMA Model FSG-801 protects exterior wall penetrations on FEMA 361 or 320 compliant storm shelters or safe rooms. Unit allows high free area with minimal airflow resistance while providing protection against high wind loads and wind-borne debris. Most frequently mounted in front of louvers on building's exterior, grille can be installed in cantilevered position or in flush/recessed mount configuration.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245

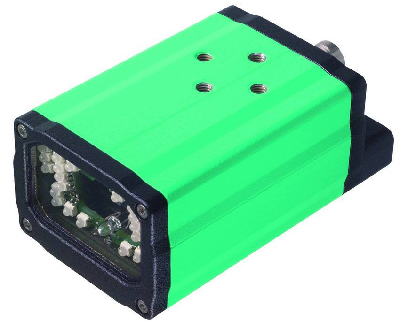

Sep 17, 2010 Designed for stationary use, IP65-rated Model MAC335 reads all common 1D and 2D code symbologies from 20-300 mm, without having to mechanically adjust lenses. Resolution of 1.3 megapixels enables small and large codes to be read without changing settings. With JavaScript functionality, reader can be linked into all common programs and evaluations can be carried out on reader itself. Vision-Configuration enables all parameters to be set intuitively and images to be displayed.

IBAG North America    North Haven, CT 06473
Sep 17, 2010 Rotary coupling system allows use of Micro Line high-speed spindles in turret style machines. Providing support for all electrical and pneumatic requirements for high-speed spindles, models are rated to IP67 and support either 2 or 4 spindles. Use of positive air over-pressure prevents coolant/chip contamination, and pneumatic supply within coupling provides air-seal to spindles. Mounted to CNC lathe turret face, couplings are able to rotate up to 500 rpm.

MonoSol, LLC    Portage, IN 46368
Sep 17, 2010 Producing high clarity sachets, MonoDose(TM) Crystal(TM) Film is suitable for wide variety of detergents and disinfectants as well as other consumer and commercial chemicals packed in unit doses. When introduced to water, polyvinyl alcohol film completely dissolves and releases product.

DEK    Rolling Meadows, IL 60006
Sep 17, 2010 Offering accelerated changeover, 6-Sigma performance, and alignment capability of 2.0 Cpk @ ±12.5 microns, Horizon 03iX comes with cover package that enhances usability and operator management by enabling quick access from front and rear of system. Variety of productivity tools are included: HawkEye 1700 post-print verification, Cyclone understencil cleaning, and Stinger printer adaptable dispensing. All are controlled via Instinctiv V9 software.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Sep 17, 2010 KE-style enclosure-mount modules feature 4 inputs, 4 outputs, and 22.5 mm wide housing. If output wire becomes disconnected, switchable lead breakage detection automatically sends peripheral fault signal to upper level controller. Any input pulse or noise spike of less than 2 msec is filtered out by input pulse suppression. Also, diagnostic LEDs alert user to reverse polarity, overload, or short circuit conditions to foster corrective action.

Poindus Systems GmbH    Taipei 114  Taiwan
Sep 17, 2010 Equipped with Intel Pineview-D D410/D510 CPU, VariCura(TM) Medical Panel PC provides access to electronic medical records as well as multimedia entertainment and communication. Unit features 15 in. color TFT LCD, support for up to 2 GB of DDRII memory, and integrated I/O interface for accessory connection. Built-in webcam and Internet access help patients stay connected with family. Featuring zero-bezel design, PC has IP66-rated waterproof front panel and anti-bacterial coating.
