Avalue Technology Inc.    Chung Ho City, Taipei   Taiwan

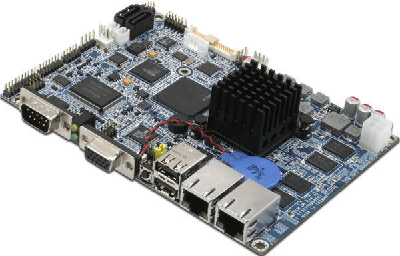

Sep 23, 2010 Powered by Intel® Atom(TM) E620/640/660/680 series processor, 3.5 in. Model ECM-QB features Intel® Platform Controller Hub EG20T and supports single-channel 18/24-bit LVDS and CRT+LVDS multi-display. I/O deployment includes 2 SATA, 3 RS-232, 1 RS-422, 1 RS-485, 1 CAN, 4 USB 2.0, and 8-bit GPIO. Also equipped with 2 Intel® Gigabit LANs, 1 x Micro SD, 1 x CF socket, and 1 PCIe Mini card slot, SBC is suited for in-vehicle infotainment, medical instruments, and IP media phones.

3M Co.    Springfield, MO 65802
Sep 23, 2010 Measuring 150 x 65 x 33 mm, touchscreen-operated MP180 offers 4 GB memory, micro SD card slot, and USB connectivity for anytime/anywhere presentations. Wi-Fi and Bluetooth enable file transfer as well as Web browsing and content streaming. Measuring 150 x 65 x 30.5 mm, MP160 plug-and-play, straightforward, pass-through device enables projection of up to 80 in. onto nearby flat surfaces. Both models deliver 30 lm brightness, full color gamut, and SVGA resolution.

Atdec    Liverpool   Australia
Sep 23, 2010 Featuring counterbalanced upper and lower arms that move independently of each other, Levitate Mount allows height and reach positioning, rotation, pan and tilt for desktop displays without user adjustments. Lower arm offers optional 180° limited rotation, preventing collision with partitions and walls in desktop environments. For aesthetics, Levitate includes cable management system that hides wiring through integrated channel. Various colors and finishes are available.

Actel Corp.    Mountain View, CA 94043 4655

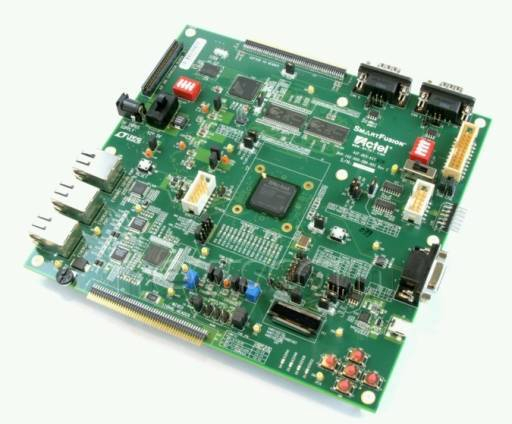

Sep 23, 2010 SmartFusion A2F500 Development Kit includes SmartFusion A2F500M3G-FGG484 FPGA, which offers 500K system gates, hard 100 MHz 32-bit ARM® Cortex(TM) M3 based MCU subsystem with 512 MB of embedded flash, and 64 KB of SRAM. FPGAs also have programmable analog blocks with 3 ADCs, 3 DACs, and 10 comparators. Ethernet, EtherCAT, CAN, RS485, UART, I2C, and SPI interfaces are available on kit, which is supported by Libero® IDE with SoftConsole Eclipse-based embedded development environment.

Grieve Corporation, The    Round Lake, IL 60073-2898
Sep 23, 2010 Suited for heat treating and high temperature testing applications, No. 871 features 650,000 BTU/hr installed in 3 modulating natural gas burners with floor-mounted combustion air blower. Unit's 7 in. insulated walls are comprised of 5 in. of 2,300°F ceramic fiber and 2 in. of 1,700°F block insulation, while 6½ in. floor insulation is made of 4½ in. of 2,300°F firebrick and 2 in. of 1,900°F block insulation. Workspace dimensions are 30 in. wide x 48 in. deep x 30 in. high.

GETAC Inc.    Lake Forest, CA 92630

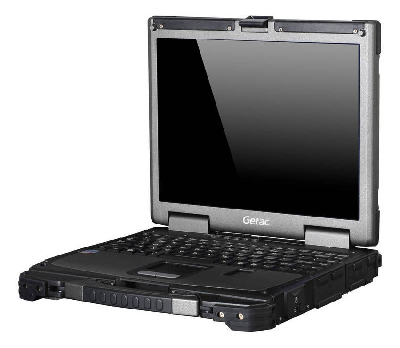

Sep 23, 2010 Based on 2.0 GHz processor and Intel Turbo Boost Technology, Model B300 is available with 4 MB of Intel L3 Smart Cache for each processor core. Unit offers 700 NITs display or 1,400 NITs display, which includes QuadraClear for viewing in extreme lighting conditions. HDMI port and VGA port allows multiple-monitor solution. Operating at 25 W, notebook can be configured with dual battery option for 22 hr of battery life. Unit is certified to MIL-STD-810G for ruggedness and shock protection.

Lyon Workspace Products    Aurora, IL 60507
Sep 23, 2010 ExchangeMaster® antimicrobial lockers help prevent spread of mold, bacteria, and super bugs such as staph and MRSA virus in hospital and healthcare facilities. Non-organic silver ions kill bacteria on contact within 2 hours and provide facility with antimicrobial protection 24/7. Antimicrobial storage solutions can also help prevent spread of infections in other facilities as well.

The MagneGrip Group    Cincinnati, OH 45242
Sep 23, 2010 Designed to attach to apparatus tailpipe, Flexhose System provides 100% exhaust removal with no hose loops. Fully automatic system requires just 16-24 in. aisles between vehicles. Connecting hose automatically retracts away from door when apparatus exits, while support cable inside hose eliminates stretching or stress and ensures smooth nozzle disconnect with every exit.

Oriental Motor U.S.A. Corp.    Torrance, CA 90502
Sep 23, 2010 Operated via RS-232C, CANopen, and USB interface, SCX10 universal controller uses internationally recognized periphery standards for consistency over range of applications. Device includes Immediate Motion Creator for CM/SCX Series software for control via PC. Unit can store 100 sequence programs and can be used either in open- or closed-loop system. Function for external encoder inputs, enabling continuous monitoring of feedback position and position error, is also included.

Omni Components Corp.    Hudson, NH 03051
Sep 23, 2010 Utilizing Okuma MU-400VA 5-axis vertical machining platform, full 5-axis machining services are offered for manufacturing irregular and non-symmetrical components. Machining center's combination of positional accuracy and thermal stability, along with Okuma's THINK control, enables precision performance in simultaneous 5-axis machining and/or multi-sided operations in one chucking. Technology also enables optimal surface finishes on demanding commercial or implant components.

Linear Technology Corp.    Milpitas, CA 95035
Sep 23, 2010 Consuming 13 mW from single 2.5 V supply, 16-bit LTC2383-16 achieves 92 dB SNR and -106dB THD from fully differential +2.5 V input range while maintaining max +2LSB INL and no missing codes. Pin- and software-compatible complementary devices - LTC2382-16 (500 ksps) and LTC2381-16 (250 ksps) - feature sampling architecture that allows ADCs to begin acquiring next sample during current conversion, extending acquisition time. SPI supports I/O voltages from 1.8-5 V.

Linear Technology Corp.    Milpitas, CA 95035
Sep 23, 2010 Model LTC5588-1 offers linearity performance of 30.9 dBm Output Third-Order Intercept at 2.14 GHz. Unit has image suppression of -56.6 dBc at 2.14 GHz and carrier leakage of -39.6 dBm while delivering 5 dBm signal power to its output at temperatures from -40 to +85°C. Supporting signal bandwidth greater than 400 MHz, its I and Q inputs are biased to 0.5 Vdc common-mode voltage. Product is powered from 3.3 V supply with operating current of 300 mA, and draws less than 900 µA in sleep mode.

Ethernet Direct    Newburyport, MA 01950
Sep 23, 2010 In addition to UL 508 and Class I Division 2 for operation in hazardous environments, HMG-628GE-CDU supports 10/100/1000T Ethernet ports and 2 dual-mode SFP ports that incorporate Digital Monitoring Interface technology to allow real-time access to device operating parameters. Switch also features network management functions and redundant self-recovery mechanism (less than 10 ms on full load) while supporting Dual Homing and Ring Coupling to promote further reliability.

Degree Controls Inc.    Milford, NH 03055
Sep 23, 2010 Cambridge AccuSense(TM) ATM-2400 accepts up to 36 airflow and temperature sensors, which can be used simultaneously. Plug-and-play, USB-based system provides ability to measure air velocity over 3 pre-calibrated ranges from 30-4,000 fpm and air temperature with UAS1000 Series sensors. During test, system can also monitor surface temperature via UTS1000 Series Thermocouples and relative humidity via UHS sensors.

Autodesk, Inc.    San Rafael, CA 94903
Sep 23, 2010 Autodesk Inventor Publisher 2011 software helps manufacturers develop 2D and 3D product documentation and publish 3D interactive product instructions to iPhone, iPad, and iPod touch mobile devices. Program also allows for import of Autodesk Inventor data and integrates with Autodesk Vault data management software. Users can also create detail views, section planes, bill of materials, and parts lists to communicate key concepts and information.

Belden    Richmond, IN 47375
Sep 23, 2010 Enabling terminations in less than 5 sec without termination tools, FiberExpress Brilliance Field-Installable Connectors feature built-in activator that performs fiber splicing and crimping action. Units support high-speed optical fiber networks including 10G Ethernet as well as future 40G/100G networks. Able to withstand temperatures from -40 to +75°C, connectors can serve as backbone, horizontal, or fiber-to-the-desk components in any commercial building, government agency, or data center.

Fluke Networks    Camarillo, CA 93010
Sep 23, 2010 Leveraging application-centric analysis technology, Network Time Machine(TM) enables data center engineers to store data, then analyze past events and traffic leading up to, or causing, specific problems. Built-in tools speed root cause analysis, enabling engineers to retrieve information they need without looking at packets. Supporting stream-to-disk rate up to 10 Gbps, platform includes frame de-duplication feature, which eliminates unnecessary capture of redundant data.

Owens Corning    Toledo, OH 43659
Sep 23, 2010 Offering thermal stability and fire retardant properties, Uniconform® glass fiber mat contains no chemical binder, synthetic core, or stitching yarns, enabling thermal stability and resistance to water permeability. Laminates can withstand temperatures up to 200°C with no permanent damage. Compatible with unsaturated polyester, vinyl-ester, and epoxy resins, mechanically bonded continuous filament mat is manufactured with acid corrosion resistant, boron-free Advantex® E-CR glass.

AXIOMTEK    Taipei   Taiwan
Sep 23, 2010 Powered by 1.6 GHz Intel® Atom(TM) N270 CPU and Intel 945GSE+ICH7M chipset, models FDK150-830, FDK170-830 and FDK190-830 are respectively available with 15, 17, and 19 in. TFT LCDs for kiosk and HMI automation applications. WiFi and 3G connection is accommodated via Mini Card slot, while additional capabilities are accommodated via CompactFlash(TM) slot and 2.5 in. SATA HDD bracket. Connectivity is fostered by 4 COM, 10/100/1000 Mbps Ethernet, VGA, 4 USB 2.0, and audio (Line-out) ports.

WinDeveloper Software    Mosta MST01  Malta
Sep 23, 2010 With web-based quarantine and reporting interface, IMF Tune v5.5 can quarantine any email, even if blocked with SMTP rejection. General Reports feature gives overall picture of filtering performance through bar charts and line graphs, while Detailed Reports function provides more specific information, such as top list of spam sender IPs. Integrating with Exchange 2003 Intelligent Message Filter as well as Exchange 2007/2010 Content Filter, IMF Tune provides effective anti-spam solution.
