Jet Edge    St. Michael, MN 55376
Sep 21, 2010 Spyder Abrasivejet Radius and Circle Cutting System features self-aligning centering pin for setup, motion components made from non-ferrous materials, and cutting head manipulators powered by pneumatic motors. Available in 1-6.5 in. ID/16-48 in. OD and 3-12.5 in. ID/27.5-56 in. OD sizes, portable unit can be set up on side of tanks, small vessels, and large diameter piping. System is powered by 60,000 psi waterjet intensifier pumps available in electric or diesel models up to 280 hp.

Emuge Corp.    West Boylston, MA 01583-2121

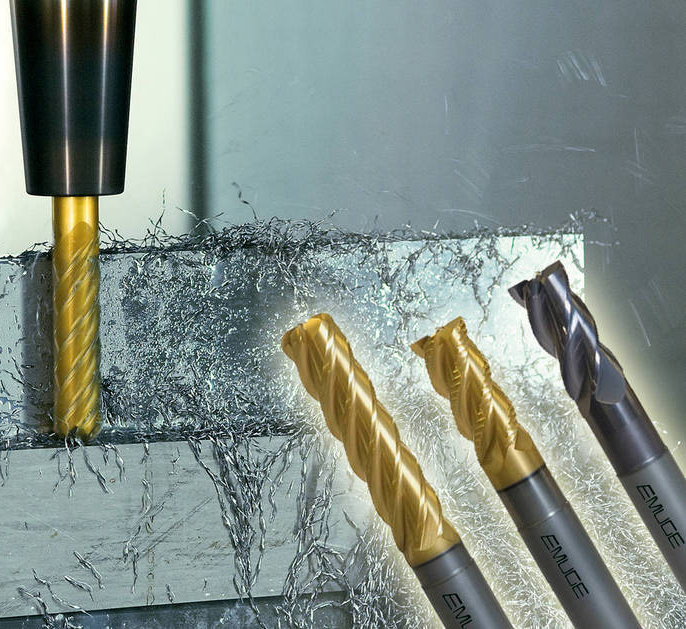

Sep 21, 2010 TiNox-Cut series promotes tool life when machining challenging materials, namely nickel alloys such as Inconel and Stellite, all grades of titanium, and stainless steels such as Super Duplex. Accommodating production demand for parts machined from said materials, end mills have heat-resistant, lubricious coating as well as optimized cutting edge design that extends tool life by minimizing friction and efficiently evacuating chips. Series includes two 4-flute and one 5-flute versions.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055

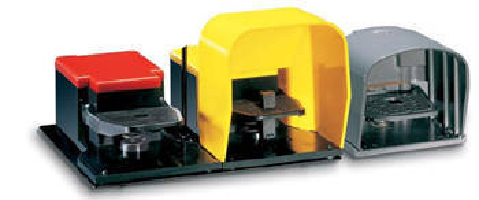

Sep 21, 2010 Industrial foot switches are offered in KG thermoplastic and KR metal versions that can be ordered with or without pedal protection cover. Also, version with safety lever is offered, as are one-pedal and two-pedal versions. Other features include pedal actuator lock, two-stage safety lever, and two-pedal with left pedal free actuation and right pedal with safety lever. In addition, wide variety of contact arrangements are available.

Mid-West Instrument    Sterling Heights, MI 48314

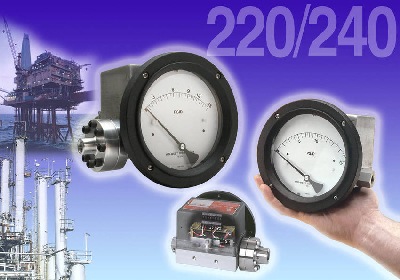

Sep 21, 2010 CSA, UL, and ATEX certified, explosion-proof Models 220/240 are made of lightweight aluminum with weather-resistant 4½ in. gauge front. Piston-style Model 220 features working pressure of 4,000 psi and ranges from 0-5 to 0-100 psid, while diaphragm-style Model 240 provides working pressure of 1,500 psi and ranges from 0-20 in. H₂O to 0-100 psid. Both IP65-rated indicating switches include over range protection and ½ in. FNPT cable or conduit entry.

Clore Automotive    Lenexa, KS 66215

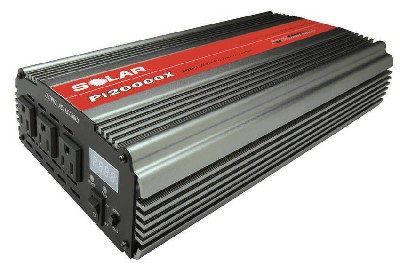

Sep 21, 2010 Featuring SOLAR Sonic Compression technology, 2,000 Watt Model PI20000X utilizes modified sine wave design to provide clean power from 12 V power source to wide variety of power equipment, electronics, and appliances. Unit features three 110 Vac outlets and integrated mounting plate for fixed mounting on horizontal or vertical surfaces. Temperature-activated fan control eliminates unnecessary draining of 12 V power source when in standby mode.

LeCroy Corp.    Chestnut Ridge, NY 10977
Sep 21, 2010 Half-size mid-bus probe for Summit(TM) T3-16 Protocol Analyzer utilizes half-size connector that supports PCIe® x4 lanes at 8 GT/sec. Probe attaches to anchor connector mounted on top of mid-bus footprint that is laid out on test target system board. It can be used in conjunction with lane swizzling feature on Summit T3-16 Analyzer, which allows probe signals to be reorganized logically, to give developers flexibility in PCB layout.

LSI Corp. of America    Minneapolis, MN 55441
Sep 21, 2010 Model LSISAS2208 is 6 Gb/sec SAS ROC that optimizes use of solid-state drives in servers and helps with migration to PCI Express® 3.0 server platforms. Eight-port unit delivers performance levels up to 400,000 random IOPS in RAID 5, 6, and 10 configurations. Integrating dual-core 800 MHz PowerPC processor, product combines 72-bit DDR3-1333 SDRAM interface and hardware acceleration engines with architecture featuring multiple 500 MHz, 128-bit point-to-point internal data paths.

RIDGID    Elyria, OH 44035
Sep 21, 2010 Compatible with RIDGID SeeSnake® reels, CS1000 Digital Recording Monitor features SeeSnake LCDPak 12.1 in. color, daylight-readable monitor and keyboard. It also comes with SeeSnake HQ software for detailed reporting and sharing of jobs. Recording is possible via 3 modes - digital stills, full-frame video, and compressed auto-recording - while report writer lets user generate full report, on site, with integrated inspection footage and descriptions. Flash storage is standard.

ROHM Semiconductor USA LLC    San Diego, CA 92121
Sep 21, 2010 Combining power management IC, clock generator IC, and input/output hub IC, Large Scale Integrated Chipset facilitates design of embedded applications. PMIC supplies all voltage rails required for processor, controller hub, DDR2 memory, and BIOS-storage SPI Flash connected to Intel® chip. Utilizing Spread Spectrum technology, CGIC provides all required clocks, including CPU, PCIe, SATA, and USB. Two application-specific I/O hubs are available for IP media phones and in-vehicle infotainment devices.

STMicroelectronics    Lexington, MA 02421
Sep 21, 2010 Suited to STM32 Value Line Microcontrollers, USB-powered STM32 Discovery Kit Board plugs into PC and is populated with 24 MHz, 64-pin STM32F100RBT6B Value Line device featuring 128 KB Flash plus multiple timers, analog peripherals, and industry-standard serial interfaces. Kit also includes ST-LINK in-circuit debugger and extension connectors that enable connection to other boards or devices for deeper testing of microcontroller peripherals.

Cogiscan, Inc.    Bromont, QC J2L 2N8  Canada
Sep 21, 2010 Designed to minimize human error and line downtime, LED BIN Validation and Traceability Software validates SMT line setup by tracking each reel to its feeder and specified feeder location on machine. Program ensures that each replacement reel contains LEDs with correct and compatible Brightness Index Number. When process validation error occurs, application forces machine to stop processing. Software can also generate traceability reports based on BIN of each LED Reel used.

McElroy Manufacturing, Inc.    Tulsa, OK 74158
Sep 21, 2010 Using In-Field Tensile Tester, contractors and pipeliners can accurately test high-density polyethylene butt fusion joints in field. Hand-pump safely tests coupons from pipes sized 2 in. IPS and larger. Tester also incorporates template that is attached to pipe to create coupon through use of drill and reciprocating saw. Coupon is then inserted into hand-pump tensile test unit, which performs destructive test to qualitatively pass or fail joint.

Adobe Systems, Inc.    San Jose, CA 95110 2704
Sep 21, 2010 Adobe® Flash® Media Server v4 software enables peer-assisted networking with Real Time Media Flow Protocol, minimizing bandwidth usage. It includes Flash Media Streaming Server v4 that supports various devices and offers content protection. Combining secure playback with real-time social media, Adobe Flash Media Interactive Server v4 uses HTTP Dynamic Streaming for high playback quality. Adobe Flash Media Enterprise Server v4 supports multi-screen video streaming and social applications.

Analog Devices, Inc.    Norwood, MA 02062-9106
Sep 21, 2010 Housed in 9 x 9 mm 64-lead LFCSP package, Blackfin ADSP-BF592 features active power draw as low as 88 mW at 300 MHz and standby power of less than 1 mW, extending battery life. Unit includes 2 SPORTs, PPI, 2 SPIs, 4 general-purpose counters, and factory-programmed instruction ROM block containing VDK RTOS and C-runtime libraries. Processor is suited for portable medical products, audio devices, smart metering products, and imaging products, such as CMOS-sensor-based 2D barcode scanners.

Bridgeport Fittings, Inc.    Stratford, CT 06497
Sep 21, 2010 Designed to help contractors connect EMT conduit, Mighty-Seal(TM) Push-EMT(TM) fittings are ready to use directly out of the box and reduce installation time to seconds. Design facilitates and accelerates installation by only requiring contractors to push fitting onto prepared conduit (½ in. min) and attach fitting to box. Removable and reusable, cULus-Listed fittings make secure, concrete- and rain-tight seal. They exceed design requirements of UL 514B and National Electrical Code.

Trenton Technology Inc.    Gainesville, GA 30504
Sep 21, 2010 Measuring 9.6 x 9.6 mm, Model JXM7031 features 2 quad-core Intel® Xeon® C5500 processors with Intel® 3420 chipset and combination of PCI Express 2.0, PCIe 1.1, and PCI option card slots. Systems designed with motherboard provide speed and performance critical in diverse applications such as military command and control, missile telemetry, HMI, process control, semiconductor fabrication, and medical imaging.

Toumaz Technology Limited    Abingdon OX14 4RZ  United Kingdom
Sep 21, 2010 Model TZ1090 is 32-bit broadcast receiver, Wi-Fi, and applications processor that enables audio, video, and data services for digital and Internet radio and Wi-Fi enabled mobile devices. Unit leverages 400 MHz dual-thread META(TM) HTP 32-bit RISC + DSP processor supporting Linux and two ENSIGMA(TM) UCCP multi-standard receiver and connectivity processors. Also included are 2D graphics accelerator, SD card interface, USB 2.0 OTG, I2C, I2S, SPI, UART, audio line in and out, and headphone amplifiers.

Markzware Software Inc.    Santa Ana, CA 92705
Sep 21, 2010 Available for both Macintosh and Windows, ID2Q v5 Adobe InDesign allows users to open Adobe InDesign documents within QuarkXPress 7 or 8. File conversion is enabled by selecting Convert InDesign Document under Markzware menu item within QuarkXPress. Items that Markzware ID2Q can convert from InDesign include page positioning, fonts and styles, images, and text attributes, as well as tables, layers, blends, runarounds, linked text and anchor boxes, and Pantone colors.

Sentrigo Inc.    Woburn, MA 01801
Sep 21, 2010 Providing database activity monitoring and intrusion prevention platform, Hedgehog Enterprise(TM) v4.0 includes Hedgehog DBscanner, which identifies sensitive data on network and secures it properly. Hedgehog DBscanner conducts more than 3,000 different checks of Oracle, Microsoft SQL Server, IBM DB2, and MySQL databases, discovering vulnerabilities. To simplify compliance audits, Hedgehog DBscanner provides regulatory compliance report templates as well as custom reporting.

Nikon Inc.    Melville, NY 11747
Sep 21, 2010 NIKKOR AF-S 35mm f/1.4G and NIKKOR AF-S 200mm f/2G ED VR II lenses feature Silent Wave Motor technology for optimal autofocus performance. Optical construction of each lens utilizes nano-crystal coat to minimize flare, internally as well as from backlit subjects. Further promoting image integrity, Super Integrated Coating optimizes color consistency and reduces flaring. Each lens also incorporates 9-blade diaphragm to help achieve dramatic separation between subject and background.
