Heidenhain Corp.    Schaumburg, IL 60173-5337
Jan 07, 2010 EnDat 2.2 version of 1000 Series absolute rotary encoders provides 2 independently formed position values via serial EnDat interface. Contained in 35 mm dia housing, units feature serial data transfer, single-turn resolution of 23 bits, and absolute position-value formation. Supply voltage range is from 3.6-14 V. They are certified to EN ISO 13849, EN 61508, and EN 954-1 standard for performance level d, safety integrity level 2, and category 3, respectively.

Measurement Computing Corp.    Norton, MA 02766
Jan 07, 2010 Single-channel, 20-bit DAQFlex Model USB-2001-TC measures temperature over ranges defined by NIST J, K, R, S, T, N, E, and B thermocouple types. OS-independent unit features 250 ms conversion time and integrated cold junction compensation. Measuring 0.8 x 1.5 x 2.5 in., device has captive 2 m long USB cable attached to one end and socket on other end for receiving thermocouple miniplugs. Device gets power from host PC via USB cable, and requires no external power supply.

Ansys, Inc.    Canonsburg, PA 15317
Jan 07, 2010 Providing 3D full-wave electromagnetic field simulation, HFSS v12.1 offers integral equation electromagnetic solver option, which is based on 3D full-wave Method of Moments. Solver computes currents on surfaces of objects and uses those currents to determine radiated and/or scattered fields. With program, engineers can design, simulate, and validate behavior of complex RF, microwave, and mm-wave devices in wireless systems, defense communication systems, and consumer electronics.

VIA Technologies, Inc.    Taipei 231  Taiwan
Jan 07, 2010 Integrated single chip solution, VIA VL810 SuperSpeed USB hub controller allows single USB port to be used by up to 4 high-bandwidth USB 3.0 devices simultaneously. Upstream and downstream ports are also backwards compatible with previous USB specifications and offer support for hi- (480 Mbps), full- (12 Mbps), and low-speed (1.5 Mbps) traffic. Controller allows devices to communicate latency tolerance to host and enables links to enter low power states when link partners are idle.

PR Electronics    San Diego, CA 92128
Jan 06, 2010 Accepting 24-250 Vdc and 24-230 Vac irrespective of polarity, PRetrans 5116 can be configured for all types of industrial measuring signals - RTD, TC, Ohm, mA, V, and mVDC - within minutes. Programmable output delivers active mA and V signals, and transmitter can deliver passive 2-wire output suited for input of PLC. Universal signal conditioning is backed by functions in transmitter, and integrated dual relays can be used independently of one another.

GAO Instruments Inc.,    Toronto   Canada
Jan 06, 2010 Suited for installation and troubleshooting of E1, DS3, STM-1/OC-3, STM-4/OC-12, and STM-16/OC-48 lines, Model A0300026 features soft-define simulated LED 10.4 in. TFT LCD touch screen for alarm status indication. Unit provides performance, anomaly/defect, overhead, and point analysis, as well as automatic tributary scan, automatic protection switching, and round trip delay measurement. With 128 M memory, unit can store test results and configurations.

Elastocon TPE Technologies, Inc.    Rochester, IL 62563
Jan 06, 2010 Offering rugged performance and durability, STK40 Series thermoplastic elastomer (TPE) overmolds onto acrylic resins such as Lustran, Plexiglas, Perspec, Acrylite, and Polycast. It seals against weather and moisture and features 40 Shore A softness. Available in black or natural, SEBS-based TPE can be supplied in 1,000 lb or less quantities for compounding or as ready-to-use pellets. It can be used on lights, street signs, and button gaskets for protective or decorate purposes.

Noco Co., The    Cleveland, OH 44122
Jan 06, 2010 Along with injection molded Power Clamp rated at 650 A, BCX Booster Cables feature braided ground strap for optimized power distribution to both sides of clamp. Jaws are made from 100% copper, and hi-flex, EPDM Welding Cable offers flexibility in cold weather environments. In addition to Maximum Cracking Amps (MCA) rating that designates how much power each cable can deliver, products come with cable splitter to prevent cable stripping.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Jan 06, 2010 Operating from onboard aircraft DC-power source, Endevco® Airborne Amplifiers are designed for use with piezoelectric microphones and accelerometers. Charge amplifier, Model 2680M-XXX offers dual outputs, one biased and one unbiased, both of which are adjustable with common gain control. Voltage amplifier, Model 2685V is used with ISOTRON® accelerometers, providing constant current power source to transducer's integral electronics, while maintaining 2-wire connection.

Vortran Laser Technology, Inc.    Sacramento, CA 95834

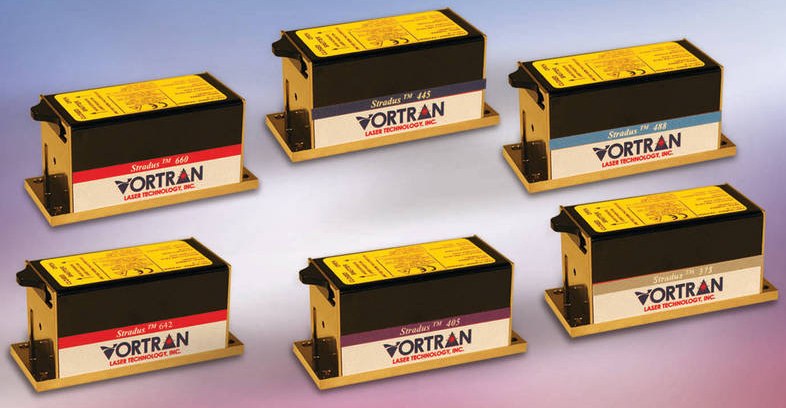

Jan 06, 2010 Stradus(TM) modules offer 6 wavelengths from 375-660 nm with outputs from 16-110 mW for biomedical, R/D, and laboratory applications. All wavelength models offer RMS noise of less than 0.1% from 10 Hz to 10 MHz, except 0.2% for 488 nm, and power stability is rated at less than 0.5% for 24 hr. Compatible with both USB and RS-232 interfaces, modules offer 1.3 mm dia beam for all wavelengths and pointing stability of less than 5 µrad/°C.

AXIOMTEK    Taipei   Taiwan
Jan 06, 2010 In addition to 3 COM ports with +5 V, +12 V, or no power output, industrial-grade eHUB110 can connect up to 5 USB 2.0 devices with 480 Mbps data transmission rate. USB power ratings per port include 2 with +24 V, 2 with +12 V, and one with +5 V power output. Intended for heavy-load applications, RoHS-compliant operates from 24 Vdc input and comes in 200 x 139 x 40 mm metal housing that is wall- and DIN-rail mountable. Front-facing LED indicators monitor USB and COM activities.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 06, 2010 Operating in parallel mode, UltraStart(TM) T8 and T5 Ballasts keep lamps working when other lamps fail. UltraStart(TM) T8 models feature virtually undetectable 0.4-0.5 sec start time and are available with extra-low, normal, or high ballast factors of 0.6, 0.88, or 1.15, respectively. Units are suited for warehouse, commercial, industrial, retail, and property management settings.

Gelcore LLC    Valley View, OH 44125-4635
Jan 06, 2010 Featuring ~4,800 CCT color and color-rendering index of 72, LED Refrigerated Display Lighting delivers optimal light-level uniformity across face of products and cuts glare on floors. RoHS-compliant unit is impact-resistant and has no glass, IR light, UV light, or mercury. Unit makes low- and medium-temperature reach-in door merchandiser display light sources invisible to shoppers in supermarket, grocery, convenience store, and floral retail settings.

GE Co., GE Consumer Products    Louisville, KY 40225
Jan 06, 2010 Designed for vertical burn positions, 320 W PA SPXX CMH® Lamp delivers initial light output of 30,000 lumens and mean lumens of 24,000. Unit offers retrofit for 400 W standard metal halide lamps, which have initial lumens of 36,000 and mean lumens of 23,500. With color rendering index of 90 and lumen maintenance of 80%, lamp is suited for high-bay retail applications.

Toko America, Inc.    San Jose, CA 95131
Jan 06, 2010 Supplied in 2.5 x 2.0 x 1.2 mm package, coiled power inductor is intended for personal electronics such as cell/smart phones and digital cameras. Its low-resistance coils, dense flat power lines, and metallic magnetic materials resist magnetic saturation and can be used for direct currents. Featuring inductance value of 10 µH, product also exhibits minimal audible noise due to combination of coil and core in one unit.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Suited for injection molded components and packaging, Belt Conveyors come in horizontal and vertical configurations. Ten different versions are available ranging from mini conveyor belts with construction height of 1½ in. to heavy-duty conveyors with capacity of 200 lb/ft. Measuring 50-2,600 mm, units allow for continuous material flow, and any combination of routes is possible. Conventional and proportional drive options are available.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Able to grip and release on command, Internal Diameter Gripper (IDG) is suited for use with parts that are heavy/fragile or have irregular shape. Design distributes force evenly over entire contact area, replaceable rubber strips ensure secure grip, and nose adapter can be customized for locating or part stabilization. Product offers alternative clamping method to bladder grippers and automated or magnetic clamps.

SAS Automation, Ltd.    Xenia, OH 45385
Jan 06, 2010 Employing rare earth magnets, GRM Magnetic Gripper is suited for lifting and moving steel sheets, blanks, stamped parts, and completed assemblies in automated press-to-press transfer, robotic pick-and-place, and manual/automated machine loading and unloading applications. Heavy-duty solution grasps odd-shaped or perforated parts and operates effectively in any orientation. Operating up to 140°F, gripper de-stacks without double-blanking when appropriate magnet is selected.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Jan 06, 2010 Suited for material handling, packaging, and wrapping markets, REC Contactor Series will switch and reverse 3-phase induction motors. Series includes 3-pole version with 3 switched phases or 3-pole version with 2 switched phases; former eliminates direct connections from power supply to motor. Provided with 1,600 Vp blocking voltage option, starter complies with NMFT/NMFT7 requirements and offers standard surge current withstand capability to 800 Ap (1,600 Vp optional).

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Jan 06, 2010 Mounted on industrial door rail tracks, BFD40E Series protects entire door height up to 2.5 m and is designed to distinguish between closing door and other obstacles or people standing in operation area. Units feature 40 LEDs, light immunity greater than 100,000 lux, automatic signal level adjustment, and sequential blanking algorithm. Operating from -20 to 55°C, IP65-rated light curtains come with insulated housing and integrated controller.
