Tci Automotive    Ashland, MS 38603
Oct 21, 2010 Flexplates for GM LSA and LS9 engine applications feature precision-ground, .190 in. thick, A36 steel plate material. Engineered to prevent cracking and ring gear breakage, products integrate early style GM torque converter pattern that gives option of using LS-series or earlier model transmission with GM LS9 or LSA engine. Units are dynamically balanced with converter bolt holes sized to ½ in. dia, and are electro-coated for protection from damaging vibrations and elements.

Emerson Network Power    St. Louis, MO 63136
Oct 21, 2010 Intended for residential and small business renewable energy market, Model SPV-5.0 is programmable to 3 output voltages from 208-240 Vac. Transformer-based unit has peak efficiency of 95.3% and MPPT efficiency greater than 99.5%. Featuring 2 independent multi-string photovoltaic inputs, inverter can measure and record real-time and historical energy data from connected PV array and wirelessly send information to Solar Monitor EEM1.0 with touch-screen color display, which can be located remotely.

Aremco Products, Inc.    Valley Cottage, NY 10989
Oct 21, 2010 Intended for electrical and electronic assembly applications to 360°F, Aremco-Bond(TM) 616 electrically and thermally conductive, 2-part adhesive is formulated using silver-coated glass spheres. It exhibits volume resistivity of less than 0.005 ohm-cm at room temperature and thermal conductivity of 0.4 W/m-°K. Mixed in 1:1 ratio by weight, adhesive has 1,000 psi tensile shear strength, 78 Shore D hardness, and 50,000-60,000 cP mixed viscosity range.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Oct 21, 2010 Model SAA06 Motorized SplineRail(TM) utilizes precision rolled lead screw, supported by bearings and contained within concentric extruded aluminum spline, driving integrated composite polymer nut/bushing. KerKote® TFE coating and self-lubricating Kerkite® nut/bushing material lend to extended life expectancy. When mounted vertically, SplineRail can also be used to simultaneously lift and rotate (Z-theta motion). Actuator uses Haydon(TM) Size 17 single or double stack stepper motor.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Oct 21, 2010 Series TDT thermal dispersion flow transmitter, used for metering of all fluid media, has adjustable insertion mounting for pipe sizes of 1-24 in., while extensions allow use with up to 75 in. dia pipes. Unit contains PT resistor that measures media temperature, and one that is heated by attached heating resistor. Flow of media cools heated resistor proportional to speed of flow, resulting in linear output signal proportional to flow speed. Unit is available in flow ranges up to 0-12.47 fps.

E Instruments International LLC    Langhorne, PA 19047
Oct 21, 2010 Suited for field and laboratory use, 650 H/H2 provides site calibration for thermocouples, resistance thermometers, temperature transmitters, and thermostats. Portable unit, with 68 to 1,202°F range, readily accepts ¼ and ½ in. interchangeable inserts, with other sizes also available. Design facilitates operation with respective well depths of 120 and 200 mm for H and H2 models and well diameter of 25 mm. Calibration certification is included.

The Dryco Group    Northlake, IL 60164
Oct 21, 2010 Featuring 9 ft x 3 ft 8 in. x 8 ft 1 in. footprint, XDH2000 Series utilizes silica gel-impregnated desiccant technology and is suitable for mobile applications. Units require 60 A/480 V or 45 A/600 V of power to deliver 2,000 cfm at 2.5 in. static pressure. UL/CSA listed Class I, Div 2, deep-drying dehumidifiers deliver climate-controlled environment in potentially hazardous locations.

Hilscher North America Inc    Lisle, IL 60532
Oct 21, 2010 Using M12 connectors to interface with industrial automation networks, netBRICK comes in plastic housing and can operate as Slave or Master. Each supported protocol conversion is pre-programmed, facilitating I/O mapping, while electronic component selection ensure resistance to elevated thermal loads as well as sustained operation in areas with varying temperatures between -20 to +70°C. Product can be mounted inside/outside of any cabinet installation located indoors or outdoors.

Rockwell Automation    Milwaukee, WI 53204
Oct 21, 2010 Designed to meet global functional safety standards, such as EN ISO 13849-1, Allen-Bradley Guardmaster Series includes 7 units capable of supporting safety devices in single and multi-zone configurations. Users can expand and cascade safety functions up to SIL 3 rating using one single wire to connect devices. In addition, AND/OR logic can be set via rotary switch on front of relay, yielding variety of configurations including regional and global e-stop architectures.

Hawk Measurement    Middleton, MA 01949
Oct 21, 2010 Featuring non-contact, self-cleaning operation, Gladiator Acoustic Switches use acoustic wave technology in Sender/Receiver form for blocked chute detection, point level detection, and anti-collision for heavy machinery. Gladiator Amplifier powers 2 AW Transducers, which use software that enables both units to pulse and receive each other's acoustic echoes. When path between transducers is blocked, units immediately detect presence/absence change of return signal and trigger communications relay.

GaleWrap    Douglasville, GA 30134
Oct 21, 2010 Available as alternative for hand wrapping, GW-3500(TM) all-in-one pallet wrapper and jack produces consistently wrapped loads while eliminating wasted film. Features include manually adjustable film tension, up/down wrapping cycles, and independent top/bottom wrap pattern selection from 1-9 wraps. Splash-proof wrapping mode is also available, and secure wrapping eliminates load failures. Wrapping height is 71 in., and min/max pallet dimensions are 48 in. long x 32-40 in. wide.

Grayling Industries, Inc    Alpharetta, GA 30004
Oct 21, 2010 Offering environmentally friendly alternative to steel and plastic drums and bottle-in-cage totes, PaperIBC(TM) Container is completely recyclable and biodegradable. Unit passes ISTA testing and meets NMFTA requirements. Manufactured using high-pressure injection molding, Buckhorn(TM) Caliber 315 is made from FDA-approved materials and comes in capacity of 315 gal or 3,300 lb. Reusable IBC is collapsible and has smooth interior and exterior surfaces to facilitate cleaning.

Kontron    Poway, CA 92064
Oct 21, 2010 Based on Cavium Networks OCTEON® II CN6335 MIPS64® 6-core processor, AdvancedMC(TM) AM4211 can be used as eNodeB and LTE network element component or, in combination with full scale AdvancedTCA® blades, as co-processor NIC. Module can be scaled across both MicroTCA(TM) and 14-slot AdvancedTCA® platforms. With direct connectivity to FPGA/DSP AMCs in MicroTCA(TM) platform, unit offers complete solution for MAC processing and L3-L7 processing on single chip, achieving throughput up to 15 M packets/sec.

ETCO Incorporated    Warwick, RI 02888 1501

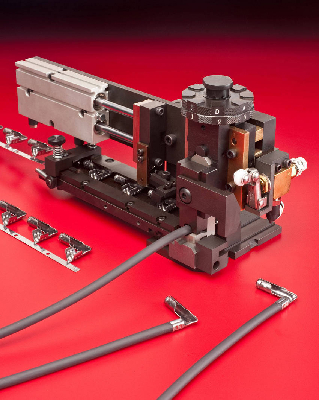

Oct 21, 2010 Featuring precision air feed, Ignition Terminal Mini Die Applicator is suitable for automatic wire processing machines and bench presses that accept standard mini-style dies. Crimp height can be adjusted while applicator is in press by turning dial. Designed to apply terminals ranging from ½-2 in. long, applicator accommodates 5, 7, 8, 8.5, and 9 mm wire sizes.

AppDynamics, Inc.    San Francisco, CA 94107
Oct 21, 2010 AppDynamics v3.0 includes Visibility-360 open API that provides ability to track and follow business transaction from end-user browser to transaction execution across all back-end application services. Operations teams get immediate root cause analysis of problem when it occurs, and can quickly resolve specific customer transaction issues. Business transaction approach to application management offers companies consistent view of application performance across organization.

Emerson Process Management    Pleasanton, CA 94566
Oct 21, 2010 Suited for power generation and water/wastewater facilities, Ovation(TM) expert control system has operator interface with task-based ribbon toolbars that function based on context in which user is working. Individual workspace settings can be customized and saved, enabling users to view point information and alarms according to their preferences. Configuration tools for HART and Foundation(TM) fieldbus devices are consolidated into engineering tools suite, letting users manage devices from one location.

A & D Weighing    Milpitas, CA 95035
Oct 21, 2010 Rated IP65 waterproof and dustproof, 1 mg FZ-iWP Series Precision Balances include one-step internal calibration, in which touch of button ensures accuracy. Multiple units of measure can be used and device has statistical calculation and counting functions. Compliant with GLP, GMP, GCP, and ISO standards, it features RS-232 interface, with Ethernet and Quick USB communication interfaces offered as options.

Intersil Corporation    Milpitas, CA 95035
Oct 21, 2010 Equipped with integrated 512 x 8-bit EEPROM configured in 16 bytes/page, Model ISL12029A tracks time with separate registers for hours, minutes, and seconds. Device also has calendar registers for date, month, year, and day of week. Available in SOIC and TSSOP packages, RoHS-compliant unit provides 2 non-volatile alarms, intelligent battery backup switching, on-chip oscillator compensation, and CPU Supervisor functions, including power-on reset, low voltage sense, and watchdog timer.

Intersil Corporation    Milpitas, CA 95035
Oct 21, 2010 Featuring supply current of 20 µA, Models ISL28130, ISL28230, and ISL28430 are single, dual, and quad micropower operational amplifiers optimized for single and dual supply operation from 1.65-5.5 V and ±0.825 to ±2.75 V. Units feature low input offset voltage of 40 µV, low offset drift of 150 nV/°C, and input bias current of 250 pA. Operating from 0 to +70°C, op amps are suited for handheld devices that operate off 2 AA or single Li-ion batteries.

MicroMo Electronics, Inc.    Clearwater, FL 33762 3008
Oct 21, 2010 Measuring 20 x 28 x 70 mm, Model LM 2070 is suited for variety of positioning applications. Unit offers stroke lengths from 40-120 mm, maximum acceleration of 90 m/s², and maximum speed of 2.6 m/s. Version One uses 3 analog halls sensors for feedback, while Version Two, designed for sin/cos control, uses 2 analog Hall sensors. Motion controller is available with Serial or CAN interface.
