Rohde & Schwarz GmbH & Co      Germany
Oct 01, 2010 Able to characterize 2-port DUTs with continuous frequency range from 10 MHz to 110 GHz, Model ZVA110 is suited for vehicular radar and parking assist systems at 77 GHz, general radar applications at 94 GHz, or wireless backhaul applications in 79/80 GHz range. Base unit offers 4 test ports, 4 integrated signal sources, and 8 receivers, enabling multiport measurements on amplifiers, mixers, and balanced DUTs. Millimeter-wave converters make analyzer suitable for measurements up to 500 GHz.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Oct 01, 2010 With gasketed, all-steel housing and built-in heater/blower, 2 megapixel Model IK-WR12A withstands extreme weather conditions and vandalism. Unit outputs 1,600 x 1,200 color video and supports dual-streaming in MPEG4 and Motion JPEG at up to 30 fps. Camera features 3-9 mm vari-focal lens, true IR-cut filter day/night feature, and IR illuminators for dimly lit environments. Operating from -22 to 122°F, Model IK-WR12A is suited for traffic monitoring, airports, and city-wide surveillance.

Savigent Software, Inc    Minnetonka, MN 55343
Oct 01, 2010 Designed to collect and analyze both time-series process data as well as event-based context data within manufacturing environment, Catalyst PDC(TM) v2.0 provides customers with solutions for workflow automation, manufacturing intelligence, and systems integration needs. Program offers integrated store-and-forward, data compression, data archiving and purging, library of Microsoft Excel functions, and Microsoft Excel add-in for data viewing.

Duratherm Extended Life Fluids    Lewiston, NY 14092
Oct 01, 2010 Duratherm S is silicon-based thermal fluid, while Duratherm G is made from polyalkylene glycol, and Duratherm HF has petroleum hydrocarbon formulation. Featuring flashpoints of 500°F to as high as 615°F, heat transfer fluids enable industrial users to comply with demands of insurance companies, fire marshals, and other industry regulators to operate at temperatures lower than fluid's flashpoint.

Raymond Corporation, The    Greene, NY 13778 0130
Oct 01, 2010 Drawing real-time information from on-board computers of lift trucks, iWarehouse® and its reporting modules let warehouse managers benchmark lift truck and operator productivity; diagnose potential lift truck issues remotely; and reduce risk of impacts. To help maintain lift truck battery fleets, iBattery(TM) module enables data-driven management by automatically notifying warehouse managers of key battery statistics: charge/discharge cycles, temperatures, and battery water levels.

Omega Engineering, Inc.    Stamford, CT 06907
Oct 01, 2010 Designed with no moving parts and PTFE lining, FMG600 Series are suitable for pipes up to 12 in. and feature max pressure of 145 psi. Standard outputs include analog, frequency, and RS485 communications. Offered in local- and remote-display models, flowmeters are available with optional sanitary tri-clamp mounting. Electrode material used is Hastelloy C4 (standard) and tantalum (TGE optional).

Spreadtrum Communications Corp.    Sunnyvale, CA 94085
Oct 01, 2010 Compliant with multiple SIM card standards, triple SIM in single chip solution SC6600L7 allows running of 3 GSM SIM cards simultaneously on stand by with only one set of baseband and RF. It integrates 3 SIM engine processors and 3 controllers, triple SIM protocol stack DSP, and graphical user interface.

Extreme Engineering Solutions (X-ES)    Middleton, WI 53562
Oct 01, 2010 Including P2020 processor with two 1.2 GHz PowerPC e500 cores, 3U CompactPCI single board computer, XPedite5530 targets industrial, communication, and military applications. Features included are up to 4 GB of DDR3-800 ECC SDRAM, up to 16 GB of NAND flash and 256 MB of redundant NOR flash memory, 2 Gigabit Ethernet ports, and 2 serial ports, one USB port. MIL-STD 810F compliant product comes in air-cooled, commercial (0-55ºC) to rugged, conduction-cooled (-40 to +85ºC) versions.

R+W America L.P    Bensenville, IL 60106
Sep 30, 2010 Explosionproof couplings are machined with thermally and chemically stable, wear resistant, polyurethane insert for zero backlash. Smooth fit between insert and hubs helps insert compensate for lateral, angular, and axial shaft misalignment. Impregnated with graphite, insert is electrically conductive and eliminates potential for charges arcing from one hub to other. Couplings are available in 9 sizes with torque ratings from 17-19,000 lb-in. and with bore diameters from 1/8-3.125 in.

Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245
Sep 30, 2010 Pepperl+Fuchs GLV18 Series photoelectric background suppression sensor features mechanically adjustable sensing range cut-off that enables detection of all colors up to 120 mm away. Unit is able to detect b&w test objects to within 6% of same distance, and objects with changing print, color, or reflectivity are detected at consistent distances without need for readjustment or repositioning. Flush-mount bracket is included for toolless mounting of sensor on conveyor.

HellermannTyton    Milwaukee, WI 53224
Sep 30, 2010 Intended for electrical and OEM applications, HelaCon Plus incorporates double-spring technology for safe, reliable wire connections. First spring minimizes insertion force, while second secures firm connection with higher retention value. Able to join any combination of solid and stranded wire through its individual pole slots within same housing unit, connector has 24 A max current rating and offers multiple in-line port options for flexibility and future expansion.

Semrock Inc.    Rochester, NY 14624
Sep 30, 2010 Targeted at imaging DAPI, GFP, and red fluorescent proteins, BrightLine® Long-Pass Fluorescence Filter Sets allow users to choose between narrowband excitation filter to minimize photobleaching and phototoxicity to sample, and wide exciter for maximum signal in very low-concentration samples. Emitters offer greater than 93% average transmission over passband and extremely steep edges that are suitable for capturing fluorescence as close to excitation band as possible.

Sprint Electric Ltd    Arundel East Susse BN18 0BE  United Kingdom
Sep 30, 2010 Available in 3 frame sizes with standard supply voltage inputs up to 480 Vac, JL/X Series covers output currents from 100-1,850 A. Units that accept AC supply voltages up to 690 Vac are also available for higher voltage applications. Thyristor stack configuration provides 3-phase output suitable for controlling slip ring motors in either 2 or 4 quadrant modes. All fieldbus options including Profibus, DeviceNet, CC-Link, EtherNet/IP, Modbus, and CANopen are supported.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Sep 30, 2010 CoroMill 325 Thread Whirling Inserts and Holders enable threading of long, slender components in difficult-to-machine materials. By combining thread whirling with rigidity of sliding head machine, complete threads are produced accurately in single pass, without need for special supports. Inserts and holders fit variety of sliding head machine types and can produce wide range of high-precision screws and implants from rough stock.

Associated Power Technologies    Diamond Bar, CA 91765
Sep 30, 2010 Designed for electrical product manufacturers that need to comply with international safety agency standards, model 105 VariPLUS(TM) 500 VA Power Converter combines variable transformer with AC power source. Dual LED displays on front panel provide voltage, current, and power measurements, while 5 push buttons let operator edit parameters and change state of instrument. Also included, digital rotary encoder can be used to change settings and control output voltage.

Creative Materials Inc.    Ayer, MA 01432
Sep 30, 2010 Formulated for optimized bond strength and flexibility required for bonding of solar array components, 124-08 electrically conductive epoxy adhesive features coefficient of thermal expansion compatible with composition of thin film PV cells. This 1- or 2-component, pre-catalyzed solution, which can be injected via syringe or jet dispensed, is resistant to humidity, has cure temperature range of 90 min @ 80°C to 5 min @ 175°C and is RoHS-compliant.

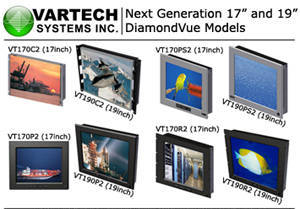

VarTech Systems, Inc.    Baton Rouge, LA 70809
Sep 30, 2010 Offered in 17 and 19 in. models, DiamondVue HMI systems suit industrial and process control environments requiring protection against intrusion of dust/water. Both LCD sizes feature 4:3 aspect ratio, SXGA resolution, auto-sync compatibilities, optional touchscreen technology, as well as various computer and video input types. In addition to various mechanical configurations and environmental ratings, monitors feature 16-guage, thermoset black powder-coated, T6 6061 aluminum housings.

Ogura Industrial Corp.    Somerset, NJ 08873
Sep 30, 2010 With advances in friction material, redesigned RNB Series maintains same torque rating while eliminating need for higher force springs and correspondingly higher wattage oil. On some models, outside diameter has been slightly reduced, but all have same through hole mounting dimensions, so brake models are interchangeable. Brakes are suited for servo motor and robotics industries, where size and weight are of concern.

Pierce Arrow, Inc.    Henrietta, TX 76365
Sep 30, 2010 Pierce PS4000 winch operates at 19.8 fpm with 1.5 hp, drawing 310 A under full load. Weighing 55 lb, it includes 40 ft of ¼ in. cable, handle bar switch, compact solenoid, hook, roller guide, and universal mounting plate.

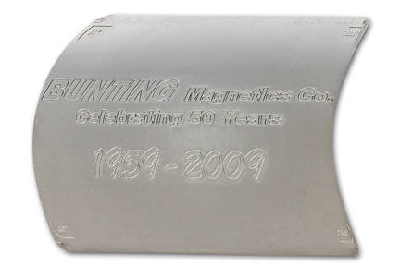

Bunting Magnetics Company    Newton, KS 67114 0468
Sep 30, 2010 Providing clear, non-stick finish that will not flake off, Repel(TM) Coating offers silicone-based layer of protection for many different applications. Product keeps die flexible and prevents adhesive or label material from embedding in cavities. Coating is also suitable for cold foil applications where it minimizes likelihood that thin foil material will stick in base of die.
