OMG, Inc.    Agawam, MA 01001
Sep 28, 2010 Accommodating needs of applications that require support of single or multiple pipes at varying heights, Height Adjustable Strut Model PipeGuard incorporates galvanized threaded rod risers and stainless steel hardware. It features 10 in. long, heavy-duty EPDM rubber base and galvanized strut channel that can be adjusted from 5-10 in. above deck; custom height options are available. Each unit, capable of supporting up to 160 lb, will support several pipes, depending on diameter.

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607

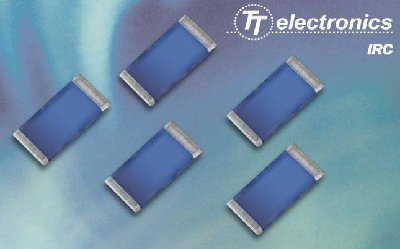

Sep 28, 2010 Available in 0402 package size, PFC Series meets all E, H, K, and M MIL-PRF-55342 characteristics. Units feature resistance ranges from 10 W to 125 KW with power ratings to 100, 150 and 250 mW and voltage ratings of 50, 100, and 125 V, depending on package size. Constructed with Tantalum Nitride thin film resistive element, resistors are suited for military and aerospace systems, weapons systems, and aircraft and communication equipment.

National Semiconductor Corp.    Santa Clara, CA 95051-0695
Sep 28, 2010 PowerWise® LM3492 LED driver features dynamic headroom control that automatically adjusts LED driving voltage to minimum required level. Boost converter and 2-channel current regulator drive 2 independently dimmable LED strings with maximum power of 15 W and output voltage of up to 65 V. Fast slew rate current regulators allow high frequency and narrow pulse width dimming signals to achieve contrast ratio of 1,000:1. LED current is programmable from 50-200 mA by single resistor.

GAO Comm    Toronto M1B 2K4  Canada
Sep 28, 2010 Designed for maintenance of digital, analog, FM, or bilateral networks, handheld Model 1129D provides single-channel, multi-channel, and all-band scanning as well as signal-to-noise ratio measurement and spectrum and frequency analysis. Portable meter tests 128/ITU-TJ.83 Annex A/B/C modulated signals and offers signal level measurement range of 30-120 dBµV at precision level of ±1.5 dB. Optional constellation diagram generation is available.

RNR Plastics, Inc.    Raynham, MA 02767
Sep 28, 2010 Made from clear PVC in custom configurations, RNR Removable Adhesive Pouches feature chemically designed, pressure sensitive adhesive that enables removal from product without leaving residue. This eliminates need for detergents, solvents, and cleaning prior to painting, powder coating, or other processes. Suitable for diverse applications, sizes can conform to curved optics, electronic chassis, instrumentation, as well as odd-sized parts.

Omron Scientific Technologies Inc.    Fremont, CA 94555

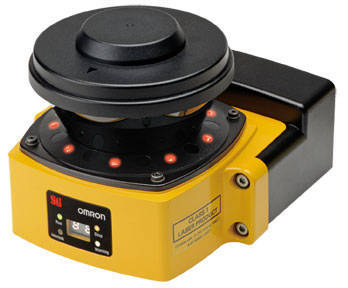

Sep 28, 2010 Type 3 safety laser scanner model OS32C has 104.5 mm profile and offers configurable detection zones. Weighing 1.3 kg and consuming 5 W nominally or 3.75 W in standby, product accommodates many presence detection and collision avoidance application needs. Its 270° detection angle enables one scanner to provide presence detection, including 2 warning zones and one safety zone, on 2 sides of machine. Other features include LAN-based system monitoring support and adjustable response time.

Dwyer Instruments, Inc.    Michigan City, IN 46361

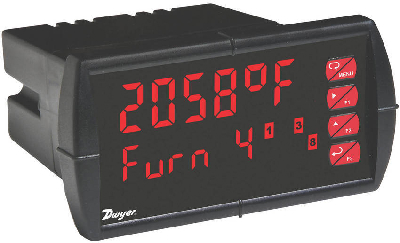

Sep 28, 2010 Providing visual indication and control of process temperature, Series LTI is available with field pluggable modules for adding relay outputs, digital I/O ports, and serial communications. Units come with universal thermocouple and RTD inputs and provide output of 4-20 mA. Set of parameters can be copied from one panel meter to another for multiple-meter applications. Operating from -4 to 149°F, meters have 1/8 DIN housing that can be panel mounted or mounted in NEMA 4X enclosure.

Reed Manufacturing Co.    Erie, PA 16512
Sep 28, 2010 Supplied with foot pedal, pipe cutter, reamer, and dies, ½ hp Model 5401TMSO centers and chucks pipe and conduit and rotates it while cutting, threading, and reaming operations are performed. Three-spoke handwheel with gear and rack system moves high clearance carriage and starts die onto pipe for threading. Using self-priming pump, oil system generously floods pipe with oil while threading. Nominal threading capacity is ¼-2 in. for bolts and 1/8-2 in. for pipes.

Moyno Inc. Unit Of Robbins & Myers, Inc.    Springfield, OH 45501 0960

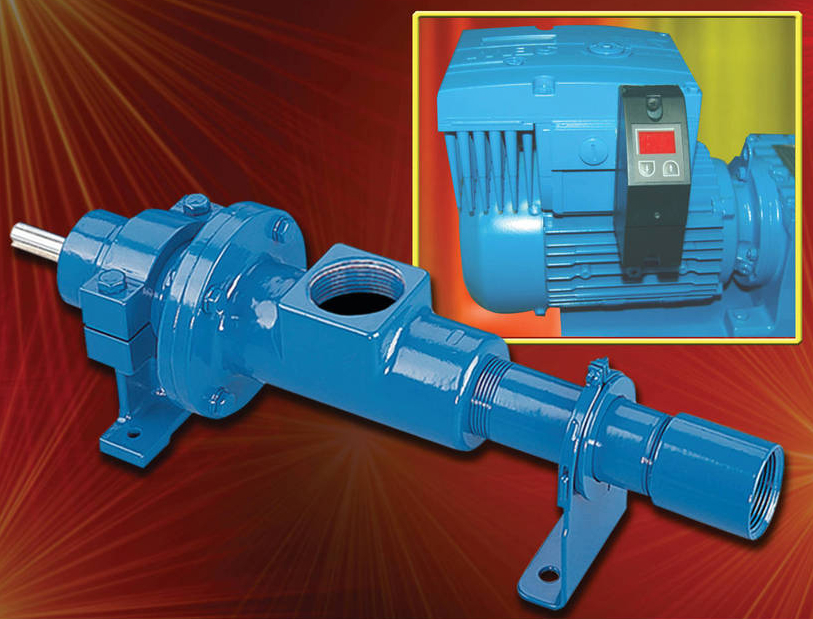

Sep 28, 2010 Available in bare-shaft and close-coupled configurations, Moyno® Metering Pump accommodates diverse metering application demands while promoting performance metering of low-flow liquids in range of processing applications. Integral VFD/motor controls promote metering accuracy and repeatability, while progressing cavity design results in smooth flow, free from pulsations and variations in velocity and volume. Ratings include capacities from 0.1-400 gph and pressures to 300 psi.

Z-Communications, Inc.    San Diego, CA 92126
Sep 28, 2010 Available in rectangular waveguide sizes from WR137 to WR28, Waveguide-to-Coax Adapters and Terminations provide full-band impedance matching with minimal insertion loss. VSWR for adapters and terminations is better than 1.20 and 1.02, respectively. Power handling capabilities range from 0.5 W for WR28 over frequency range of 26.4-40.1 GHz to 2.0 W for WR137 over 5.38-8.17 GHz. Made of precision machined aluminum, adapters and terminations come with SMA or 2.92 mm female connectors.

TDK-Lambda Americas Inc.    San Diego, CA 92154
Sep 28, 2010 Operating from 90-264 Vac universal input, medical-certified DTM65-C series offers 7 output voltages from 5-48 V and output power ratings from 40-65 W. Typical operating efficiencies are greater than 85%, and insulated, convection-cooled enclosure measures 5.2 x 2.72 x 1.57 in. Suited for powering portable medical equipment, series includes CEC- and EISA Level IV-compliant models, overvoltage and short-circuit protections, and off/no-load standby-power-consumption under 0.50 W.

HydraForce, Inc.    Lincolnshire, IL 60069

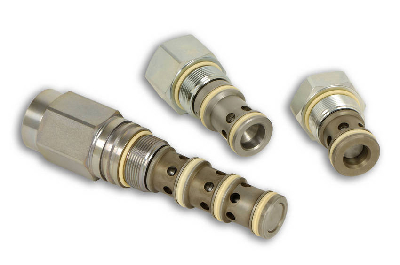

Sep 28, 2010 Incorporating modified standard cavity with bottom shoulder to support valve cage, H-Series HyPerformance(TM) Valves offer continuous operating pressures to 350 bar and intermittent pressures to 420 bar. Single-piece PPDI urethane seals eliminate need for backup rings, while IP69K-rated solenoid coils support continuous operation at ±15% of rated voltage. Valves conform to NFPA's T2.6.1 standard with assurance level of 99% and verification level of 90%.

CH Products    Vista, CA 92081
Sep 28, 2010 Featuring black housing and 10 programmable pushbuttons, IPD Launch Joystick provides intuitive control for pan, tilt, and zoom camera functions. Pushbuttons may be used to navigate between workspaces, cameras, views, and PTZ presets. Equipped with USB 1.1 interface, 3-axis resistive joystick integrates seamlessly with software applications supporting USB joystick inputs via Microsoft DirectX. No device driver or manufacture-specific SDK is required.

American Portwell Technology, Inc.    Fremont, CA 94538
Sep 28, 2010 Measuring 2.75 x 2.75 in., PQ7-M105IT module board supports Intel® Atom(TM) processor E620T/E640T/E660T SoC and Intel® Platform Controller Hub EG20T. It features 1 GB system memory, dual independent display by LVDS/SDVO, GbE, and 7 USB ports. Model PQ7-C100XL, 3.5 in. ESB developer carrier board has VGA port and LVDS port for dual independent display, GbE port, 7 USB ports, 2 SATA ports, and SDIO socket. Both products used together suit various low-power, fanless applications.

American Portwell Technology, Inc.    Fremont, CA 94538

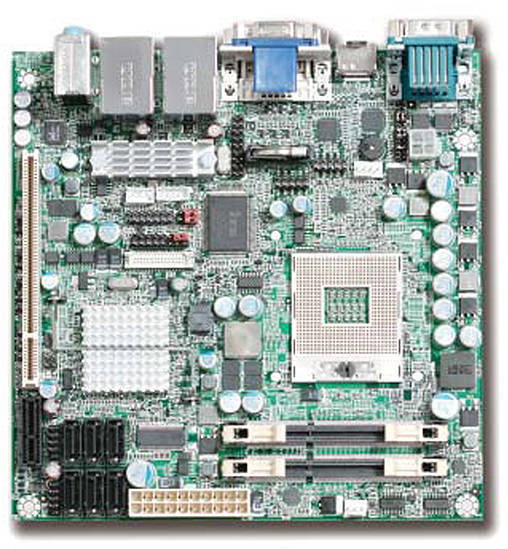

Sep 28, 2010 Along with support for Windows® 7 OS, WADE-8020 incorporates Intel® Core i7/i5/i3 mobile processor and Mobile Intel QM57 Express chipset to optimize mobile computing performance and graphics. Two SODIMMs support dual-channel DDR3 SDRAM up to 8 GB, and dual display is supported via VGA/DVI/HDMI/LVDS. SATA with RAID support as well as PCI, PCIe x1, and Mini PCIe expansion are standard. Other features include Intel Active Management Technology v6.0 and Intel Hyper-Threading Technology.

OilTrap Environmental    Tumwater, WA 98512

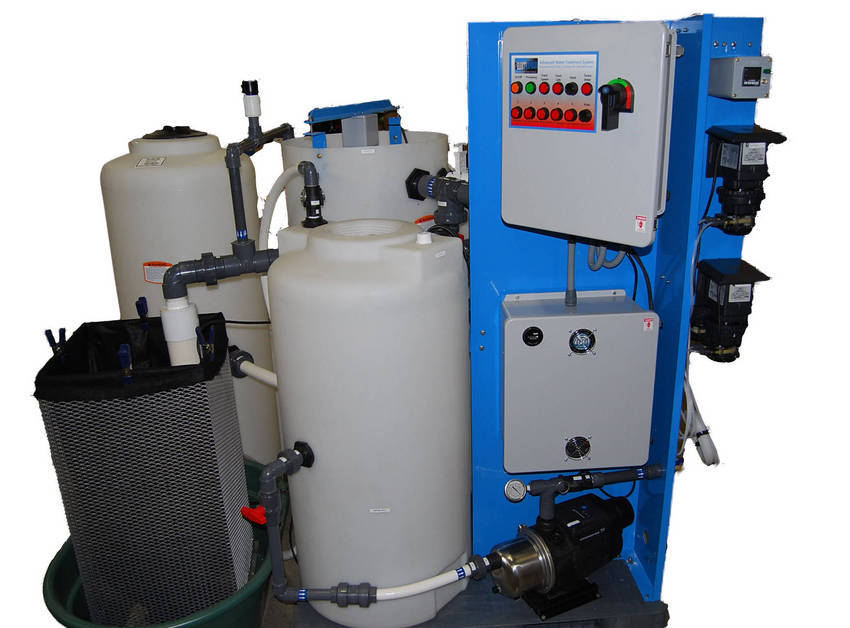

Sep 28, 2010 Model EL5 MINI EC wash water treatment system treats water generated from washing ships, boats, and all other watercraft with anti-fouling paint and other debris. Automating treatment process and eliminating daily maintenance, portable ElectroPulse system can remove emulsified oil and grease, suspended solids to sub-micron levels, oxidation, and suspended and dissolved heavy metals from water. Treated water can be recycled or safely discharged to sanitary sewer.

CURTIS INDUSTRIES, LLC    Worcester, MA 01606

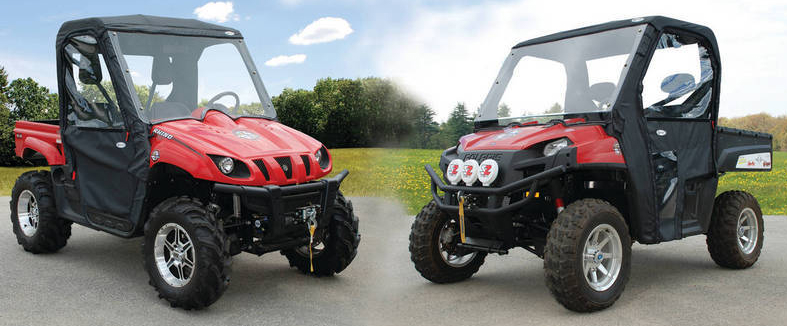

Sep 28, 2010 Added onto factory-installed Operator Protection System (OPS) of Yamaha Rhino or Polaris Ranger without any drilling or permanent modifications, PathPro soft cab system can be used in varying weather conditions. It is manufactured from marine-grade, UV-resistant, PVC-coated 40 oz. nylon and incorporates acrylic windshield that affords visibility in all directions. Other features include zip-out removable doors, zip-open side and rear windows, and aluminum reinforcements.

Linear Technology Corp.    Milpitas, CA 95035

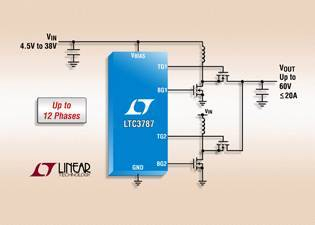

Sep 28, 2010 Offered in SSOP-28 and 4 x 5 mm QFN-28 packages, LTC3787 dual-phase, single-output, synchronous step-up DC/DC controller replaces boost diodes with 1.2 Ohm onboard N-channel MOSFET gate drivers. It eliminates heat sink normally required in medium- to high-power boost converters and can produce 24 V @ 10 A output from 12 V input at up to 97% efficiency. Current mode architecture, clock output, and phase modulation facilitate paralleling of multiple devices for up to 12-phase operation.

Kontron    Poway, CA 92064

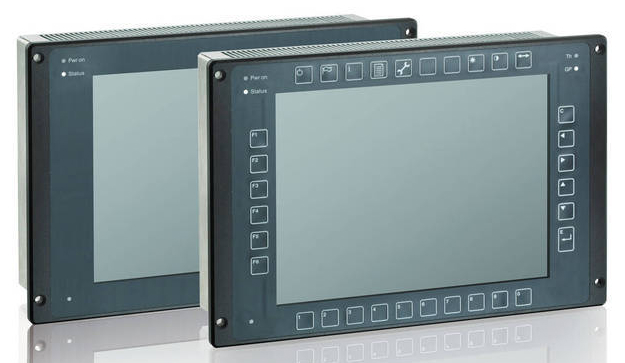

Sep 28, 2010 Designed for UIC 612-0x railway applications, fanless Kontron HMITR is available with capacitive touch display or hard keys and has IP65-protected front. Product is powered by 1.6 GHz Intel® Atom(TM) E6xx CPU and features Intel Platform Controller Hub EG20T as well as 1,024 MB soldered RAM. Its 10.4 in. display has LED-backlit design that automatically adapts brightness to ambient lighting for optimal contrast. Multiple connectivity, expansion, and data storage options are available.

Halfpricesoft.com    Louisville, KY 40217
Sep 28, 2010 With ezCheckPrinting software, multiple users can access same check printing database over network without duplicating check numbers and overlapping data. Program also serves as check management system, ensuring check information is stored and organized in one secure place. Users can generate printed report for checks paid, or use report export function to help prepare for tax season. By selecting QuickBooks format option, program will automatically format checks for use with QuickBooks.
