Thomas & Betts Corp.    Memphis, TN 38125

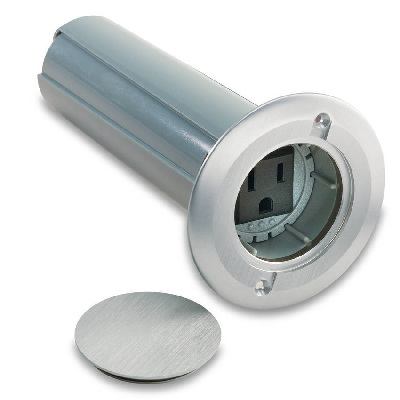

Sep 29, 2010 Installed in sub-floor, Carlon® Residential Drop-In Floor Box minimizes exposure of electrical and data communications cords. Kit includes non-metallic box and aluminum or brass cover, as well as 15 A power receptacle, low-voltage and blank inserts, mounting screws, and wire nuts. Providing 11.8 in.³ capacity, box also has integral cable clamp that secures non-metallic sheathed cable. Both aluminum and brass covers are brushed and lacquered for added protection.

Extreme Engineering Solutions (X-ES)    Middleton, WI 53562

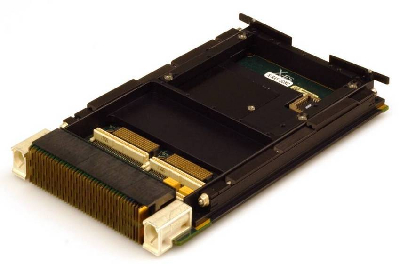

Sep 29, 2010 Consuming less than 20 W, XPedite5570 and can host nearly any FPGA-based, A/D or camera-interfaced XMC module for UAV surveillance applications. Unit features QorIQ P2020 processor with two 1.2 GHz Power Architecture® e500 cores, 4 GB DDR3-800 ECC SDRAM, two x4 PCIe VPX data-plane links to backplane, and two 1000BASE-X GigE VPX control-plane links to backplane. Available in air- or conduction-cooled models, 3U VPX module is suited for size, weight, and power constrained military applications.

Wenzel America, Ltd.    Wixom, MI 48393
Sep 29, 2010 Measuring 100 x 68 x 58 mm, Shapetracer is used on CMM with stable support table and is suited for non-contact reverse engineering and inspection. System can scan up to 48,000 points/sec with measurement accuracy better than 20 µm. With working clearance of 40 mm, scan width of 35 mm, and scan depth of 60 mm, Shapetracer can be connected to Renishaw PH6M or PH10M probe head via Renishaw Autojoint connection. In conjunction with PH10M rotary swivel head, 5-axis measurement is available.

American Portwell Technology, Inc.    Fremont, CA 94538

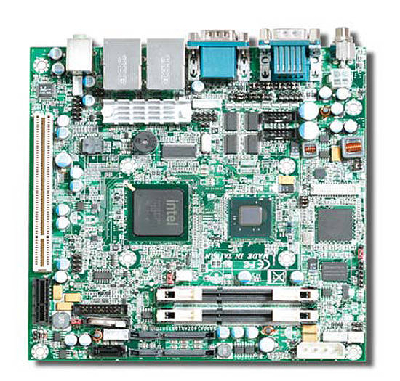

Sep 29, 2010 Based on 1.8 GHz Intel Atom D525 dual-core processor, WADE-8075 includes ICH8M chipset, 12 Vdc input, and two 204-pin SODIMMs that support single-channel DDR3 memory up to 4 GB. Embedded system board also features VGA and 24-bit LVDS dual display, dual GigE, 1 expansion PCI-E slot, 1 PCI slot, and 1 Mini PCI socket with USB and PCI-E x1 signal. Powered by 1.67 GHz Intel Atom N455 single-core processor, WADE-8076 has same configuration, but includes 18-bit LVDS display.

Express Logic, Inc    San Diego, CA 92127
Sep 29, 2010 As graphical analytical program, TraceX® 5.2 represents real-time system events so that developers can visualize what their system is doing across any desired time interval. Program makes system plainly visible, clearly identifying system bottlenecks or failures. By selecting method of event search, users can Search by Context, Search by Object, Search by ID, and Search by Value. By specifying number of TraceX time-ticks per µs, users can produce real-time scale of target system.

Platinum Tools    Camarillo, CA 93012

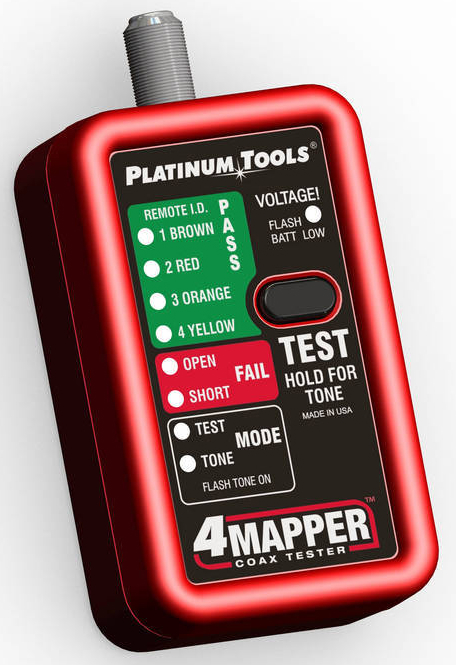

Sep 29, 2010 Available with 4 custom F remotes, 4Mapper Coax Tester lets users troubleshoot and identify multiple coax cables connected to equipment such as TVs, monitors, security cameras, routers, and splitters. Individually identified, push-on remotes let user track up to 4 connections simultaneously from main cable box. Along with EZ 1-button design, features include tone generator, daylight-readable line voltage and low battery LEDs, and ability to display Pass, Open, or Short conditions.

Electro-Sensors, Inc.    Minnetonka, MN 55343 9108
Sep 29, 2010 While used to display automated system's production rate or time in process, TR400 ratemeter also offers system slowdown test to verify relay setpoints and operation. Slowdown test, performed within seconds, lets users periodically test setpoints while system is functioning normally, with no need for system recalibration. Product displays rate or time in process by detecting and converting 0.01-10,000 Hz signal input and is available with single- or quadrature-signal decoding.

Walls & Forms Inc.    Dallas, TX 75374

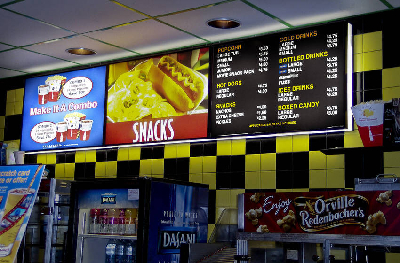

Sep 29, 2010 Available in multiple sizes, Lights Alive Modular Menu Board System provides versatile solution for food service industry. Unit features aluminum profile and electrical snap-on connectors that link boards on site. Outer edges can be illuminated with logos or corporate colors, or users can create their own theme. Offered in single or double-sided units, boards feature electronic ballasts and choice of T8 lamps or LED lighting.

KNF Neuberger, Inc.    Trenton, NJ 08691-1810

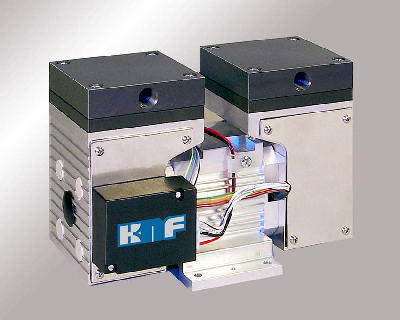

Sep 29, 2010 Offered in single- and multi-stage OEM models powered by AC, DC, or BLDC motors, KNF Type N838 Pumps achieve flow rates up to 42 lpm per head under atmospheric conditions, ultimate vacuum of 27 in. Hg, and max continuous pressure of 7 psig. Units feature multi-port valve system, FEA-designed structured molded diaphragm, and closed compressor housing, which minimizes noise. Operating oil-free, pumps are suited for medical therapeutic devices and diagnostic equipment.

Piher International Corp.    Libertyville, IL 60048

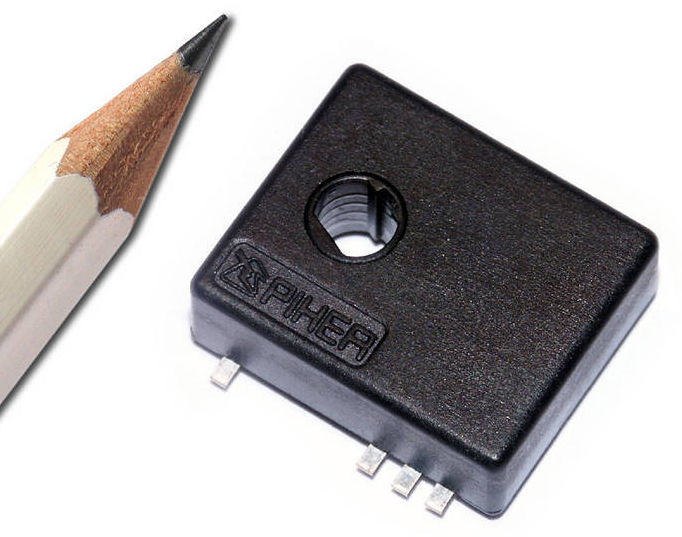

Sep 29, 2010 Exhibiting reliability up to 25 million cycles, MTS 360 combines through-shaft design with 360° absolute position feedback. Hall effect technology enables non-contacting sensing using standard SMD features, and offset through-hole accommodates vacuum pick up tool for use in automated assembly systems. Rated for -40 to +150°C use, sensor offers selectable output between analog, PWM 12 bits, or SPI at 14 bits and includes second output channel to provide programmable switch signal.

Midwest Motion Products    Watertown, MN 55388
Sep 29, 2010 Model MMP-1525-BR-24V features output rated for 15 A continuous and 25 A peak, for 1 sec, which creates 2.5 kW peak power capacity. Device's ±10 V analog command is scalable, for up to ±35 Vdc command, and it is equipped with analog tach feedback for closed loop velocity servo applications. Unit can also be driven in current mode for non-velocity applications. Measuring 7.62 x 1.0 x 5.2 in., it features black brushed-aluminum case and has slots in 6 positions for flat or vertical mounting.

Specialty Coating Systems    Indianapolis, IN 46278

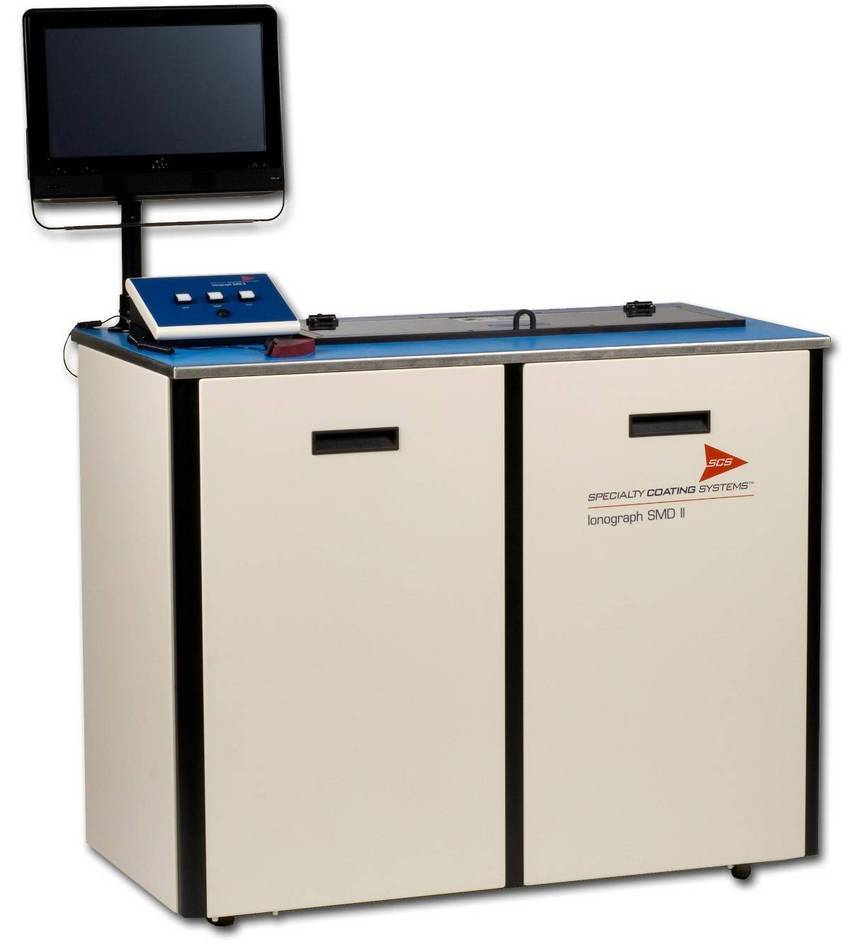

Sep 29, 2010 Utilizing dynamic testing method, Ionograph® ionic contamination test systems determine cleanliness of electronic components, assemblies with SMT devices, and bare/assembled PCBs. Onboard computer is included for control and monitoring, while PowerView software facilitates testing and results analysis. Specific features of latter include Check IPA feature that displays percent of alcohol present in solution and also provides milliliters of alcohol or water needed to achieve 75% IPA.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371

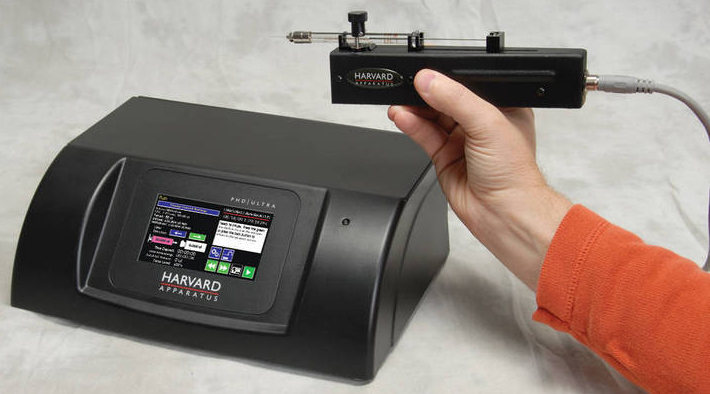

Sep 29, 2010 Suited for handheld use or stereotaxic mounting, PHD ULTRA(TM) Nanomite can accommodate one 0.5 µl to 1 ml syringe and features foot pedal activation for hands-free injections. User-defined methods can be stored and then recalled at later time via LCD touchscreen. Designed for 1 ml/sec max bolus infusions, pump can deliver low nanoliter - up to tens of ml/min - injections and features flow ramping capability for spatially continuous volume injections with minimal physiological impact.

Dwyer Instruments, Inc.    Michigan City, IN 46361

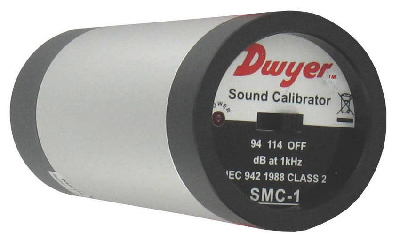

Sep 29, 2010 Weighing just 10 oz with battery, Model SMC-1 features output frequency of 1 kHz ±4% and measuring accuracy of ±0.5 dB. Optimal environmental conditions for operation include temperature of 68°F, 65% relative humidity, and 29.9 in. Hg atmospheric pressure. In addition to low battery indicator and ½ in. microphone adapter, each calibrator includes carrying case, 9 V battery, and instruction manual.

PennEngineering® (Penn Engineering)    Danboro, PA 18916
Sep 29, 2010 Intended for metal panels as thin as .040 in., PEM® Type SCBR(TM) spinning clinch bolts incorporate self-retracting feature that enables integrated captive screw to remain retracted when disengaged. Controlled clinching action permanently captivates retractable screw-and-spring combination in metal sheet during fastener installation and lets screw spin freely, accelerating attachment of mating hardware. Various lengths and thread sizes are available.

Malcom Co., Inc. (Distributor of LEISTER Hot Air Tools)    Tiverton, RI 02878

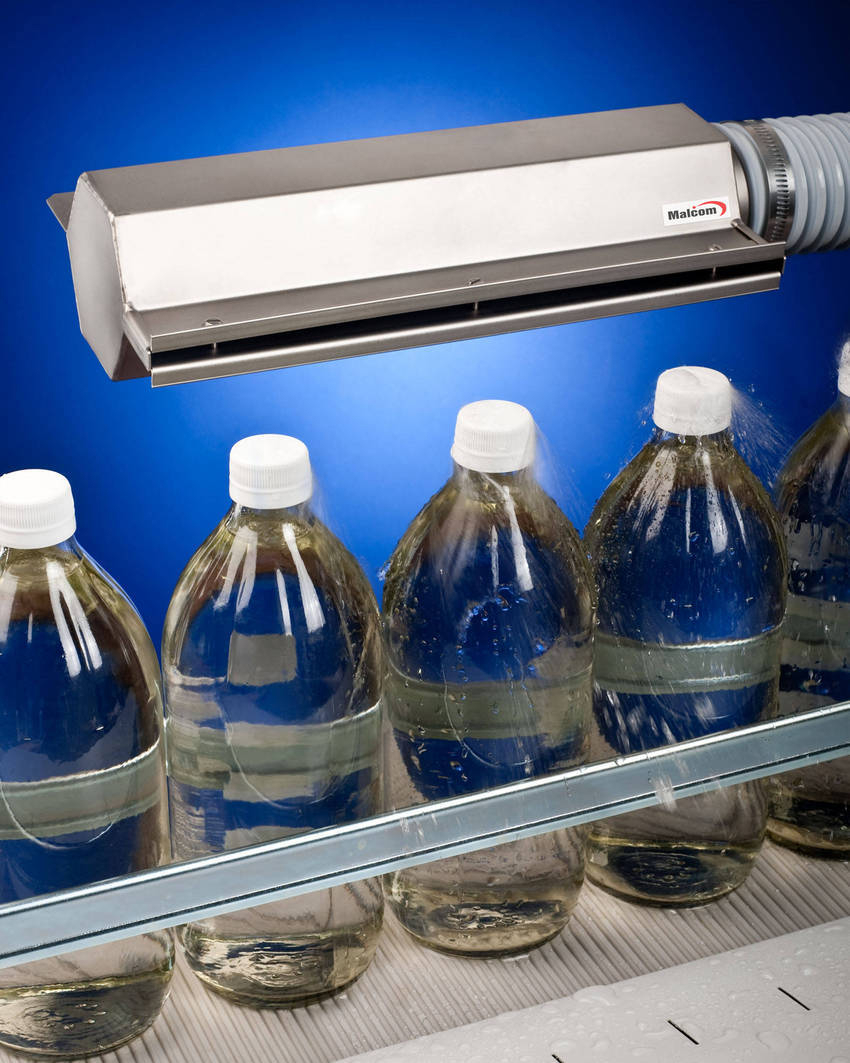

Sep 29, 2010 Available with single and multiple hot air blowers, specialty deflectors, air nozzles, or tunnels, and various control options, Malcom Hot Air Knife Systems suit coating or preheating substrates. Hot air blowers are adjustable from ambient to 1,000°F with pressure up to 4.5 psi to provide appropriate velocity of heated air. Knifes help in removing water and condensation from bottles and packages before printing, sealing, and labeling.

Anver Corp. - Anver.Com    Hudson, MA 01749

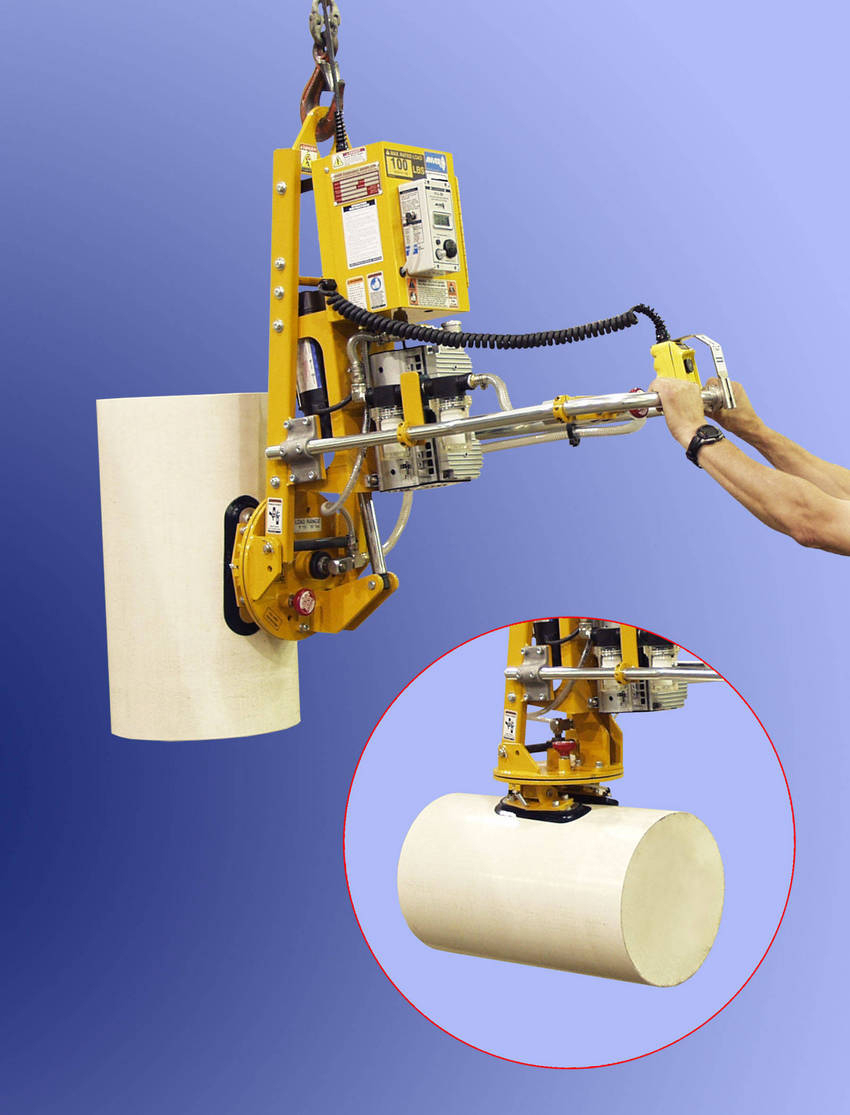

Sep 29, 2010 Anver ETL Series vacuum lifter-tilter features 115 Vac electric or pneumatic actuator for tilt mechanism, removable pendant control for up/down and powered tilt, can be rotated manually, and includes locking pin. Device uses dry pump vacuum system rather than hydraulics for lifting steel, plastic, and fiber-glass loads. Product allows one person to lift and position parts up to 2,000 lb. It can also be equipped with suction cups made from variety of special-purpose materials.

MicroMo Electronics, Inc.    Clearwater, FL 33762 3008
Sep 29, 2010 Model 2642 in CXR series motors delivers 23 mNm of continuous duty torque, while model 2657 offers 35 mNm continuous torque. Compact motors operate over temperature range of -30 to +100°C at voltages from 12-48 V. Units can be used in combination with standard servo components, such as high-resolution, 3-channel optical or magnetic encoders, precision planetary gearheads, and programmable speed controllers and motion controllers.

Kaeser Compressors, Inc.    Fredericksburg, VA 22404
Sep 29, 2010 To meet demands of applications such as production of PET containers, N-series can raise pressure of standard works air from 5-13 bar to 45 bar max. Reciprocating compressors are offered in 2- or 3-cylinder versions with rated power ranges of 7.5-18.5 and 2.2-45 kW, operational speeds from 760-1,300 rpm, and delivery capacities from 4.7-14.4 m³/min. While manual belt drive tensioning is availabel on 2-cylinder versions, automatic belt tensioning is standard on 3-cylinder versions.

Ingersoll-Rand Co.    Bryan, OH 43506
Sep 29, 2010 Combining impact with capabilities of ratchet, Hammerhead 2015MAX and 2025MAX feature 3/8 and ½ in. drive, respectively, with head-height of less than 2 in. and speeds up to 7,100 rpm. Tools include 2-position power regulator and forward/reverse collar that provides unrestricted access to change direction of tool in tight spaces. Knuckle-saver reactionless torque eliminates kickback and further protects technicians' hands while working in confined areas.
