Crown Equipment Corp.    New Bremen, OH 45869
Oct 05, 2010 Utilizing constant current-constant voltage-constant current charge profile, V-Force V-SCR Silicon-Controlled Rectifier (SCR) Battery Charger minimizes amount of heat generated during charging. Charge termination is determined by change in voltage over time, preventing over and undercharging. Termination mode also forces all acid from battery plates, minimizing corrosion. For safety, entire exterior of cabinet is grounded and charger features 5 second delay at start.

PAC Machinery Group    San Rafael, CA 94901
Oct 05, 2010 Used for packing, sealing, and shrink wrapping products, DEM-4/-6 shrink systems combine heavy-duty L-bar sealer and shrink tunnel with temperature and speed controls that are compatibile with range of films. Seal system minimizes maintenance and eliminates need for hot knife seal bar, while microprocessor controls promote consistent seals and shrink. Single adjustable height control is also included for product take away and tunnel conveyors, providing smooth product transfer.

Schneider Electric    Palatine, IL 60067-7399
Oct 05, 2010 Offering tested, validated, and documented architectures, MachineStruxure(TM) architecture helps OEMs design machines optimized for cost, energy efficiency, and performance. It leverages benefits of 4 machine control platforms - logic, HMI, drive, and motion - under SoMachine(TM) software suite, reducing design time and time to market. Specifically, SoMachine enables MachineStruxure system to conserve time by streamlining controller design and development.

Schneider Electric    Palatine, IL 60067-7399
Oct 05, 2010 Designed for Altivar 61 and 71 variable-speed drives, Altivar® IMC features embedded access to Ethernet and FTP/Web servers, allowing control of up to 32 distributed application architectures. Intelligent 2 MB memory, based on SoMachine(TM) software, performs complex operations. CANOpen Configurator embedded in software achieves total transparent access, allowing card to use drive local I/O, drive extension I/O card, drive communication option card, and drive parameters.

Techno Linear Motion Systems    New Hyde Park, NY 11040
Oct 05, 2010 Available in 3 fully assembled models, TechnoMod Gantry Machine comes complete with built-in industrial computer, swing arm console with monitor and keyboard, cabling, software, and enclosure. Travel ranges are 650 x 300 x 275 mm for Model 30, 650 x 450 x 275 mm for Model 45, and 650 x 650 x 275 mm for Model 65. For complex operations, 4th or 5th rotary axis can be added. Machine is suited for pick and place, dispensing, assembly, drilling, and welding applications.

Express Manufacturing, Inc.    Santa Ana, CA 92704
Oct 05, 2010 To meet compact design demands of portable and desktop medical devices, Package on Package (PoP) assembly packaging technology vertically stacks discrete controller and memory Ball Grid Array (BGA) components. This allows multi-chip packages to be integrated for space conservation on PCB and simplifies assembly processes using single flow/reflow, which eliminates thermal stress during assembly. Dedicated assembly flow is designed based on thermal coefficient characteristics of components.

American Society of Agricultural and Biological Engineers    Saint Joseph, MI 49085
Oct 05, 2010 ASABE has initiated revision to ASAE S485.1, Implement Mounted Screw-Type Jacks with anticipated publication date of December 2010. Earlier this year, ISO approved draft revision of ISO 12140:1998, Agricultural machinery - Agricultural trailers and trailed equipment - Drawbar jacks, which incorporates necessary changes for harmonization of ASABE and ISO documents. Once ISO 12140 revision is complete, ASABE will consider adopting it as American National Standard to replace S485.

Fluid Imaging Technologies    Yarmouth, ME 04096
Oct 04, 2010 FlowCAM® particle imaging and analysis system integrates syringe pump and flow control software to provide automated process that enables operator to load sample, press start, and leave sample running unatteneded. Achieving sample volume efficiencies up to 90%, it offers real-time detection, imaging, counting, and measurement of particles and microorganisms. Date/time stamps are automatically assigned to images and measurements, and audit trail is created for future review and analysis.

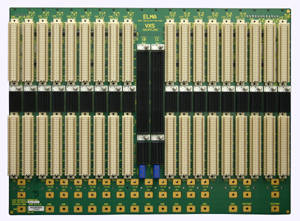

Elma Bustronic    Fremont, CA 94538
Oct 04, 2010 Featuring one Gigabit Ethernet Control Layer Channel per VITA 41.6, 20-slot VXS backplane features dual star routing topology and 18-layer stripline design. Gigabit Ethernet control channel provides for out-of-band communication, suited for system management, software and firmware upgrades, and initiating new processes on specific boards. For flexible power options, 7U high unit also has power studs in 3.3/5/12 V and GND along top and bottom.

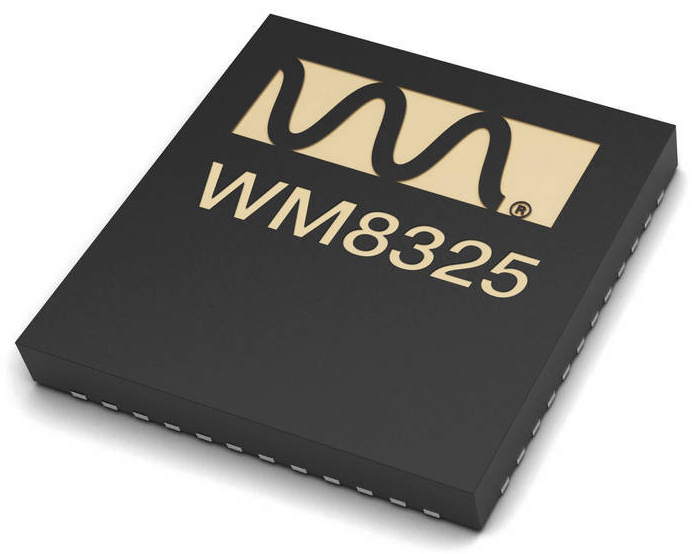

Wolfson Microelectronics plc    Edinburgh EH11 2QB  United Kingdom
Oct 04, 2010 Supplied in 8 x 8 x 0.85 mm QFN package that enables 4-layer PCB manufacturing, WM8325 serves as power management subsystem for portable multimedia applications. It has 4 programmable DC/DC converters, including one that delivers up to 2.5 A, and 11 LDO regulators. On-chip regulator provides power for always-on PMIC functions and also offers autonomous backup battery switchover. Other features include 12-bit auxiliary ADC, OTP non-volatile memory, XO, and internal RC oscillator.

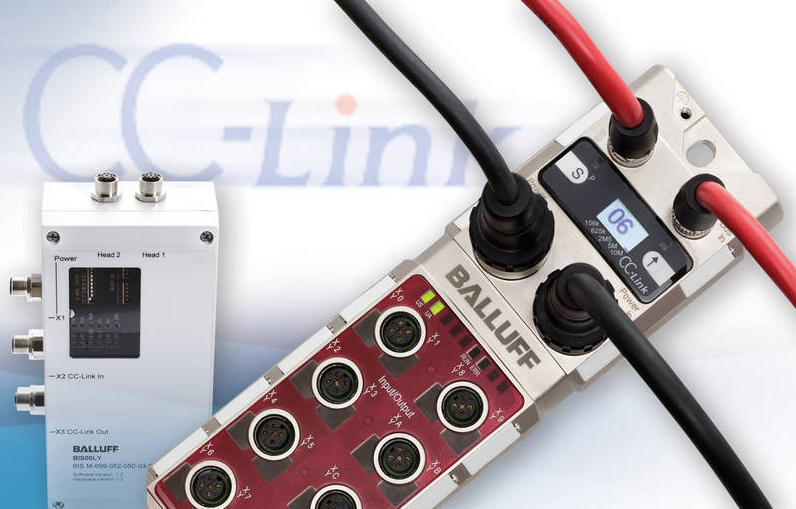

Balluff, Inc.    Florence, KY 41042-0937
Oct 04, 2010 Able to be placed near concentration of sensors and actuators, I/O Modules come in IP67 metal housing and feature pushbutton display for configuration as well as ports that accept 2- or 3-wire inputs. Heavy-duty, machine-mount I/O modules support full range of network and auxiliary power cordsets as well as use of both ISO 14443 and 15693, 13.56 MHz-based RFID data carriers. Overall, functionality affords full I/O and RFID connectivity for CC-Link fieldbus network.

CURTIS INDUSTRIES, LLC    Worcester, MA 01606
Oct 04, 2010 Capable of moving snow, aggregate materials, livestock feed, and silage, Sno-Pro Front End Loader Blades feature 30° hydraulic angle for plowing, full-trip moldboard, and heavy-duty trip springs for protection against damage from surface obstructions. Blades are constructed of 11 gauge powder coated steel, providing non-stick surface that minimizes debris pile up. Available in 5-9 ft models, blades are recommended for tractors up to 47 hp.

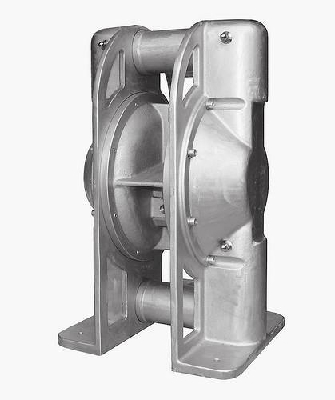

TAPFLO (UK) LTD    HANTS SO21 1TW  United Kingdom
Oct 04, 2010 Powered by compressed air, Tapflo TX 820 can transport liquids with neutral pH value, such as volatile alcohols and oils, and viscous liquids such as paint and glue. Aluminum pump is also suitable for transport of health-impairing liquids since it is hermetically sealed. Measuring 32.8 x 18.5 x 20.9 in., unit features 3 in. connections and is ATEX-approved for explosive environments.

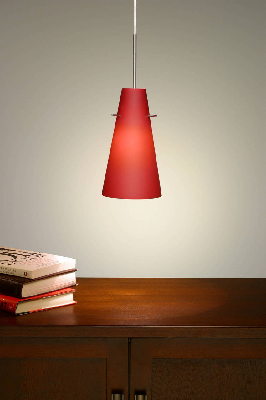

Besa Lighting Co., Inc.    Blacklick, OH 43004
Oct 04, 2010 Engineered to manage heat at source, LED Pendants maximize long-life potential of light emitting diodes to 50,000 hours. Units are dimmable and use 4.7 W total power. Four models are available as stand-alone Monopoint fixtures, while 3 models are offered as quick-connect pendants for use on Besa Monorail. Both families are available with variety of handcrafted glass decors.

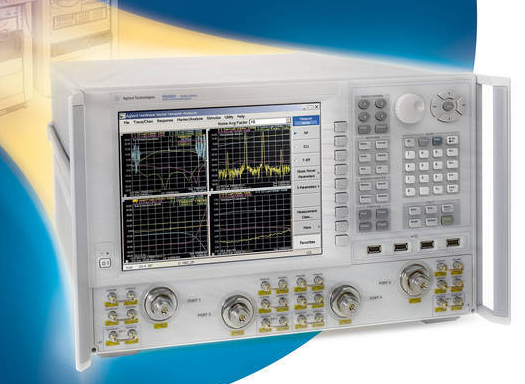

Agilent Technologies, Inc.    Santa Clara, CA 95051
Oct 04, 2010 Single-connection N5247A PNA-X Series analyzer delivers +10 dBm output power, 110 dB dynamic range, and 0.1 dB receiver compression point of +11 dBm specified at 67 GHz. Unit provides power leveling, true differential, and frequency converter measurement functions and also conducts S-parameter, noise figure, and intermodulation distortion measurements. Expandable from 10 MHz to 2- or 4-port 110 GHz single-sweep mm-wave system, it also includes nonlinear vector network analysis software.

Tech9 Corporation    Mounds View, MN 55112
Oct 04, 2010 With TO-220-compatible footprint, 1 A/24 Va Buck-Boost DC-DC Converter accepts 6-70 V input and delivers constant output of 3, 5, 9, 12, 15, 24, or 48 Vdc. Cool running unit eliminates heat sink and offers +2% output voltage tolerance with 60 DB typical line and load rejection. Measuring 1 x 1 x 0.55 in., short circuit proof converter operates in ambient temperatures up to 85°C and is suited for telephony, automotive, commercial, medical, military, and process control applications.

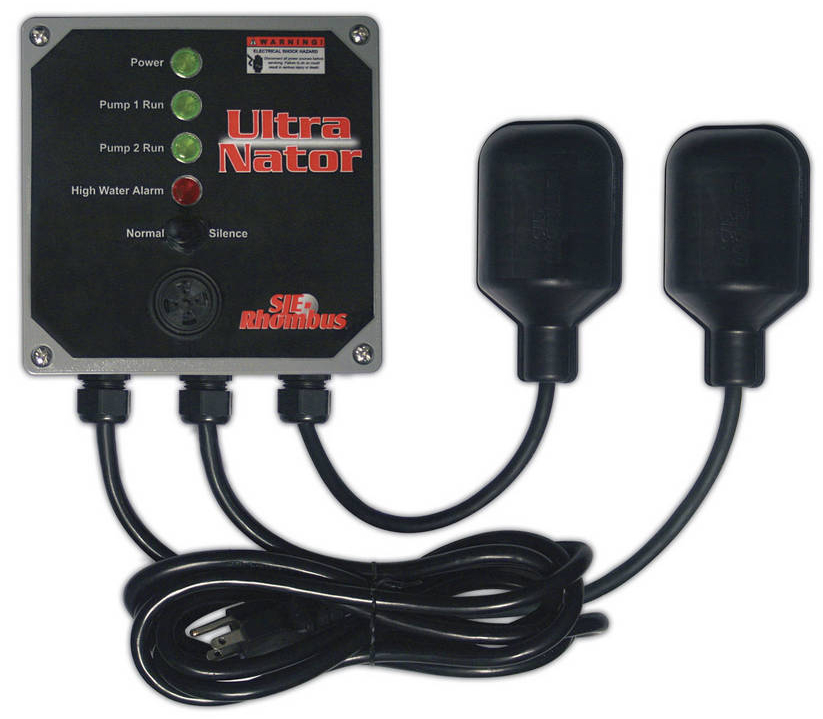

SJE-Rhombus    Detroit Lakes, MN 56502
Oct 04, 2010 Intended for duplex sump pump applications, Ultra Nator(TM) features 2 receptacles to accept two 120 V plugs for wire-free connection. It can control two 120 V, 1 hp or 15 A, single-phase pumps and is NEMA1-rated for indoor use. In normal operation, pumps will alternate based on pump switch level. If alarm condition occurs, alarm indicator and horn activate, pump in operation turns off, and other pump turns on. UL/cUL-listed product is available with various float switch configurations.

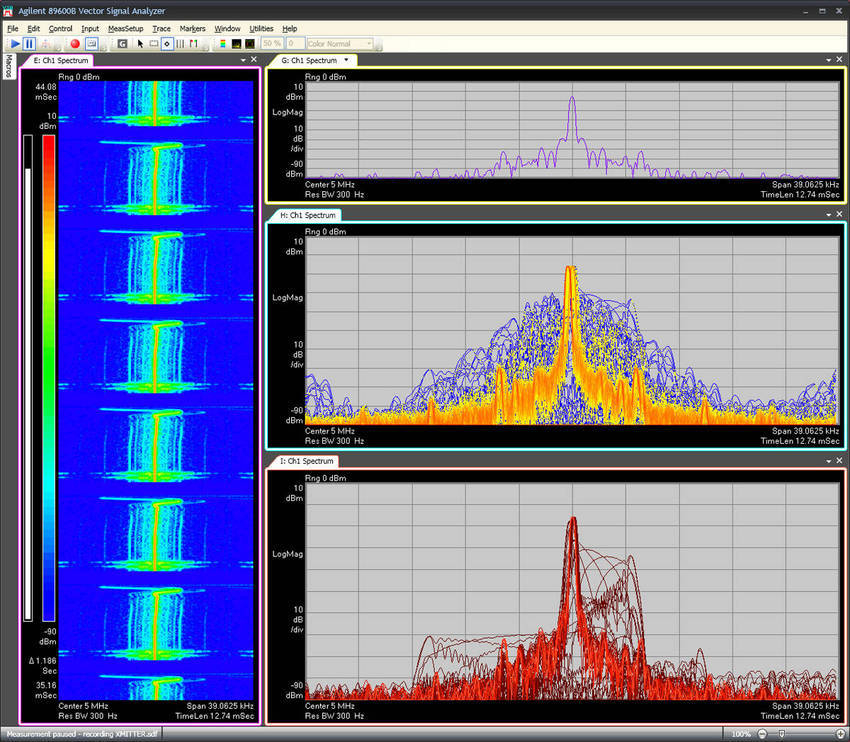

Agilent Technologies, Inc.    Santa Clara, CA 95051
Oct 04, 2010 Able to measure over 70 signal standards and modulation types, 89600B Vector Signal Analysis software quantifies spectral performance with high-resolution FFT-based measurements, analysis of time-domain signal quality, and ability to characterize modulation down to bits, including OFDMA and MIMO. Simultaneous views of wireless signal components enable users to find root cause of signal problems. System also has 20:20 trace/marker capability for analysis of up to 20 measurement traces at once.

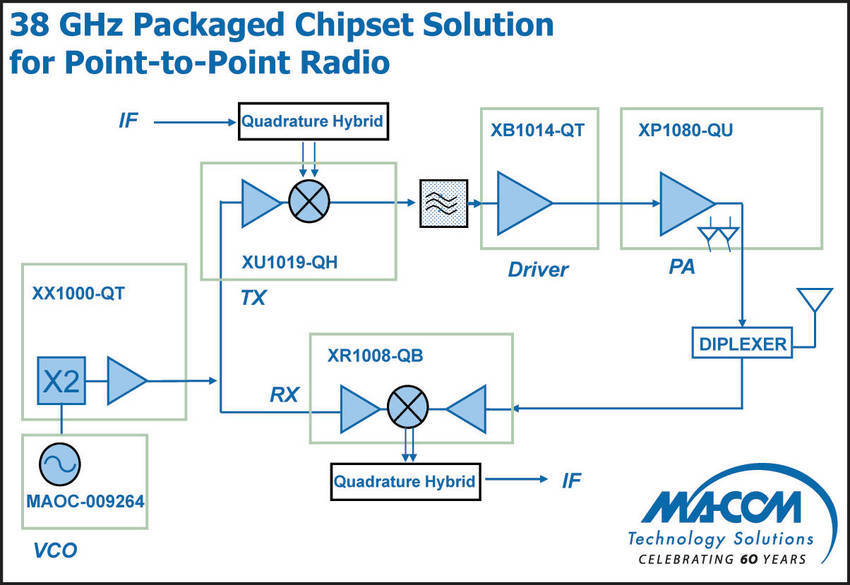

M/A-COM Technology Solutions, Inc.    Lowell, MA 01851
Oct 04, 2010 Operating at 38 GHz, SMT packaged GaAs MIC chipset includes up converter with mixer, RF buffer, LO buffer, and LO doubler. Unit integrates VCO that achieves low phase noise performance and exhibits low performance variation over temperature. Also incorporated are driver amplifier and power amplifier with detector on-chip, receiver with low noise amplifier, and multiplier that combines active doubler with output buffer amplifier to deliver constant power over range of inputs.

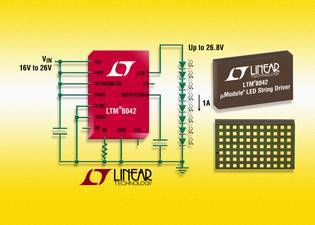

Linear Technology Corp.    Milpitas, CA 95035
Oct 04, 2010 Capable of operating as boost, buck, or buck-boost with 3-30 V input voltage range, uModule® LTM8042 and LTM8042-1 drive strings of up to 8 white LEDs or 9 red LEDs. Model LTM8042 sources up to 1 A of current, while Model LTM8042-1 sources up to 350 mA. Each features True Color PWM(TM) dimming with 3,000:1 ratio or analog dimming with 10:1 ratio. Housed in 9 x 15 x 2.8 mm LGA package, switching regulators are suited for industrial illumination, backlit displays, and automotive lighting.
