Matrox Graphics Inc.    Dorval Quebec H9P 2T4, CD   Canada
Nov 12, 2010 Utilizing bus extension technology to ensure full HD resolution support and uncompromised workstation performance at operator station, Extio F2408 separates up to 4 Hi-Res displays plus USB keyboard, mouse, and other HIDs from host system by up to 3,280 ft of fiber-optic cable. Additional outputs can be added, via optional Extio F2408 Expander, to connect up to 8 displays at resolutions up to 2,560 x 1,600 per monitor Independent and stretched mode supports 4x1 and 2x2 configurations.

Winkle Industries    Alliance, OH 44601
Nov 12, 2010 Intended for scrap recyclers, OptiMag D-Series features strap-wound coils and includes DSA deep-field aluminum scrap magnets as well as EDSA extra-deep field aluminum scrap magnets. Both types are suited for fixed and mixed loads in heavy-duty, high-production scrap-handling applications. With standard models ranging from 34-100 in. dia, magnets offer lifting surface size and total weight attributes that optimize utilization of crane's load lifting capacity.

Two Fold Software Limited    London EC1V 4PY  United Kingdom
Nov 12, 2010 Designed to address raw material and finished product specification management requirements, Qualoupe LIMS supports key manufacturing functions such as work order processing and key performance indicator reporting. Ability to monitor performance and control limits helps minimize production waste. With web reporting capabilities, software provides business-wide access to LIMS data, which minimizes double entry and helps optimize internal business practices.

TE Connectivity Ltd.    Berwyn, PA 19312
Nov 12, 2010 Intended for high-rate-discharge battery applications, MHP30-36 has 36 Vdc/100 A max rating and time-to-trip of under 5 sec @ 100 A and 25°C. Metal Hybrid PPTC (MHP) technology, which uses hybrid circuit protection approach that combines bimetal protector in parallel with polymeric positive temperature coefficient device, provides resettable overcurrent protection and arc suppression. Hold current is 30 A, and initial resistance is under 2 mW.

TE Connectivity Ltd.    Berwyn, PA 19312
Nov 12, 2010 Intended for automotive and industrial applications, Reflowable Thermal Protection Device withstands multiple reflow passes with peak temperatures exceeding 200°C, yet will open in field when it detects temperatures above 200°C. Surface mount Model RTP200 protects against thermal-runaway damage caused by capacitors, ICs, and other power components that can crack and fail. RoHS-compliant unit features 1.2 mW series resistance and DC-interrupt ratings of 200 A at 16 Vdc and 100 A at 32 Vdc.

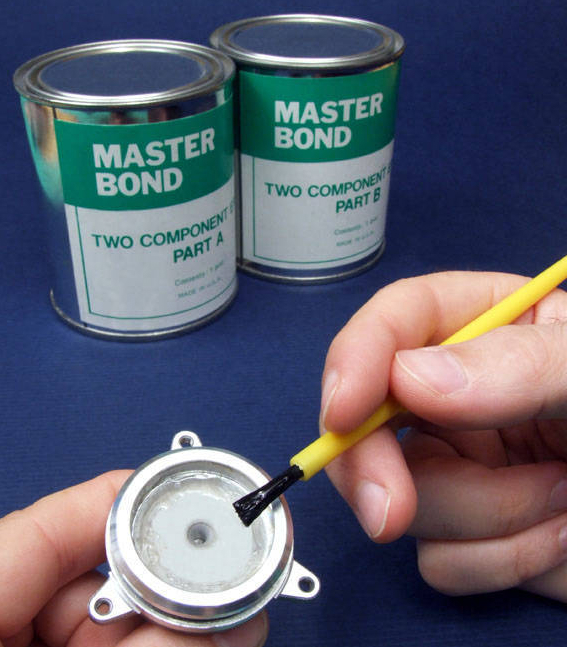

Master Bond, Inc.    Hackensack, NJ 07601
Nov 12, 2010 Formulated for applications subject to temperature cycling, vibration, and mechanical shock, EP21TDCHT-LO withstands cryogenic temperatures and meets NASA low outgassing specifications. It offers 1:1 mix ratio by weight or volume and cures at room temperature or more rapidly at elevated temperatures. Properties include 4K to +350ºF service temperature range, shear strength exceeding 2,500 psi, peel strength of greater than 20 pli, and Shore D hardness of greater than 60.

Worksaver Inc.    Litchfield, IL 62056
Nov 12, 2010 Measuring 1 x 3.5 x 42 in., Class I Pallet Forks provide optimal lifting capacity of 2,000 lb and have spring-loaded latches that allow operator to move forks along notched rails for spacing adjustment. Thee models are available, including Model SSPF-242 with universal skid steer attaching system, Model JDPF-2000 for John Deere 200/300 series loaders, and Model FLPF-2000, which accepts Worksaver interfacing bracket to fit most compact loaders.

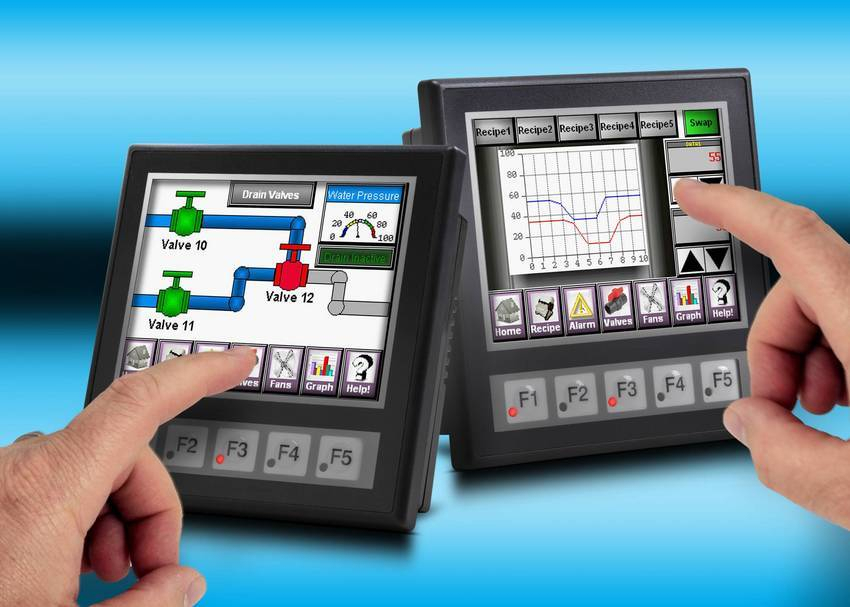

AutomationDirect.com    Cumming, GA 30040-9905
Nov 12, 2010 Along with 320 x 240 dot display and 32,768 colors for clear graphics, C-more Micro-Graphic operator interface features Type B USB programming port, serial communications port, and 5 function keys with LED indicators. Programming software offers choice of using built-in objects or importing custom graphics, and users can create/save custom objects and graphics to software libraries for access from multiple projects. Orientation can be portrait or landscape.

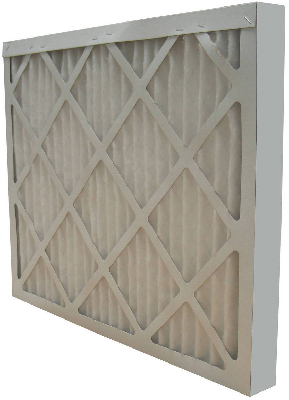

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 12, 2010 Suited for commercial, industrial, and healthcare applications, Series DF features 100% recyclable paperboard frame and thermally bonded synthetic media that inhibits biological growth and is not adversely affected by high humidity applications. Square pleat tip design provides rigidity, while center support strut adds strength and eliminates breaching. With max continuous operating temperature of 200°F, filter provides MERV 8 efficiency rating.

DURO PC    Blairsville, PA 15717
Nov 12, 2010 Designed for manufacturing, control, and industrial automation, DuroPC HMI Panel PCs feature Intel® Atom processors, providing fanless performance with minimal power consumption. Units integrate LED backlit LCD and touchscreen human machine interface, allowing users to control, monitor, and program directly from information terminal. In addition to support for Windows 7 operating system, PCs run Wonderware InTouch CE v10.1 HMI software.

Manthan Systems    Bangalore   India
Nov 12, 2010 Intended for retail industry, ARC Supplier Portal and Analytics (ARC SPA) offers functionality to automate, optimize, and analyze entire supplier and retailer interaction. Portal-based platform facilitates exchange of information critical to key processes such as order management, master data management, vendor performance, product development, inventory management, promotions, rebates, and customer insight. Use of guided analytics also helps with decision making.

Harris Corp.    Melbourne, FL 32919
Nov 12, 2010 Full-Motion Video Asset Management Engine (FAME(TM)) v3.1 accelerates metadata search and analysis tasks. Enterprise-level services let tools, such as virtualization, video exploitation processor, and geospatially enabled multi-viewer, be utilized concurrently across hundreds of systems. In addition to offering LDAP-enabled user and group security, solution can ingest H.264 or MPEG-2 transport streams in digital SD and HD formats and retain inherent metadata for storage in FAME database.

Binary Tree    Red Wing, MN 55066
Nov 12, 2010 Using E2E Complete, administrators can perform and centrally manage intra-organizational Microsoft® Exchange upgrades that avoid changes to Active Directory® environment. Program provides email and SMS notifications as well as ability to reschedule migration to maximize productivity during transition. Software includes Microsoft SilverLight® dashboard, workflow engine to manage and forecast migration scenarios, and Active Directory site-aware technology to maximize throughput.

Altair Engineering, Inc.    Troy, MI 48084
Nov 12, 2010 Part of PBS Works(TM) on-demand cloud computing technologies, PBS Professional v11.0 provides computing environment that allows enterprises to share distributed computing resources. Version 11.0 offers scheduler speeds of less than 30 sec/cycle for typical HPC workloads and cold start of less than 1 minute for 100,000 jobs. With vnode support for Cray systems, software allows individual MPI task selection, task placement, support for node exclusivity, and framework for topology-aware scheduling.

GOEPEL electronics LLC    Austin, TX 78759
Nov 12, 2010 Based on modular platform with central database and individual licensed modules for data import, automatic test vector generation, and data export, TAP Checker(TM) enables automatic generation of simulation vectors and test patterns for chip-level validation and verification of IEEE 1149.1 and IEEE 1149.6 compliant implementations in integrated circuits. After importing BSDL file, user has multitude of parameterized options, providing means to generate optimized testbench.

Analog Devices, Inc.    Norwood, MA 02062-9106
Nov 12, 2010 By guaranteeing off-state in absence of power supply, ADG4612/ADG4613 prevent potentially damaging current from flowing to circuit boards used in sensitive equipment. Both feature overvoltage protection, which can block signal levels up to 16 V in off state. Switches contain 4 independent SPST switches: each is turned on with Logic 1 on appropriate control input in ADG4612, while 2 turn on with Logic 1 and 2 turn on with Logic 0 with break-before-make switching action in ADG4613.

Invensys PLC    London   United Kingdom
Nov 12, 2010 Incorporating complete set of kinetic reactor models, under license from ExxonMobil Research and Engineering Company, SimSci-Esscor ROMeo enables refineries to optimize crude selection, evaluate crude supply opportunities, and predict refinery yields and qualities. Scalable software solution allows incremental, expandable deployment within common architecture, and offers re-use of individual unit models for performance monitoring or online optimization of individual units and distillate pools.

Waukesha Engine Dresser Inc.    Waukesha, WI 53188
Nov 12, 2010 Waukesha 275GL Series engines include 16-cylinder 16V275GL+ model rated 3,480 kWe at 50 Hz and 3,110 kWe at 60 Hz, and which operates at up to 4,000 ft without derating. Operating at up to 3,000 ft without derating, 12-cylinder 12V275GL+ is rated 2,600 kWe at 50 Hz and 2,330 kWe at 60Hz. Both offer 0.5 g/bhp-hr NOx, 1.8 g/bhp-hr CO, and 0.7 g/bhp-hr NMHC emissions levels without aftertreatment. Included NOx sensor measures NOx in exhaust, while display panel provides readout of emissions.

CNC Software Inc.    Tolland, CT 06084
Nov 12, 2010 Mastercam X5 offers dynamic milling techniques, such as Dynamic Rest Mill and Dynamic Contour, that constantly adjust toolpath to ensure efficient cut and allow use of entire tool flute length. In addition to multiaxis suite with various techniques and workflow-oriented interface, software offers 3D surface high speed OptiRough toolpath that accelerates removal of larger amounts of material using dynamic milling motion. Hybrid finishing capabilities are also included.

Symbion Systems, Inc.    Tustin, CA 92780
Nov 12, 2010 Intended for FMX Series multiplexers, SDI-FMX Driver provides standard computerized control while allowing operation to be synchronized with that of spectrometer and ancillary I/O devices by means of Symbion-DX and Symbion-RS capabilities. Symbion-DX and RX streamline development of comprehensive analytical methods encompassing instrument and sample system control, data analysis, process trending, database archiving, and reporting to enterprise-wide data systems.
