Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Nov 15, 2010 Offered in ranges of 15, 50, and 100 psig with 225 mV full scale output, Endevco® Model 8510C features non-linearity of less than 1% to 3X over-range with 4X minimum burst pressure and 20,000 g shock resistance. Miniature unit includes 4-arm strain gage bridge ion implanted into silicon diaphragm. With integral hybrid temperature compensation, transducer provides stable performance over temperature range of 0-200°F. Device has 10-32 UNF-2A mounting thread and comes with 30 in. cable.

Sullins Electronics Corp.    San Marcos, CA 92079-0189

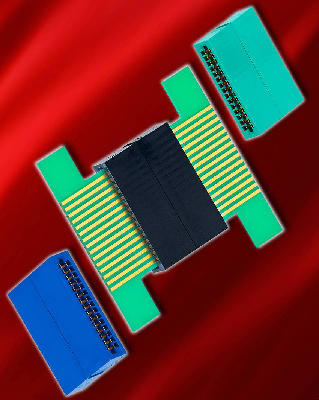

Nov 15, 2010 Engineered to facilitate board-to-board extensions, Dual Edge Connectors feature 0.100 in. pitch, accept 0.062 in. thick PCB in both slots, and are available with 5-60 contacts/row. Parts ensure PCBs are aligned at centerline to enable uniform signal path. Units provide minimum voltage rating of 750 Vac, current rating of 3 A/contact, and contact resistance of 30 mW. Supplied in straddle mount terminations, connectors support operating temperature of -65 to +150°C.

ERICO    Solon, OH 44139-2631

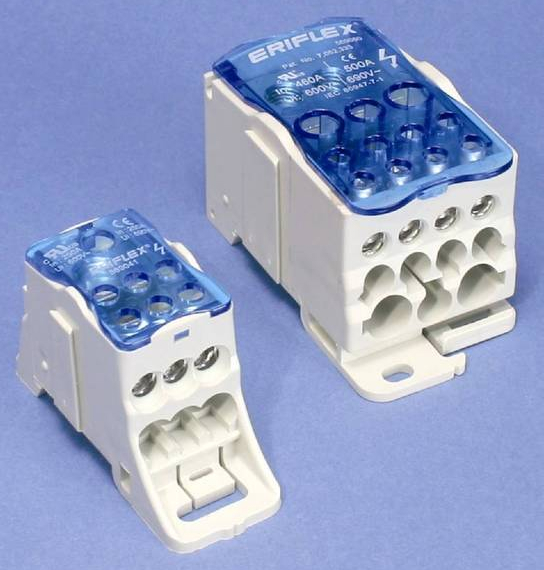

Nov 15, 2010 Single-pole distribution block models UDF 250A and 500A have modular design with screw retaining, transparent blue cover that allows visual wire inspection and connection confirmation. Able to clip onto DIN Rail or mount to panel with screws, IP20 finger safe blocks are halogen free, RoHS compliant, and offer short circuit withstanding ratings of 30 KA (UDF 250A) and 51 KA (UDF 500A). Working voltage is rated at 1,000 V AC/DC per IEC.

Kistler Instrument Corp.    Amherst, NY 14228 2119

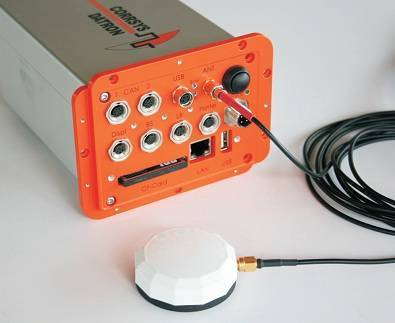

Nov 15, 2010 Featuring built-in GPS, Corrsys-Datron model CDS-GPS measures absolute speed, travelled distance, latitudinal and longitudinal position, height, and time/date for vehicle dynamics testing applications. It offers update rate of 100 Hz with GPS signal output via CANBus and also provides system status information, such as number of satellites, signal quality, and other factors. Logger comes programmed with predefined driving maneuvers for longitudinal dynamic measurements.

Meese Orbitron Dunne Co.    Ashtabula, OH 44004
Nov 15, 2010 Rotationally molded from 100% waterproof polyethylene plastic, Sortasaurus eliminates splinters and bacterial concerns associated with using wooden tables for assembly, picking, packaging, sorting, and shipping operations. Unit features one-piece design with wings rising from 3 sides to help corral diverse products, parts, and packages as they are dumped onto table, while preventing goods from falling onto floor. Set on non-marking casters, table stands at ergonomic height of 40 in.

Stewart Connector    Glen Rock, PA 17327
Nov 15, 2010 Environmentally Protective Compound, EPP-918A gel offers corrosion, dirt, moisture, humidity, and chemical resistance for RJ45 and RJ11 Modular Connectors, and protects against wear from repetitive mating/unmating forces. Applied to connectors' gold-plated contacts during manufacturing, gel also includes UV tracer die for visual inspection. It is available on shielded/unshielded Stewart Connector modular devices, including those with up to 12 ports, in vertical and right-angle configurations.

Sensirion Inc.    Westlake Village, CA 91361

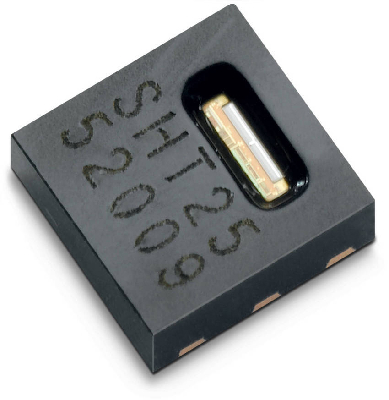

Nov 15, 2010 Designed to measure relative humidity from 0-100% RH and temperature over range of -40 to +125°C, Model SHT25 achieves typical accuracies of 1.8% RH at 25°C and ±0.2°C with maximum tolerances of 2% RH or ±0.3°C. Unit consumes 3.2 µW at 1 measurement/sec and provides RH response time of 8 sec. Embedded in reflow-solderable DFN 3-0 package measuring 3 x 3 x 1.1 mm, sensor provides calibrated, linearized signals in digital, true I2C format.

Fredericks Company, The    Huntingdon Valley, PA 19006-6232
Nov 15, 2010 Designed to interface with all types of instrumentation and equipment, Dual Axis Inclinometer provides 0-5 V analog outputs for PWM and temperature. Unit offers angle range of +60° over X and Y axis, 0.2 arc min resolution, and +0.1° repeatability. Housed in high-impact plastic enclosure, microprocessor-based electronics feature operating temperature of -40 to +85°C. Typical applications include solar tracking, aerial lift platforms, and alarm system activation.

Edmund Optics    Barrington, NJ 08007

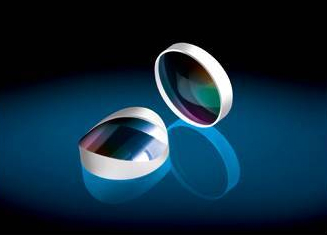

Nov 15, 2010 Suited for harsh or environments with large temperature variations, TECHSPEC® UV Fused Silica PCX Cylinder Lenses focus light in only one dimension and are commonly used with linear sensor arrays or to create line from laser source. Models with 12.5 mm diameter provide focal lengths of 25, 50, 75, and 100 mm, while 25 mm diameter versions offer focal lengths of 50, 75, 100, and 150 mm. All lenses are uncoated, with wide variety of custom coatings available upon request.

Novotechnik U.S., Inc.    Southborough, MA 01772
Nov 15, 2010 Comprised of rod-style sensors intended for integration within hydraulic and pneumatic cylinders, TIM Series comes in nominal stroke lengths from 50-2,500 mm and operates under pressure to 350 bar with peaks to 530 bar. Magnetic pick-up position marker is mounted on application's piston rod. Shock and vibration ratings are 100 g and 25 g, respectively, and independent linearity is less than or equal to 0.04% FS. Other characteristics include ±0.01% FS repeatability and 5 µm resolution.

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939
Nov 15, 2010 Comprising transferable specimen holder and software module, Shuttle and Find Interface for correlative light and electron microscopy enables users to recall regions of interest in fixed specimens in electron microscope that were previously identified in light microscope and vice versa. Process allows for rapid and precise overlay of light and electron microscope images, high-resolution magnification of details, and merger of functional and structural information.

Norbar Torque Tools, Inc.    Willoughby, OH 44094
Nov 15, 2010 Suitable for medical equipment maintenance, Non-Magnetic Torque Wrench provides torque range of 10-180 lbf-in. with accuracy of ±3% of reading, which exceeds international standards. Since using standard steel tools close to high-powered magnets can be difficult and hazardous, non-magnetic tool is important for both health and safety and asset protection. Other maintenance applications include clean rooms, permanent magnetic generators, mine sweepers, and nuclear products.

Bourns, Inc.    Riverside, CA 92507 2129
Nov 15, 2010 Available on Models 3547, 3548, and 3549, slip clutch option is designed as safety feature that helps prevent damage to potentiometer in applications where full travel is used. Internal design does not alter physical dimensions of component and allows potentiometer to idle at extreme clockwise or counter-clockwise ends without damage to stops. Potentiometers with slip clutch offer solution for mechanized or machine-to-machine applications such as linear actuators and mechanical position sensors.

Anver Corp. - Anver.Com    Hudson, MA 01749

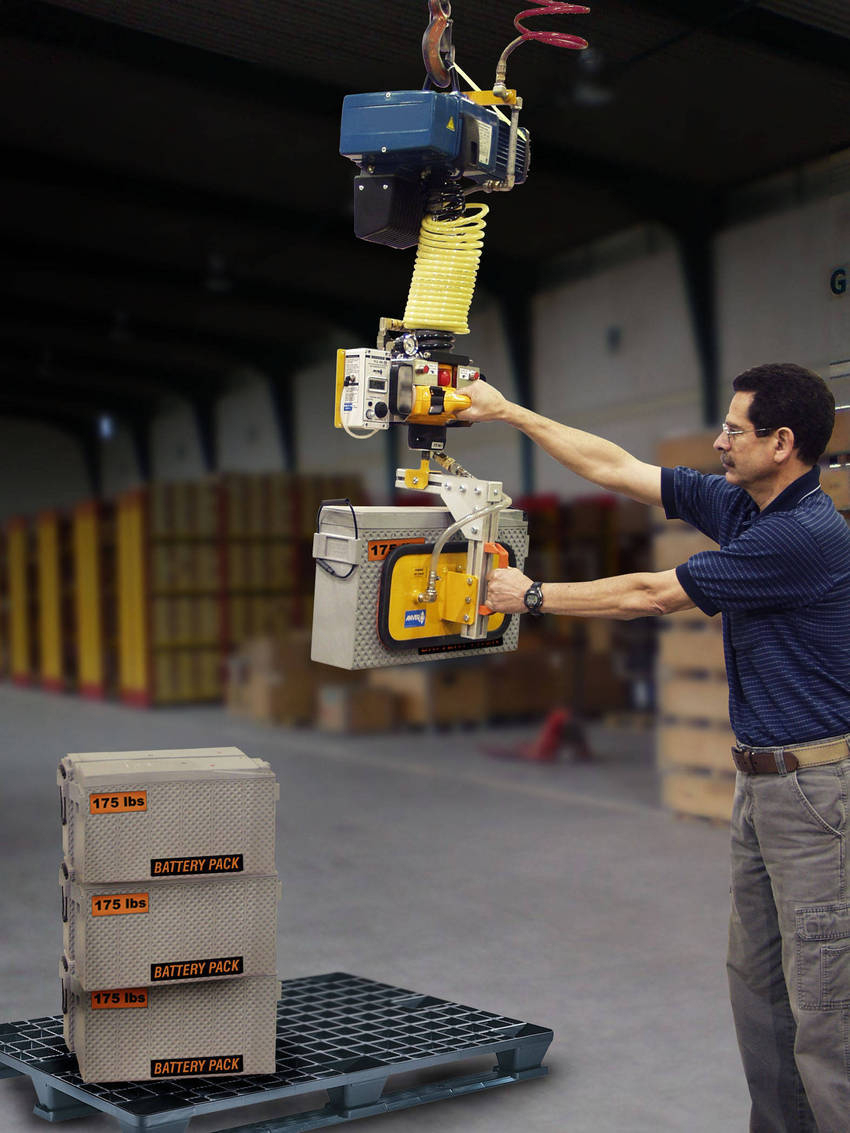

Nov 15, 2010 Allowing one person to safely handle compact heavy loads with standard and custom vacuum pads, hoist-based, vacuum powered Anver VM-Series lifter features 2 button, 2 hand release control and VLS-08 vacuum leakage sensor for positive leak detection. Vacuum head uses compressed air and Venturi principle for holding load while electric chain hoist provides secure up/down movement to maintain its position with no drift when stopped.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 15, 2010 Featuring IP54 rating, U1270 Series are suited for use in dusty, damp, and dark environments. Units include low impedance mode to eliminate stray voltages and low-pass filtering to remove noise that distorts voltage and current readings. Smart Ohm function minimizes false readings due to leakage current. With flashing backlight as visual alert, DMMs offer optimized continuity checks in dark, noisy environments. PC connectivity is included for data logging applications.

Dynamic Decisions, Inc.    South Plainfield, NJ 07080
Nov 15, 2010 Defender Series 1000 is suitable for applications where foreign particles can clog vents and adhere to internal components. Fully sealed computer has all-aluminum housing and thermoelectric cooling system to prevent overheating. Other features include connection block for component connections, remote component DVD drive, solid state hard drive, and removable side panels. System can be configured to meet application requirements.

Emerson Process Management    Pleasanton, CA 94566
Nov 15, 2010 Designed for pressure, flow, and level measurement, Rosemount® 3051S Series of Instrumentation uses Advanced HART® Diagnostics Suite to identify and prevent abnormal process and installation issues. Power Advisory Diagnostic helps ensure integrity of electrical loop by detecting unwanted changing electrical conditions, while Statistical Process Monitoring technology measures and analyzes previously unseen process noise, providing intelligent process insight.

Unison    Madera, CA 93638
Nov 15, 2010 As all-electric tube bender with integrated cutter, Breeze-Blade provides automated, single-step manufacturing of volume parts with tubular or pipe shapes. Position and forces of tube bending dies can be controlled along with movement profile and torque applied during nick and shear cutting cycle. Offering programmability throughout entire part fabrication cycle, system offers cutting positions that are accurate and repeatable, from batch to batch, to within ±0.004 in.

Jungle Torch    Portsmouth, NH 03801
Nov 15, 2010 Intended for use by marketing professionals, Jungle Torch helps companies track and correct issues that affect their SEO. It specifically provides users with metrics and tools, such as real-time keyword positions and various reports, to improve inbound marketing efforts. In addition to monitoring tools, it lets users create additional inbound links through article and PR submission. Reports also show all social media chatter for monitoring inbound marketing.

American Zettler, Inc.    Aliso Viejo, CA 92656 4115
Nov 15, 2010 Available with EE laminations and switching capabilities up to 90 A, XMC0 series is built and tested to meet ARI780/790 guidelines for industrial applications. Switching capabilities and power performance characteristics benefit product applications in HVAC, elevator, crane, and hoist industries. In addition to dust-proof design, features include UL-rated contacts of 25-90 full load amps, up to 600 V, and Class F rated coil construction.
