W.A.C. Lighting Company    Port Washington, NY 11050

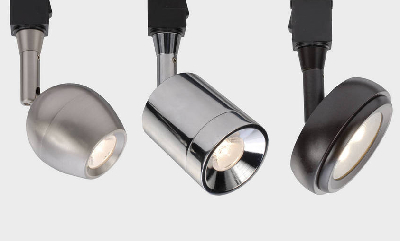

Oct 27, 2010 Crafted of die-cast aluminum, LEDme(TM) LINEAR Track Luminaires deliver 110 lumen output and warm 3,000 K color temperature without any projected heat. Units range from 3-4 W each and provide potential life of 30,000 hours. Available with brushed nickel, chrome, or dark bronze metal finish, luminaires are suited for display, accent, and under-cabinet lighting.

Memory Protection Devices    Farmingdale, NY 11735

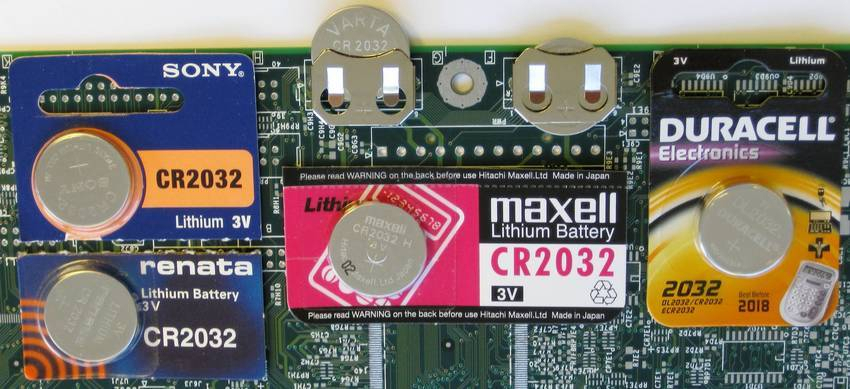

Oct 27, 2010 Intended for 2.5-3.2 mm high, 20 mm dia batteries, Part No. BK-913 weighs 0.8 g, has 2 PC pins, and is made of nickel-plated phosphor bronze. Dual pressure contacts that offer minimal electrical resistance are optimized to maintain tight connection with battery. Shock and vibration resistant per EIA-364, retainer allows tool-free battery changing. Among others, areas of use include consumer products, electronic toll tags, single-use devices, and RFID applications.

H2W Technologies, Inc.    Santa Clarita, CA 91350

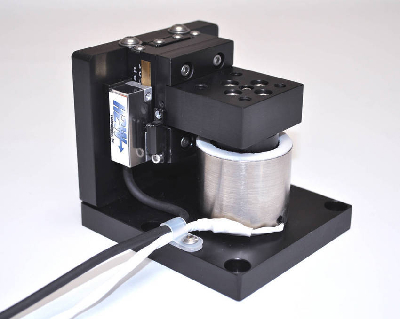

Oct 27, 2010 Measuring 4.0 x 3.5 x 3.52 in., Linear Positioning Stages feature ±0.11 in. stroke length from center of travel home position, resolution from 50 nm, and high acceleration to 5 g's. There are no moving cables or wires as coil assembly and linear encoder head are stationary. Made of anodized aluminum, zero cogging stages can be mounted horizontally or vertically and are suited for mirror tilt and focusing, laser beam steering, position control, pick-and-place equipment, and robotics.

Video Mount Products    Stevensville, MD 21666

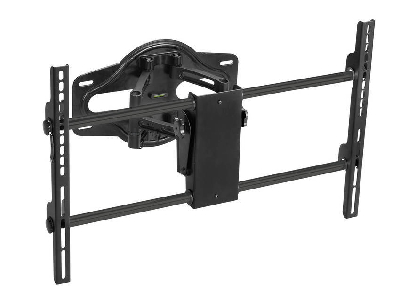

Oct 27, 2010 Supplied fully assembled, Model FP-MWAB holds most medium-sized flat panels from 24-37 in. and offers load capacity up to 80 lb. Unit has max flat hole pattern of 450 x 400 mm and depth of 5.3 in. while extending up to 16.3 in. Accommodating most 32-52 in. flat panels, Extra Medium Model FP-XMWAB provides 130 lb capacity and has max flat panel hole pattern of 800 x 500 mm with depth of 5.3 in. and ability to extend up to 16.3 in. Both provide 45° rotation and up to 15° tilt capabilities.

Walls & Forms Inc.    Dallas, TX 75374
Oct 27, 2010 Able to be adapted to any vacant retail space, Shop-In-A-Box provides reusable, temporary store environment. Modular solution, constructed using CornerForms(TM) Panel Fastening System, comes in various design, color, and size options. Able to build wall and floor displays from .25, .5, and .75 in. profiles, system is suited for applications such as perimeter walls, fitting rooms, floor fixtures, part-time counters, tradeshow exhibits, and additional displays.

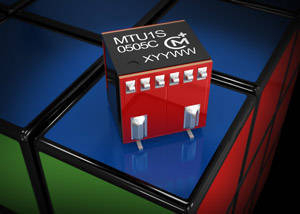

Murata Power Solutions, Inc.    Mansfield, MA 02048
Oct 27, 2010 Measuring 8.2 x 8.4 x 8.5 mm, MTU1 Series features power density of 1.71 W/cm³ and wide temperature performance of -40 to 85°C at full 1 W load. Open frame units are available in 8 models offering choice of 5 or 12 V input voltage and 5, 9, 12, or 15 V output voltage. Compliant with RoHS directive, surface mount converters are suited for industrial, test and measurement, and process control applications.

HEIMATEC INC    Prospect Heights, IL 60070
Oct 27, 2010 Intended for lathe and mill/turn users, Unitec system allows standard ER output live tool to accept various adapters for different applications. Polygonal drive system promotes optimal power transmission stability, while collet nuts have internal threading for rigid mounting. Live tool base remains in position; only adapter and collet get swapped. Design also enables actual cutting tool to be brought into closer proximity to bearing, improving performance.

ZYP Coatings, Inc    Oak Ridge, TN 37830
Oct 27, 2010 Able to be used in temperatures from ambient to 1,000°C, Keralon-B is brushable lubricant/coating/paint based on organic Methylated Seed Oil and inorganic ceramic mixture of chemically-inert lubricating phases: Boron Nitride, Graphite, and Titanium Dioxide. It performs as oily mixture at room temperature and acts as dry film lubricant above 200°C. Solution is nonreactive/nonwetting with molten metals, glasses, and slags and prevents oxidation/rusting/galling/reactions while lubricating.

GAO RFID Asset Tracking    Toronto M1B 2K4  Canada
Oct 27, 2010 Designed for reading deep-case items and item level tagging applications, Model 115004 is compliant with AD 811 standard and offers max read quantity of 400 tags/s. UHF Gen 2 passive barcode tag is vibration-resistant, dust-proof, and resistant to immersion in salt water, alcohol, oil, and 10% HCl. Utilized in retail and supply chain applications, tag is also fine-tuned for reading on edge. It provides for offset printing and silk screening with logo and bar code numbering.

Bollards by Reliance Foundry    Surrey, BC V3S7G7  Canada

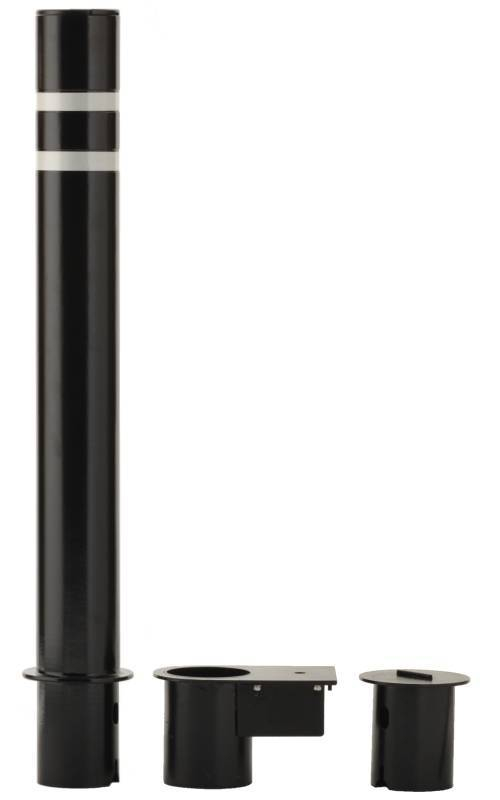

Oct 27, 2010 Intended for multiuse sites where pedestrian and vehicle traffic redirection changes for different purposes, removable bollards provide transition from full bollard protection to open drive. Fixed bollards suit sites in areas where perimeter security or permanent pedestrian/traffic flow patterns are primary needs. Standing 36 in. above ground, both 4.5 in dia bollard types are offered in steel with standard colors or stainless steel versions.

Innovative Sensor Technology    Las Vegas, NV 89119

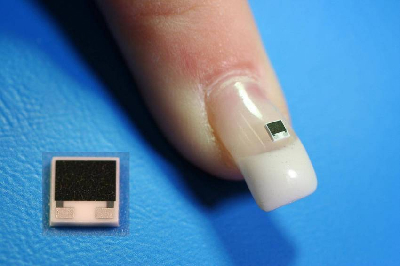

Oct 27, 2010 Designed to measure relative humidity from 0-100% in temperature range of -50 to +150°C, Model P14 202 offers linearity error of less than ±1.5% RH and hysteresis of less than ±1.5% RH in 3 hour cycle between 20-80% RH. Assembly of sensor is fully automated, and contacts are designed for soldering and bonding. Offering solution for limited space applications, thin-film humidity sensor is suited for white goods and appliances as well as mobile devices such as cell phones.

Maple Systems Inc.    Everett, WA 98204
Oct 27, 2010 Operating in portrait or landscape mode, 4.3 in. Model HMI5043T features 16:9 widescreen and provides 480 x 272 pixel resolution, while 10.4 in. Model HMI5104TH delivers 600 x 800 pixel resolution. Both include Ethernet port and VNC server that enable users to remotely monitor and control HMI from any location via Internet. Equipped with 32-bit RISC processor, 128 MB Flash storage, and 64 MB memory, HMIs provide online/offline simulation, alarm and recipe management, and data logging and sampling.

Thomas & Betts Corp.    Memphis, TN 38125

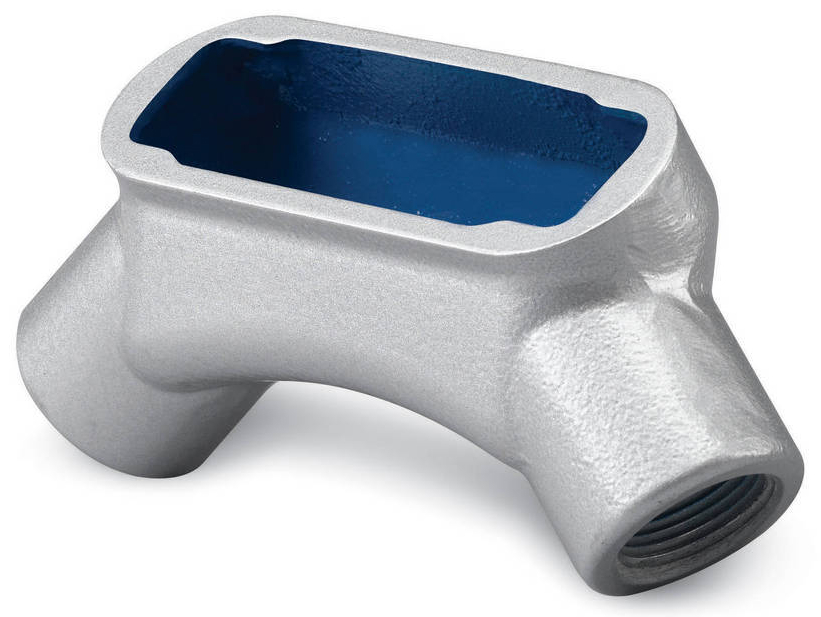

Oct 27, 2010 Functioning as 4 elbows in one, Universal Conduit Elbow replaces LL, LR, LB, and C conduit bodies for most applications. Radius is same as conduit itself and facilitates pulling of wire since fiber optic cable can be run through ¾ in. system. With wire-fill rating of 40%, product facilitates negotiation of angles and eliminates need for sharp bends. UL-Listing as electrical box allows internal splices, while BlueKote® protection imparts internal/external corrosion resistance.

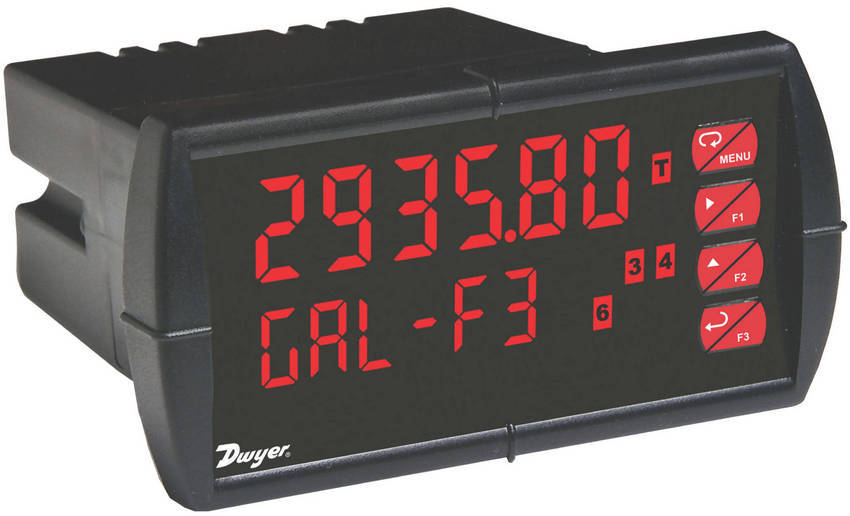

Dwyer Instruments, Inc.    Michigan City, IN 46361
Oct 27, 2010 Along with dual-line, adjustable-intensity, weatherproof display, Series PPM offers up to 8 visual alarm set points, 3 programmable function keys, and programmable delay time. It can obtain non-linear input signals and linearize them with 32-point linearizer. With up to 4 relays, series features latching, non-latching, sampling, pump alteration control, and failsafe action. It accepts pulse, open collector, NPN, PNP, TTL, switch contact, sine wave (coil), or square wave inputs.

Z-Communications, Inc.    San Diego, CA 92126

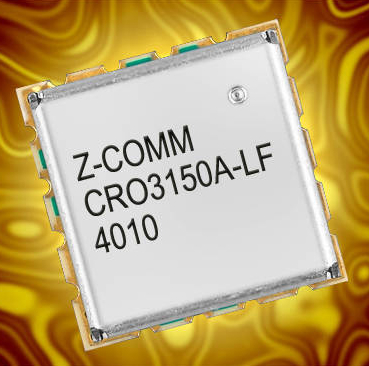

Oct 27, 2010 Operating at 3,125-3,175 MHz with tuning voltage of 0.5-4.5 Vdc, Model CRO3150A-LF features typical phase noise of -108 dBc/Hz at 10 KHz offset and typical tuning sensitivity of 21 MHz/V. Unit delivers output power of 4.5 dBm at 5 Vdc supply while drawing 25 mA over temperature range of -40 to 85°C. Housed in MINI-16-SM package measuring 0.5 x 0.5 x 0.22 in., RoHS-compliant VCO is suited for fixed wireless and digital radio applications requiring low phase noise performance.

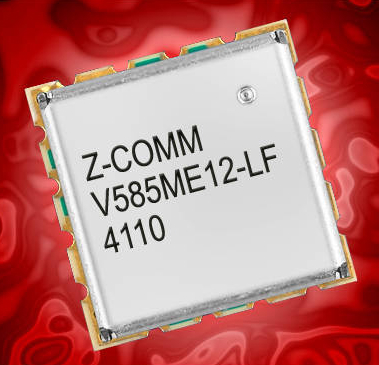

Z-Communications, Inc.    San Diego, CA 92126
Oct 27, 2010 Operating at 1,500-1,900 MHz with tuning voltage of 0.8-20 Vdc, Model V585ME12-LF features typical tuning sensitivity of 35 MHz/V. Device delivers typical output power of 5.75 dBm at 10 Vdc supply while drawing 15 mA over temperature range of 0-80°C. Housed in MINI-14 package measuring 0.5 x 0.5 x 0.22 in., RoHS-compliant voltage controlled oscillator features second harmonic suppression of -10 dBc and is suited for satellite communication and test equipment applications.

Macrosoft Inc    Parsippany, NJ 07054
Oct 27, 2010 Web browser-based Resources on-Demand v4.0 provides power utility executives, managers, and supervisors with tools to manage crews, other storm personnel, and equipment. Resource and Logistics Engine enables users to set up teams, sites, work locations, vendors, order placement, order tracking, team transportation, meals and lodging down to individual team members. With optimized reporting feature, summaries can be printed and used in Control Centers.

Epicor Software Corp.    Minneapolis, MN 55426
Oct 27, 2010 Epicor IT Service Management (ITSM) 2010 provides service management features supporting key IT processes and methodologies. Epicor ITSM Business Intelligence, included, enables IT departments to gather, analyze, and share key reporting metrics. Technologies from Microsoft support features such as vertical side bar for commonly used actions and drag-and-drop attachment function. Other features include embedded dashboard functionality and KPIs that enhance visualization.

Ikanos Communications    Fremont, CA 94538
Oct 27, 2010 Comprised of NodeScale Vectoring compatible line cards, Vector Computation Engines, and G.vector-ready CPE, NodeScale(TM) Vectoring enables service providers to extend high-speed Internet access as well as services without installing complete FTTH networks. It cancels noise across entire network node from 192-384 ports or more and can be deployed to increase performance of existing VDSL nodes, as part of ADSL network upgrades, and in copper plants that previously served only POTS.

Linear Technology Corp.    Milpitas, CA 95035
Oct 27, 2010 Replacing boost diode with N-channel MOSFET, LTC3786 step-up DC/DC controller consumes 55 µA quiescent current and can produce 24 V @ 5 A output from 12 V input with up to 98% efficiency. It operates from 4.5-38 V during start-up and maintains operation down to 2.5 V after. Able to regulate output voltages up to 60 V, IC employs 1.2 Ohm N-channel MOSFET gate drivers. Phase-lockable switching frequency range is 75-850 kHz, and fixed frequency operating range is 50-900 kHz.
