Cyl-Tec, Inc.    Aurora, IL 60506
Dec 03, 2010 Featuring dent-resistant, stainless steel outer shell, Model 200-VHP has USDOT 4L412 rating and is designed for high-pressure and laser gas applications. Unit includes 4 handling ring supports, heavy-duty foot ring, magnetic contents gauge, and combination pressure control regulator. Suited for gas or liquid withdrawal, cylinder supports O2, N2, AR, CO2, and N2O service.

Pinpoint Laser Systems    Peabody, MA 01960
Dec 03, 2010 Designed to facilitate alignment of rollers, idlers, take-up reels, shafts, and web handling systems, Microgage Roll Alignment Kit provides precise measurements of roll position and orientation on production lines of all sizes. Laser transmitter projects straight, visible reference line that can be directed into production line, while digital receiver reads roll's position relative to centerline of laser beam. Display unit can upload readings to computer.

RF Micro Devices, Inc.    Greensboro, NC 27409-9421

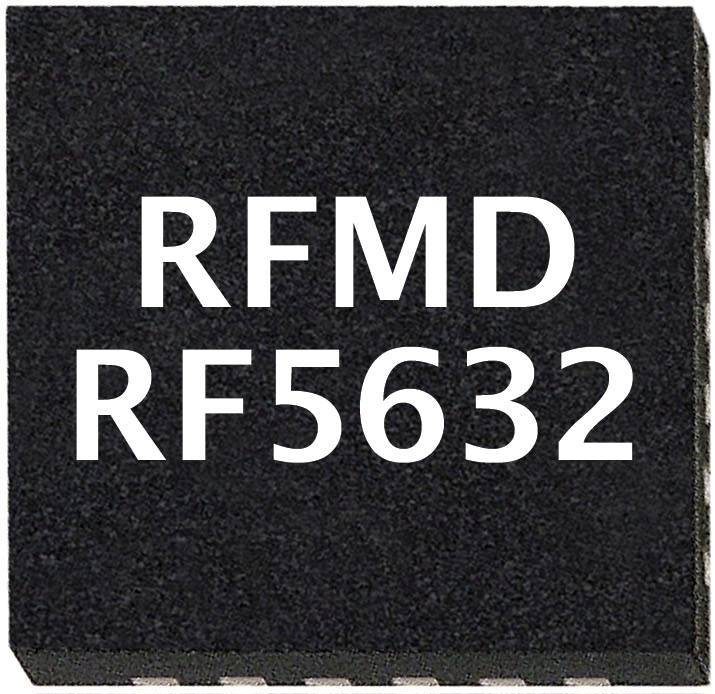

Dec 03, 2010 Supplied in 4 x 4 mm QFN package, RF5632 is 2.3-2.7 GHz power amplifier IC that integrates 3-stage PA and power detector, operates from 5 V supply, and is optimized for WiMAX systems. Fully DC and RF tested unit delivers EVM of 2.5% and meets/exceeds WiMAX and LTE spectral mask requirements with an output power of 28 dBm in 2.3-2.4, 2.4-2.5, and 2.5-2.7 GHz ranges. Additional features include internal input and inter-stage matching as well as InGaP HBT semiconductor technology.

Linear Technology Corp.    Milpitas, CA 95035

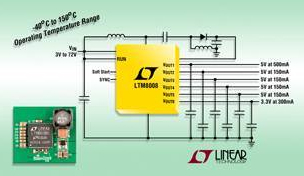

Dec 03, 2010 Supplied in 15 x 15 x 2.82 mm LGA package, LTM8008 DC/DC µModule® regulator operates from -40 to +150°C and addresses point-of-load voltage regulation for automotive, defense, and avionics industries. It regulates 3-72 V input supply to 5.6 V output with onboard SEPIC converter with buck and boost conversion capability. Six integrated linear regulators generate five 5 V rails and one 3.3 V rail with output currents from 150-500 mA. Operating frequency is programmable from 100 kHz to 1 MHz.

Birchwood Casey    Eden Prairie, MN 55344 2138
Dec 03, 2010 Utilizing Ion Exchange technology to purify and recycle rinse waters, TRU TEMP® System provides closed-loop, zero-discharge installation, eliminating need for drain connection. System operates at 200°F to avoid hazards of boiling tank and is safe to install in any area of plant. In 30 minutes, system forms .00020 in. thick black magnetite finish. TRU TEMP 100-gallon line utilizes 7 individual tanks, each measuring 24 x 40 x 28 in., and can process up to 4,000 lb of work/shift.

Ergodyne Corp.    St. Paul, MN 55108

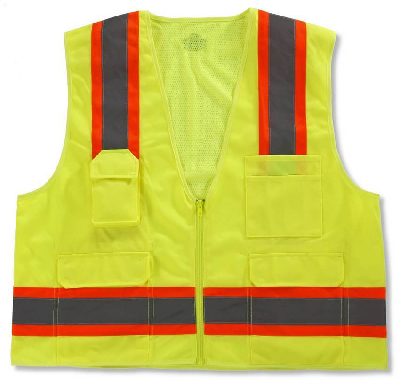

Dec 03, 2010 Designed with solid front for durability and mesh back for breathability, GloWear® 8248Z Class 2 Two-Tone Surveyors Vest includes 2 inside pockets and 4 outside pockets, enabling workers to store cell phones, radios, pens, and pencils. Vest has zipper closure and 2 in. Level 2 ANSI-compliant tape set on 3.5 in. contrasting color background. Available in Lime and Orange, vest comes in S/M, L/XL, 2X/3XL, and 4X/5XL sizes.

Allegro Microsystems    Walton-On-Thames S KT12 2TD  United Kingdom

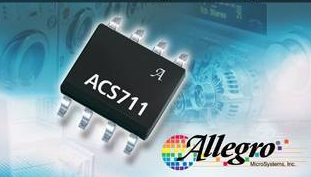

Dec 03, 2010 Hall-effect linear current sensor IC withstands up to 5x overcurrent and supports AC or DC current sensing in low-voltage audio, communications systems, white goods, and automotive applications. Product accuracy is optimized through close proximity of magnetic signal to Hall transducer, and internal resistance of conductive path is 1.2 mW, providing non-intrusive measurement interface. Contained in SMT SOIC8 package, unit is compatible with Pb-free PCB assembly processes.

Donaldson Australasia Pty Ltd    Wyong   Australia
Dec 03, 2010 Supplied in metal housing with electronic level controlled condensate drain and dew point indicator, Buran dryers refrigerate compressed air to consequently prevent condensation and corrosion damage. Aluminum heat exchanger includes functions for air to air heat exchanger, refrigerants to air heat exchanger, and water separator. Suited for industrial areas where compressed air is used to run plant, systems offer control panel for at-a-glance monitoring of operating status.

Allen Engineering Corporation    Paragould, AR 72451
Dec 03, 2010 Intended for use by concrete finishers, Mechanical Super Pro (MSP) 445 combines features needed to pan through tough pours. Rider is powered by 40 hp, air-cooled Kohler gasoline engine and employs torque converter clutch system. Additional features include manual steering and pitch controls as well as two 46 in. dia, 5-blade, non-overlapping rotors rated to 165 rpm. Also included, electric powered spray system enables application of retardant.

TE Connectivity Ltd.    Berwyn, PA 19312

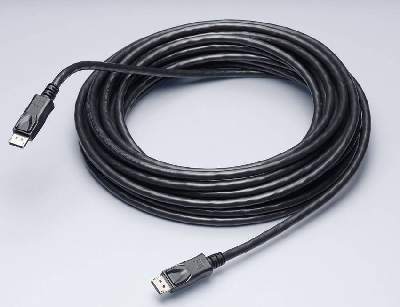

Dec 03, 2010 Compliant with DisplayPort(TM) v1.1a Reduced Bit Rate specification, Long-Reach Cable Assembly enables transmission of multimedia content from source device, such as graphic accelerator in PC, in high-definition format, to sink device such as projector or LCD TV, located up to 15 m away. DisplayPort specification defines next generation video/audio interface form factor and video/audio content transmission in high bit rate at 10.8 Gbps and RBR at 6.48 Gbps.

Tripp Lite    Chicago, IL 60609
Dec 03, 2010 Of its 6 AC outlets, TLP66RCG ECO-Surge Suppressor enables 4 to be turned on/off using 433 MHz RF keychain remote that has 50 ft range. This eliminates wasteful phantom loads that continue to consume electricity even when device appears to be turned off. Remaining outlets are 2 switched (always-on) receptacles for devices that require continuous power. With 6 unique codes, multiple surge suppressors can be controlled by single remote.

Select-Arc, Inc.    Fort Loramie, OH 45845-0259

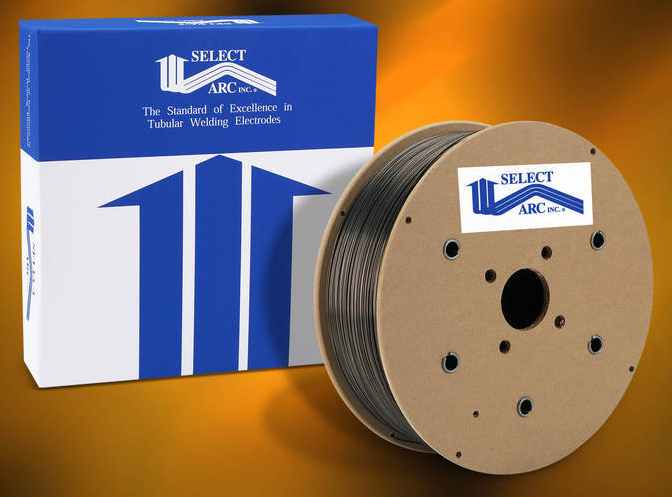

Dec 03, 2010 SelectAlloy 316LSi-C gas-shielded, metal cored, austenitic stainless steel electrode has augmented silicon content that improves bead wetting to produce cosmetically appealing weld. Product, composed of 19.5% chromium, 12.5% nickel, 2.5% molybdenum, and 0.8% silicon, has max carbon content of 0.03%. Molybdenum promotes resistance to pitting and creep, while degree of carbon content minimizes carbide precipitation while increasing intergranular corrosion resistance.

Riegl USA, Inc.    Orlando, FL 32819
Dec 03, 2010 Using narrow infrared laser beam, Model VZ-1000 provides non-contact data acquisition for ranges up to 1,400 m. Laser ranging is based on echo digitization and online waveform processing, which achieves optimal measurement capability, even under adverse atmospheric conditions and evaluation of multiple target echoes. Consisting of fast rotating multi-facet polygonal mirror, line scanning mechanism provides fully linear, unidirectional, and parallel scan lines.

Kontron    Poway, CA 92064

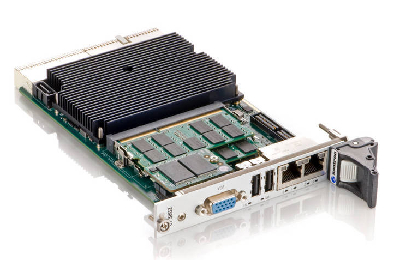

Dec 03, 2010 With 2.53 GHz Intel® Core(TM) i7-610E and LV 2.0 GHz Intel® Core(TM) i7-620LE processor, 3U Model CP3002 accelerates multiprocessing tasks via hyper-threading technology, and processes single-threaded tasks using Intel® Turbo Boost technology. Board features up to 8 GB DDR3 1,066 MHz ECC-protected memory on 2 SODIMM sockets, and offers 1x VGA, 2x USB 2.0, and 2x Gigabit Ethernet ports on front panel. For data storage, board supports 2.5 in. SATA hard drive or SSD and CFast socket.

SDP/SI (Stock Drive Products/Sterling Inst)    New Hyde Park, NY 11042 5416
Dec 03, 2010 Comprising 36 gearheads, S9160AMRTX... and S9190AMRTX...Series are both offered in standard NEMA sizes 60 and 90 and feature single, double, and triple gear stage configurations with respective minimum efficiencies of 95%, 90%, and 85%. Each size is offered in gear ratios from 4:1 to 700:1 and has max input speed of 6,500 rpm. Regarding construction materials, housings are of stainless steel, output shafts are of stainless steel, and gears are of alloy and stainless steel.

Dwyer Instruments, Inc.    Michigan City, IN 46361

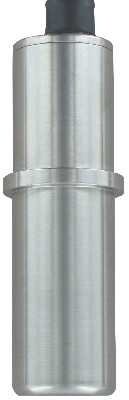

Dec 03, 2010 Designed to install in virtually any pipe without obstruction of pipe diameter, Series TDMT is completely encapsulated in epoxy resin and is vibration and shock resistant. Unit is available in 1 in. size with 1 in. NPT union nut or 1¼ in. size with 1¼ in. union nut. Extensions are available for pipe sizes up to 10 in. diameter. Operating according to calorimetric principle, stainless steel analog flow meter provides minimum flow range of 0-0.66 ft/sec and max flow range of 0-13.12 ft/sec.

BLM Group USA    Wixom, MI 48393
Dec 03, 2010 Able to perform left and right hand bends, conventional and variable radius bends, as well as multi-radius, tight, and compound bends, 12-axis SMART(TM) Tube Bending Machine provides accuracy of ±0.00196 in. in X axis and ±0.05° in Y and Z axes. Multi-tool stack bender can be fitted with automatic load/unload units for extended periods of untended operation. Providing real-time simulation of bending operation, 3D graphical programming software automatically corrects for possible collision points.

Sunstone Engineering R&D Corporation    Payson, UT 84651
Dec 03, 2010 Occupying less than ½ ft² of table top space, Orion Pulse combines micro-tig welding technology and nano-scale weld energies. UI mounts to 3d microscope arm and includes 9 in. touchscreen that provides one-touch access to every weld parameter. MyWeld(TM) management software, included, automatically adjusts weld parameters based on metal type or weld application. Via slider power bar, weld energy can be adjusted anywhere from 0.10-200 or 250 J depending on model.

Waters Corp.    Milford, MA 01757
Dec 03, 2010 Waters® Empower(TM) 3 Chromatography Data System is scalable platform that eases navigation between review and reporting applications and lets users create sample sets post acquisition. Product can determine regional signal-to-noise requirements for U.S., EU, and Japan. ACQUITY® column usage information, such as column name, serial number, number of injections on column, maximum pressure, and maximum temperature, is tracked for each sample set, and on rolling basis for access to trending data.

DST International Ltd.    Boston, MA 02210
Dec 03, 2010 Featuring embedded outbound communications capabilities, AWD10 allows clients to generate correspondence interactively, design and execute communication process flows, manage content libraries, and deliver communications via print, fax, email, or SMS. Software enables companies to build communications directly into business processes, as well as route and manage work across organizations and automate customer service operations.
