Zoneworks    Milwaukee, WI 53223
Dec 09, 2010 Made of industrial fabric that surrounds multiple layers of recyclable, anti-microbial polyester batting, Zoneworks® Insulated DOOR BLANKET protects temperature-controlled items from threat of spoilage or irreparable damage that occurs when powered doors on coolers or freezers shut down. Product is custom-designed to fit each individual door opening, and eliminates exchange of air when door will not close for any reason, including loss of electrical power to facility.

ERICO    Solon, OH 44139-2631
Dec 09, 2010 With working voltage of 1,000 Vac to 1,500 Vdc per IEC and 600 V per UL, ERIFLEX® TDL 250/400 A Distribution Blocks feature tinned copper bar, reinforced plastic parts, and large end terminals that ensure secure connections. Units withstand short circuits up to 51 KA. Rated IP10, hand-safe blocks enable wiring from both sides as well as visual inspection of wire and confirmation of connection.

Baumer Ltd.    Southington, CT 06489 1534

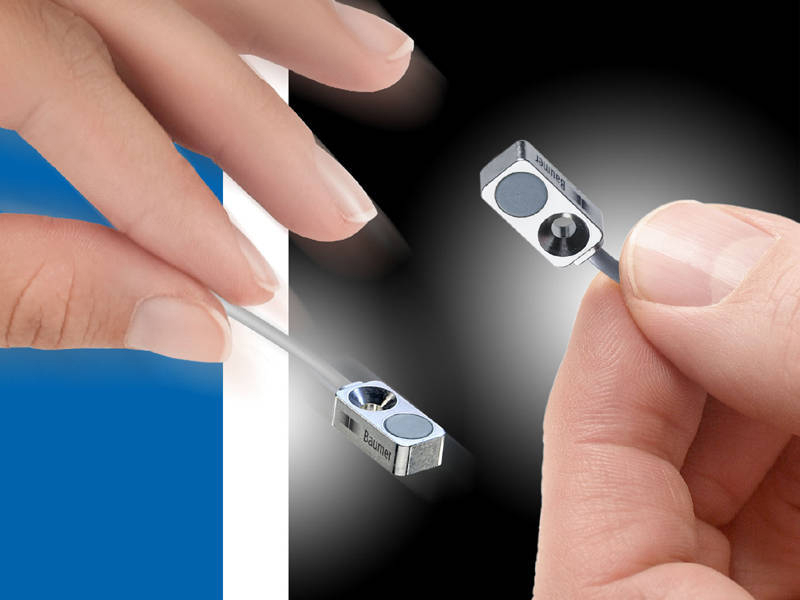

Dec 09, 2010 Measuring 4.7 x 8 x 16 mm, IWFM 08 Series of Inductive Sensors offer resolutions of less than 0.001 mm at sensing distances up to 2 mm. They feature 0-10 V output, allowing them to be directly connected to analog outputs of control system. Units mount in restricted spaces, are IP67-rated, and have die-cast zinc/nickel-plated housings that prevent damage during installation and operation. Various factory automation and assembly/handling applications are supported.

Data Device Corp. (DDC)    Bohemia, NY 11716-2482

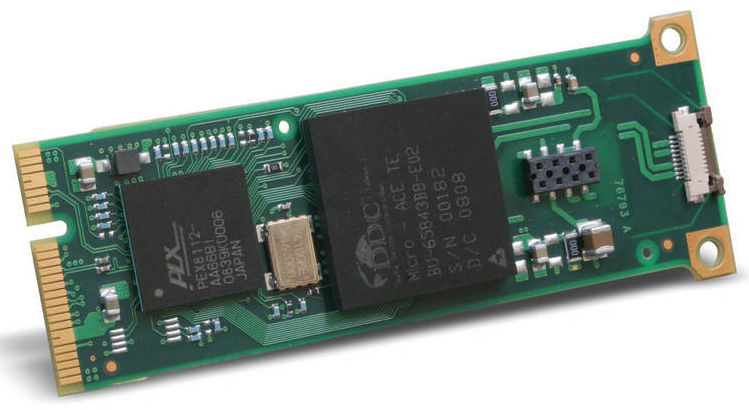

Dec 09, 2010 Providing reliable bus interface, BU-65586H1 board facilitates addition of dual redundant MIL-STD-1553 channel to any small embedded system, rugged laptop, or rugged tablet computer. Complete hardware and software solution, intended for embedded and rugged portable applications, connects MIL-STD-1553 to PCI-e x1 lane bus via edge connector for ease of use in systems with Mini-PCIe slot.

Sheldon Mfg. Inc.    Cornelius, OR 97113 8507
Dec 09, 2010 Featuring wide temperature and humidity range, HC6 Environmental Humidity Chamber incorporates air-jacket design that evenly disperses air within walls to maintain uniformity and ensure proper insulation. Product includes microprocessor based PID controllers, stainless steel chamber, and steam generator. Integrated dual display of temperature and humidity allows instant access to set point and operating conditions, while digital countdown timer displays time remaining in test procedure.

BEI Kimco Magnetics    Vista, CA 92081

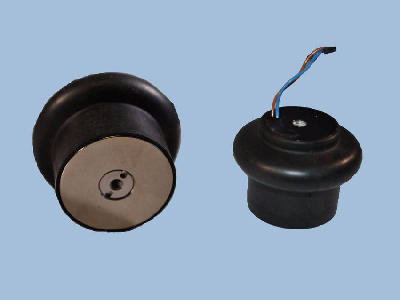

Dec 09, 2010 Housed in IP64 sealed package that is impervious to water splashes and other fluids, Model LA13-13 provides continuous operation under highly contaminated conditions. Unit incorporates rubber bellow with contoured design that attaches to both actuator coil and assembly and allows free actuator movement. Measuring 33.5 mm OD x 28.45 mm in length, Model LA13-13 provides peak force of 16.7 N, total stroke of 6.36 mm, and actuator constant of 2.47 N/sq rt(W).

Laservision    Bellevue, WA 98004
Dec 09, 2010 Suited for use during service, maintenance, or demonstration of laser systems, Laser Safety Roll-Up Barrier meets need for portable and flexible large area laser protection. Multi-layer system consists of glass fiber woven tissue, aluminum foil, and surface based on polyurethane. Measuring 37 x 78 in., self-supporting, free-standing barrier provides max irradiance level of 500 W/cm² and max exposure time of 100 seconds.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada
Dec 09, 2010 With 8:1 input range of 7-60 Vdc, AMLD-Z Series provides constant output currents from 150-1,000 mA, generating 6-48 W of power to maintain constant color and brightness required by demanding LED applications. Units include remote On/Off control in addition to PWM and analog voltage dimming control from 0-100%. Open and short circuit protection works continuously until short circuit condition is resolved. Housed in DIP24 package, drivers operate from -40 to +85°C at full load.

Lancope    Alpharetta, GA Georgia 30022
Dec 09, 2010 Suited for healthcare institutions, government agencies, and retailers, StealthWatch FlowSensor 250 appliance enables Layer 7 application monitoring to maximize network visibility into branch offices and remote locations. By gathering packet-level metrics to monitor all network communications, appliance cuts mean-time-to-know for identifying and troubleshooting network issues. StealthWatch provides borderless network visibility to isolate root cause and restore performance.

Elecsys Corporation    Olathe,, KS 66061
Dec 09, 2010 Watchdog VIP includes Elecsys Watchdog Web Monitor that allows secure access to measurements and provides web-based remote control of measurement ranges, configurations, and alarm notification settings. Product features 4 configurable analog inputs, one digital input, and AC power detection probe. Deployable worldwide, it communicates via quad-band GSM/GPRS cellular telemetry or Inmarsat global satellite system and suits corrosion protection monitoring applications.

Aimtec, Inc.    Dollard Des Ormeaux, QC H9G3B9  Canada
Dec 09, 2010 With input ranges from 4.75-18 Vdc to 8-18 Vdc, Series AMSR1.5-78-NZ and AMSR2-78-NZ provide regulated output from 2.5-6 Vdc. Maximum output currents of 1.5 or 2 A are produced at efficiency rates up to 93%. Units include continuous short circuit protection, output current limiting, and thermal shutdown. Housed in 11.50 x 8.90 x 17.50 mm SIP3 package, regulators operate continuously at full load without derating below +71°C, within ambient temperature range of -40 to +85°C.

Exar Corp.    Fremont, CA 94538
Dec 09, 2010 In enterprise applications, Express DX 1845 offloads tasks from host microprocessor to free up cycles to be applied to application workload or reduce type/number of required microprocessors. Single-pass hardware architecture allows simultaneous encryption, hashing, and compression of data in either packet or block form. Consuming less than 14 W, this half-height x8 PCIe 2 add-in card provides up to 3.2 GBps encryption and/or compression throughput.

Rhino Linings USA    San Diego, CA 92121
Dec 09, 2010 Rhino(TM) Eco-Coat(TM) helps to reflect sunlight off roof and to improve energy efficiency of building. Aromatic, zero VOC, spray-applied coating for commercial and industrial roofs contains UV stabilizers and leafing aluminum pigment for UV stability. High tensile strength and abrasion resistance enables 2-component product to resist hail, mechanical impact, and pest infestations. It can be used as top coat over Rhino(TM) SPF or as coating for primed metal or concrete roofs.

National Instruments Corp.    Austin, TX 78759-3504
Dec 09, 2010 Promoting flexibility when building source code, LabWindows(TM)/CVI 2010 lets ANSI C developers customize project build options beyond debug/release and 32-/64-bit predefined configurations. Developers can attach LabWindows/CVI debugger to running process for insight into application failures/crashes. Additional feature aids configuration of multiple UI controls, while LabWindows/CVI developers can create host applications to communicate with FPGA technologies using FPGA-Interface C API.

National Instruments Corp.    Austin, TX 78759-3504
Dec 09, 2010 Offering support for Microsoft Visual Studio 2010 .NET, Measurement Studio 2010 provides tools for data acquisition, signal processing, analysis, and visualization. Developers can create Windows forms and web forms applications using code generation assistants and managed .NET APIs. Utilizing color to display 3D data on 2D plot area, Windows Forms .NET Intensity Graph enables UI developers to display pattern data and customize appearance using color mapping tools.

Radiometrix Ltd.    Watford Hertfordsh WD19 5EZ  United Kingdom
Dec 09, 2010 Utilizing pan-European 869.4-869.65 MHz allocation, Model FPX3-869-20 offers ½ W RF power output in 67 x 30 x 12 mm footprint. Receiver circuits, featuring -115 dBm sensitivity and 80 dB blocking, enable adaptable data link transceiver to achieve range of over 3 km. Basic 20 kbps module operates on 1 of 2 user-selectable channels and features Rx-to-Tx switching time under 3 msec. Requiring +5 V supply, module draws 50 mA in receive and under 450 mA in transmit.

Spirax Sarco, Inc.    Blythewood, SC 29016
Dec 09, 2010 Consuming approximately 1% of air used by traditional electropneumatic positioners, Model SP400 and SP500 help save on controller power. Model SP400 offers simple menu and can perform auto-stroke calibration at press of single button. For those requiring more functionality, Model SP500 offers optional retransmission of valve position and ability to use separate 24 Vdc power supply. Unit includes software switches, communications protocols, and diagnostics.

Comdel, Inc.    Gloucester, MA 01930
Dec 09, 2010 Arc Detect Fast Shutdown provides shutdown of RF to minimize arc damage within CPMX matching networks and CX power supplies. Specifically, 1.5 µsec latching fast shutdown located in power supply interfaces with arc detect circuit in matching network, allowing automatic fast shutdown of RF during arc condition to minimize damage on end-user tooling and product. Integrated system promotes product yield while also protecting process equipment.

Synopsys, Inc.    Mountain View, CA 94043 4033
Dec 09, 2010 DesignWare® IP for Mobile Industry Processor Interface (MIPI®) Display Serial Interface (DSI) Host Controller enables designers to incorporate display subsystems into mobile devices through standard interface. It can support up to 4 data lanes at speeds of up to 1 Gbps of data/lane. Supporting resolutions from 160 x 120 to 1,024 x 768, with configurable virtual channels, unit interfaces to MIPI D-PHY through PHY Protocol Interface and is compliant to various MIPI Alliance specifications.

DST Systems, Inc.    Kansas City, MO 64105
Dec 09, 2010 Providing suite of hosted software services, Electronic File Solution helps companies manage storage, security, retrieval, and retention of business records. Suite offers integration with document management systems, consolidation of documents from legacy systems, and complete paper-to-digital conversion and classification. Providing secure 24 x 7 web access, SaaS supports litigation holds and eDiscovery, and includes customizable index identifiers to meet individual business requirements.
