LIMO    Dortmund   Germany
Jan 20, 2011 Featuring continuous profile, Diffractive Beam Splitter eliminates undesirable ghost beam effects, enabling efficiency of 95-97%. Large beam angles are possible, depending on design of beam splitter, and split beams can be focused by means of optional lenses. Available in materials such as fused silica or CaF2, splitter is most suitable for solid-state lasers with wavelength of 355, 532, and 1,064 nm.

Electro Standards Laboratories    Cranston, RI 02921 3403
Jan 19, 2011 With Model 4506 USB Type-A, A/B/C Switch, users can share up to 3 USB devices from one computer without disconnecting cables. Desktop unit can be controlled manually via front panel pushbutton or remotely from RS232 serial port via ASCII commands. Housed in anodized aluminum enclosure that provides EMI/RFI shielding, switch maintains last set position on power loss while continuing to pass data.

GAO RFID Asset Tracking    Toronto M1B 2K4  Canada
Jan 19, 2011 Designed to read and write Mifare 1 tags, 13.56 MHz Model 223001 features built-in, omni-directional antenna with max read distance of 3 cm. Unit is powered via Compact Flash connector, is compliant with ISO 14443A standard, and has CE and FCC technical certifications. High-frequency reader is suited for close proximity applications, including logistics, guard patrol tour, time and attendance tracking, ticketing, and access control.

Spectra-Physics, Inc.    Mountain View, CA 94043

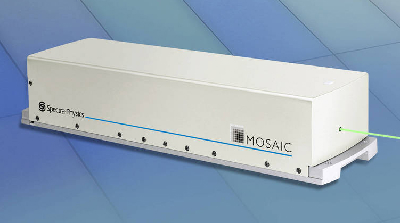

Jan 19, 2011 Combining head and power supply in single package, Mosaic(TM) 532-11 integrates into machine tools and onto gantry systems. Unit has short pulse widths of less than 15 ns and can operate at high repetition rates while minimizing undesirable thermal effects. Featuring near- and far-field beam-pointing stability as well as pulse-to-pulse stability, laser is suited for microelectronics and photovoltaics manufacturing as well as other processes that require 24/7 operation.

4Front Engineered Solutions, Inc.    Carrollton,, TX 75006
Jan 19, 2011 From one interface, 4SIGHT(TM) enables monitoring, scheduling, and communication of trailer movement, load assignment, and loading dock status. Bridging of warehousing and transportation functionality alleviates logistics issues, while combination of RFID, GPS, and sensor technologies provides real-time yard and loading dock visibility. Also, event management capabilities and alert notifications reduce labor associated with moving and managing yard assets.

Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245

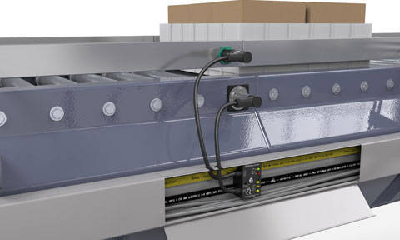

Jan 19, 2011 Measuring 40 x 27 x 22 mm, G10 Series Ultra-Compact I/O Modules feature IP68/69K protection and fit into any cable duct, enabling sensor connections using integrated M12 pigtails. Single-piece housing utilizes hinged cover design, which ensures reliable contact to AS-Interface flat cable and typically eliminates additional mounting requirements. Sensors are powered from yellow AS-Interface cable, and continuous output current up to 1 A can be supplied from AUX power.

GAO Tek Inc.    Toronto M1B2K4  Canada
Jan 19, 2011 Model 6416 with TFT LCD locates optical fiber faults; measures fiber's length, transmission, and splice loss; and performs visible fault location. Suited for fiber optic communication systems, it offers maximum distance range of 256 km, resolution of 0.25 m, and memory capacity of 800 traces, and also features 65535 sampling points. Included dual USB interfaces support both USB stick and direct cable download to computer. Device operates for more than 10 hr on single charge.

Daimer Industries Inc    Woburn, MA 01801
Jan 19, 2011 Ultra KleenJet® 10200 series is engineered for disinfecting applications in institutions where MRSA germs are known to be a threat. Supporting pressures to 150 psi and temperatures to 386°F, each model integrates EPA-compliant ATIS® disinfecting subsystem into its boiler. Lines include 10226 CP (22,000 W), 10296 CP (29,000 W), and 10256 CVP (25,000 W), with latter featuring commercial wet dry extraction system. Each line includes one 3-phase 400, 480, and 600 V machine.

Arbor Technology Corp.      Taiwan

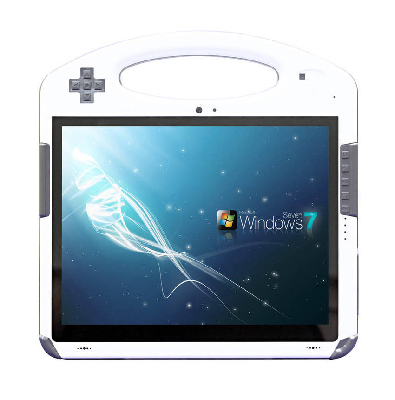

Jan 19, 2011 Based on 1.6 GHz Intel Atom N450 processor and ICH8M chipset, Model M1040 supports DDR2-667 SO-DIMM system memory up to 2 GB. Unit's 10.4 in. touch panel can support resistive touch as well as electromagnetic digitizer. Available with 120 GB SATA HDD or 32 GB SSD, system integrates with many devices for data retrieval such as 2D barcode scanner, smart card reader, RFID reader, and 2 CMOS cameras. Connectivity options include Bluetooth, Ethernet, Wi-Fi, and 3.75G HSUPA.

Ophir-Spiricon Inc.    Logan, UT 84321
Jan 19, 2011 Designed for lasers with less than 1 µs pulses, PF Sensors absorb laser's energy in volume of material being used. Units make use of spray deposited on surface rather than typical glass or ceramic substrate. Since absorbers consist of layer and not solid surface, units handle up to 20 x power density and offer response times of 1 s. Four models are available for various continuous and intermittent powers.

Binder-USA, LP    Camarillo, CA 93012

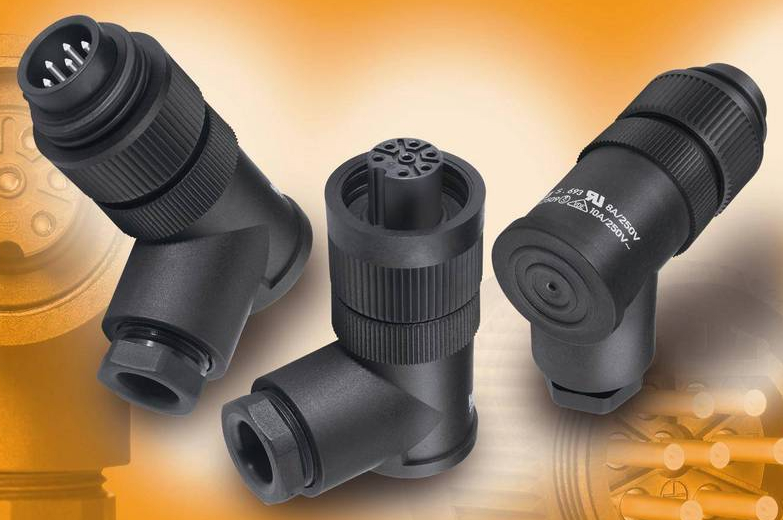

Jan 19, 2011 Suited for industrial power applications, RD24 Series 692 and 693 right-angle connectors are available with PG11 and PG 13.5 cable outlets. All Series 692 and UL-approved 693 connectors are offered with 3+PE or 6+PE silver contacts. Screw clamp termination is available for 3+PE versions, while screw clamp, solder, or crimp termination are available for 6+PE versions. Products carry ratings that include up to 16 A per contact and up to 600 V for UL versions.

National Semiconductor Corp.    Santa Clara, CA 95051-0695

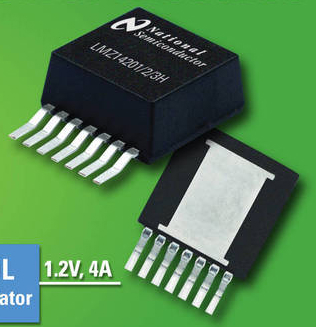

Jan 19, 2011 Designed to drive loads from 1-3 A, SIMPLE SWITCHER® LMZ14201H, LMZ14202H, and LMZ14203H combine efficiency of synchronous switching regulator with simplicity of linear regulator. Design with integrated, EMI-shielded inductor and up to 97% efficiency eliminates external inductor and complex layout placement challenges. Modules accept input voltage rail from 6-42 V and deliver adjustable output voltage to 24 V. To promote flexible design, single resistor adjusts switching frequency.

Dwyer Instruments, Inc.    Michigan City, IN 46361

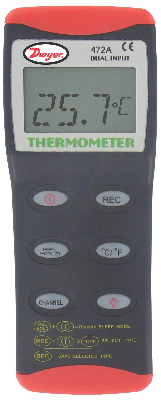

Jan 19, 2011 Providing up to 2 temperature measurements simultaneously, Model 472A-1 includes large LCD that can show both temperature inputs or one temperature input and differential temperature. Measurement ranges for J-, K-, and T-type thermocouples are -328 to 1,400°F, -328 to 2,498°F, and -328 to 734°F, respectively. In addition to built-in back light, device includes hold button for freezing displayed temperature data and ability to record min/max readings over set time period.

Halder, Inc.    Waukesha, WI 53186
Jan 19, 2011 Available in 5 thread sizes from M4-M10, Press Fit Spring Plunger features both stainless steel and thermoplastic pin as well as stainless steel spring for maximum longevity. In addition to locating and tightening, plunger can be used as assembly support, detent, or shock absorber and for ejection and applying pressure.

Artila Electronics,. Co., Ltd    Taipei 231  Taiwan

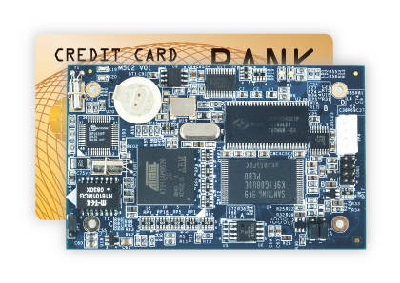

Jan 19, 2011 Based on 400 MHz ATMEL AT91SAM9G20 CPU with memory management unit, Model M-502 features 64 MB SDRAM, 128 MB NAND Flash, and 2 MB DATAFlash. System includes one 10/100 Mbps Ethernet, 2 USB 2.0 hosts, 4 UARTs with hardware/software flow control, and 32 programmable digital I/Os. Measuring 50 x 80 mm, Model M-502 consumes less than 2.5 W and is suited for intelligent transportation systems, building automation, energy-saving systems, and scenario control systems.

Electro Standards Laboratories    Cranston, RI 02921 3403

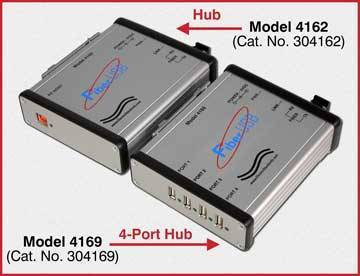

Jan 19, 2011 Fiber-to-USB converter/extender set is comprised of host unit models 4162 and 4162-DIN and 4-port hub models 4169 and 4169-DIN. USB 2.0-compliant data is converted from standard PC host interface over fiber to remote 4-port powered hub. Offered in desktop and DIN rail mounted configurations, units offer plug-and-play operability with support for Windows®, Mac OS®, Linux®, and all USB device types and up to 480 Mbps data transfer rate.

Extreme Engineering Solutions (X-ES)    Middleton, WI 53562

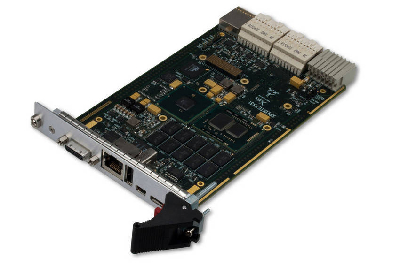

Jan 19, 2011 Based on Intel QM57 chipset and dual-core processor operating at 2.53, 2.0, or 1.06 GHz, XPedite7331 is suited for industrial control and test and measurement applications. Air-cooled, 3U SBC supports up to 8 GB DDR3-1066 ECC SDRAM on 2 channels, 16 GB user flash, and 32 MB redundant boot flash. For system flexibility, system has Gigabit Ethernet port and USB UART serial port. Operating system support packages include Wind River VxWorks, QNX Neutrino, Green Hills INTEGRITY, and Linux.

Michael Smith Engineers Ltd    Surrey   United Kingdom

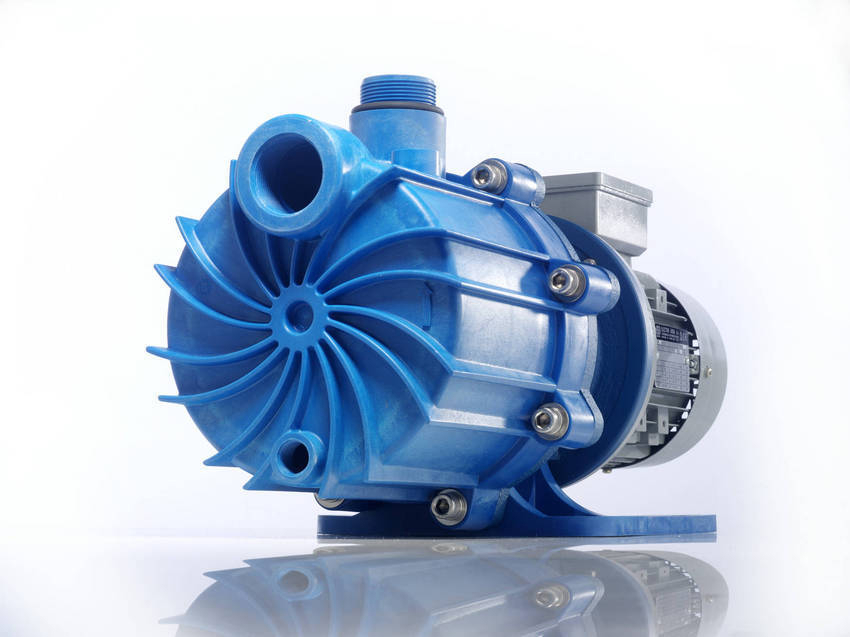

Jan 19, 2011 Model SP10 and SP22 magnetic drive centrifugal pumps offer max flow rates of 12 and 45 m³/hr respectively and max discharge heads of 13 and 37 m. Units have lift capabilities up to 7.6 m and can prime 5.5 m in 90 sec. Offered in polypropylene and PVDF versions, max operating temperature is 82°C for polypropylene and 104°C for PVDF. Pumps can handle fluids with specific gravities up to 1.8, such as sulphuric acid and sodium and potassium hydroxide.

General Dynamics Corp.    Falls Church, VA 22042
Jan 19, 2011 Unified Cross Domain Management Office (UCDMO)-approved for use by U.S. government organizations, Trusted Network Environment (TNE®) v10 comprises suite of cross-domain information sharing software tools. Cyber security tool delivers MS Office® suite of software tools to promote intuitive operation and transitions users from Solaris® 8 to 10 OS. By using data-labeling technology to separate classified and unclassified data, users see only what their individual security profiles allow.

Unify VMSP Ltd    London   United Kingdom
Jan 19, 2011 Built on Global Mobile Operator Platform with Total Call Control via Intelligent Home Location Register, Unify VMSP lets subscribers operate in international destinations using completely uniform services. Mobile Virtual Network Operator (MVNO) can control subscribers in real-time on all networks whether or not they are Camel compliant, and Sim Controlled Calling lets mobile operators offer services in all GSM networks abroad using regular roaming agreements.
